ADF Web HD67872-A1-2A Manuel utilisateur
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
J1939
Document code: MN67872_ENG Revision 1. Page 1 of 38
User Manual
Revision 1.
English
IO-Link / J1939 - Converter
(Order Code: HD67872-A1-2A, HD67872-A1-4A,
HD67872-A1-2B, HD67872-A1-2A-2B)
for Website information:
www.adfweb.com/?Product=HD67872
for Price information:
www.adfweb.com/?Price=HD67872-A1-2A
www.adfweb.com/?Price=HD67872-A1-4A
www.adfweb.com/?Price=HD67872-A1-2B
www.adfweb.com/?Price=HD67872-A1-2A-2B
Benefits and Main Features:
Triple electrical isolation
Two Ethernet ports
Temperature range: -4 °C/+85°C (-4 °F/+185°F)
For others IO-Link devices, see also the following links:
IO-Link from/to …
www.adfweb.com?Product=HD6786 (Modbus Master)
www.adfweb.com?Product=HD67861 (Modbus lave)
www.adfweb.com?Product=HD67862 (Modbus TCP Master)
www.adfweb.com?Product=HD67863 (Modbus TCP lave)
www.adfweb.com?Product=HD67864 (BACnet Master)
www.adfweb.com?Product=HD67865 (BACnet lave)
www.adfweb.com?Product=HD67866 (CAN)
www.adfweb.com?Product=HD67867 (CANopen)
www.adfweb.com?Product=HD67868 (DeviceNet Master)
www.adfweb.com?Product=HD67869 (DeviceNet lave)
www.adfweb.com?Product=HD6787 (EtherNet/IP Master)
www.adfweb.com?Product=HD67871 (EtherNet/IP lave)
www.adfweb.com?Product=HD67873 (MQTT)
www.adfweb.com?Product=HD67874 (NMEA0183)
www.adfweb.com?Product=HD67875 (NMEA2000)
www.adfweb.com?Product=HD67876 (PROFINET lave)
www.adfweb.com?Product=HD67877 ( NMP Manager)
www.adfweb.com?Product=HD67878 ( NMP Agent)
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67876
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
User
Manual
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
J1939
Document code: MN67872_ENG Revision 1. Page 2 of 38
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 9
CONFIGURATION 9
POWER SUPPLY 1
FUNCTION MODES 11
LEDS 12
IO-LINK 13
AUX POWER SUPPLY 14
ETHERNET 15
CAN 16
USE OF COMPOSITOR SW67872 17
NEW PROJECT / OPEN PROJECT 18
SOFTWARE OPTIONS 19
SET COMMUNICATION 21
IO-LINK SET ACCESS 22
RECEIVE FRAMES 31
SEND FRAMES 32
UPDATE DEVICE 33
MECHANICAL DIMENSIONS 35
ORDERING INFORMATIONS 36
ACCESSORIES 36
DISCLAIMER 37
OTHER REGULATIONS AND STANDARDS 37
WARRANTIES AND TECHNICAL SUPPORT 38
RETURN POLICY 38
Pagina 2 di 38
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVI ION LI T:
Revision
Date Author
Chapter
Description
1. 13/ 3/2 2 Ff All First release version
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARK :
All trademarks mentioned in this document belong to their respective
owners.
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
J1939
Document code: MN67872_ENG Revision 1. Page 3 of 38
ECURITY ALERT:
G
ENERAL
I
NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I
NTENDED
U
E
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q
UALIFIED
P
ER ONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R
E IDUAL
R
I K
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE
CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
J1939
Document code: MN67872_ENG Revision 1. Page 4 of 38

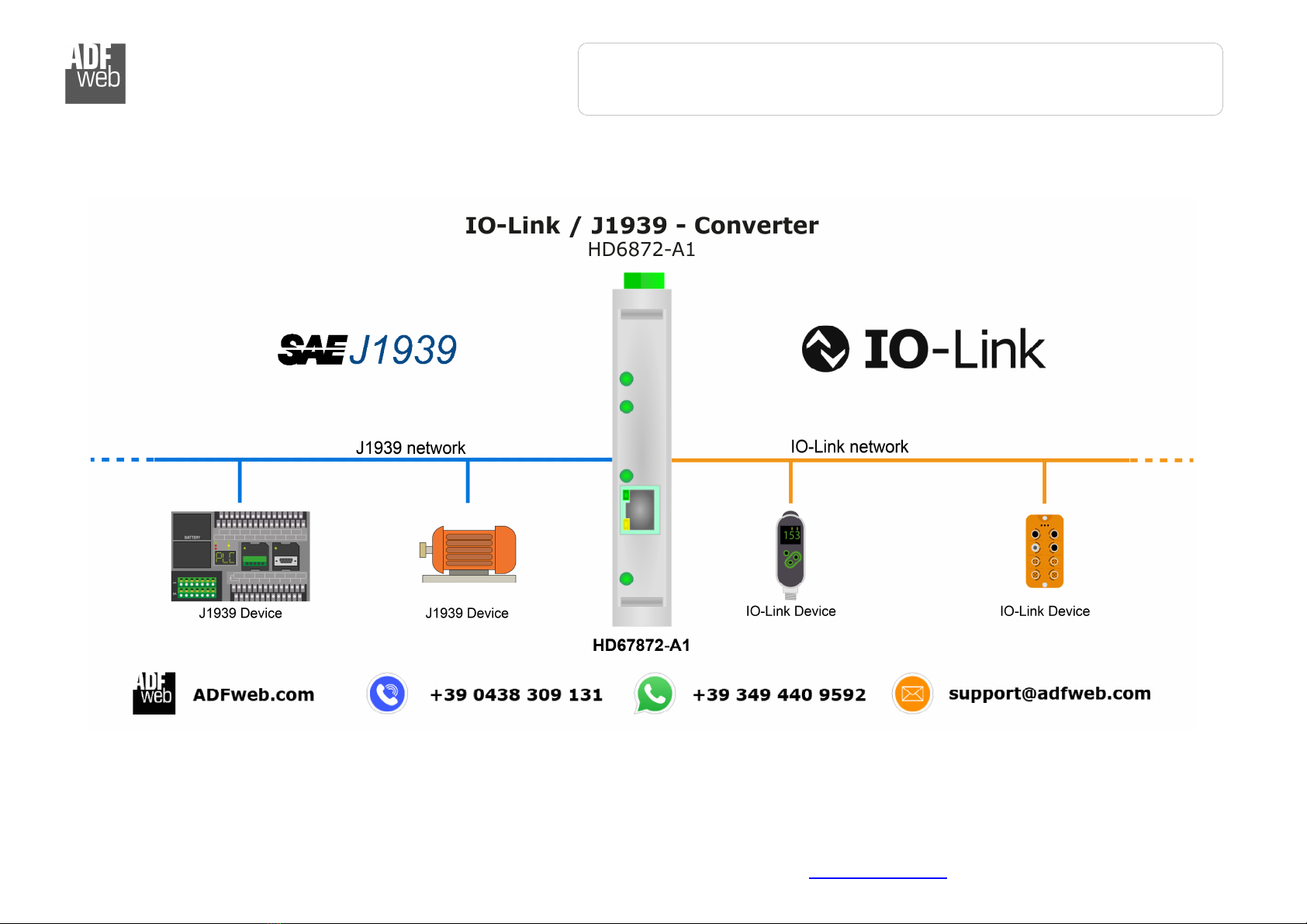

EXAMPLE OF CONNECTION:
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
J1939
Document code: MN67872_ENG Revision 1. Page 5 of 38

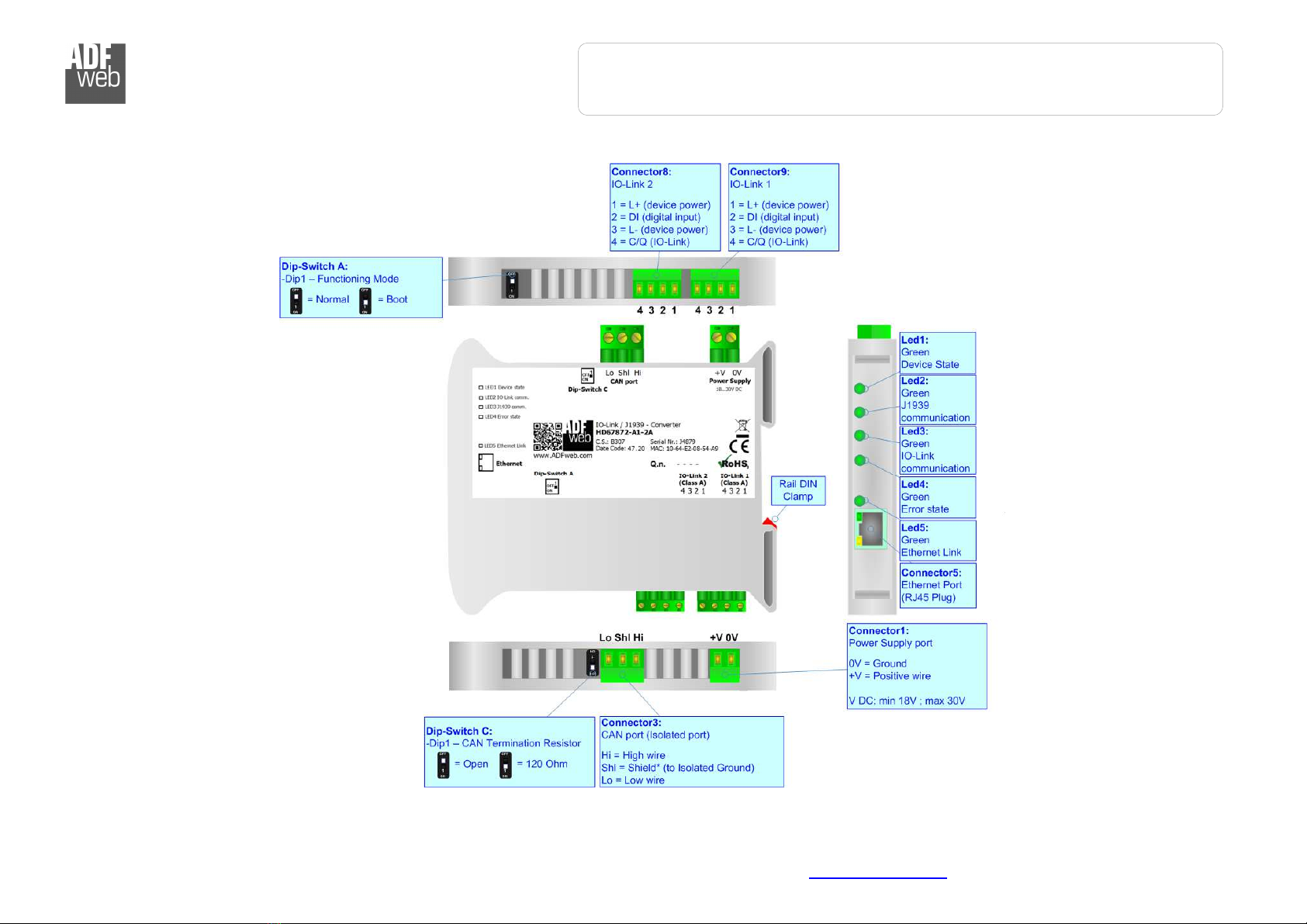

CONNECTION CHEME:
Figure
1
a
: Connection scheme for HD67
8
72
-
A1
-
2A
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
J1939
Document code: MN67872_ENG Revision 1. Page 6 of 38

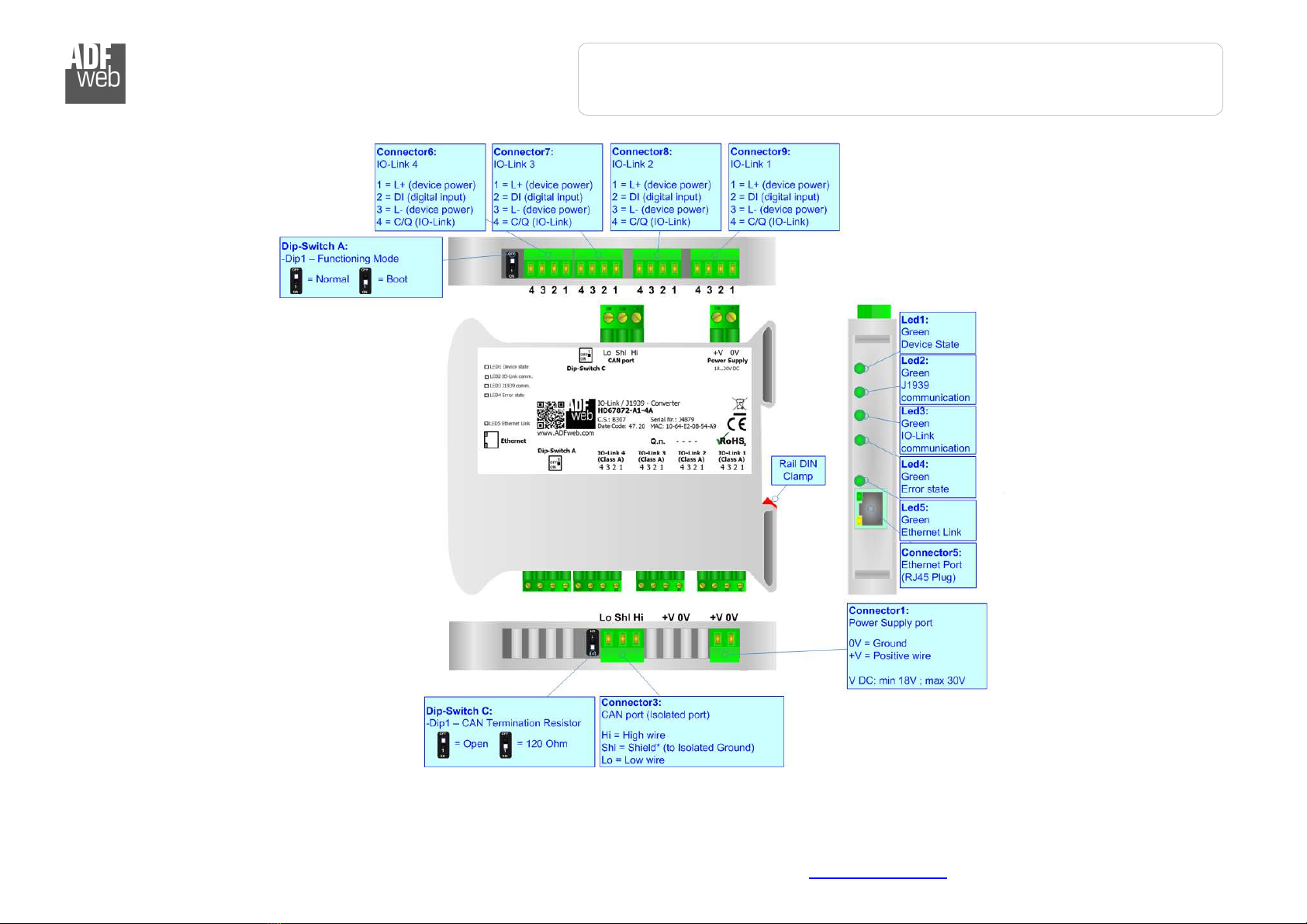

Figure
1
b
: Connection scheme for HD67
872
-
A1
-
4A
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
J1939
Document code: MN67872_ENG Revision 1. Page 7 of 38

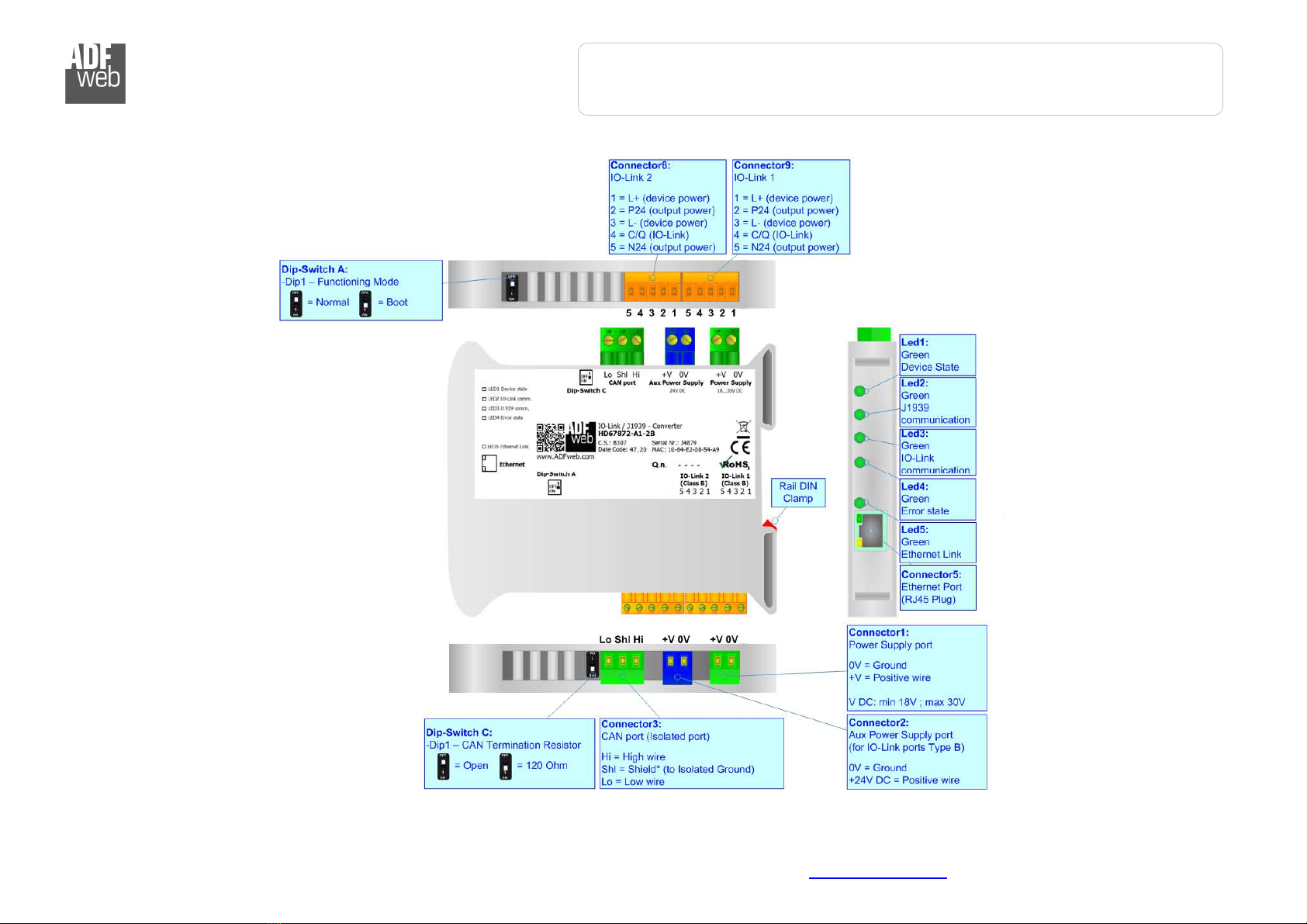

Figure
1
c
: Connection scheme for HD67
8
72
-
A1
-
2B
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
J1939
Document code: MN67872_ENG Revision 1. Page 8 of 38

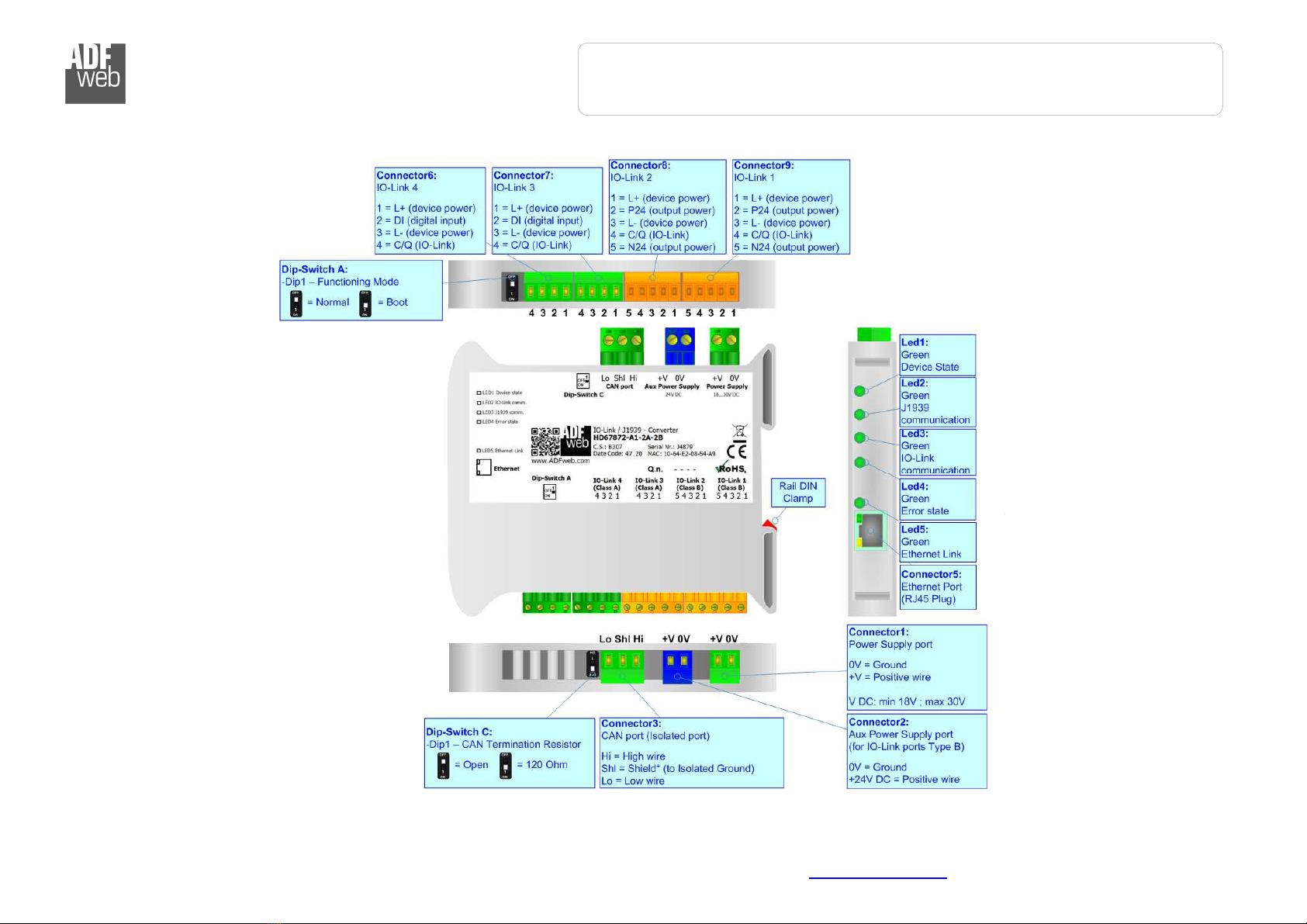

Figure
1
d
: Connection scheme for HD67
8
72
-
A1
-
2A
-
2B
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
J1939
Document code: MN67872_ENG Revision 1. Page 9 of 38
CHARACTERI TIC :
The HD67872-A1 is a IO-Link / J1939 converter.
It allows the following characteristics:
Up to 15 bytes in reading and 15 bytes in writing;
Two-directional information between J1939 and IO-Link;
Mountable on 35mm Rail DIN;
Wide power supply input range: 18…3 V DC;
Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].
CONFIGURATION:
You need Compositor SW67872 software on your PC in order to perform the following:
Define the parameters of IO-Link;
Define the parameters of J1939;
Define IO-Link variables to be read by J1939 devices;
Define IO-Link variables to be written by J1939 devices;
Update the device.
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IO
-
Link /
J1939
Document code: MN67872_ENG Revision 1. Page 1 of 38

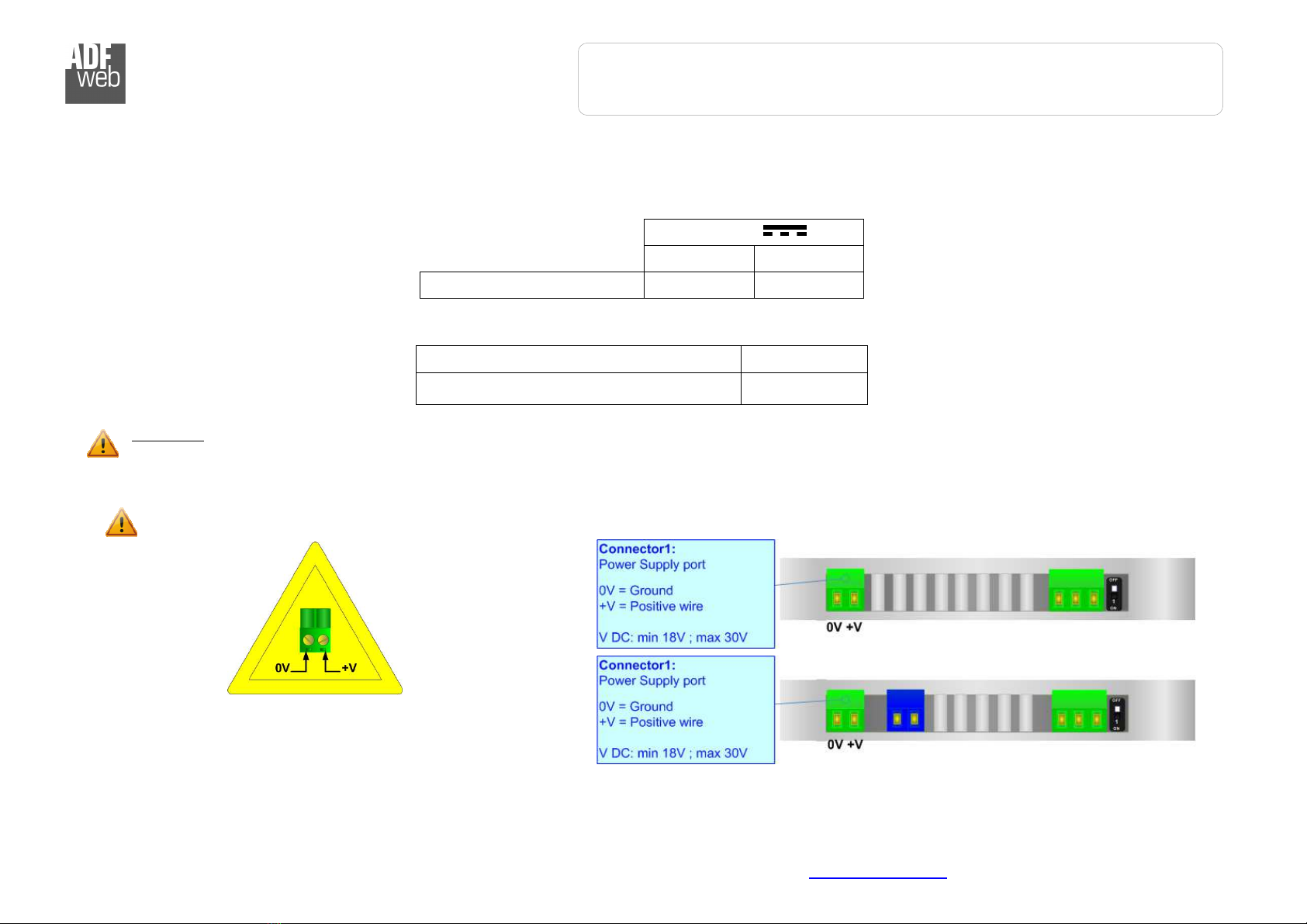

POWER UPPLY:
The devices can be powered between a wide range of tensions. For more details see the two tables below.
VDC
Vmin Vmax
HD67872-A1-xx 18V 30V
Consumption at 24V DC:
Device W/VA
HD67872-A1-xx 4
Warning:
It is necessary to add to this consumption the one required by the IO-Link devices connected to the IO-Link channels.
Caution: Not reverse the polarity power
HD67
8
72
-
A1
-
xx
