User Manual
IEC61850 Client /
Modbus TCP Slave
Document code: MN67766_ENG Revision 1.000 Pa e 1 of 28
User Manual
Revision 1.000
En lish
IEC61850 Client / Modbus TCP Slave -
Converter
(Order Code: HD67766-A1)
for Website information:
http://www.adfweb.com/?Product=HD67766
for Price information:
http://www.adfweb.com/?Price=HD67766-A1
Benefits and Main Features
Triple electrical isolation
Two Ethernet ports
Temperature ran e: -40°C/+85°C (-40°F/+185°F)
For others IEC61850 Client devices, see also the followin links:
IEC61850 Client from/to …
www.adfweb.com?Product=HD67765 (Modbus Slave)
www.adfweb.com?Product=HD67767 (BACnet Slave)
www.adfweb.com?Product=HD67768 (CAN)
www.adfweb.com?Product=HD67769 (CANopen)
www.adfweb.com?Product=HD67770 (DeviceNet Slave)
www.adfweb.com?Product=HD67771 (EtherNet/IP Slave)
www.adfweb.com?Product=HD67772 (J1939)
www.adfweb.com?Product=HD67773 (KNX)
www.adfweb.com?Product=HD67774 (MQTT)
www.adfweb.com?Product=HD67775 (NMEA0183)
www.adfweb.com?Product=HD67776 (NMEA2000)
www.adfweb.com?Product=HD67777 (PROFIBUS Slave)
www.adfweb.com?Product=HD67778 (PROFINET)
www.adfweb.com?Product=HD67779 (SNMP Agent)
Do you have an your customer protocol?
See the followin links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the followin link:
www.adfweb.com?Cmd=helpme
User Manual
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
Modbus TCP Slave
Document code: MN67766_ENG Revision 1.000 Pa e 2 of 28
INDEX
Pa e
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
ETHERNET 10
USE OF COMPOSITOR SW67766 11
NEW PROJECT / OPEN PROJECT 12
SOFTWARE OPTIONS 13
SET COMMUNICATION 15
IEC61850 ACCESS 16
UPDATE DEVICE 22
MODBUS MAP 24
MECHANICAL DIMENSIONS 25
ORDERING INFORMATIONS 26
ACCESSORIES 26
DISCLAIMER 27
OTHER REGULATIONS AND STANDARDS 27
WARRANTIES AND TECHNICAL SUPPORT 28
RETURN POLICY 28
Pagina 2 di 28
UPDATED DOCUMENTATION
Dear customer, we thank you for your attention and we remind you that
you need to check that the followin document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top ri ht-hand corner of each pa e of this document.
With this “Document Code” o to web pa e www.adfweb.com/download/
and search for the correspondin code on the pa e. Click on the proper
“Document Code” and download the updates.
REVISION LIST
Revision
Date Author
Chapter
Description
1.000 13/03/2019 Nv All First release version
WARNING
ADFweb.com reserves the ri ht to chan e information in this manual about
our product without warnin .
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS
All trademarks mentioned in this document belon to their respective
owners.
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
Modbus TCP Slave
Document code: MN67766_ENG Revision 1.000 Pa e 3 of 28
SECURITY ALERT
G
ENERAL
I
NFORMATION
To ensure safe operation, the device must be operated accordin to the instructions in the manual. When usin the device, le al and
safety re ulation are required for each individual application. The same applies also when usin accessories.
I
NTENDED
U
SE
Machines and systems must be desi ned so the faulty conditions do not lead to a dan erous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q
UALIFIED
P
ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissionin and operation of this equipment and
who have appropriate qualifications for their job.
R
ESIDUAL
R
ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the followin symbol:
This symbol indicates that non-observance of the safety instructions is a dan er for people that could lead to serious injury or
death and / or the possibility of dama e.
CE
CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or ive us a call if you need it.
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
Modbus TCP Slave
Document code: MN67766_ENG Revision 1.000 Pa e 4 of 28
EXAMPLE OF CONNECTION
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
Modbus TCP Slave
Document code: MN67766_ENG Revision 1.000 Pa e 5 of 28
CONNECTION SCHEME
Figure
1
: Connection scheme for HD67
766
-
A1
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
Modbus TCP Slave
Document code: MN67766_ENG Revision 1.000 Pa e 6 of 28
CHARACTERISTICS
The HD67766-A1 is a IEC61850 Client / Modbus TCP Slave converter.
It allows the followin characteristics:
Up to 1500 bytes in readin and 1500 bytes in writin ;
Two-directional information between Modbus TCP and IEC61850;
Mountable on 35mm Rail DIN;
Wide power supply input ran e: 8…24V AC or 12…35V DC;
Wide temperature ran e: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION
You need Compositor SW67766 software on your PC in order to perform the followin :
Define the parameters of the IEC61850;
Define the parameters of the Modbus TCP;
Define IEC61850 variables to be read by the Modbus master;
Define IEC61850 variables to be written by the Modbus master;
Update the device.
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
Modbus TCP Slave
Document code: MN67766_ENG Revision 1.000 Pa e 7 of 28
POWER SUPPLY
The devices can be powered between a wide ran e of tensions. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
HD67766-A1 8V 24V 12V 35V
Consumption at 24V DC:
Device W/VA
HD67766-A1 4
Caution Not reverse the polari
ty power
HD67766-A1
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
Modbus TCP Slave
Document code: MN67766_ENG Revision 1.000 Pa e 8 of 28
FUNCTION MODES
The device has ot two functions mode dependin of the position of the Dip1 of ‘Dip-Switch A’:
The first, with Dip1 in Off position (factory settin ), is used for the normal workin of the device.
The second, with Dip1 in On position, is used for upload the Project/Firmware.
For the operations to follow for the updatin (see ‘UPDATE DEVICE’ section).
Accordin to the functionin mode, the LEDs will have specifics functions (see ‘LEDS’ section).
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
Modbus TCP Slave
Document code: MN67766_ENG Revision 1.000 Pa e 9 of 28
LEDS
The device has ot six LEDs that are used to ive information of the functionin status.
The various meanin s of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: ON [supply volta e ]
( reen)
ON Device powered
OFF Device not powered
ON Device powered
OFF Device not powered
2: Device State ( reen) Blinks slowly (~1Hz) Blinks quickly Boot state
Blinks very slowly (~0.5Hz) update in pro ress
3: IEC61850 comm. ( reen)
ON At least one IEC61850 Server is disconnected
Flashing IEC61850 response
OFF No IEC61850 response
Blinks quickly Boot state
Blinks very slowly (~0.5Hz) update in pro ress
4: Modbus comm. ( reen) Flashing Modbus request
OFF No Modbus request
Blinks quickly Boot state
Blinks very slowly (~0.5Hz) update in pro ress
5: Ethernet1 Tx ( reen) Blinks when is transmittin Ethernet frames Blinks quickly Boot state
Blinks very slowly (~0.5Hz) update in pro ress
6: Ethernet2 Tx ( reen) Blinks when is transmittin Ethernet frames Blinks quickly Boot state
Blinks very slowly (~0.5Hz) update in pro ress
Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
Modbus TCP Slave
Document code: MN67766_ENG Revision 1.000 Pa e 10 of 28

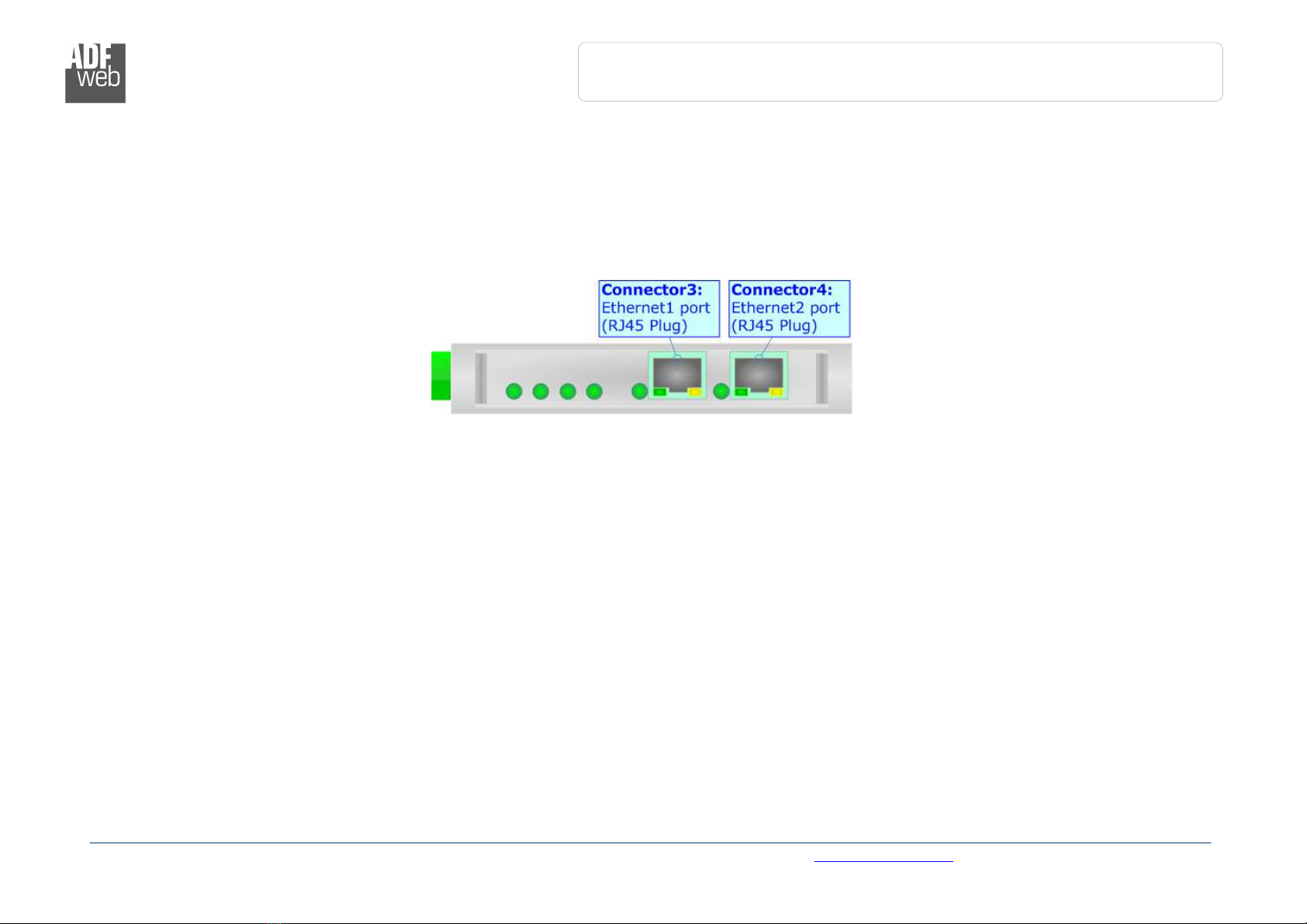

ETHERNET
The Ethernet connection must be made usin Connector3 or Connector4 of HD67766-A1 with at least a Cate ory 5E cable. The maximum
len th of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To
connect the device to an Hub/Switch is recommended the use of a strai ht cable, to connect the device to a PC/PLC/other is recommended
the use of a cross cable.
