ADF Web HD67660-A1 Manuel utilisateur

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET

EtherNet/IP

Slave

Document code: MN67660_ENG Revision 1.000 Pa e 1 of 30

User Manual

Revision 1.000

En lish

PROFINET / EtherNet/IP Slave - Converter

(Order Code: HD67660-A1)

Benefits and Main Features:

Triple electrical isolation

Two Ethernet ports

Temperature ran e: -40°C/+85°C (-40°F/+185°F)

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET

EtherNet/IP

Slave

Document code: MN67660_ENG Revision 1.000 Pa e 2 of 30

INDEX:

Pa e

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

CONFIGURATION 6

POWER SUPPLY 7

FUNCTION MODES 8

LEDS 9

ETHERNET/IP 10

PROFINET 10

USE OF COMPOSITOR SW67660 11

NEW PROJECT / OPEN PROJECT 12

SOFTWARE OPTIONS 13

SET COMMUNICATION 14

PROFINET XML 15

UPDATE DEVICE 16

MECHANICAL DIMENSIONS 18

ORDERING INFORMATIONS 19

ACCESSORIES 19

PLC CONFIGURATION (for EtherNet/IP) 20

PLC CONFIGURATION (for PROFINET) 24

DISCLAIMER 29

OTHER REGULATIONS AND STANDARDS 29

WARRANTIES AND TECHNICAL SUPPORT 30

RETURN POLICY 30

PRODUCTS AND RELATED DOCUMENTS 30

Pagina 2 di 30

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the followin document is:

Updated;

Related to the product you own.

To obtain the most recently updated document, note the “document code”

that appears at the top ri ht-hand corner of each pa e of this document.

With this “Document Code” o to web pa e www.adfweb.com/download/

and search for the correspondin code on the pa e. Click on the proper

“Document Code” and download the updates.

To obtain the updated documentation for the product that you own, note

the “Document Code” (Abbreviated written "Doc. Code" on the label on

the product) and download the updated from our web site

www.adfweb.com/download/

REVISION LIST:

Revision

Date Author

Chapter

Description

1.000 13/03/2014

Ff All First release version

WARNING:

ADFweb.com reserves the ri ht to chan e information in this manual

about our product without warnin .

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belon to their respective

owners.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET

EtherNet/IP

Slave

Document code: MN67660_ENG Revision 1.000 Pa e 3 of 30

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated accordin to the instructions in the manual. When usin the device are required for

each individual application, le al and safety re ulation. The same applies also when usin accessories.

NTENDED

Machines and systems must be desi ned so the faulty conditions do not lead to a dan erous situation for the operator (i.e. independent limit

switches, mechanical interlocks, etc.).

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissionin and operation of this equipment and who

have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state of the art and is safe. The instrument can represent a potential hazard if they are inappropriately installed and operated

by personnel untrained. These instructions refer to residual risks with the followin symbol:

This symbol indicates that non-observance of the safety instructions is dan er for people to serious injury or death and / or the

possibility of dama e.

CONFORMITY

The declaration is made by us. You can send an email to or ive us a call if you need it.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET

EtherNet/IP

Slave

Document code: MN67660_ENG Revision 1.000 Pa e 4 of 30

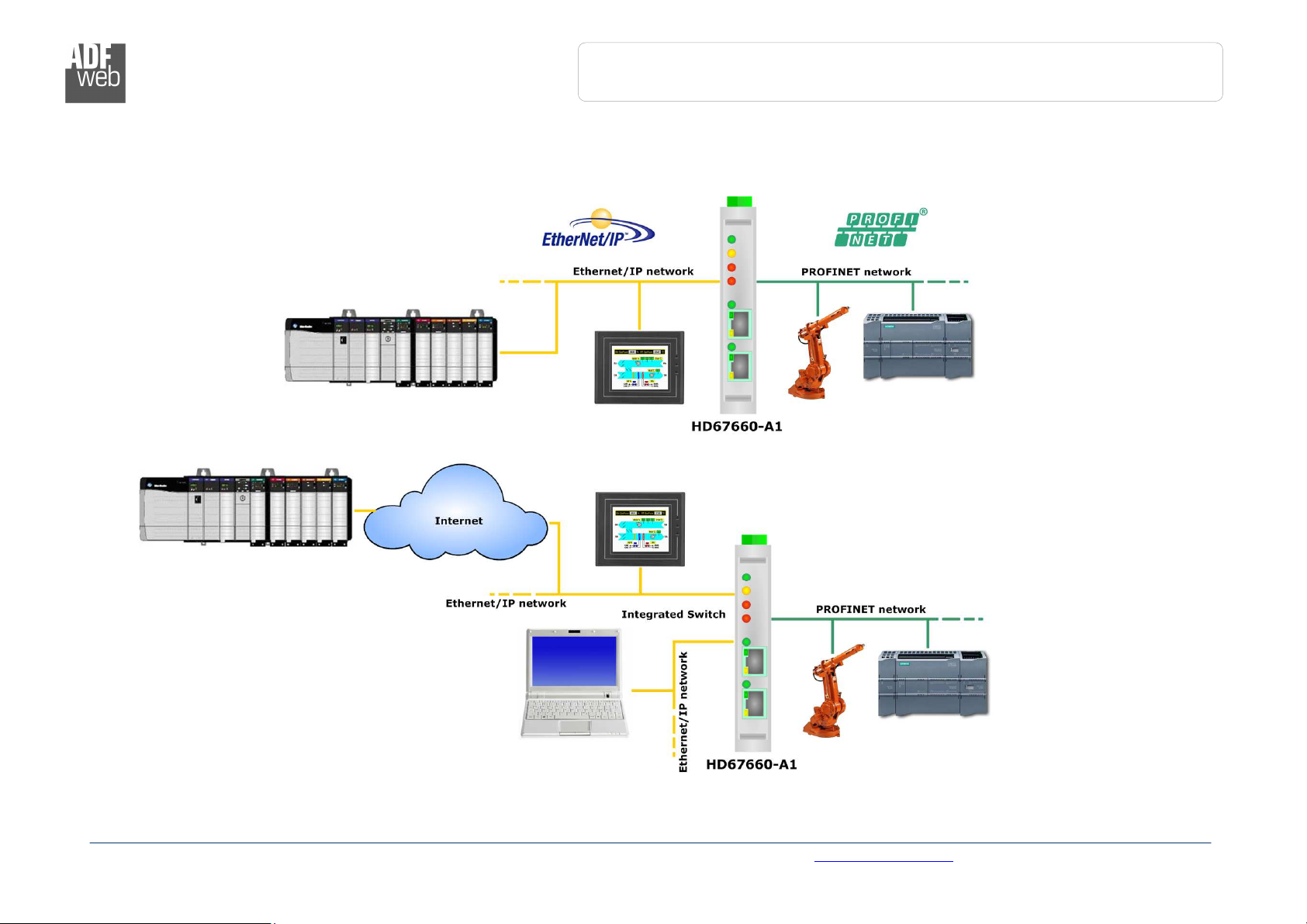

EXAMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET

EtherNet/IP

Slave

Document code: MN67660_ENG Revision 1.000 Pa e 5 of 30

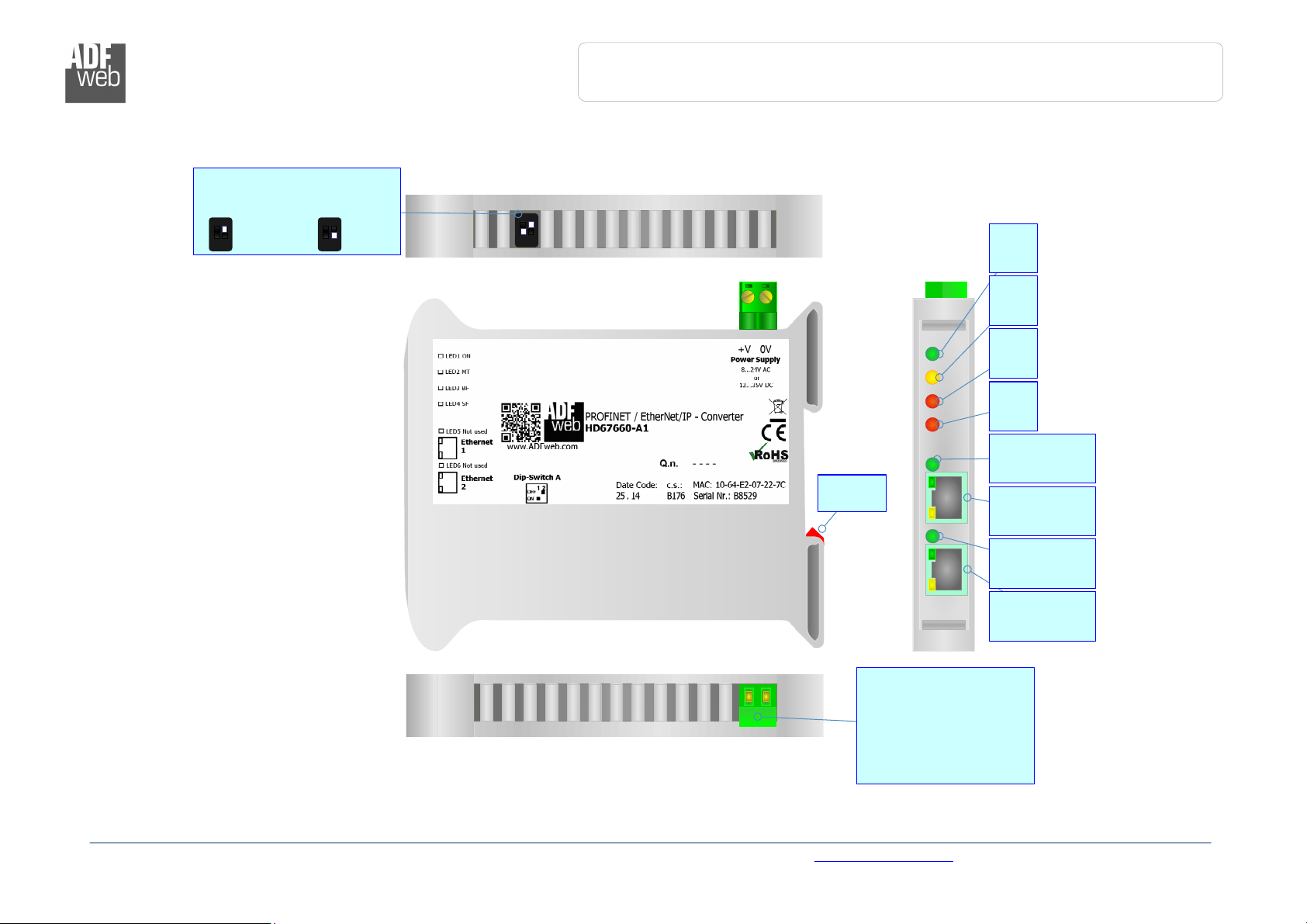

CONNECTION SCHEME:

1 2

OFF

Dip-Switch A:

-Dip1 – Must be at ON

-Dip2 – Functionin Mode

= Normal = Boot

1 2

OFF

1 2

OFF

+V 0V

Rail DIN

Clamp

Connector1:

Power Supply port

0V = Ground

+V = Positive wire

V AC: min 8V ; max 24V

V DC: min 12V ; max 35V

Connector4:

Ethernet2 port

(RJ45 Plu )

Led6:

Green

Ethernet2 Tx

Led5:

Green

Ethernet1 Tx

Connector3:

Ethernet1 port

(RJ45 Plu )

Led1:

Green

Led2:

Yellow

Led3:

Red

Led4:

Red

Figure

: Con

nection scheme for HD67

660

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET

EtherNet/IP

Slave

Document code: MN67660_ENG Revision 1.000 Pa e 6 of 30

CHARACTERISTICS:

The HD67660-A1 is a PROFINET / EtherNet/IP Converter.

It allows the followin characteristics:

Up to 500 bytes in readin and 500 bytes in writin on EtherNet/IP side;

Two-directional information between EtherNet/IP and PROFINET;

Mountable on 35mm Rail DIN;

Wide power supply input ran e: 8…24V AC or 12…35V DC;

Wide temperature ran e: -40°C / 85°C [-40°F / +185°F].

CONFIGURATION:

You need Compositor SW67660 software on your PC in order to perform the followin :

Define the parameter of the PROFINET;

Define the parameter of the Ethernet/IP.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET

EtherNet/IP

Slave

Document code: MN67660_ENG Revision 1.000 Pa e 7 of 30

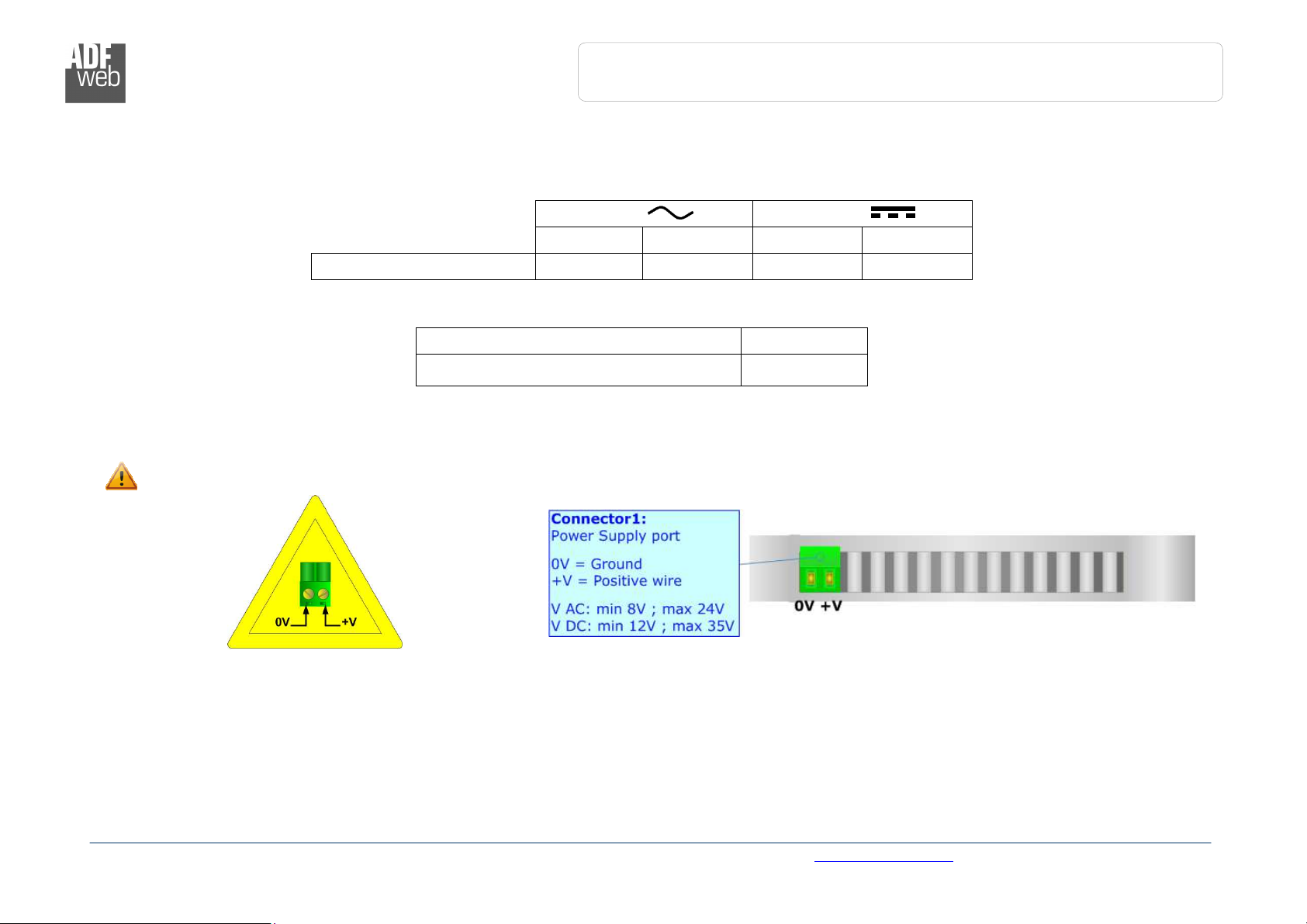

POWER SUPPLY:

The devices can be powered between a wide ran e of tensions. For more details see the two tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

HD67660-A1 8V 24V 12V 35V

Consumption at 24V DC:

Device W/VA

HD67660-A1 4

Caution: Not reverse the polarity power

HD67660-A1

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET

EtherNet/IP

Slave

Document code: MN67660_ENG Revision 1.000 Pa e 8 of 30

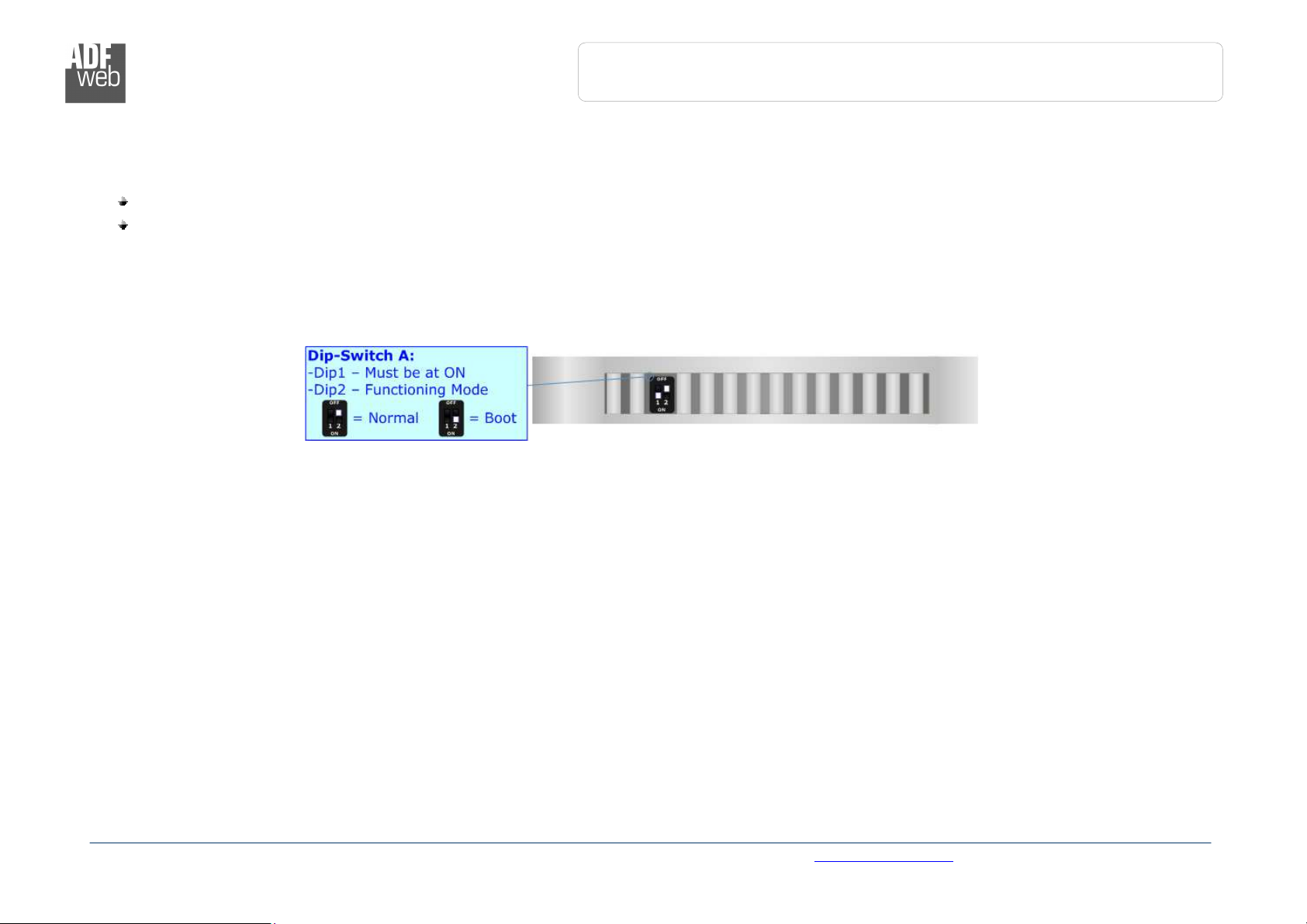

FUNCTION MODES:

The device has ot two functions mode dependin of the position of the Dip2 of ‘Dip-Switch B’:

The first, with Dip2 in Off position (factory settin ), is used for the normal workin of the device.

The second, with Dip2 in On position, is used for upload the Project/Firmware.

For the operations to follow for the updatin (see ‘UPDATE DEVICE’ section).

Accordin to the functionin mode, the LEDs will have specifics functions (see ‘LEDS’ section).

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET

EtherNet/IP

Slave

Document code: MN67660_ENG Revision 1.000 Pa e 9 of 30

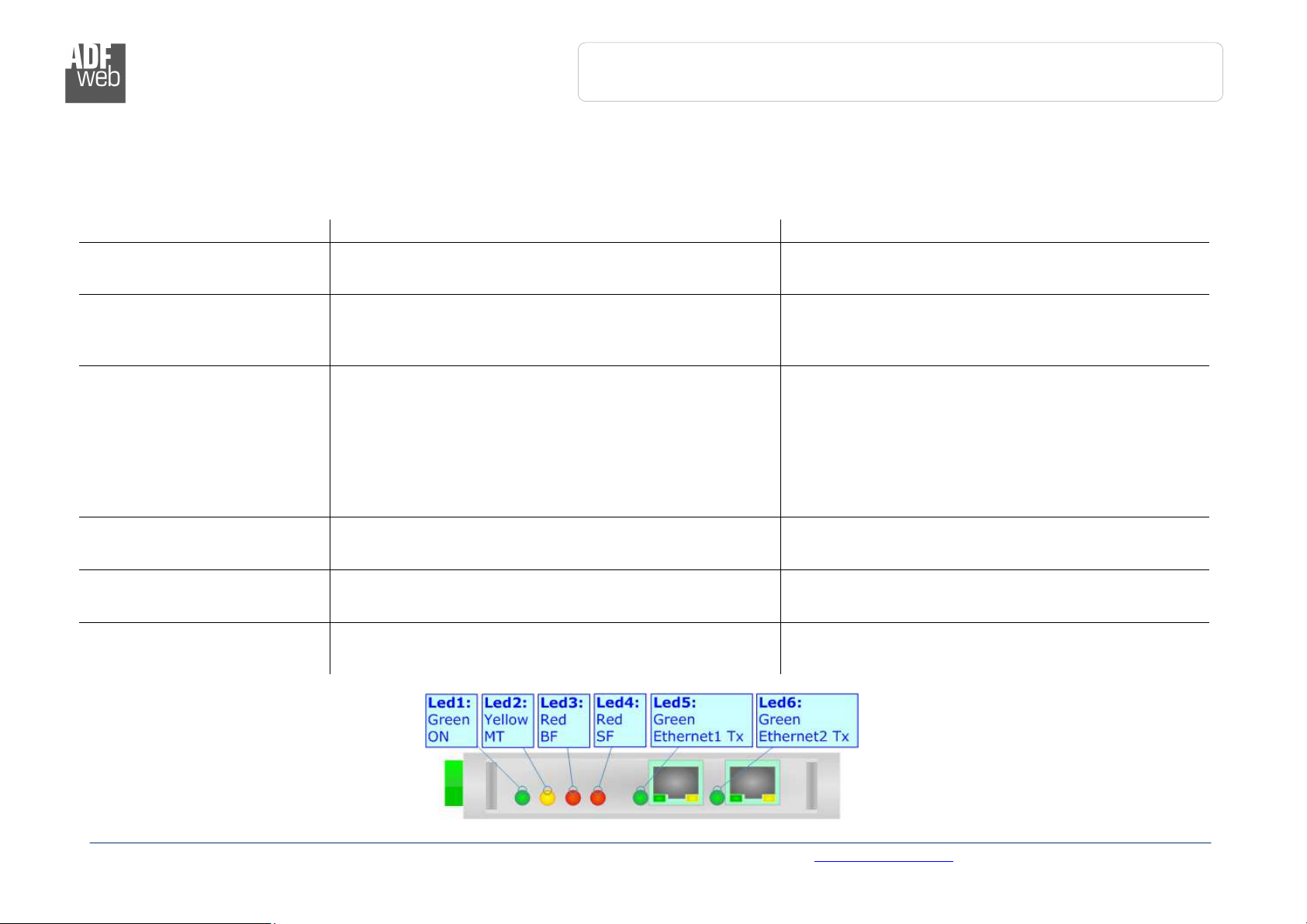

LEDS:

The device has ot six LEDs that are used to ive information of the functionin status.

The various meanin s of the LEDs are described in the table below.

LED Normal Mode Boot Mode

1: ON [supply volta e ]

( reen)

ON: Device powered

OFF: Device not powered

ON: Device powered

OFF: Device not powered

2: MT [maintenance display]

(yellow)

ON: Device not able to communicate with the Master

DeviceNet

OFF: No maintenance are present

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in pro ress

3: BF [bus fault] (red)

ON: The Ethernet connection is defective; the IP

address exists several times in the network; the own

NameOfStation exists several times in the network; no

IP address has been set

Flashing: At least one confi ured AR is no lon er in

the data exchan e

OFF: No errors are present

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in pro ress

4: SF [ roup error] (red) ON: At least one AR is not in the data exchan e

OFF: No errors are present

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in pro ress

5: Ethernet1 Tx ( reen) Blinks when is transmittin Ethernet frames Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in pro ress

6: Ethernet2 Tx ( reen) Blinks when is transmittin Ethernet frames Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in pro ress

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET

EtherNet/IP

Slave

Document code: MN67660_ENG Revision 1.000 Pa e 10 of 30

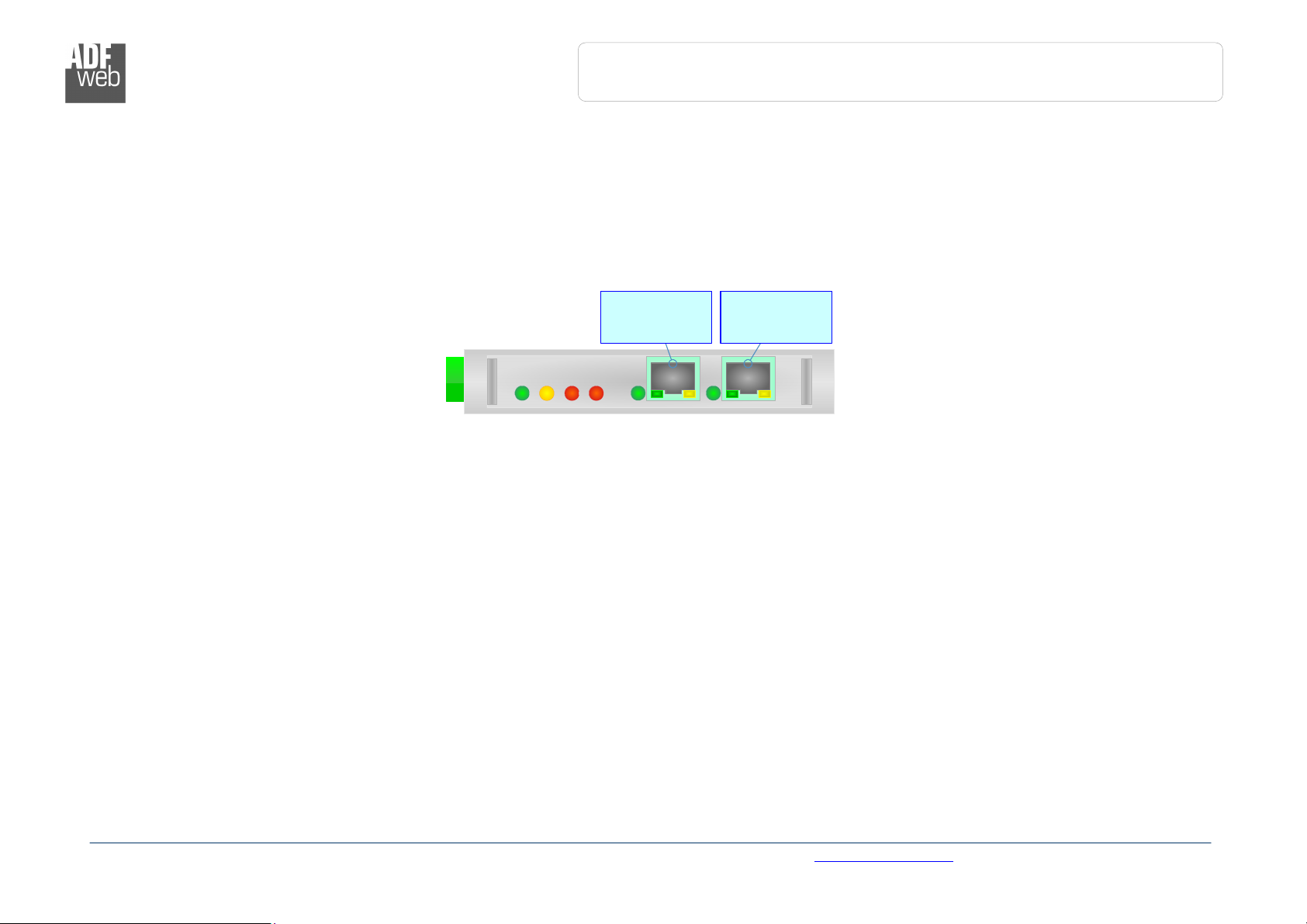

ETHERNET/IP:

The Ethernet connection must be made usin Connector3 or Connector4 of HD67660-A1 with at least a Cate ory 5E cable. The maximum

len th of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To

connect the device to an Hub/Switch is recommended the use of a strai ht cable, to connect the device to a PC/PLC/other is recommended

the use of a cross cable.

PROFINET:

The PROFINET connection must be made usin Connector3 or Connector4 of HD67660-A1 with at least a Cate ory 5E cable. The maximum

len th of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To

connect the device to an Hub/Switch is recommended the use of a strai ht cable, to connect the device to a PC/PLC/other is recommended

the use of a cross cable.

Connector4:

Ethernet2 port

(RJ45 Plu )

Connector3:

Ethernet1 port

(RJ45 Plu )
