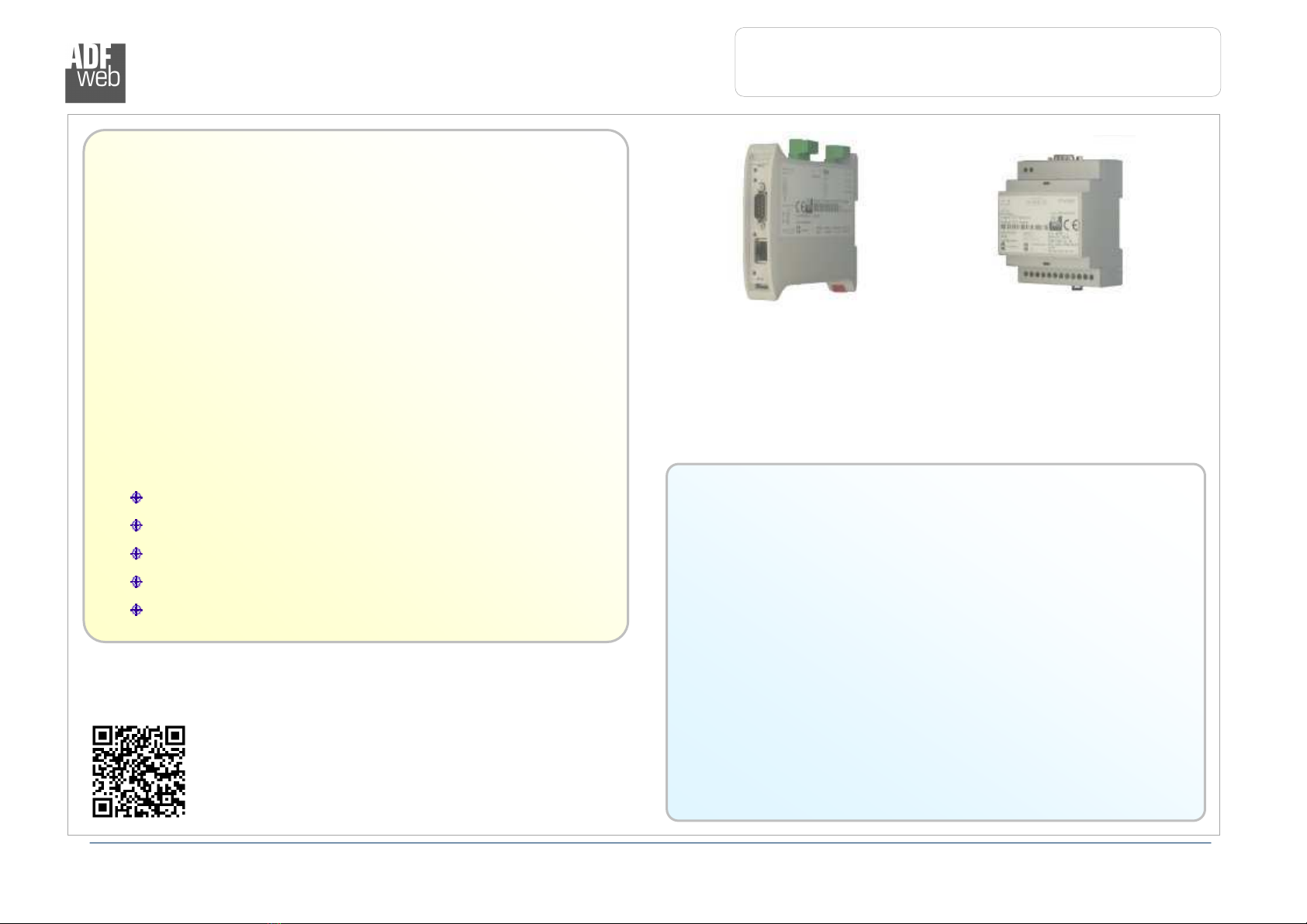

Document code: MN67515_ENG Revision 2.1 Page 1 of 3
User Manual
Revision 2.1
English
CAN/ Modbus TCP Slave - Converter
(Order Code: HD67515-A1, HD67515-B2)
Benefits and Main Features:
Very easy to configure
Low cost
32mm Rail DIN mount
Wide supply input range
Temperature range: -4 °C/+85°C (-4 °F/+185°F)
HD67515
-
A1
HD67515
-
B2
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
CAN
/
Modbus
TCP Slave
Document code: MN67515_ENG Revision 2.1 Page 2 of 3
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3

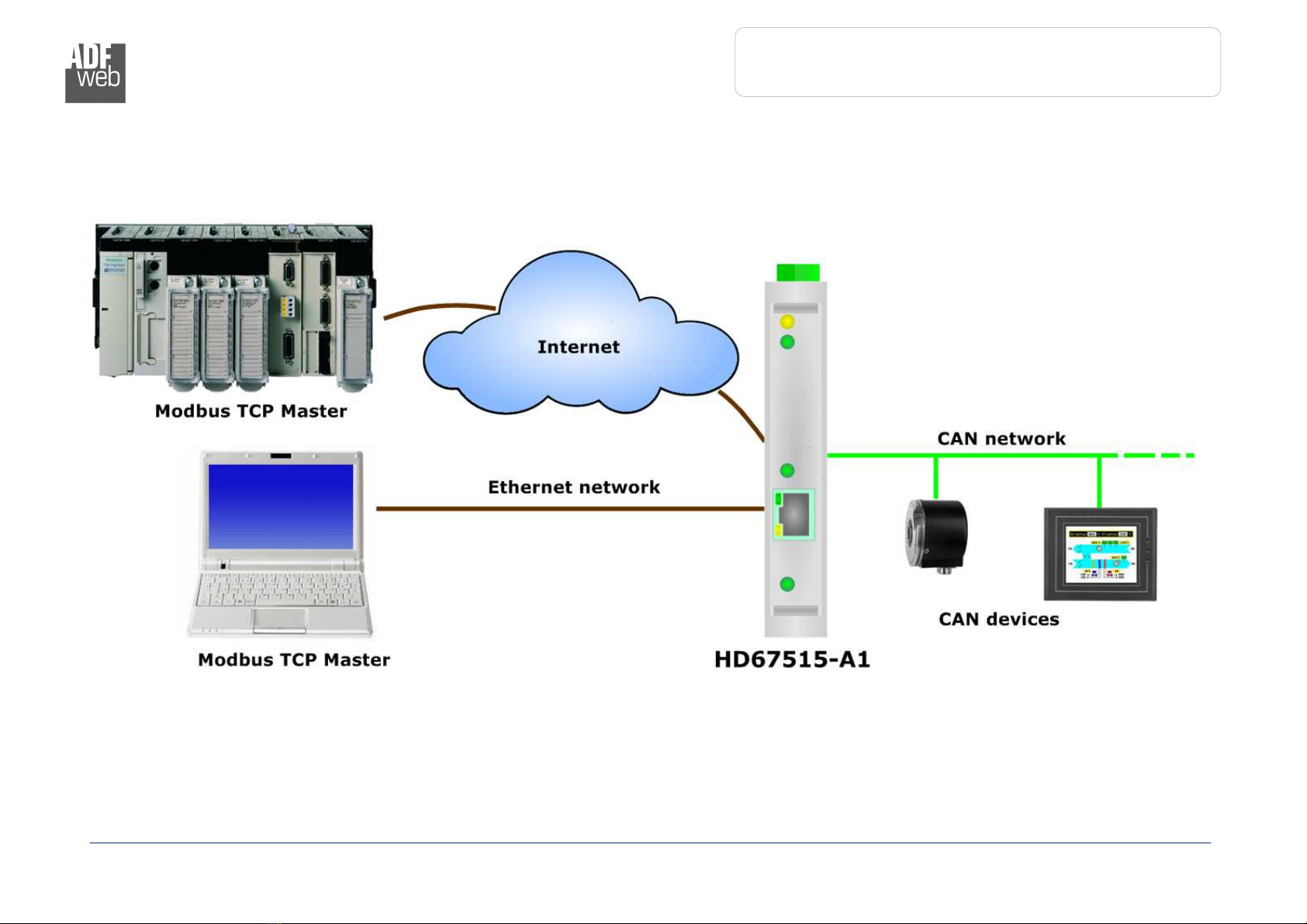

EXAMPLES OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 7
POWER SUPPLY 8
FUNCTION MODES 9
LEDS 1
ETHERNET 11
CAN 12
USE OF COMPOSITOR SW67515 13
NEW PROJECT / OPEN PROJECT 14
SOFTWARE OPTIONS 15
SET COMMUNICATION 16
RECEIVE COB 17
DEFINE COB 19
TRANSMIT COB 2
DEFINE COB 22
UPDATE VIA SERIAL 23
UPDATE VIA UDP 24
MECHANICAL DIMENSIONS 27
ORDERING INFORMATIONS 28
ACCESSORIES 28
DISCLAIMER 29
OTHER REGULATIONS AND STANDARDS 29
WARRANTIES AND TECHNICAL SUPPORT 3
RETURN POLICY 3
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that you
need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code” that
appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/ and
search for the corresponding code on the page. Click on the proper “Document
Code” and download the updates.
REVISION LIST:
Revision Date Author
Chapter Description
2. 1 /11/2 11
Fl All Codes changed
2. 1 3/ 9/2 12
Fl All Revision
2. 2 14/ 1/2 13
Nt & Fl All Added new chapters
2.1 4/ 7/2 14
Ff All New hardware version
WARNING:
ADFweb.com reserves the right to change information in this manual about our
product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective owners.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
CAN
/
Modbus
TCP Slave
Document code: MN67515_ENG Revision 2.1 Page 3 of 3
SECURITY ALERT:
G
ENERAL
I
NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for
each individual application, legal and safety regulation. The same applies also when using accessories.
I
NTENDED
U
SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e. independent limit
switches, mechanical interlocks, etc.).
Q
UALIFIED
P
ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and who
have appropriate qualifications for their job.
R
ESIDUAL
R
ISKS
The device is state of the art and is safe. The instrument can represent a potential hazard if they are inappropriately installed and operated
by personnel untrained. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is danger for people to serious injury or death and / or the
possibility of damage.
CE
CONFORMITY
The declaration is made by us. You can send an email to or give us a call if you need it.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
CAN
/
Modbus
TCP Slave
Document code: MN67515_ENG Revision 2.1 Page 4 of 3
EXAMPLES OF CONNECTION:
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
CAN
/
Modbus
TCP Slave
Document code: MN67515_ENG Revision 2.1 Page 5 of 3
CONNECTION SCHEME:

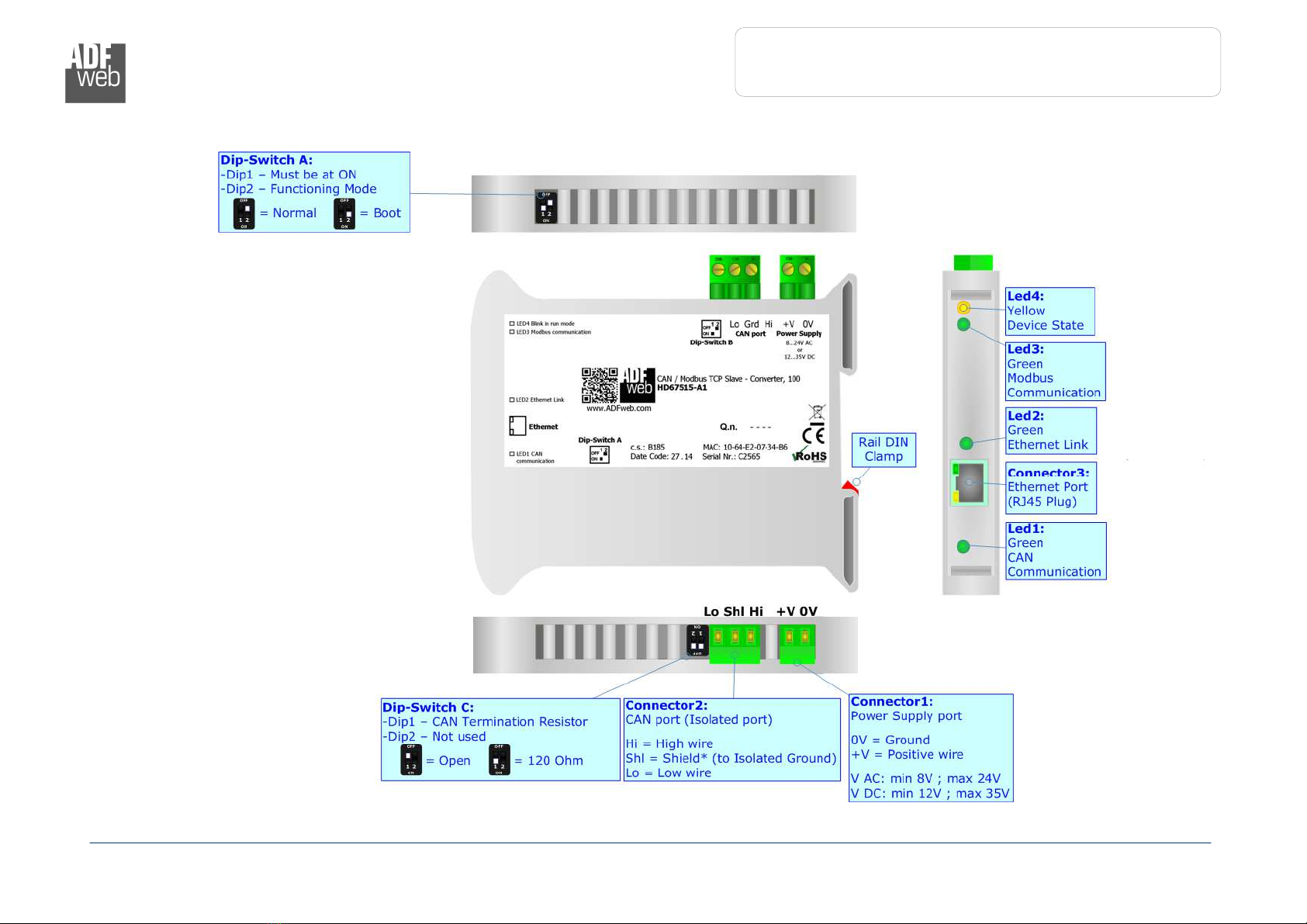

Figure 1a: Connection sc eme for HD67515-A1
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
CAN
/
Modbus
TCP Slave
Document code: MN67515_ENG Revision 2.1 Page 6 of 3

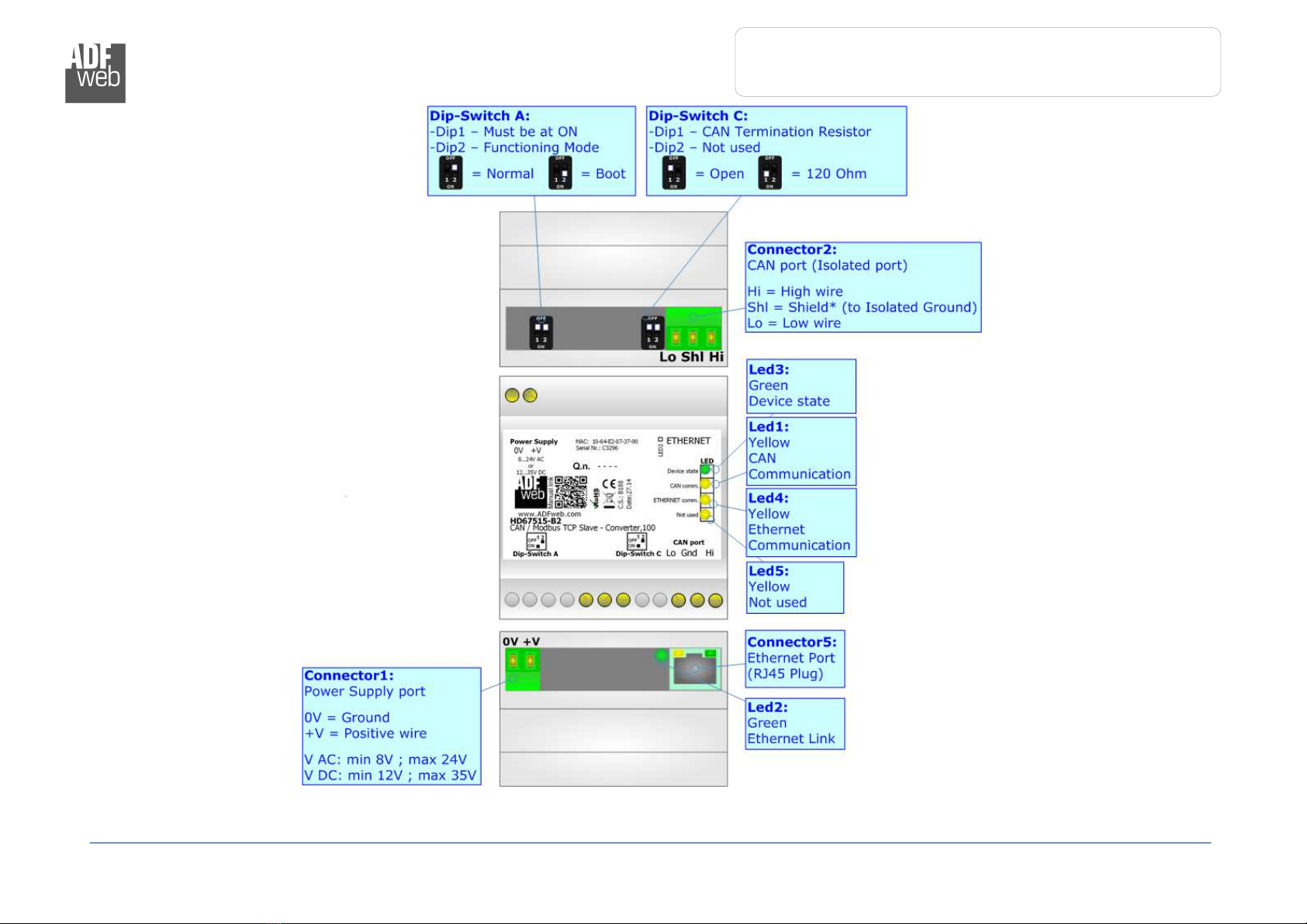

Figure 1b: Connection sc eme for HD67515-B2
