ADC UniPatch GigE Series Manuel utilisateur

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Spec Sheet

UniPatch®GigE Series

Gigabit Ethernet Patch Panel

ADC has designed a professional broadcast-quality Gigabit (1000 baseT) patching system for

demanding professional environments where frequent patching and higher density is required. The

system features a high-density 32-port normal-through card frame system to ADC KRONE®Direct-

Edge LSA-PLUS®termination system. Now you can patch Ethernet data properly using reliable

durable military-grade jacks rated for 30,000 insertions/withdrawal cycles. The Cat 6 rated patch

cords are keyed to ensure proper patching.

Compared to other systems employing light duty RJ45 connectors rated at fewer than 500

insertions/withdrawal cycles or bantam jacks that do not switch all signal lines, the UniPatch®GigE

module is a significant advance in Ethernet and machine control patching.

The GigE system is a dense pack digital control interface patching system that provides test access,

patch, cross-connect and monitor functions in 100 Ohm balanced transmission systems. It has

a common signal format, bit rate, and operation up to Gigabit Ethernet (1,000 Mbits/sec). The

UniPatch GigE system is the choice for carrier-class Ethernet patching where reliability is critical.

Features:

• Category 5e channel compliant

• High-density modular design, 32 circuits per panel

• Available with normal-through (patch by exception) or straight-through modules

• Modular LSA-PLUS®punch down backplane

• Keyed and highly reliable military-grade patch cords, rated to 30,000 cycles

• Available with an easily removable wire management bar

• Cable agnostic (works with any Cat 5e/Cat 6 cable)

6/07 • 104538AE UniPatch GigE Series

UniPatch®GigE Series

www.adc.com • +1-952-938-8080 • 1-800-366-3891

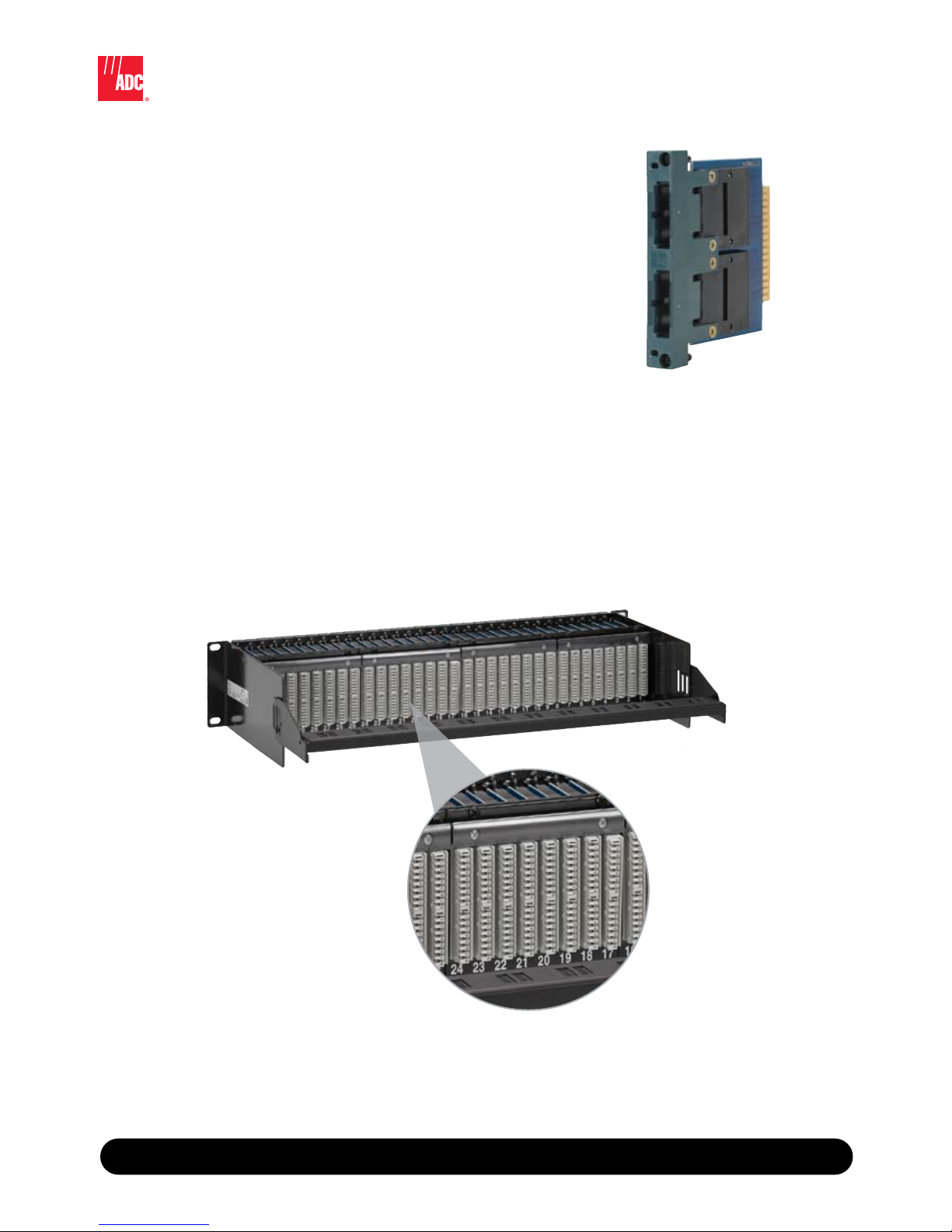

Gigabit Ethernet Jack Module

Features:

• Dense pack patching

• Minimum of 30,000 patch cycles

• Normal-through patch by exception

• Modular design (can be removed without

disturbing adjacent circuits)

• Gold plated contacts on switches and card

edge connectors

• Keyed opening for proper patch cord orientation

LSA-PLUS®8-Circuit Backplane Module

Features:

• Patented LSA-PLUS termination system modules can be removed individually for easier wiring

• Number designation labels included

• Designation strip and window included for custom labeling

• Designed for solid or stranded wire

• Eliminates the need for additional connectors and connector labor

DM-GIGE

VPRM-GIGE-LSA

Rear View

6/07 • 104538AE UniPatch GigE Series

UniPatch®GigE Series

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Specifications

ELECTRICAL

Characteristic Impedance: 100 Ohms typical

Voltage Rating: 500 Volts AC @ 60 Hz with a trip current of 1 milliamp for 1 minute

NEXT: Category 5e channel compliant

FEXT: Category 5e channel compliant

Contact Resistance: .02 Ohm maximum change post environmental

Insulation Resistance: 5000 Megohms minimum initial

MECHANICAL

Mechanical Durability: 30,000 cycles min (front port: dense pack); 50 cycles min (LSA slot)

Insertion Force: 7 lbs maximum

Withdrawal Force: 2 lbs minimum

Patch Cord Cable Bend and Twist: 500 cycles minimum

Dimensions: 2 rack unit

ENVIRONMENTAL

Thermal Shock: -40°C to 65°C operating; -55°C to 85°C non-operating

Moisture Resistance: 0% to 95%; MIL-STD-202 Method 106

Corrosion (Salt Spray): MIL-STD-202 Method 101, Test Condition B

Flammability: UL 94-VO rated

Vibration: MIL-STD-202 Method 201

Solvent Resistance: MIL-STD-202 Method 215

FINISH

Sheetmetal Panel: .075 CRS w/ protective black finish

Plastic Housings: ABS/PC, deep blue color

Contact Springs: 50 microinch gold plating MIL-G-45204 Type 1

PC Board: FR-4 with gold plated contacts

Card Edge Connector: LSA-PLUS: Krone 17-position termination block

Website: www.adc.com

From North America, Call Toll Free: 1-800-366-3891 • Outside of North America: +1-952-938-8080

Fax: +1-952-917-3237 • For a listing of ADC’s global sales office locations, please refer to our website.

ADC Telecommunications, Inc., P.O. Box 1101, Minneapolis, Minnesota USA 55440-1101

Specifications published here are current as of the date of publication of this document. Because we are continuously

improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may

verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.

views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features

contained herein may be covered by one or more U.S. or foreign patents. An Equal Opportunity Employer

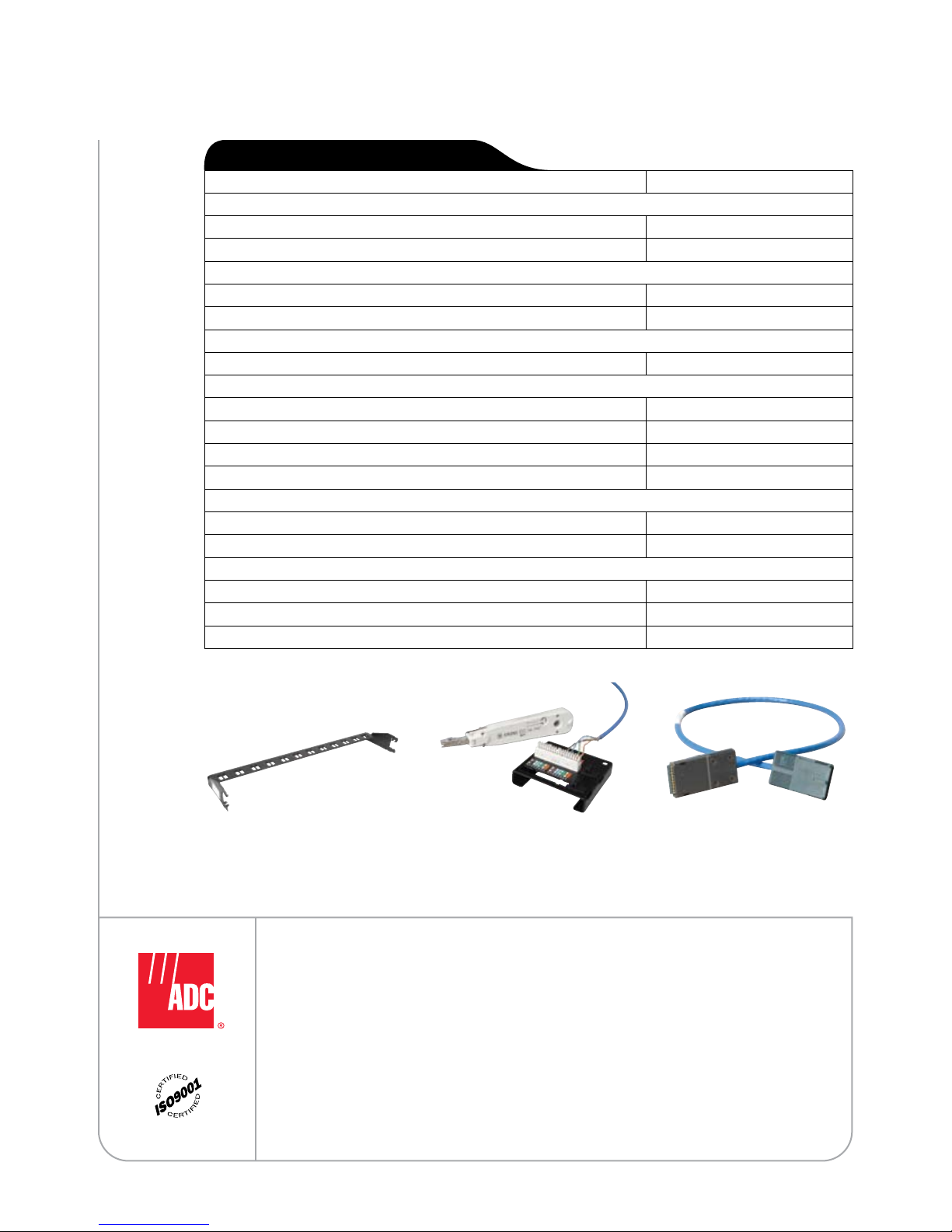

Spec Sheet

Description Catalog Number

Gigabit Ethernet patch panel

32-port GigE normalling patch panel VP2232-GIGE

32-port GigE non-normalling patch panel VP2232-GIGE-NN

Gigabit Ethernet jack module

2-port GigE normalling jack module: PCB with green masking DM-GIGE

2-port GigE non-normalling jack module: PCB with black masking DM-GIGE-NN

Gigabit Ethernet LSA-PLUS backplane module

Gigabit Ethernet LSA-PLUS 8-circuit backplane module VPRM-GIGE-LSA

Gigabit Ethernet & RS422 Cat 6 patch cords (length)

1.8 m (6 ft) PC-GIGE-6

1.2 m (4 ft) PC-GIGE-4

0.9 m (3 ft) PC-GIGE-3

0.6 m (2 ft) PC-GIGE-2

Chassis

Empty chassis; color: black VP2232-BK

Empty chassis; color: gray VP2232-G

Accessories

LSA insertion tool and handheld LSA block holder DM-GIGE-TOOL-KIT

Handheld/rack mountable LSA block holder DM-GIGE-TOOL

Cable bar ADCCMR-A

Ordering Information

ADCCMR-A DM-GIGE-TOOL-KIT PC-GIGE-X
