ADC HRE-204 List 1 Manuel utilisateur

HiGain

USER MANUAL

HRE-204 List 1 and List 2

HiGain Remote Enclosure

Product Catalog: 150-204-100-03

CLEI: T1MF5004, T1MF6004

150-204-100-03, Issue 3

ii May 7, 1999 HRE-204 List 1and List 2

Revision History of This Manual

To order copies of this document, use document catalog number 150-204-100-03.

May 7, 1999

Trademark Information

ADC is a registered trademark of ADC Telecommunications, Inc. HiGain is a registered trademark of ADC DSL Systems, Inc.

No right, license, or interest to such trademarks is granted hereunder, and you agree that no such right, license, or interest

shall be asserted by you with respect to such trademark. Other product names mentioned in this practice are used for

identification purposes only and may be trademarks or registered trademarks of their respective companies.

Disclaimer of Liability

Information contained inthis document is company private to ADC DSL Systems,Inc., and shall not be modified, used, copied,

reproduced or disclosed in whole or in part without the written consent of ADC.

Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice.

In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits, and ADC further

disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of

liability applies to all products, publications and services during and after the warranty period.

Issue Release Date Revisions Made

1February 12, 1999 Initial release

2May 7, 1999 Added optional wall mount hinge

3February 18, 2002 ADC Rebranding

150-204-100-03, Issue 3 Using This Manual

HRE-204 List 1and List 2 May 7, 1999 iii

USING THIS MANUAL

INSPECTING SHIPMENT

Upon receipt of the equipment:

•Unpack each container and inspect the contents for signs of damage. If the equipment has been damaged in

transit, immediately report the extent of damage to the transportation company and to ADC DSL Systems,

Inc. Order replacement equipment, if necessary.

•Check the packing list to ensure complete and accurate shipment of each listed item. If the shipment is short

or irregular, contact ADC DSL Systems, Inc. as described in Product Support on page 19. If you must store

the equipment for a prolonged period, store the equipment in its original container.

Notes contain information about special circumstances.

Cautions indicate the possibility of personal injury or equipment damage.

The Electrostatic Discharge (ESD) symbol indicates that a device or assembly is susceptible to

damage from electrostatic discharge.

Inspecting Shipment 150-204-100-03, Issue 3

iv May 7, 1999 HRE-204 List 1and List 2

150-204-100-03, Issue 3 Table of Contents

HRE-204 List 1 and List 2 May 7, 1999 v

TABLE OF CONTENTS

Overview ____________________________________________________________________________ 1

Features..............................................................................................................................................1

Applications .......................................................................................................................................1

Backplane...........................................................................................................................................2

Slot Connectors..................................................................................................................................4

Installation___________________________________________________________________________ 4

Installation Kit....................................................................................................................................4

Mounting Options..............................................................................................................................5

Desktop Mounting...............................................................................................................5

Wall Mounting.....................................................................................................................5

Optional Hinged Wall Mounting.........................................................................................8

Turn-up...............................................................................................................................................9

Power and Grounding _________________________________________________________________ 9

48 Volt Power Options.......................................................................................................................9

Pin Assignments _____________________________________________________________________ 11

Slot Pin Assignments.......................................................................................................................11

HLU Alarm Output Interface...........................................................................................................14

Facility Side HDSL Connections.....................................................................................................14

CPE DS1 (G.703) Connections........................................................................................................16

Appendix A - Specifications____________________________________________________________ 17

Appendix B - Abbreviations ___________________________________________________________ 18

Appendix C - Product Support _________________________________________________________ 19

Bar Code and Configuration Number Information..........................................................................20

Certification and Warranty________________________________________________Inside Back Cover

List of Figures 150-204-100-03, Issue 3

vi May 7, 1999 HRE-204 List 1 and 2

LIST OF FIGURES

Figure 1. HRE-204 List 1 and List 2 Backplane.............................................................................................. 2

Figure 2. Backplane Slot Connections............................................................................................................. 3

Figure 3. HRE-204 List 1 and List 2 Remote Enclosure................................................................................. 4

Figure 4. Side Panel Assembly........................................................................................................................ 5

Figure 5. HRE-204 List 1 and List 2 List 1 Backplate .................................................................................... 6

Figure 6. Wall Mounting and Hinging View................................................................................................... 7

Figure 7. Optional Mounting Hinge ................................................................................................................ 8

Figure 8. TB3 and TB4 Pin Assignments...................................................................................................... 10

Figure 9. HRU Pin Assignments (All Lists).................................................................................................. 11

Figure 10. HLU-431 Pin Assignments .......................................................................................................... 12

Figure 11. ERU-412 Pin Assignments........................................................................................................... 13

Figure 12. System Alarm (TB5) Pin Assignments........................................................................................ 14

Figure 13. TB1 Pin Assignments................................................................................................................... 14

Figure 14. TB2 Pin Assignments................................................................................................................... 15

Figure 15. RJ48C Pin Assignments (List 1).................................................................................................. 16

Figure 16. RJ48X Pin Assignments (List 2).................................................................................................. 16

Figure 17. Bar Code and Configuration Number Label Locations................................................................ 20

LIST OF TABLES

Table 1. Backplane connectors........................................................................................................................ 2

Table 2. Power Requirements for Various Plug Applications......................................................................... 9

Table 3. Bar Code and Configuration Number Label Descriptions .............................................................. 19

150-204-100-03, Issue 3 Overview

HRE-204 List 1 and List 2 May 7, 1999 1

OVERVIEW

This document describes the ADC®HiGain®Remote Enclosure HRE-204 List 1 and List 2. The HRE-204 List 1

and List 2. List 1 and List 2 house HiGain Line Units (HLUs) and remote units (HRUs). The HRE-204 List 1 and

List 2 List 1 has RJ48C DS1 connectors, and the HRE-204 List 1 and List 2 List 2 has RJ48X connectors.

FEATURES

The HRE-204 List 1 and List 2 List 1 and List 2 provide the following features:

•four 200 mechanics or two 400 mechanics slots

•optional RJ48C (List 1) or RJ48X (List 2) modular jack for DS1 customer interface connections

•printed-circuit backplane provides terminal block or RJ48 connectors

•tamper-proof locking screw for security

•accepts 48 V input power for HLU applications

•wall or desktop mounting

•separate 48 V input terminals for slot isolation

•optional wall hinge mount

•pre-painted, cold-rolled, #16 gauge steel construction

APPLICATIONS

HiGain provides a quick and cost-effective way of delivering T1 High Capacity Digital Service (HCDS) to

customers over metallic cable pairs. The primary application of the HRE-204 List 1 and List 2 Remote Enclosure

is to house the remote units of a HiGain repeaterless T1 transmission system.

Because the HRE-204 List 1 and List 2 uses standard 200 and 400 mechanics slots, it can

accommodate anyplug with 200 or 400 mechanics, including the HiGain HRU-412, HRU-411, and

HRU-402 remote units and the HLU-431 line unit.

Overview 150-204-100-03, Issue 3

2 May 7, 1999 HRE-204 List 1 and List 2

BACKPLANE

Figure 1 shows the HRE-204 List 1 and List 2 backplane. Table 1 on page 3 describes its connectors.

Figure 1. HRE-204 List 1 and List 2 Backplane

TB2

RJ48 jacks

TB1

TB3 TB4 TB5

150-204-100-03, Issue 3 Overview

HRE-204 List 1 and List 2 May 7, 1999 3

Figure 2 shows the backplane wiring connections to all four slots.

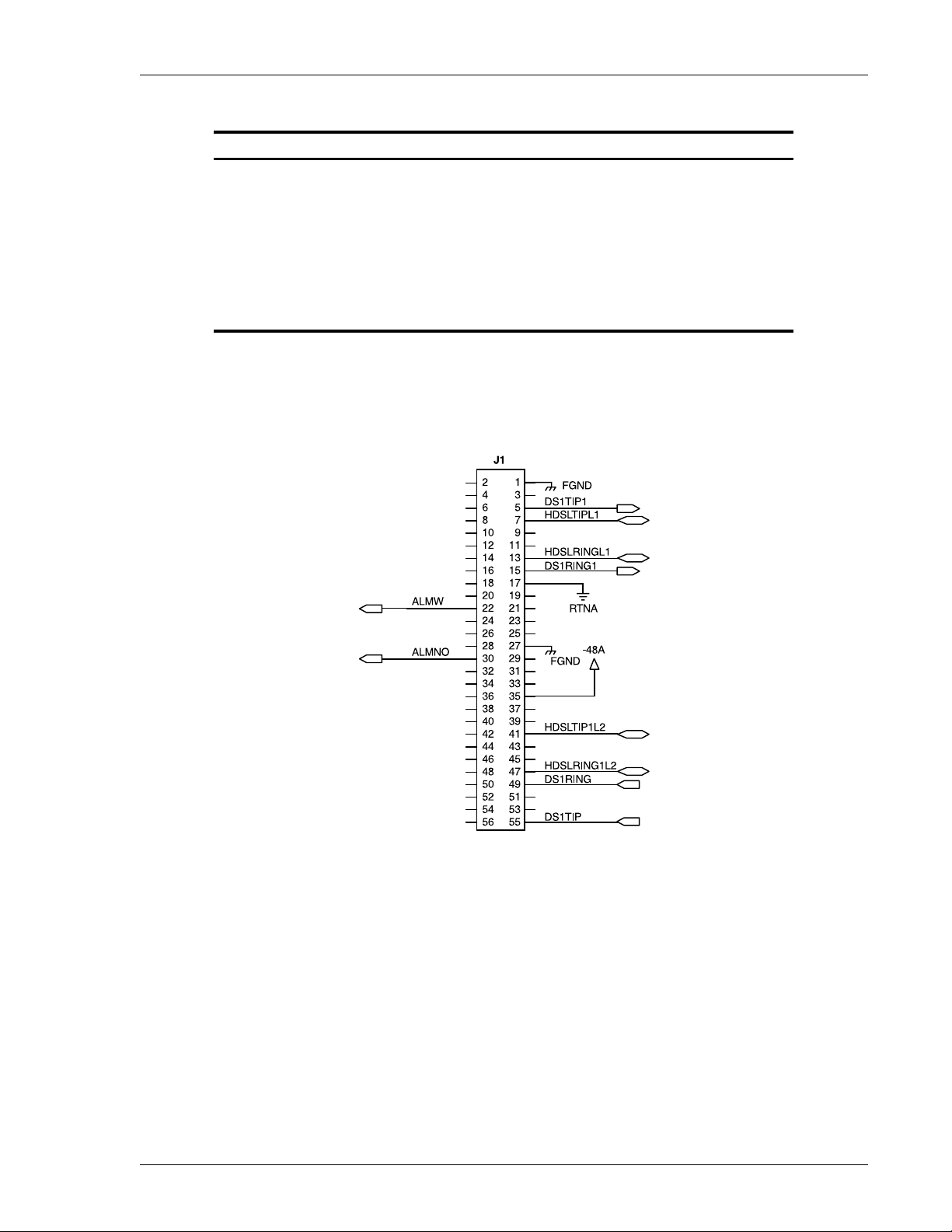

Figure 2. Backplane Slot Connections

Table 1. Backplane Connectors

Connector(s) Function

J5 through J8 RJ48C CPE jacks (List 1) or RJ48X jacks (List 2)

TB1 Terminal block connector for Slot 1 CPE (DS1) and FAC (HDSL) interfaces

TB2 Terminal block connector for Slots 2, 3, and 4 CPE and FAC interfaces

TB3 Terminalblockconnectorforproviding48VAandGNDA powerconnections

to Slots 1 and 2

TB4 Terminalblockconnectorforproviding48VBandGNDBpowerconnections

to Slots 3 and 4

TB5 Terminal block connector for HLU alarm output interface

G1 Frame ground lug

Installation 150-204-100-03, Issue 3

4 May 7, 1999 HRE-204 List 1 and List 2

SLOT CONNECTORS

Figure 3 shows the front view of the four slot connectors, J1 through J4. These slots are for installing HiGain Line

Units and HiGain Remote Units.

Figure 3. HRE-204 List 1 and List 2 Remote Enclosure

INSTALLATION

This section provides information on installing and mounting the HRE-204 List 1 and List 2 List 1 and List 2.

INSTALLATION KIT

•two mounting screws

•two anchor nuts
