ADA INSTRUMENTS CUBE 3D Manuel utilisateur

Line Laser

OPERATING MANUAL

CUBE 3D GREEN

adainstruments.com

2English

THE MANUFACTURE RESERVES THE RIGHT TO MAKE CHANGES (NOT

HAVING AN IMPACT ON THE SPECIFICATIONS) TO THE DESIGN,

COMPLETE SET WITHOUT GIVING PRIOR WARNING.

APPLICATION

Line laser ADA CUBE 3D GREEN is designed to check the horizontal and

vertical position of the surfaces of the elements of building structures and

also to transfer the angle of inclination of the structural part to similar

parts during construction and installation works.

SPECIFICATIONS FOR ARMO MINI

Laser beam .......................................................2 vertical lines/1 horizontal line

Light sources ................................................... 2 laser diodes, 515 nm

Laser safety class ........................................... Class 2, <1mW

Accuracy ........................................................... ±2mm/10m

Self-leveling range ......................................... ±3°

Operating range with/without receiver ........ 230/130 ft (70/40 m)

Power source ..................................................

3xAAA 1,5V

Tripod thread .................................................. 1/4”

Operating temperature ............................... 14º F to 113º F (-10°C +45°C)

Weight ............................................................... 0,53 lb (240 g)

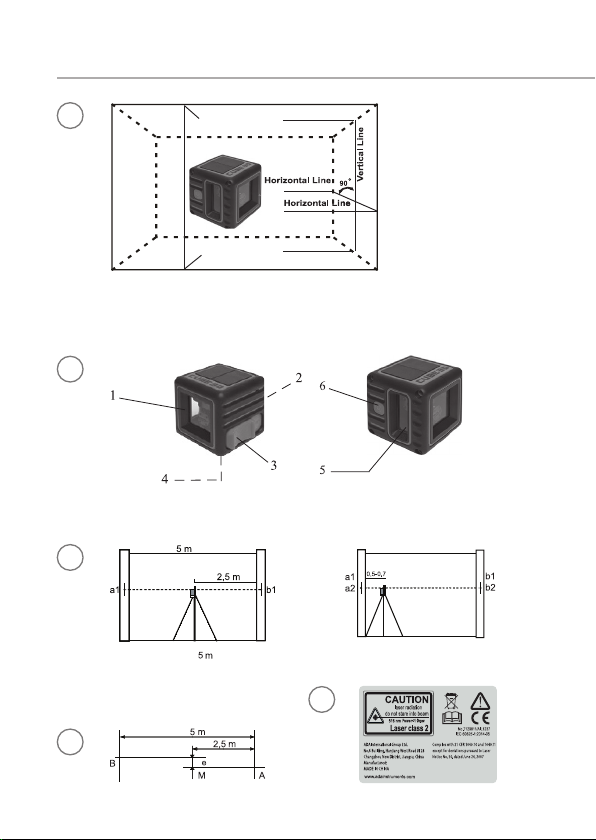

LASER LINES

FEATURES

1. Laser emitting window

2. Battery cover

3. Compensator switch

4. Tripod mount 1/4’’

5. Vertical laser window

6. Laser lines on/o and receiver mode

English

4English

FUNCTIONAL DESCRIPTION

1. Emitting a horizontal and vertical laser line.

2. Quick self-leveling: when line accuracy is out of the range the laser line

ashes and the warning sound is produced.

3. Compensator locking system for safe transportation.

4. Intermediate compensator locking system for slope operation.

5. Indoor and outdoor performance function.

SAFETY REQUIREMENTS AND CARE

Follow safety requirements! Don’t face and stare at laser beam!

Line laser is an accurate laser tool, which should be stored and used with

care. Avoid shaking and vibrations! Store the Instrument and It’s accesso-

ries only In the carrying case. In case of high humidity and low tempera-

ture, dry out the Instrument and clean It after the usage. Do not store the

line laser at a temperature below -20°C and above 50°C, otherwise the

Instrument can be out of action.

Don’t put the line laser Into the carrying case If the Instrument or case are

wet. To avoid moisture condensation Inside the Instrument- dry out the case

and laser line laser ! Check regularly line laser adjustment! Keep the lens

clean and dry. To clean the line laser use a soft cotton napkin!

OPERATION

Cube 3D GREEN is a reliable and convenient line laser . It will be irreplaceable

line laser for many years. Open battery compartment. Insert batteries into

the battery compartment. Observe the polarity. Close the battery compart-

ment. Take out batteries if you are not going to use the tool for a long time.

-Place the line laser on the working surface or mount it on the tripod/pillar

or wall mount.

Switch on the line laser. Turn the compensator switch (3) to the position

“ON” (the line laser is turned o in the position OFF). Visual alarm (blinking

line) and audible signal indicate that the device was not installed within the

compensation range ±3º. To properly work align the unit in a horizontal plane.

At that compensator of the instrument will be in free position (it will be blocked

in the position OFF). When switching on, one horizontal and one vertical

lines will be projected. Press button (6) to turn on additional vertical line.

Press button (6) again to have only one additional vertical line. Press button (6)

one more time to turn o additional vertical line and switch on horizontal line.

Use the receiver (supplied separately) mode to enlarge the working mode

and for the operation in bright illumination.TO CHECK THE ACCURACY

TO CHECK THE ACCURACY OF LINE LASER (SLOPE OF PLANE)

Set up the line laser between two walls, the distance is 5m.Turn on the

Line Laser and mark the point of cross laser line on the wall. Set up the

line laser 0,5-0,7m away from the wall and make, as described above, the

same masrks. If the dierence {a1-b2} and {b1-b2} is less then the value

of “accuracy” (see spesications), there is no need in calibration. Example:

when you check the accuracy of Line Laser the dierence 3 is {a1-a2}=5

mm and {b1-b2}=7 mm. The line laser’s error: {b1-b2}-{a1-a2}=7-5=2 mm.

Now you can compare this error with standard error. If the accuracy of Line

Laser isn’t corresponding with claimed accuracy, contact the authorized

service center.

TO CHECK THE ACCURACY OF HORIZONTAL BEAM

Choose a wall and set laser 5m away from the wall. Turn on the laser and

cross laser line is marked A on the wall. Find another point M on the hori-

zontal line, the distance is around 2.5m. Swivel the laser, and another cross

point of cross laser line is marked B. Please note the distance of B to A

should be 5m. Measure the distance between M to cross laser lune, if the

dierence is over 3mm, the laser is out of calibration, please contact with

seller to calibrate the laser.

TO CHECK PLUMB

Choose a wall and set laser 5m away from the wall. Mark point A on the

wall, please note the distance from point A to ground should be 3m. Hang

a plumb line from A point to ground and nd a plumb point B on ground.

Turn on the laser and make the vertical laser line meet the point B, along

the vertical laser line on the wall and measure the distance 3m from point

B to another point C. Point C must be on the vertical laser line, it means

the height of C point is 3m. Measure the distance from point A to point C, if

the distance is over 2 mm, please, contact with seller to calibrate the laser.

English

6English

PRODUCT LIFE

Product life of the tool is 7 years. The battery and the tool should never

be placed in municipal waste. Date of production, manufacturer’s contact

information, country of origin are indicated on the product sticker.

CARE AND CLEANING

Please handle line laser with care. Clean with soft cloth only after any use.

If necessary damp cloth with some water. If instrument is wet clean and

dry it carefully. Pack it up only if it is perfectly dry. Transport in original

container/case only.

Note: During transport On/O compensator lock (3) must be set to posi-

tion “OFF”. Disregard may lead to damage of compensator.

SPECIFIC REASONS FOR ERRONEOUS MEASURING RESULTS

• Measurements through glass or plastic windows;

• Dirty laser emitting window;

• After instrument has been dropped or hit. Please check the accuracy.

• Large uctuation of temperature: if instrument will be used in cold

areas after it has been stored in warm areas (or the other way round)

please wait some minutes before carrying out measurements.

ELECTROMAGNETIC ACCEPTABILITY (EMC)

• It cannot be completely excluded that this instrument will disturb

other instruments (e.g. navigation systems);

• will be disturbed by other instruments (e.g. intensive electromagnetic

radiation nearby industrial facilities or radio transmitters).

LASER CLASS 2 WARNING LABELS ON THE LASER INSTRUMENT

LASER CLASSIFICATION

The line laser is a laser class 2 laser product accortding to DIN IEC 60825-

1:2014. It is allowed to use unit without further safety precautions.

SAFETY INSTRUCTIONS

Please follow up instructions given in operating manual. Do not stare into

beam. Laser beam can lead to eye injury (even from greater distances). Do

not aim laser beam at persons or animals. The laser plane should be set

up so that the beam path is not at normal eye level. Use the instrument for

7English

measuring jobs only. Do not open instrument housing. Repairs should be

carried out by authorized workshops only. Please contact your local deal-

er. Do not remove warning labels or safety instructions. Keep instrument

away from children. Do not use instrument in explosive environment.

WARRANTY

This product is warranted by the manufacturer to the original purchaser to

be free from defects in material and workmanship under normal use for a

period of two (2) years from the date of purchase. During the warranty pe-

riod, and upon proof of purchase, the product will be repaired or replaced

(with the same or similar model at manufactures option), without charge

for either parts of labour. In case of a defect please contact the dealer

where you originally purchased this product. The warranty will not apply

to this product if it has been misused, abused or altered. Without limiting

the foregoing, leakage of the battery, bending or dropping the unit are

presumed to be defects resulting from misuse or abuse.

EXCEPTIONS FROM RESPONSIBILITY

The user of this product is expected to follow the instructions given in op-

erators’ manual. Although all instruments left our warehouse in perfect

condition and adjustment the user is expected to carry out periodic checks

of the product’s accuracy and general performance. The manufacturer,

or its representatives, assumes no responsibility of results of a faulty or

intentional usage or misuse including any direct, indirect, consequential

damage, and loss of prots. The manufacturer, or its representatives, as-

sumes no responsibility for consequential damage, and loss of prots by

any disaster (earthquake, storm, ood ...), re, accident, or an act of a third

party and/or a usage in other than usual conditions.

The manufacturer, or its representatives, assumes no responsibility for

any damage, and loss of prots due to a change of data, loss of data and

interruption of business etc., caused by using the product or an unusable

product. The manufacturer, or its representatives, assumes no responsi-

bility for any damage, and loss of prots caused by usage other thsn ex-

plained in the users’ manual. The manufacturer, or its representatives, as-

sumes no responsibility for damage caused by wrong movement or action

due to connecting with other products.

8English

WARRANTY DOESN’T EXTEND TO FOLLOWING CASES:

1. If the standard or serial product number will be changed, erased, re-

moved or wil be unreadable.

2. Periodic maintenance, repair or changing parts as a result of their nor-

mal runout.

3. All adaptations and modications with the purpose of improvement

and expansion of normal sphere of product application, mentioned in the

service instruction, without tentative written agreement of the expert pro-

vider.

4. Service by anyone other than an authorized service center.

5. Damage to products or parts caused by misuse, including, without lim-

itation, misapplication or nrgligence of the terms of service instruction.

6. Power supply units, chargers, accessories, wearing parts.

7. Products, damaged from mishandling, faulty adjustment, maintenance

with low-quality and non-standard materials, presence of any liquids and

foreign objects inside the product.

8. Acts of God and/or actions of third persons.

9. In case of unwarranted repair till the end of warranty period because

of damages during the operation of the product, it’s transportation and

storing, warranty doesn’t resume.

English

WARRANTY CARD

Name and model of the product __________________________________________

Serial number___________________________Date of sale______________________

Name of commercial organization ________________________________________

stamp of commercial organization

Warranty period for the instrument explotation is 24 months after the

date of original retail purchase.

During this warranty period the owner of the product has the right for

free repair of his instrument in case of manufacturing defects.

Warranty is valid only with original warranty card, fully and clear lled

(stamp or mark of thr seller is obligatory).

Technical examination of instruments for fault identication which is

under the warranty, is made only in the authorized service center.

In no event shall manufacturer be liable before the client for direct or

consequential damages, loss of prot or any other damage which occur

in the result of the instrument outage.

The product is received in the state of operability, without any visible

damages, in full completeness. It is tested in my presence. I have no

complaints to the product quality. I am familiar with the conditions of

qarranty service and i agree.

purchaser signature _______________________________

Before operating you should read service instruction!

If you have any questions about the warranty service and technical support contact

seller of this product

10 Russian

Table des matières

Langues :

Autres manuels ADA INSTRUMENTS Niveau laser

ADA INSTRUMENTS

ADA INSTRUMENTS Phantom 2D Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS ProLevel 40 Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS 3D Liner 2V Green Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS ROTARY 400 HV Servo Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS CUBE MINI Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS 6D SERVOLINER GREEN Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS TOPLINER 3-360 Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS ProDigit 30 Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS 2D Basic Level Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS ADA BASIS Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS CUBE MINI GREEN Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS CUBE MINI Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS CUBE 3-360 GREEN Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS 3D Liner 2V Green Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS Eco 2D Pro Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS LASERTANK 3-360 GREEN Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS 6D SERVOLINER Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS ProDigit 30 Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS CUBE Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS ROTARY 500 HV SERVO Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS ULTRALiner 360 2V Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS CUBE 2-360 GREEN Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS TOPLiner 3x360 Manuel utilisateur

ADA INSTRUMENTS

ADA INSTRUMENTS BASIS Manuel utilisateur

Manuels Niveau laser populaires d'autres marques

Nedo

Nedo ET-5 Manuel utilisateur

geo-FENNEL

geo-FENNEL Maxi-Liner FL 65 HP Manuel utilisateur

LaserLiner

LaserLiner X2-Laser Manuel utilisateur

Spectra

Spectra LL300N Manuel utilisateur

geo-FENNEL

geo-FENNEL Selection PRO FLG 40-PowerCross GREEN SP Manuel utilisateur

Nedo

Nedo Crossliner 4 Manuel utilisateur

Lasertec

Lasertec FX360G Manuel utilisateur

Flex

Flex ALC 8 Manuel utilisateur

Black & Decker

Black & Decker LZR5 Manuel utilisateur

Johnson

Johnson 40-6692 Manuel utilisateur

Cocraft

Cocraft HL 20-SG Manuel utilisateur

Zircon

Zircon iLine Manuel utilisateur

HWH

HWH 310 SERIES Manuel utilisateur

Leica

Leica iCON robot 60 Manuel utilisateur

LaserLiner

LaserLiner SuperCross-Laser SCL 2 Manuel utilisateur

LaserLiner

LaserLiner ActiveFinder XP Manuel utilisateur

DeWalt

DeWalt DW082 Manuel utilisateur

imex

imex EL20 Manuel utilisateur
