ACU-RITE 1086 Manuel utilisateur

Instruction Manual

SAVE THIS MANUAL FOR FUTURE REFERENCE.

Questions? Contact Customer Support at

(877) 221-1252 or visit www.AcuRite.com.

CONTENTS

Unpacking Instructions ........... 2

Package Contents .................. 2

Product Registration ............... 2

Features & Benets: Sensor..... 2

Features & Benets: Display.... 3

Setup .................................... 5

Sensor Setup ......................... 5

Display Setup ........................ 6

Intelli-Time Clock.................... 7

Set the Time, Date & Units ...... 7

Placement Guidelines ............. 8

Using the Weather Station...... 9

Troubleshooting ....................10

Care & Maintenance.............12

Replace Intelli-Time Battery....12

Specications........................13

FCC Information ...................13

Customer Support .................14

Warranty..............................14

Weather Station

model 01086

Congratulations on your new AcuRite product. To ensure the best

possible product performance, please read this manual in its entirety

and retain it for future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Display unit with tabletop stand

2. Outdoor sensor

3. Instruction Manual

PRODUCT REGISTRATION

to receive 1 year

warranty protection

www.AcuRite.com

IMPORTANT PRODUCT MUST BE REGISTERED

TO RECEIVE WARRANTY SERVICE

►

Features & Benets

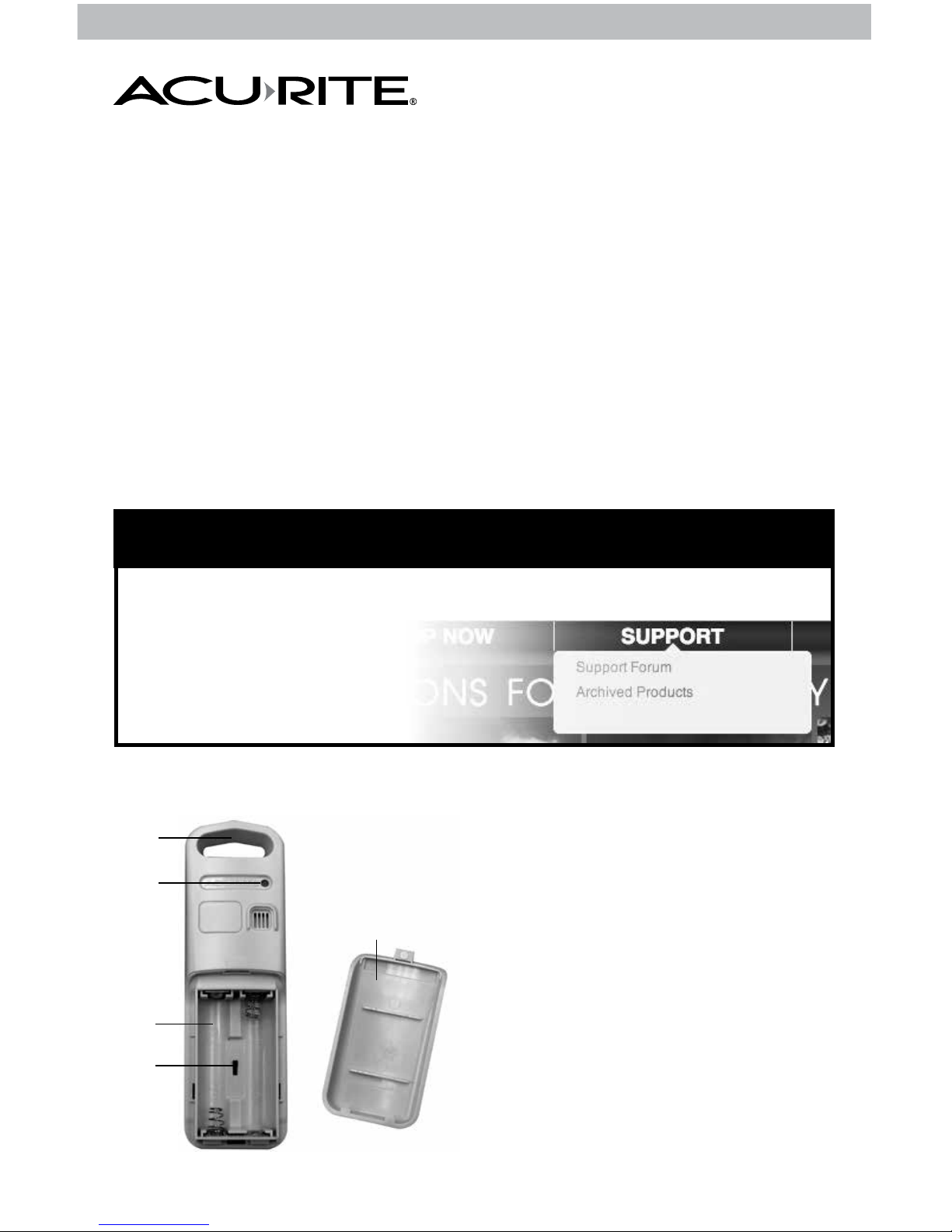

OUTDOOR SENSOR

1. Integrated Hanger

For easy placement.

2. Wireless Signal Indicator

Flashes when data is being sent

to the display unit.

3. Battery Compartment

4. A-B-C Switch

ID code that must match display’s

A-B-C switch to ensure units synchronize.

5. Battery Compartment Cover

Features & Benets

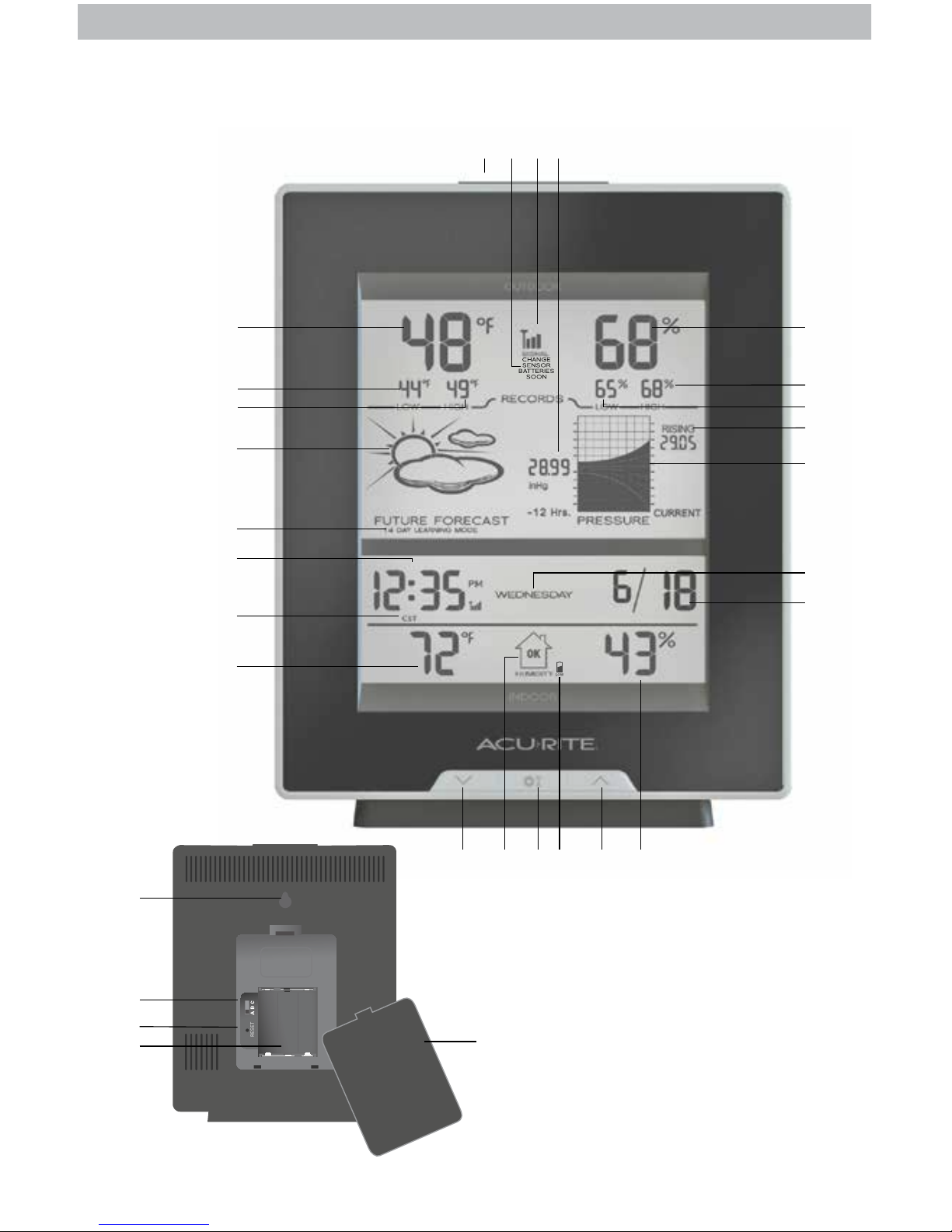

DISPLAY UNIT FRONT

RESET

911 12 13 14

25 2324 22

BACK OF DISPLAY UNIT

DISPLAY UNIT FRONT

1. Current Outdoor Temperature

2. Outdoor Low Temperature Record

Lowest temperature recorded since

midnight.

3. Outdoor High Temperature Record

Highest temperature recorded since

midnight.

4. 12 to 24 Hour Weather Forecast

Self-Calibrating Forecasting pulls data

from the outdoor sensor to generate

your personal forecast.

5. Learning Mode Icon

Disappears after weather forecast

self-calibration is complete.

6. Intelli-Time®Clock

Automatically updates for

Daylight Saving Time.

7. Time Zone

8. Current Indoor Temperature

9. “ “ Arrow

for setup preferences.

10. Humidity Level Icon

Indicates a high, low or ideal

indoor humidity level.

11. “ “ Button

for setup preferences.

12. Display Unit Low Battery Indicator

13. “ “ Arrow

for setup preferences.

14. Current Indoor Humidity

15. Date

16. Day of the Week

17. Pressure History Chart

Displays the past 12 hours of data for

barometric pressure.

18. Current Barometric Pressure

FALLING, STEADY or RISING

indicates the direction pressure is

trending.

19. Outdoor Low Humidity Record

Lowest humidity recorded since

midnight.

20. Outdoor High Humidity Record

Highest humidity recorded since

midnight.

21. Current Outdoor Humidity

22. Historical Barometric Pressure

Pressure reading 12 hours ago.

23. Outdoor Sensor Signal Strength

24. Sensor Low Battery Indicator

25. Momentary Backlight Button

Activates momentary backlight.

DISPLAY UNIT BACK

26. Integrated Hang Hole

for easy wall mounting.

27. A-B-C Switch

ID code that must match sensor’s

A-B-C switch to ensure units

synchronize.

28. Reset

Full reset to factory defaults.

29. Battery Compartment

30. Battery Compartment Cover

SETUP

Set the A-B-C Switch

The A-B-C switch is located inside

the battery compartment. It can

be set to A, B or C. However,

you must select the same letter

choices for both the sensor and

the display unit in order for the

units to synchronize.

Install or Replace Batteries

AcuRite recommends high quality

alkaline or lithium batteries for

the best product performance.

Heavy duty or rechargeable

batteries are not recommended.

The sensor requires lithium

batteries in low temperature

conditions. Cold temperatures

can cause alkaline batteries

to function improperly. Use

lithium batteries in the sensor for

temperatures below -4ºF / -20ºC.

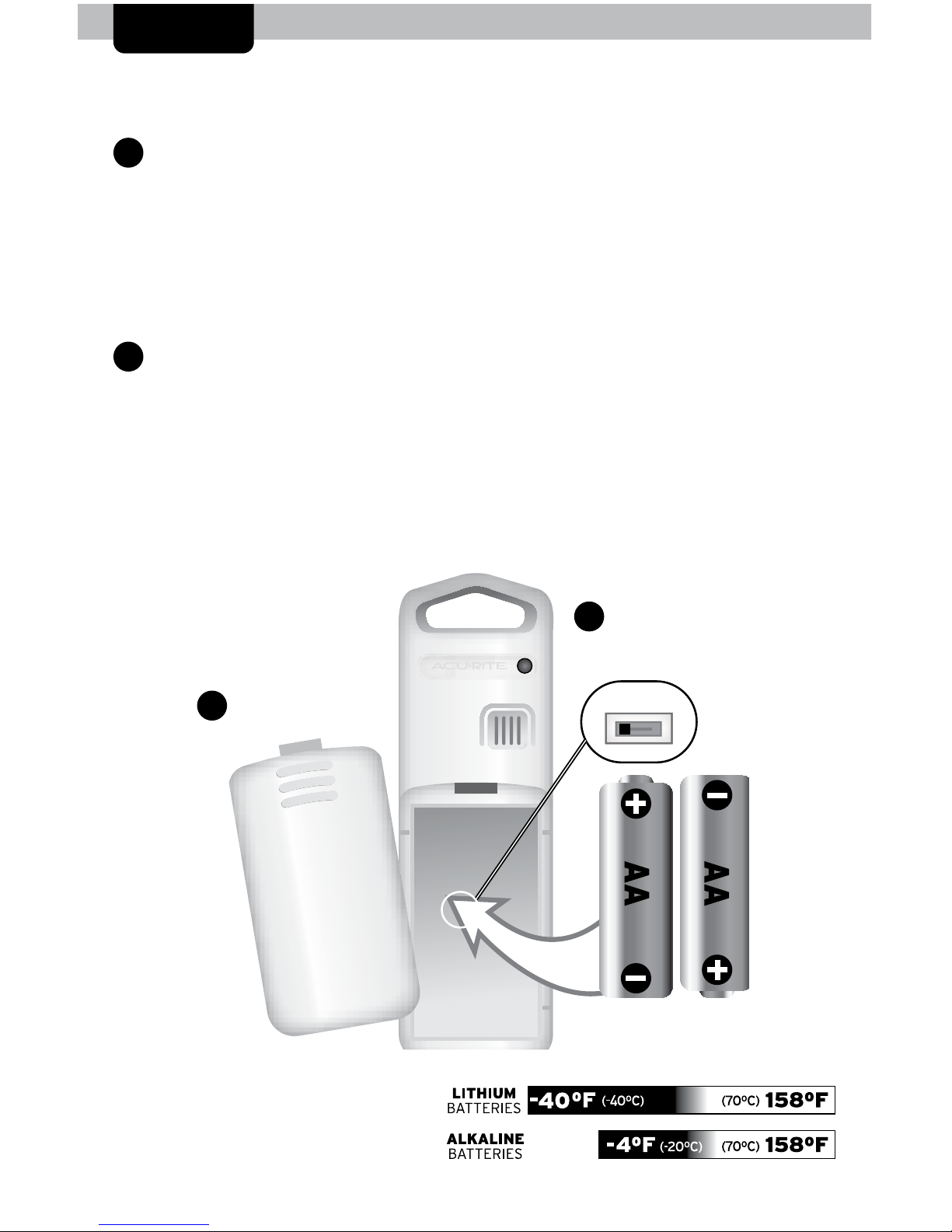

1. Slide off the battery

compartment cover. Take

note of the A-B-C switch

setting inside the battery

compartment.

2. Insert 2 x AA batteries into

the battery compartment, as

shown. Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

Sensor Setup

1A-B-C Switch

set to match

display unit

2Install Batteries

2 AA batteries

A B C

RESET

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used

batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in ﬁre,

as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge

non-rechargeable batteries. DO NOT short-circuit the supply terminals.

Display Unit Setup

Set the A-B-C Switch

Locate the A-B-C switch inside

the battery compartment. Set

the A-B-C switch to A, B or C.

You must select the same letter

choices for both the display unit

and the sensor in order for the

units to synchronize.

Install or Replace Backup

Batteries

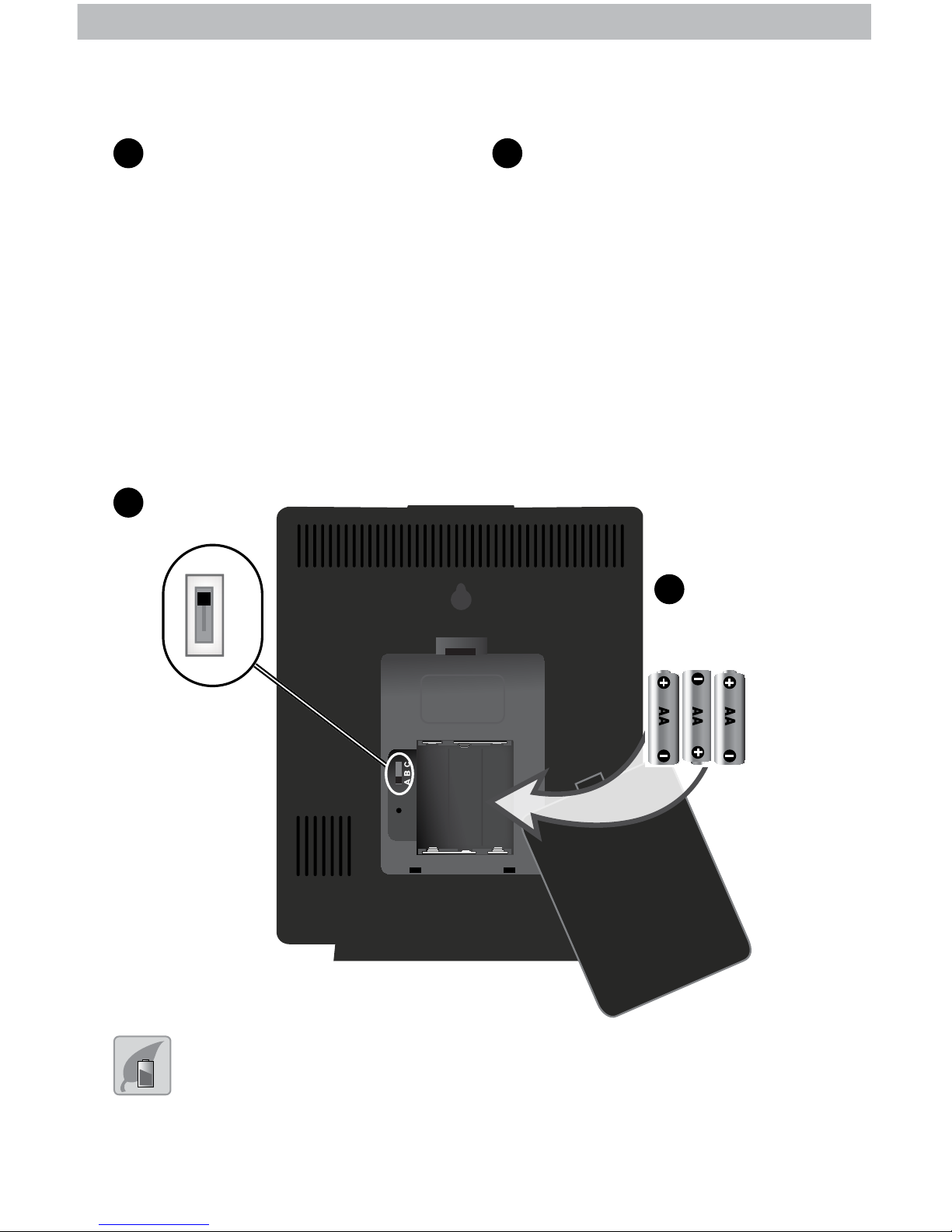

1. Remove the battery

compartment cover.

2. Insert 3 x AA alkaline

batteries into the battery

compartment, as shown.

Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

A B C

1A-B-C Switch

set to match

sensor

2Install Backup

Batteries

3 AA batteries

Intelli-Time®Clock

Intelli-Time products are pre-programmed with the correct time and date. All

you need to do is select your Time Zone and Daylight Saving Time preferences.

The clock will then automatically updates for Daylight Saving Time.

Set the Time, Date & Units

Press and HOLD the “ ” button to enter SETUP MODE. Once in setup mode,

the preference you are currently setting will blink on the display.

To adjust the currently selected (ashing) item, press and release the “ ” or

“

“ buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the “ ” button again to adjust

the next preference. The preference set order is as follows:

TIME ZONE ( PST MST CST EST AST HAST AKST)

DST* (Daylight Saving Time ON or OFF)

CLOCK HOUR

CLOCK MINUTE

CALENDAR DATE

CALENDAR MONTH

CALENDAR YEAR

TEMPERATURE SCALE (ºF or ºC)

BAROMETRIC PRESSURE SCALE (inHg or hPa)

*If you live in an area that observes daylight saving time, DST should be set to

ON, even if it is not currently Daylight Savings Time.

You will automatically exit SETUP MODE if no buttons are pressed for 20

seconds. Enter setup mode at any time by pressing the “ ” button.

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper

placement of both the display unit and outdoor sensor are critical to the

accuracy and performance of this product.

Display Unit Placement

Place the display unit in a dry area free of dirt and dust.

Display unit stands upright for tabletop use or is wall-mountable.

Outdoor Sensor Placement

Sensor must be placed outside to observe outdoor conditions.

Sensor is water resistant and is designed for general outdoor

use, however, to extend its life place the sensor in an area

protected from direct weather elements.

Hang the sensor using the integrated hang holes or hanger, or

by using string (not included) to hang it from a suitable location,

like a well covered tree branch. The best location is 4 to 8 feet

above the ground with permanent shade and plenty of fresh air

to circulate around the sensor.

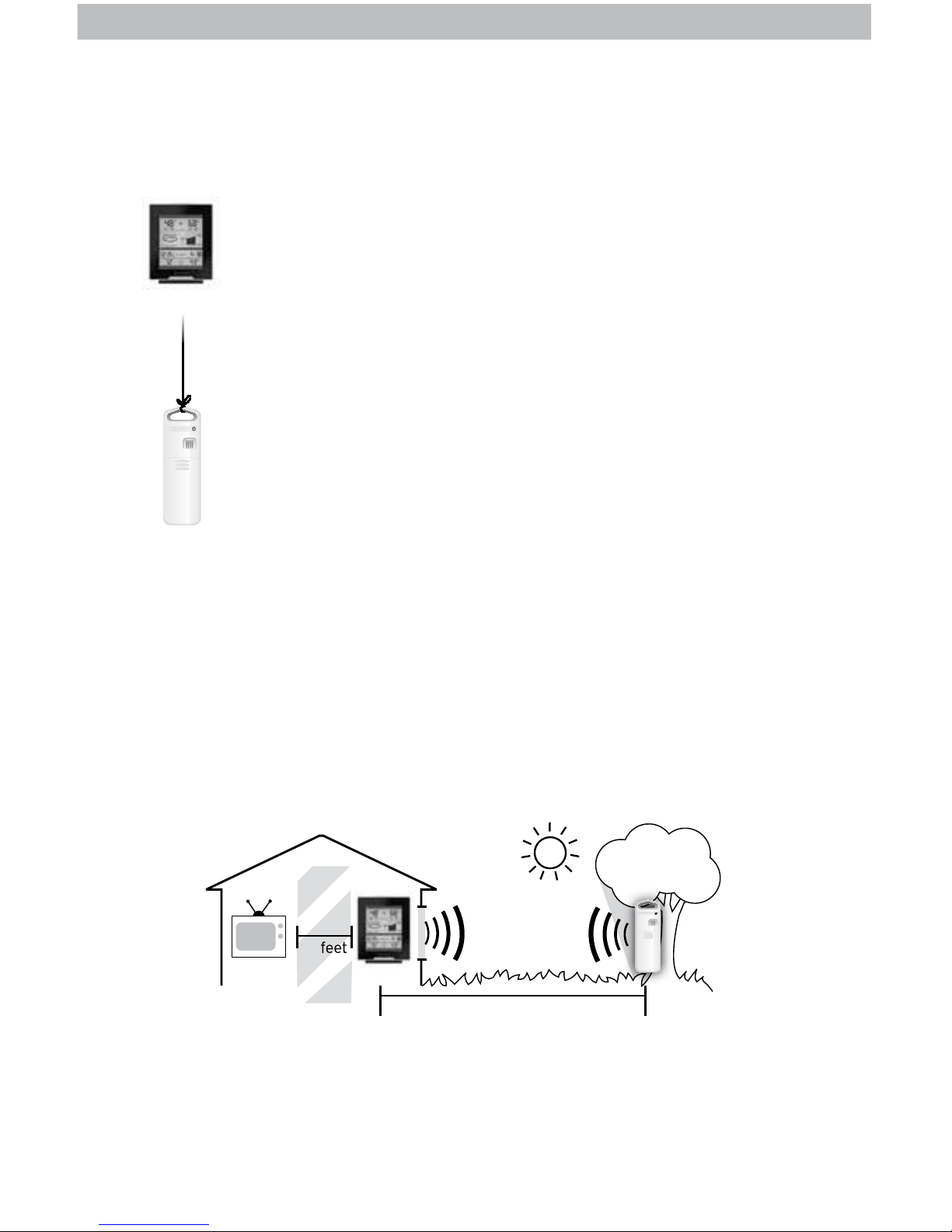

Important Placement Guidelines

• To ensure accurate temperature measurement, place units out of direct

sunlight and away from any heat sources or vents.

• Display unit and outdoor sensor must be within 330 ft (100 m) of each other.

• To maximize wireless range, place units away from large metallic items, thick

walls, metal surfaces, or other objects that may limit wireless communication.

• To prevent wireless interference, place both units at least 3 ft (.9 m) away

from electronic devices (TV, computer, microwave, radio, etc.).

Setup is Complete

The sensor will now synchronize with the display unit. It may take a few

minutes for synchronization to complete. Please refer to the troubleshooting

section of this manual if anything appears to be functioning improperly.

TV 3

(100 meters)

(330 feet maximum)

(.91 m)

LEAST

APART

Using the Weather Station

Learning Mode

Self-Calibrating Forecasting uses a unique algorithm to analyze changes in

pressure over a time period (called Learning Mode) to determine your altitude.

After 14 days, the Learning Mode icon disappears from the display screen. At

this point, the self-calibrated pressure is tuned in to your location and the unit is

ready for superior weather prediction.

Weather Forecast

AcuRite’s patented Self-Calibrating Forecasting provides your personal forecast

of weather conditions for the next 12 to 24 hours by collecting data from

the sensor in your backyard. It generates a forecast with pinpoint accuracy -

personalized for your exact location.

Barometric Pressure

Subtle variations in barometric pressure greatly impact the weather. This

weather center displays the current pressure and indicates the direction the

pressure is trending (FALLING, STEADY, or RISING). The history chart lets you

monitor the change in pressure over time.

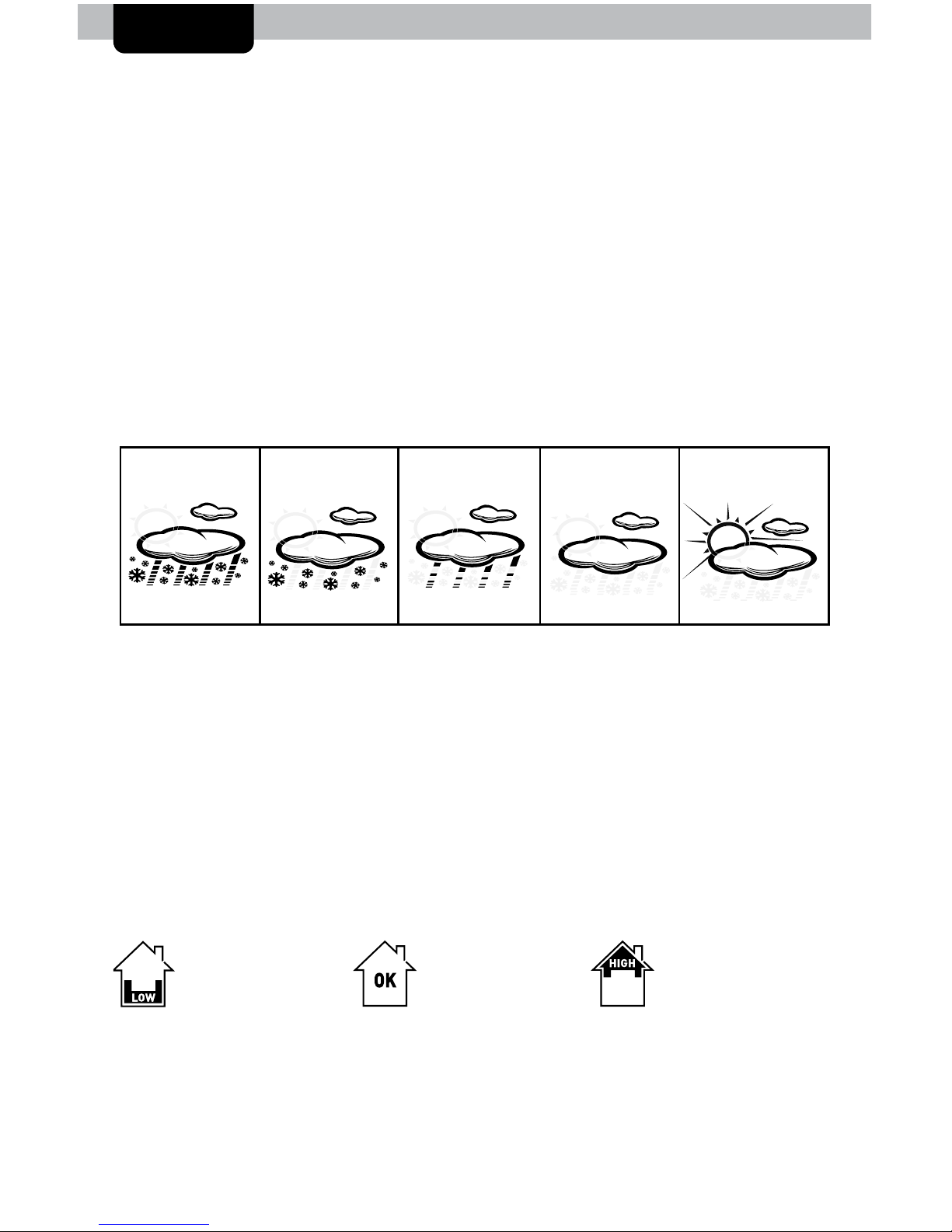

Humidity Level Icon

The Humidity Level Icon easily conveys a low, high or ideal indoor humidity

level for your home and health:

Learn more at http://www.AcuRite.com/humidity-health

OPERATION

LIGHT RAIN

LIKELY

SNOW

LIKELY

RAIN/SNOW

MIX LIKELY

MOSTLY

CLOUDY

(flashing=stormy)

View the complete list of icons at www.AcuRite.com/acurite-icons

LOW Humidity Level

Humidity is

low relative to

temperature.

Makes for a

DRY environment.

OK Humidity Level

Humidity is

OK relative to

temperature.

Makes for an

IDEAL environment.

HIGH Humidity Level

Humidity is

high relative to

temperature.

Makes for a HUMID

environment.

Troubleshooting

Problem Possible Solution

No outdoor sensor

reception

no bars

If the wireless signal indicator shows no bars:

• Relocate the display unit and/or the outdoor sensor. The

units must be within 330 ft (100 m) of each other.

• Make sure both units are placed at least 3 feet

(.9 m) away from electronics that may interfere with

the wireless communication (such as TVs, microwaves,

computers, etc).

• Use standard alkaline batteries (or lithium batteries in

sensor when temperature is below -4ºF/-20ºC). Do not

use heavy duty or rechargeable batteries. NOTE: It

may take up to 20 minutes for display unit and sensor to

synchronize after batteries are replaced.

Outdoor

temperature

is ashing or

showing dashes

Flashing of the outdoor temperature is generally an

indication of wireless interference.

1. Bring both the sensor and display unit indoors and

remove batteries from each.

2. Make sure the A-B-C switch on both units match.

3. Reinstall batteries in the outdoor sensor.

4. Reinstall batteries in the display unit.

5. Let the units sit within a couple feet of each other

for about 20 minutes to gain a strong connection.

Sometimes changing to a different channel can help.

Inaccurate forecast

• Weather Forecast icon predicts conditions for the next 12

to 24 hours, not current conditions.

• Has Learning Mode icon disappeared from the display

unit? Learning Mode must complete before forecast and

pressure will be accurate.

• Allow unit to run continuously for 33 days. Battery

removal or resetting the display unit will restart Learning

Mode. After 14 days, forecast should be fairly accurate,

however Learning Mode calibrates for a total of 33

days.

Inaccurate

temperature

or humidity

• Make sure both the display unit and sensor are placed

out of direct sunlight and away from any heat sources or

vents (see page 8).

• Make sure both units are positioned away from moisture

sources (see page 8).

Table des matières

Autres manuels ACU-RITE Station météorologique

ACU-RITE

ACU-RITE 509 Manuel utilisateur

ACU-RITE

ACU-RITE 2048 Manuel utilisateur

ACU-RITE

ACU-RITE 01098CDI Manuel utilisateur

ACU-RITE

ACU-RITE 518346 Manuel utilisateur

ACU-RITE

ACU-RITE 02032C Manuel utilisateur

ACU-RITE

ACU-RITE 1015 Manuel utilisateur

ACU-RITE

ACU-RITE 02038W Manuel utilisateur

ACU-RITE

ACU-RITE 00806 Manuel utilisateur

ACU-RITE

ACU-RITE 433981 Manuel utilisateur

ACU-RITE

ACU-RITE Rain Gauge Manuel utilisateur

ACU-RITE

ACU-RITE 00837W Manuel utilisateur

ACU-RITE

ACU-RITE 01097 Manuel utilisateur

ACU-RITE

ACU-RITE 992 Manuel utilisateur

ACU-RITE

ACU-RITE 11132-1500RX Manuel utilisateur

ACU-RITE

ACU-RITE Iris 06106 Manuel utilisateur

ACU-RITE

ACU-RITE 01301CCDI Manuel utilisateur

ACU-RITE

ACU-RITE OO592W Manuel utilisateur

ACU-RITE

ACU-RITE 00815 Manuel utilisateur

ACU-RITE

ACU-RITE 01538 Manuel utilisateur

ACU-RITE

ACU-RITE 06100M Manuel utilisateur

ACU-RITE

ACU-RITE 02001 Manuel utilisateur

ACU-RITE

ACU-RITE 00806SBL Manuel utilisateur

ACU-RITE

ACU-RITE 01515 Manuel utilisateur

ACU-RITE

ACU-RITE 00477 Manuel utilisateur

Manuels Station météorologique populaires d'autres marques

Auriol

Auriol AHFL 433 A1 Manuel utilisateur

NexSens

NexSens G2-HYDROMET Manuel utilisateur

Hyundai

Hyundai WS 2202 Manuel utilisateur

IROX

IROX HBVR761 UV-X Manuel utilisateur

La Crosse Technology

La Crosse Technology C86371 Manuel utilisateur

ADE

ADE WS 1711 Manuel utilisateur

Auriol

Auriol z29592 Manuel utilisateur

Auriol

Auriol 296289 Manuel utilisateur

Hyundai

Hyundai WS 2266 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-2210 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-811561 Manuel utilisateur

Ventus

Ventus W177 Manuel utilisateur

National Geographic

National Geographic VA Colour RC Manuel utilisateur

Renkforce

Renkforce 1208067 Manuel utilisateur

Levenhuk

Levenhuk Discovery Report WA40 Manuel utilisateur

Instant Transmission

Instant Transmission MA 10410 Manuel utilisateur

Lutron Electronics

Lutron Electronics PHB-318 Manuel utilisateur

WAREMA

WAREMA EWFS Weather station eco Manuel utilisateur
