Professional Weather Center

model 01036

Congratulations on your new AcuRite product. To ensure the best

possible product performance, please read this manual in its entirety

and retain it for future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Display with tabletop stand

2. 5-in-1 sensor

3. Sensor mounting bracket

4. Mounting hardware

5. Power adapter

6. USB cable

7. Instruction Manual

PRODUCT REGISTRATION

to receive 1 year

warranty protection

www.AcuRite.com

IMPORTANT PRODUCT MUST BE REGISTERED

TO RECEIVE WARRANTY SERVICE

►

Features & Benets

5-in-1 SENSOR

1. Rainfall Collector Funnel

2. Solar Cell Panel

Converts sunlight into power to run

internal aspirating fan.

Internal Aspirating Fan

(not shown)

Draws ambient air into

sensor to reduce solar radiation

heating, resulting in more accurate

temperature measurement.

3. A-B-C Switch

ID code that must match display’s

A-B-C switch to ensure units

synchronize.

4. Battery Compartment

5. Temperature & Humidity Sensors

(internal)

6. Mounting Point

7. Wind Speed Anemometer

8. Wind Direction Vane

9. Mounting Bracket

10. Mounting Hardware

Includes anchors & screws.

Qty Diameter Length

4 #4 1”

2 #6 ½”

11. Debris Filter

Pre-installed to prevent debris from

entering the rain gauge.

Features & Benets

Display

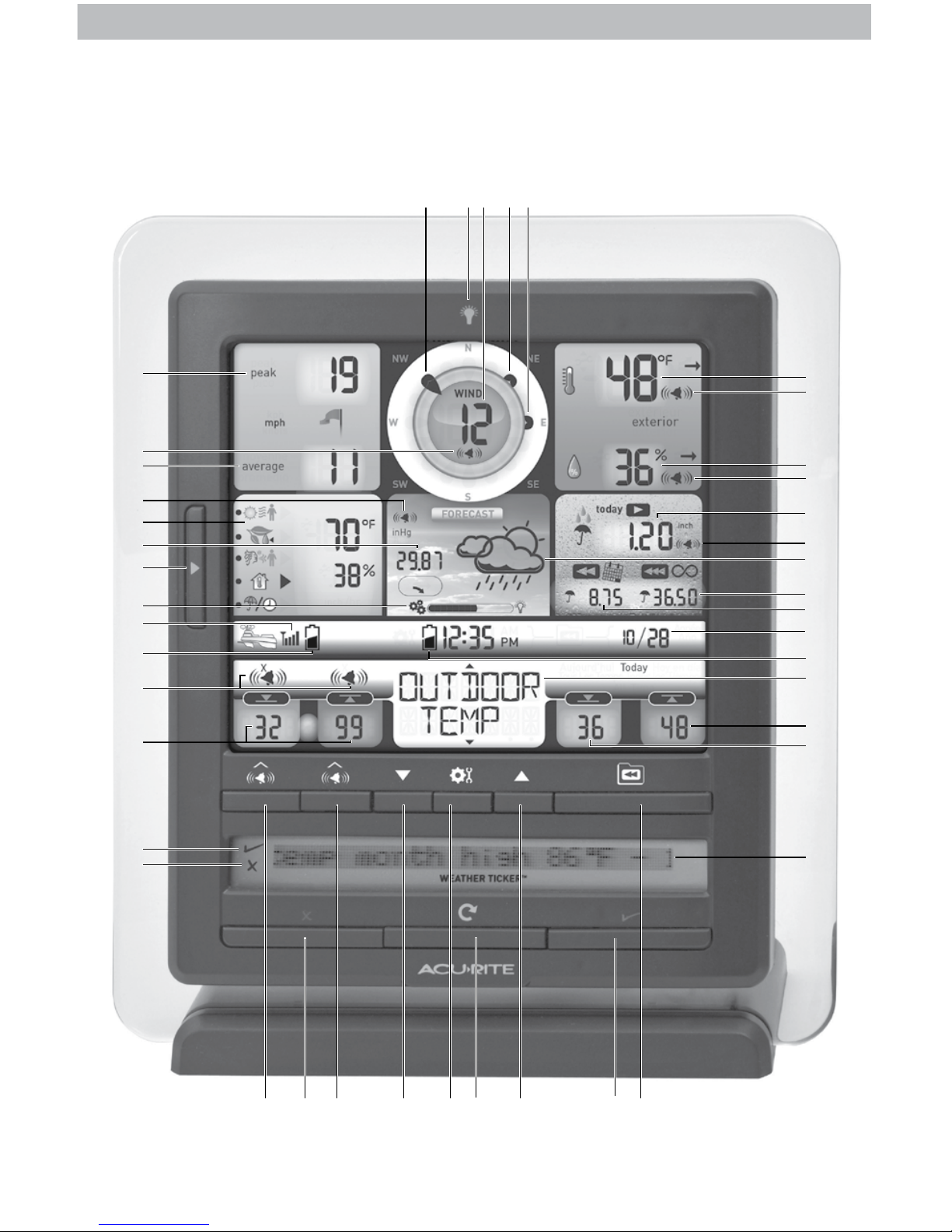

2 3 414

26 27 26 23 25 24 23 22 21

1. Current Wind Direction

2. Touch Activated Backlight

Momentary during battery power,

always on/off for power adapter.

3. Current Wind Speed

4. Previous 2 Wind Directions

5. Current Outdoor Temperature

Arrow icon indicates direction

temperature is trending.

6. Outdoor Temperature Alarm On

Indicator

7. Current Outdoor Humidity

Arrow icon indicates direction

humidity is trending.

8. Outdoor Humidity Alarm On

Indicator

9. Current Rainfall

Accumulates data during rainfall.

10. Rainfall Alarm On Indicator

11. 12 to 24 Hour Weather Forecast

Self-Calibrating Forecasting pulls

data from your 5-in-1 sensor to

generate your personal forecast.

12. All-Time Rainfall

13. Current Month Total Rainfall

14. Date

15. Clock

16. Display Low Battery Indicator

17. Selectable Category

18. Record Highs

Shown for current category selected

on the display (#17).

19. Record Lows

Shown for current category selected

on the display (#17).

20. Weather Ticker™

21. All-Time Records Button

Press for all-time low and date

recorded for current category

selected on display (#17). Press twice

for all-time high and date recorded.

22. Activate Weather Ticker Message

23. “

▲

“/”

▼

“ to Select Category

(#17) & Adjust Settings

24. Weather Ticker Manual Cycle

Press to advance through messages.

25. “ “ Button

for setup preferences.

26. Alarm On/Off Button

Activate alarm; press and hold to

adjust alarm values.

27. Deactivate Weather Ticker

Message

28. Indicates Deactivated Weather

Ticker Message

During ticker customization mode.

29. Indicates Active Weather Ticker

Message

During ticker customization mode.

30. Programmable Alarm Settings

31. Alarm On/Off Indicator

for Selectable Category (#17).

32. Low Battery Indicator

33. 5-in-1 Sensor Signal Strength

34. Learning Mode Icon

Disappears after weather forecast

self-calibration is complete.

35. Weather Select Button

Press to change the Weather Select

category data being displayed.

36. Current Barometric Pressure

Arrow icon indicates direction

pressure is trending.

37. Weather Select (top to bottom)

Heat index, dew point, wind chill,

indoor temperature / humidity,

rainfall rate (rain per hour).

38. Storm Alert Alarm On Indicator

39. Average Wind Speed

of all speeds from past 2 minutes.

40. Wind Speed Alarm On Indicator

41. Peak Wind Speed

Highest speed from past 60 minutes.

Back of Display 123 4

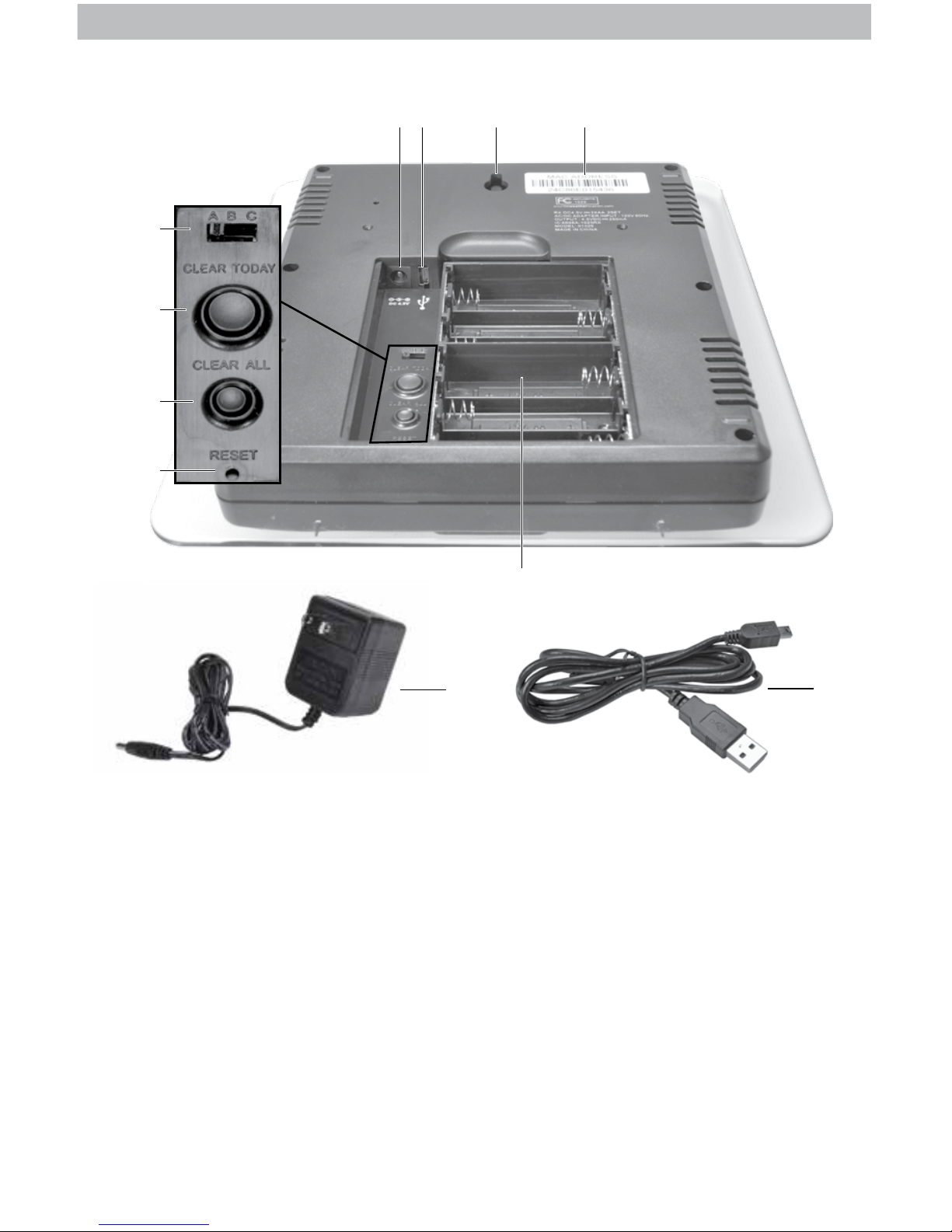

BACK OF DISPLAY

1. Plug-in for Power Adapter

2. Plug-in for USB Cable

3. Integrated Hang Hole

For easy wall mounting.

4. MAC ADDRESS

12 digit unique ID required for

online connectivity functions.

5. Backup Battery Compartment

6. A-B-C Switch

ID code that must match 5-in-1

sensor’s A-B-C switch to ensure

units synchronize.

7. Clear Today

Clears data recorded since

12:00 am.

8. Clear All

Clears all recorded data without

having to reset time and date.

Note: USB mode will be reset to

Mode 2 (Default).

9. Reset

Full reset to factory defaults.

10. Power Adapter

11. USB Cable for PC Connection

12. Battery Compartment Cover

(not shown)

10 11

A B C

SETUP

5-in-1 Sensor Setup

1A-B-C Switch

Set to match

display

2Install Batteries

4 AA Batteries

3Rain Gauge Stabilizer

Remove and discard

Set the A-B-C Switch

Locate the A-B-C switch inside the

battery compartment. Set the A-B-C

switch to A, B or C. You must select

the same letter choices for both the

sensor and the display in order for

the units to synchronize.

Install or Replace Batteries

Batteries MUST be installed for

this product to operate. AcuRite

recommends high quality alkaline

or lithium batteries for the best

product performance. Heavy duty

or rechargeable batteries are not

recommended.

The 5-in-1 sensor requires lithium

batteries in low temperature

conditions. Cold temperatures can

cause alkaline batteries to function

improperly. Use lithium batteries in

the 5-in-1 sensor for temperatures

below -4ºF / -20ºC.

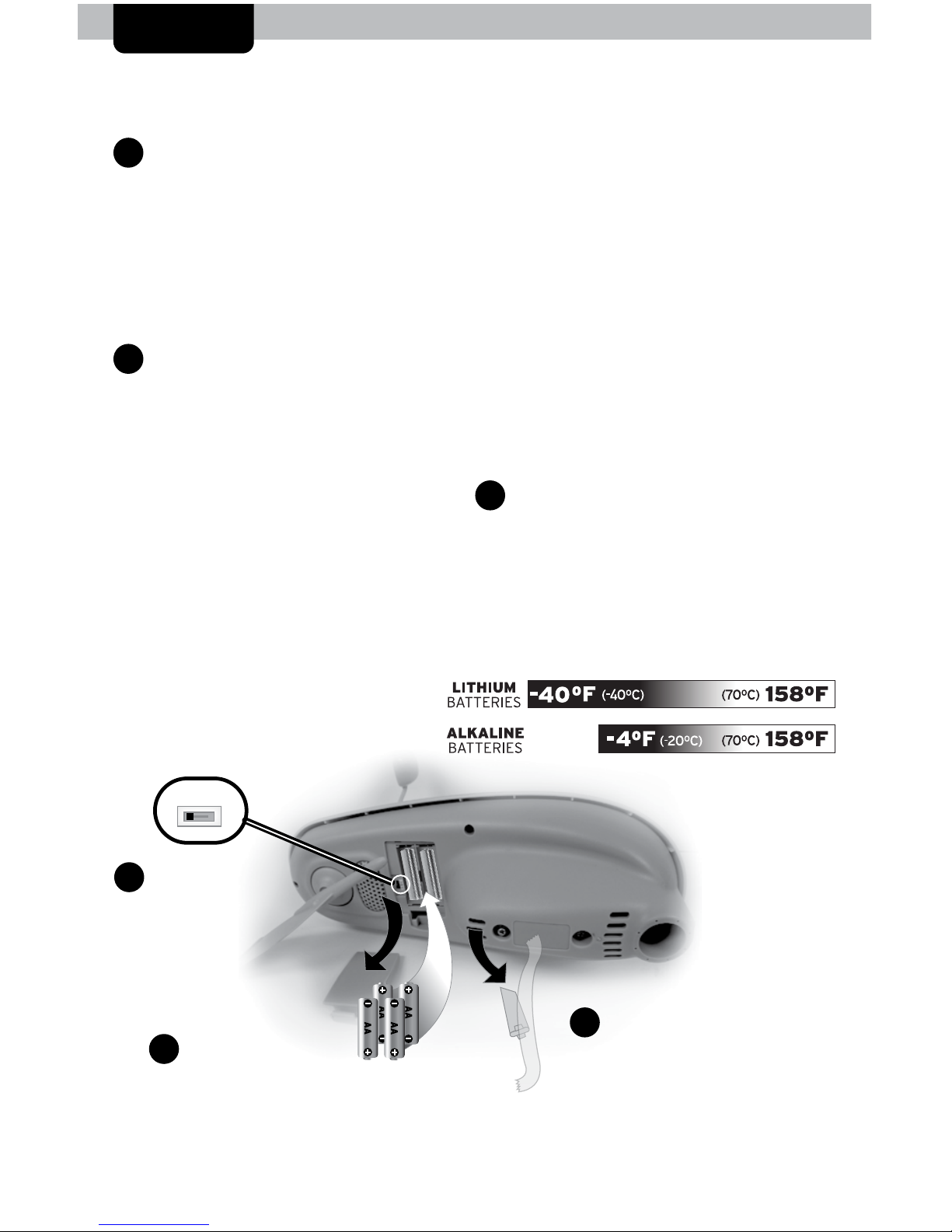

1. Slide off the battery

compartment cover.

2. Insert 4 x AA batteries into the

battery compartment, as

shown. Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

Remove Rain Gauge Stabilizer

Locate and remove the rain gauge

stabilizer (plastic tab) taped into

the bottom of the sensor. The rain

gauge will not function until this is

removed.

Display Setup

Set the A-B-C Switch

The A-B-C switch is located inside

the battery compartment. It can

be set to A, B or C. However,

you must select the same letter

choices for both the sensor and

the display in order for the units

to synchronize.

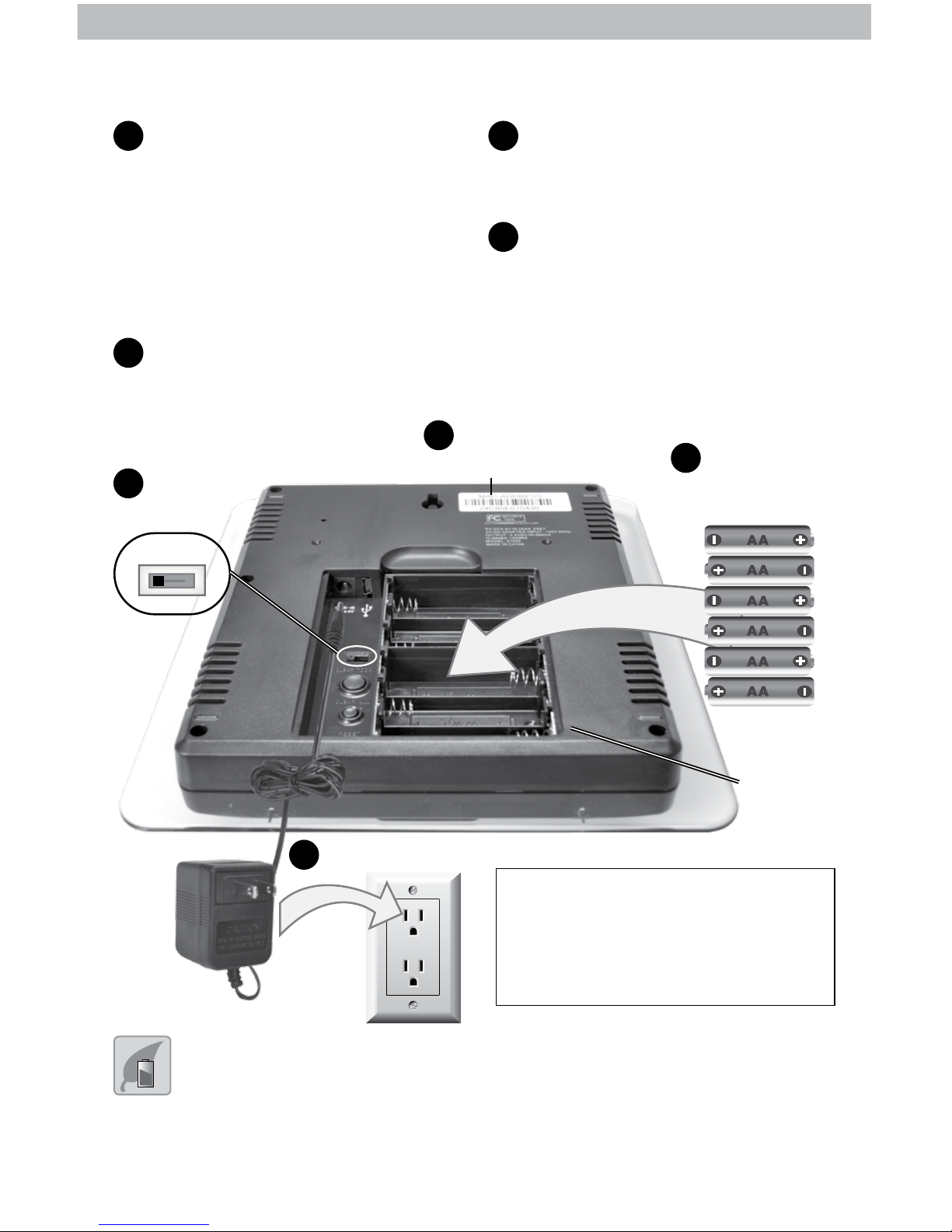

Plug Power Adapter into

Electric Outlet

Write Down the MAC ADDRESS

12 digit unique ID needed for

online connectivity functions.

Install or Replace Backup

Batteries (optional)

Insert 6 x AA alkaline batteries

into the battery compartment,

as shown. Follow the polarity

(+/-) diagram in the battery

compartment.

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used

batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in ﬁre,

as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge

non-rechargeable batteries. DO NOT short-circuit the supply terminals.

4Install Backup

Batteries

6 AA Batteries

(optional)

3Write Down

MAC ADDRESS

12 digit number

2Plug in Power

Adapter

A B C

1A-B-C Switch

set to match

sensor

IMPORTANT: Batteries are a backup

power source to preserve records

in the event of a power outage.

Power adapter is the recommended

primary power source to enjoy the full

functionality of this product.

Set the Time & Date

The clock and calendar are utilized to time stamp history records and other

data, so it is important to set the time and date soon after you power on the

display.

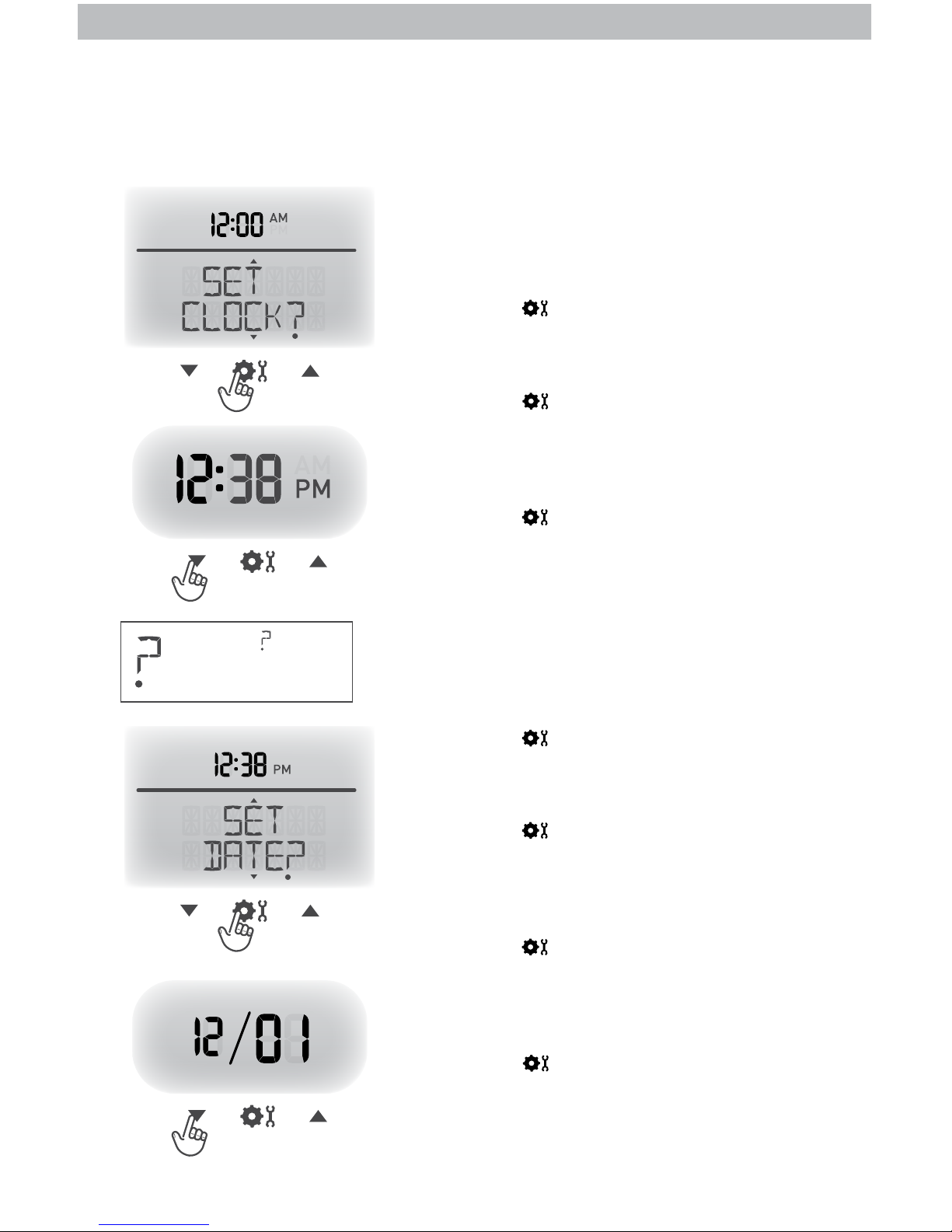

Set the Time

1. Press the “

▲

“ or “

▼

“ buttons until

“SET CLOCK?” is displayed on the

Selectable Category part of the display.

2. Press the “ ” button to set the clock.

3. Press the “

▲

“ or “

▼

“ buttons to adjust the

hour. Note the “AM” and “PM” indicators.

4. Press the “ ” button to conrm hour

selection.

5. Press the “

▲

“ or “

▼

“ buttons to adjust

minutes.

6. Press the “ ” button to conrm minute

selection.

The clock is now set.

Set the Date

1. Press the “

▲

“ or “

▼

“ buttons until

“SET DATE?” is displayed on the Selectable

Category part of the display.

2. Press the “ ” button to set the date.

3. Press the “

▲

“ or “

▼

“ buttons to adjust the

month.

4. Press the “ ” button to conrm month

selection.

5. Press the “

▲

“ or “

▼

“ buttons to adjust the

day.

6. Press the “ ” button to conrm day

selection.

7. Press the “

▲

“ or “

▼

“ buttons to adjust the

year.

8. Press the “ ” button to conrm year

selection.

The date is now set.

Note: The “ ” stays in

Selectable Categories,

even after setup.

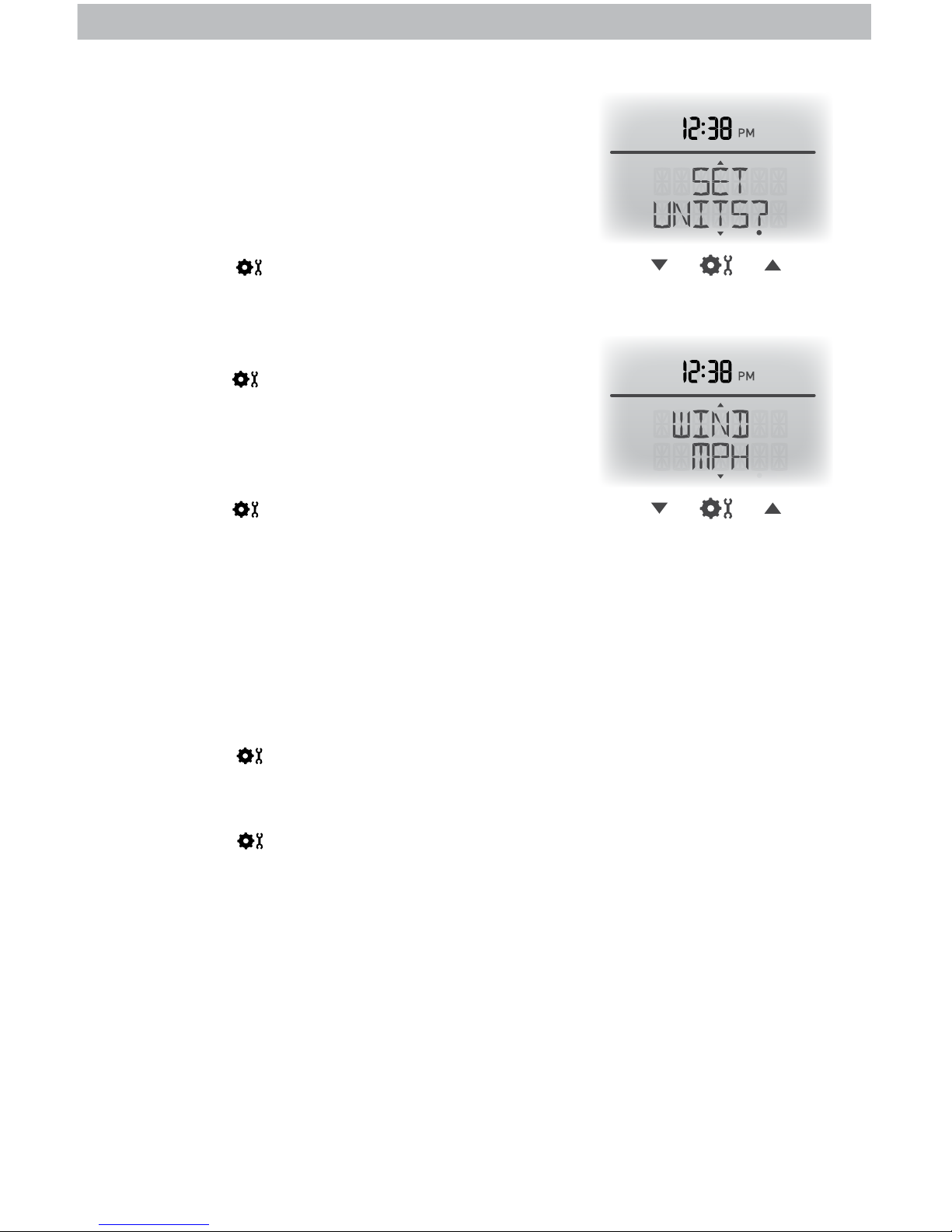

Select Measurement Units

To select between standard units (mph, ºF, etc.) or

metric units (kph, ºC, etc.):

1. Press the “

▲

“ or “

▼

“ buttons until “SET UNITS?”

is displayed on the Selectable Category part of

the display.

2. Press the “ ” button to set the unit preference.

3. Press the “

▲

“ or “

▼

“ buttons to select “STAND”

for standard or “METRIC” for metric units.

4. Press the “ ” button to conrm your selection.

5. Next, you will see “WIND MPH”. Press the

“

▲

“ or “

▼

“ buttons to select MPH, KPH, or

KNOTS for wind speed units.

6. Press the “ ” button to conrm your selection.

Units are now set.

Set Language

To select between English (default) or French for the display language:

1. Press the “

▲

“ or “

▼

“ buttons until “SET LANG?” is displayed on the

Selectable Category part of the display.

2. Press the “ ” button to set the language preference.

3. Press the “

▲

“ or “

▼

“ buttons to select the desired language.

4. Press the “ ” button to conrm your selection.

Language is now set.

Note: Display reverts to English language when display runs out of power or is

reset.

Autres manuels pour 1036

Table des matières

Autres manuels ACU-RITE Station météorologique

ACU-RITE

ACU-RITE 02033 Manuel utilisateur

ACU-RITE

ACU-RITE 01129 Manuel utilisateur

ACU-RITE

ACU-RITE 615 Manuel utilisateur

ACU-RITE

ACU-RITE 06007RM Manuel utilisateur

ACU-RITE

ACU-RITE 2030 Manuel utilisateur

ACU-RITE

ACU-RITE 01141 Manuel utilisateur

ACU-RITE

ACU-RITE 00639W Manuel utilisateur

ACU-RITE

ACU-RITE 1050 Manuel utilisateur

ACU-RITE

ACU-RITE 06086 Manuel utilisateur

ACU-RITE

ACU-RITE 01602BPDIA2 Manuel utilisateur

ACU-RITE

ACU-RITE 992 Manuel utilisateur

ACU-RITE

ACU-RITE 06101M Manuel utilisateur

ACU-RITE

ACU-RITE Iris 06014 Manuel utilisateur

ACU-RITE

ACU-RITE 01301CCDI Manuel utilisateur

ACU-RITE

ACU-RITE 622 Manuel utilisateur

ACU-RITE

ACU-RITE 75077 Manuel utilisateur

ACU-RITE

ACU-RITE 02081 Manuel utilisateur

ACU-RITE

ACU-RITE 02048HD Manuel utilisateur

ACU-RITE

ACU-RITE 8575 Manuel utilisateur

ACU-RITE

ACU-RITE 972 Manuel utilisateur

ACU-RITE

ACU-RITE 00439DI Manuel utilisateur

ACU-RITE

ACU-RITE 01500 Manuel utilisateur

ACU-RITE

ACU-RITE 00821SBDI Manuel utilisateur

ACU-RITE

ACU-RITE 02064C Manuel utilisateur

Manuels Station météorologique populaires d'autres marques

Auriol

Auriol AHFL 433 A1 Manuel utilisateur

NexSens

NexSens G2-HYDROMET Manuel utilisateur

Hyundai

Hyundai WS 2202 Manuel utilisateur

IROX

IROX HBVR761 UV-X Manuel utilisateur

La Crosse Technology

La Crosse Technology C86371 Manuel utilisateur

ADE

ADE WS 1711 Manuel utilisateur

Auriol

Auriol z29592 Manuel utilisateur

Auriol

Auriol 296289 Manuel utilisateur

Hyundai

Hyundai WS 2266 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-2210 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-811561 Manuel utilisateur

Ventus

Ventus W177 Manuel utilisateur

National Geographic

National Geographic VA Colour RC Manuel utilisateur

Renkforce

Renkforce 1208067 Manuel utilisateur

Levenhuk

Levenhuk Discovery Report WA40 Manuel utilisateur

Instant Transmission

Instant Transmission MA 10410 Manuel utilisateur

Lutron Electronics

Lutron Electronics PHB-318 Manuel utilisateur

WAREMA

WAREMA EWFS Weather station eco Manuel utilisateur
