ACU-RITE 01525 Manuel utilisateur

Instruction Manual

Professional Weather Center

model 01525

CONTENTS

Unpacking Instructions ........... 2

Package Contents .................. 2

Product Registration ............... 2

Features & Benets: 5-in-1....... 3

Features: Display ................... 4

Back of Display...................... 6

Setup .................................... 7

5-in-1 Sensor Setup ................ 7

Display Setup ........................ 8

Set the Time & Date ............... 9

Measurement Units ...............10

Set Language .......................10

Placement Guidelines ............11

5-in-1 Sensor Installation........12

AcuRite Connect ...................13

Weather Underground ..........13

Using the Weather Center .....15

Weather Ticker .....................16

Programmable Alarms...........18

Troubleshooting ................... 20

Care & Maintenance............ 23

Calibration .......................... 23

Specications....................... 25

FCC Information .................. 25

Customer Support ................ 26

Warranty............................. 26

Questions? Contact Customer Support at

(844) 228-5465 or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

Archive:l Products

Congratulations on your new AcuRite product. To ensure the best

possible product performance, please read this manual in its entirety

and retain it for future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Display with tabletop stand

2. 5-in-1 sensor

3. Sensor mounting bracket

4. Mounting hardware

5. Power adapter

6. USB cable

7. Instruction Manual

IMPORTANT PRODUCT MUST BE REGISTERED

TO RECEIVE WARRANTY SERVICE

PRODUCT REGISTRATION

to receive 1 year

warranty protection

www.AcuRite.com

►

Features & Benets

5-IN-1 SENSOR

1. Rainfall Collector Funnel

2. Solar Cell Panel

Converts sunlight into power to run

internal aspirating fan.

Internal Aspirating Fan

(not shown)

Draws ambient air into

sensor to reduce solar radiation

heating, resulting in more accurate

temperature measurement.

3. A-B-C Switch

ID code that must match display’s

A-B-C switch to ensure units

synchronize.

4. Battery Compartment

5. Temperature & Humidity Sensors

(internal)

6. Mounting Point

7. Wind Speed Anemometer

8. Wind Direction Vane

9. Mounting Bracket

10. Mounting Hardware

includes anchors & screws.

Qty Diameter Length

5 #4 3/4”

1 #4 1/2”

1 #6 1/2”

11. Debris Filter

Pre-installed to prevent debris from

entering the rain gauge.

Features & Benets

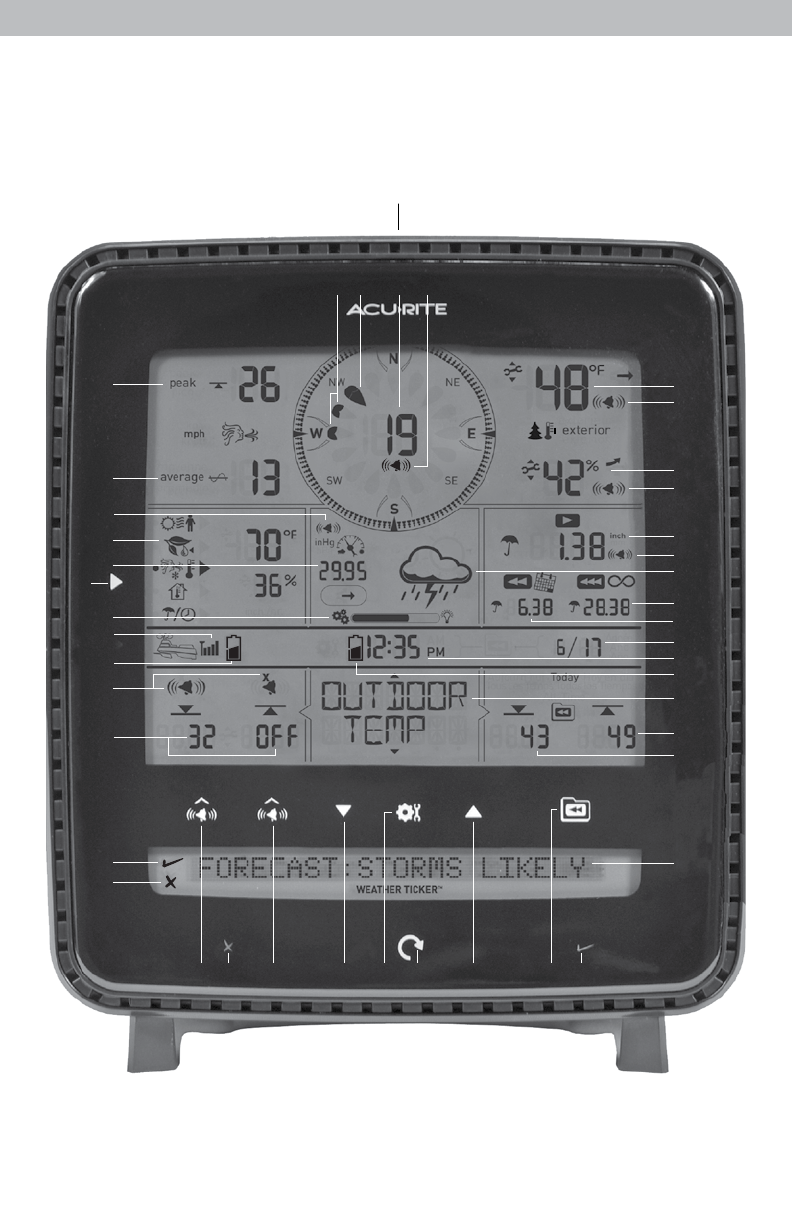

Display

37 38 39 40

14 181716 16 1915 20

1. Peak Wind Speed

Highest speed from past 60 minutes.

2. Average Wind Speed

Of all speeds from past 2 minutes.

3. Storm Alert Alarm On Indicator

4. Weather Select (top to bottom)

Heat index, dew point, wind chill,

indoor temperature / humidity,

rainfall rate (rain per hour) .

5. Current Barometric Pressure

Arrow icon indicates direction

pressure is trending.

6. Weather Select Button

Press to change the Weather Select

category data being displayed.

7. Learning Mode Icon

Disappears after weather forecast

self-calibration is complete.

8. 5-in-1 Sensor Signal Strength

9. 5-in-1 Sensor Low Battery

Indicator

10. Alarm On/Off Indicator

For Selectable Category (#33).

11. Programmable Alarm Settings

12. Indicates Active Weather Ticker

Message

During ticker customization mode.

13. Indicates Deactivated Weather

Ticker Message

During ticker customization mode.

14. “ “ Button

Activate alarm; press and hold to

adjust alarm values.

15. “ “ Button

Deactivates current Weather Ticker

message during ticker customization

mode.

16. "▲”/”▼” to Select Category

(shown in #33) & Adjust Settings

17. “ “ Button

For setup preferences.

18. “ “ Button

Press to manually advance through

Weather Ticker messages.

19. All-Time Records Button

Press for all-time low and date

recorded for current category

selected on display (#33). Press

twice for all-time high and date

recorded.

20. Activates Weather Ticker Message

21. Current Outdoor Temperature

Arrow icon indicates direction

temperature is trending.

22. Outdoor Temperature Alarm On

Indicator

23. Current Outdoor Humidity

Arrow icon indicates direction

humidity is trending.

24. Outdoor Humidity Alarm On

Indicator

25. Current Rainfall

Accumulates data during rainfall.

26. Rainfall Alarm On Indicator

27. 12 to 24 Hour Weather Forecast

Self-Calibrating Forecasting pulls

data from the outdoor sensor to

generate your personal forecast.

28. All-Time Rainfall

29. Current Month Total Rainfall

30. Date

31. Clock

32. Display Low Battery Indicator

33. Selectable Category

34. Record Highs

Shown for current category selected

on the display (#33).

35. Record Lows

Shown for current category selected

on the display (#33).

36. Weather Ticker™

37. Previous 2 Wind Directions

38. Current Wind Direction

39. Current Wind Speed

40. Wind Speed Alarm On Indicator

41. Touch Activated Backlight

Momentary during battery power,

always on/off for power adapter.

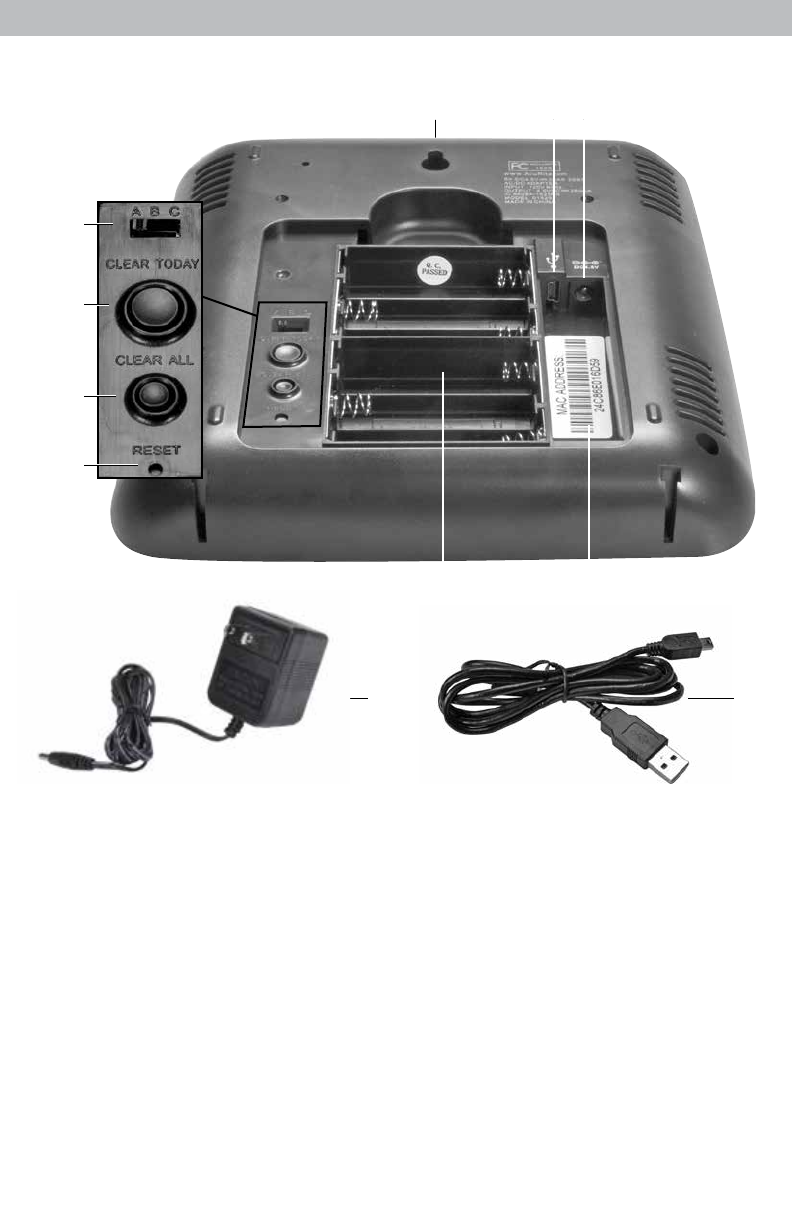

Back of Display 12 3

10 11

8 9

BACK OF DISPLAY

1. Integrated Hang Hole

for easy wall mounting

2. Plug-in for USB Cable

3. Plug-in for Power Adapter

4. A-B-C Switch

ID code that must match 5-in-1

sensor’s A-B-C switch to ensure

units synchronize

5. Clear Today

Clears data recorded since

12:00am

6. Clear All

Clears all recorded data without

having to reset time and date

7. Reset

Full reset to factory defaults

8. Battery Compartment

9. MAC ADDRESS

12 digit unique ID required for

online connectivity functions

10. Power Adapter

11. USB Cable for PC Connection

12. Battery Compartment Cover

(not shown)

•

• •

•

SETUP

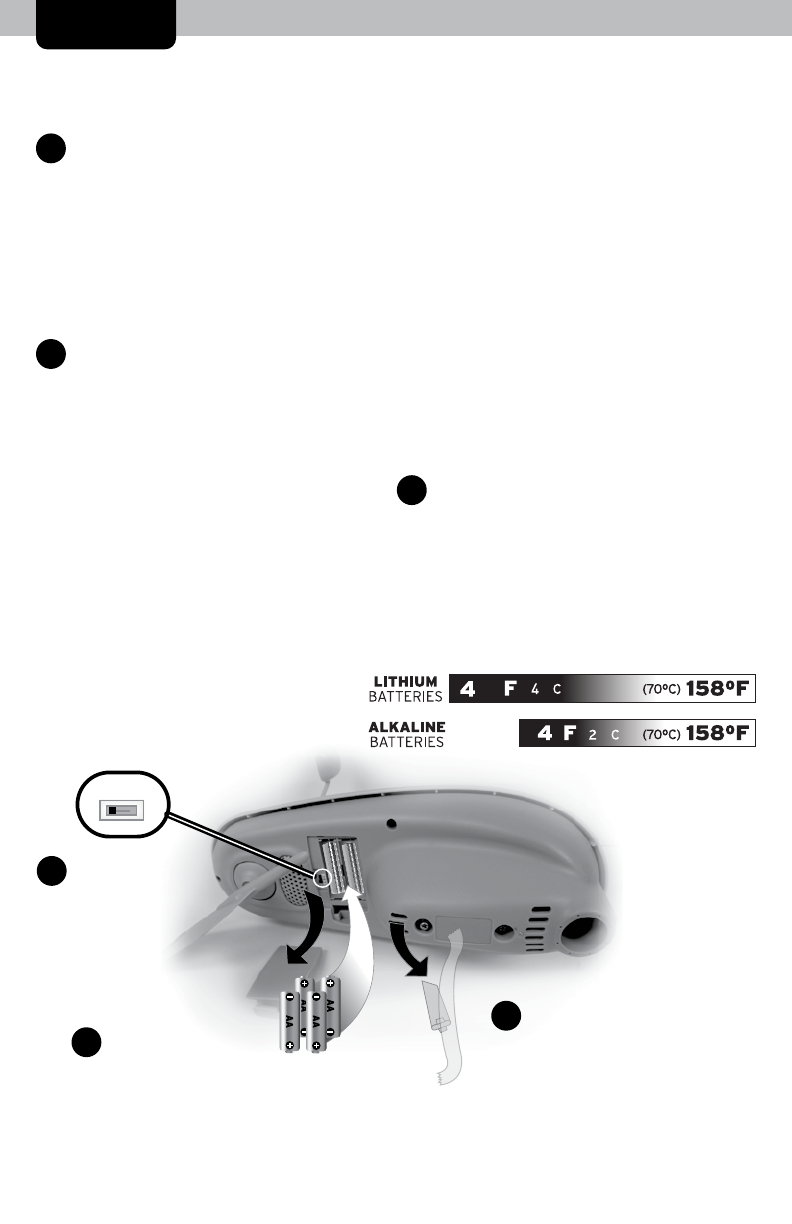

5-in-1 Sensor Setup

1 Set the A-B-C Switch

Locate the A-B-C switch inside the

battery compartment. Set the A-B-C

switch to A, B or C. You must select

the same letter choices for both the

sensor and the display in order for

the units to synchronize.

2 Install or Replace Batteries

Batteries MUST be installed for

this product to operate. AcuRite

recommends high quality alkaline

or lithium batteries for the best

product performance. Heavy duty

or rechargeable batteries are not

recommended.

The 5-in-1 sensor requires lithium

batteries in low temperature

conditions. Cold temperatures can

cause alkaline batteries to function

improperly. Use lithium batteries in

the 5-in-1 sensor for temperatures

below -4ºF / -20ºC.

1. Slide off the battery

compartment cover.

2. Insert 4 x AA batteries into the

battery compartment, as

shown. Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

Remove Rain Gauge Stabilizer

Locate and remove the rain gauge

stabilizer (plastic tab) taped into

the bottom of the sensor. The rain

gauge will not function until this is

removed.

A B C

1 A-B-C Switch

Set to match

display

2 Install Batteries

4 AA Batteries

3 Rain Gauge Stabilizer

Remove and discard

•

• •

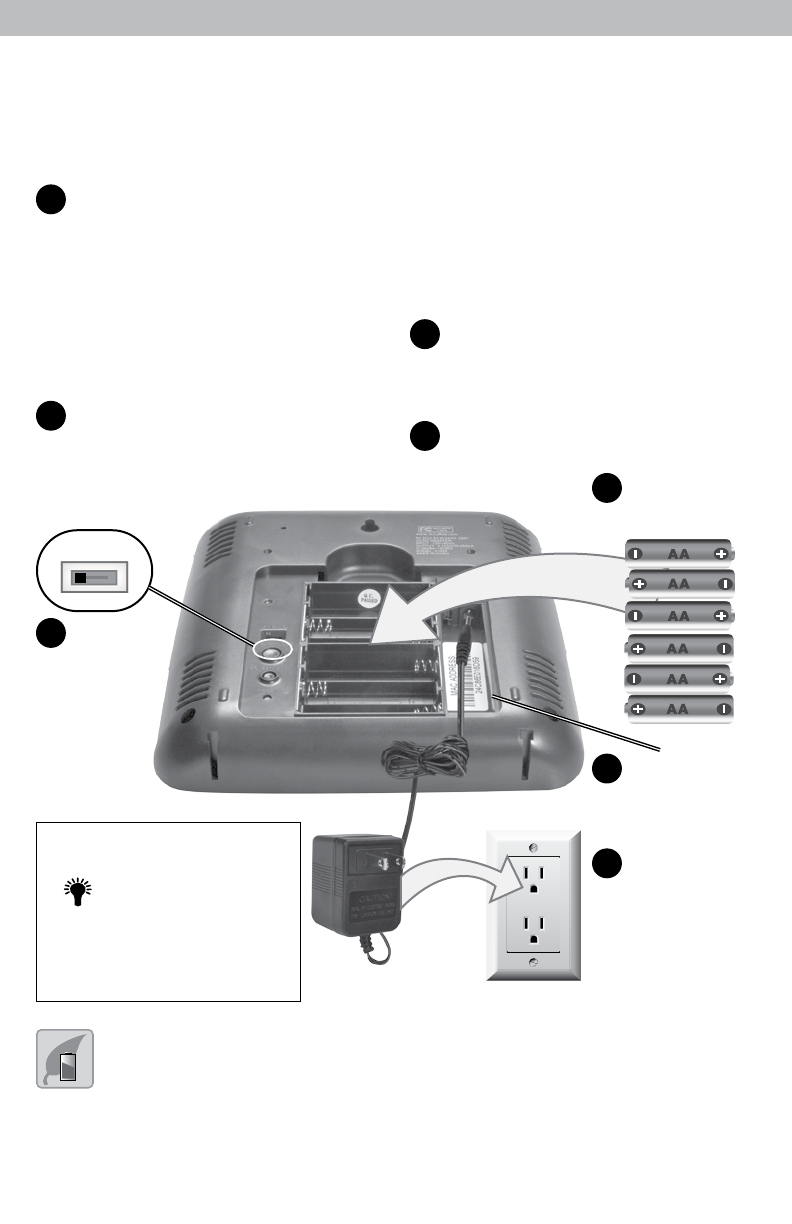

Display Setup

The display operates with batteries and/or power adapter. Regardless of the

power source, it is recommended that batteries always be installed to ensure

continuous operation (and retain records) in case of a power outage.

1 Set the A-B-C Switch Insert 6 x AA alkaline batteries

into the battery compartment,

The A-B-C switch is located inside as shown. Follow the polarity

the battery compartment. It can (+/-) diagram in the battery

be set to A, B or C. However, compartment.

you must select the same letter

choices for both the sensor and Write Down the MAC ADDRESS

the display in order for the units

to synchronize.

12 digit unique ID needed for

online connectivity functions.

2 Install or Replace Batteries

(optional) Plug Power Adapter into

Electric Outlet

2 Install Batteries

6 AA Batteries

(optional)

3 Write Down

MAC ADDRESS

12 digit number

4 Plug in Power

Adapter

A B C

1 A-B-C Switch

set to match

sensor

Momentary

backlight during

battery power.

Backlight can always

remain on (or off)

when power adapter

is plugged in.

LIGHT

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used

batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in ﬁre,

as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge

non-rechargeable batteries. DO NOT short-circuit the supply terminals.

l.?=OOAM

SET

r1 nrk7

LLUL ox

. •

T 15x A

12=38PM ox

6 ox A

I? f

12:38PM ox

SET ox

]RTE?

. . ox

T 15x A

12/0 I

6 ox A

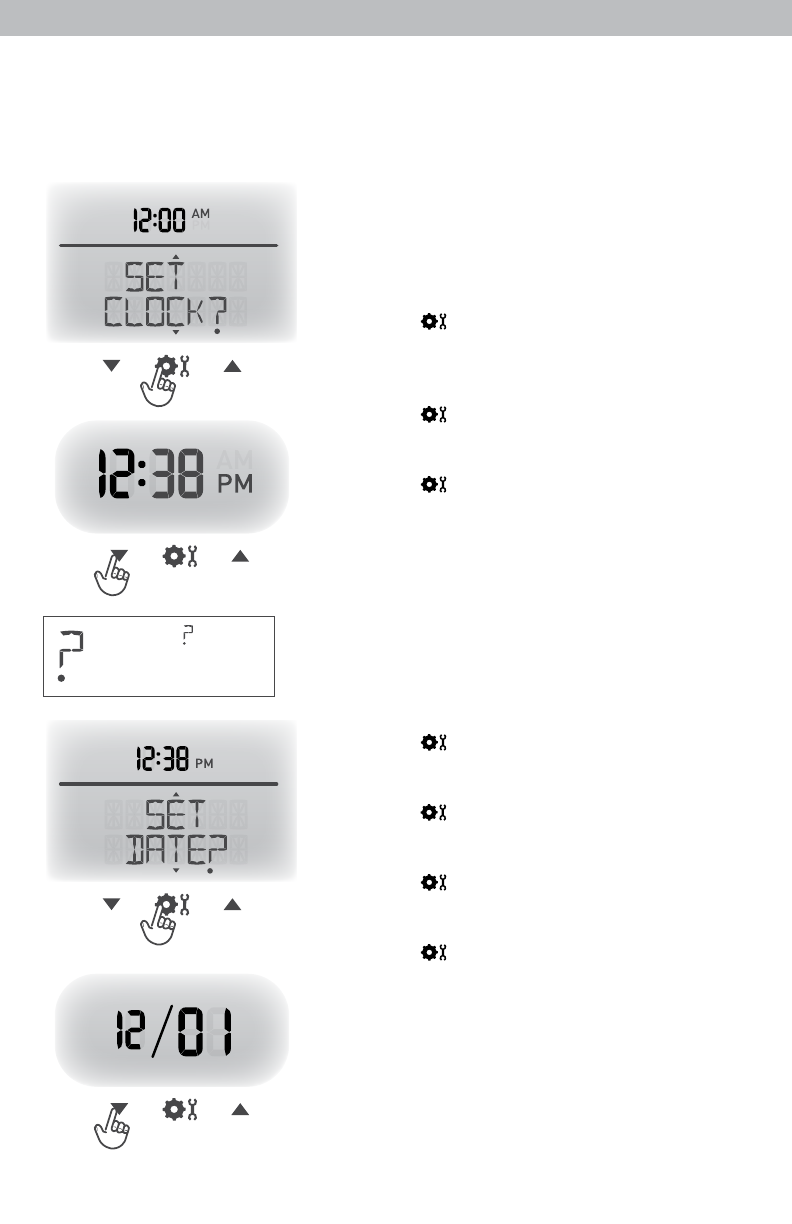

Set the Time & Date

The clock and calendar are utilized to time stamp history records and other

data, so it is important to set the time and date soon after you power on the

display.

Set the Time

1. Press the "

▲

” or “

▼

” buttons until

“SET CLOCK?” is displayed on the

Selectable Category part of the display.

2. Press the “ ” button to set the clock.

3. Press the “

▲

” or “

▼

” to adjust the hour.

Note the “AM” and “PM” indicators.

4. Press the “ ” button to conrm hour selection.

5. Press the “

▲

” or “

▼

” to adjust minutes.

6. Press the “ ” button to conrm minute

selection.

The clock is now set.

Note: The “ ” stays in Set the Date

Selectable Categories, 1. Press the “

▲

” or “

▼

”

buttons until “SET DATE?”

even after setup. is displayed on the Selectable Category part of

the display.

2. Press the “ ” button to set the date.

3. Press the “

▲

” or “

▼

” to adjust the month.

4. Press the “ ”

button to conrm month selection.

5. Press the “

▲

” or “

▼

” to adjust the day.

6. Press the “ ” button to conrm day selection.

7. Press the “

▲

” or “

▼

” to adjust the year.

8. Press the “ ” button to conrm year selection.

The date is now set.

lc'=38PM

SET

UNIT57

T •

lc'=38PM

WIN]

mPH

....ox ...

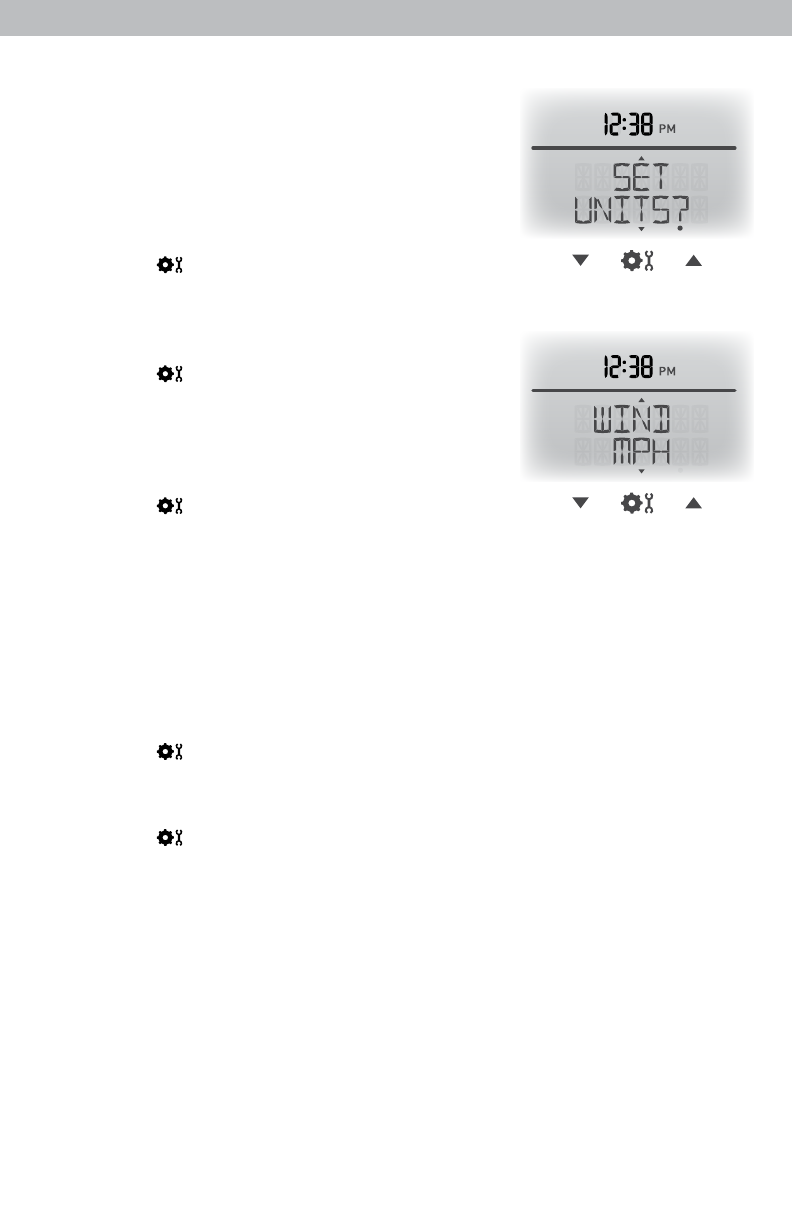

Select Measurement Units

To select between standard units (mph, ºF, etc.) or

metric units (kph, ºC, etc.):

1. Press the “

▲

” or “

▼

”

buttons until “SET UNITS?”

is displayed on the Selectable Category part of

the display.

2. Press the “ ” button to set the unit preference.

3. Press the “

▲

” or “

▼

” to select “STAND” for

standard or “METRIC” for metric units.

4. Press the “ ” button to conrm your selection.

5. Next, you will see “WIND MPH”. Press the

“

▲

” or “

▼

” to select MPH, KPH, or KNOTS

for wind speed units.

6. Press the “ ” button to conrm your selection.

Units are now set.

Set Language

To select between English (default) or Spanish for the display language:

1. Press the “

▲

” or “

▼

” buttons until “SET LANG?” is displayed on the

Selectable Category part of the display.

2. Press the “ ” button to set the language preference.

3. Press the “

▲

” or “

▼

” to select the desired language.

4. Press the “ ” button to conrm your selection.

Language is now set.

Note: Display reverts to English language when display runs out of power or is

reset.

Table des matières

Autres manuels ACU-RITE Station météorologique

ACU-RITE

ACU-RITE Weather Forecaster 00821 Manuel utilisateur

ACU-RITE

ACU-RITE 00594W Manuel utilisateur

ACU-RITE

ACU-RITE 1525 Manuel utilisateur

ACU-RITE

ACU-RITE 02027 Manuel utilisateur

ACU-RITE

ACU-RITE 1525 Manuel utilisateur

ACU-RITE

ACU-RITE 02098 Manuel utilisateur

ACU-RITE

ACU-RITE 01202 Manuel utilisateur

ACU-RITE

ACU-RITE 00275RM Manuel utilisateur

ACU-RITE

ACU-RITE 00973 Manuel utilisateur

ACU-RITE

ACU-RITE 2035 Manuel utilisateur

ACU-RITE

ACU-RITE 00639W Manuel utilisateur

ACU-RITE

ACU-RITE Air 01412M Manuel utilisateur

ACU-RITE

ACU-RITE 1604 Manuel utilisateur

ACU-RITE

ACU-RITE 01097 Manuel utilisateur

ACU-RITE

ACU-RITE 825 Manuel utilisateur

ACU-RITE

ACU-RITE 06044 Manuel utilisateur

ACU-RITE

ACU-RITE 02085 Manuel utilisateur

ACU-RITE

ACU-RITE 972 Manuel utilisateur

ACU-RITE

ACU-RITE 00815 Manuel utilisateur

ACU-RITE

ACU-RITE 01602BPDI Manuel utilisateur

ACU-RITE

ACU-RITE 11132-1500RX Manuel utilisateur

ACU-RITE

ACU-RITE 01607BPDI Manuel utilisateur

ACU-RITE

ACU-RITE 01123 Manuel utilisateur

ACU-RITE

ACU-RITE 01538 Manuel utilisateur

Manuels Station météorologique populaires d'autres marques

Auriol

Auriol AHFL 433 A1 Manuel utilisateur

NexSens

NexSens G2-HYDROMET Manuel utilisateur

Hyundai

Hyundai WS 2202 Manuel utilisateur

IROX

IROX HBVR761 UV-X Manuel utilisateur

La Crosse Technology

La Crosse Technology C86371 Manuel utilisateur

ADE

ADE WS 1711 Manuel utilisateur

Auriol

Auriol z29592 Manuel utilisateur

Auriol

Auriol 296289 Manuel utilisateur

Hyundai

Hyundai WS 2266 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-2210 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-811561 Manuel utilisateur

Ventus

Ventus W177 Manuel utilisateur

National Geographic

National Geographic VA Colour RC Manuel utilisateur

Renkforce

Renkforce 1208067 Manuel utilisateur

Levenhuk

Levenhuk Discovery Report WA40 Manuel utilisateur

Instant Transmission

Instant Transmission MA 10410 Manuel utilisateur

Lutron Electronics

Lutron Electronics PHB-318 Manuel utilisateur

WAREMA

WAREMA EWFS Weather station eco Manuel utilisateur
