ACTi I91 Manuel utilisateur

2013/12/09

Indoor PTZ

Mounting on the Ceiling

with Flat Surface

(Face Down)

Installation Guide

For Models:

I91, I92, KCM-8111

www.acti.com

Installation Guide

Table of Contents

Installation Procedures .....................................................3

Step 1: Prepare for Installation................................................................. 3

Step 2: Attach the Mounting Plate............................................................ 3

Step 3: Attach the Fixing Bracket............................................................. 4

Step 4: Install the Camera......................................................................... 5

Step 5: Access the Camera Live View...................................................... 7

Safety Information..............................................................8

www.acti.com

Installation Guide

Installation Procedures

The camera package comes with a surface mount kit which allows the camera to be directly

installed onto a hard ceiling with flat surface.

Step 1: Prepare for Installation

1. Using the mount drill template, mark the screw holes on the ceiling, then drill the holes and

insert the supplied plastic plugs.

2. Push at the marked points below to detach the cover ring from the metal plate.

Step 2: Attach the Mounting Plate

Attach the mounting plate to the ceiling using the three (3) supplied screws.

www.acti.com

Installation Guide

Step 3: Attach the Fixing Bracket

Align and attach the fixing bracket to one of the holes on the camera using the supplied screw

(holes marked below). The fixing bracket will fix the camera position when mounted later.

www.acti.com

Installation Guide

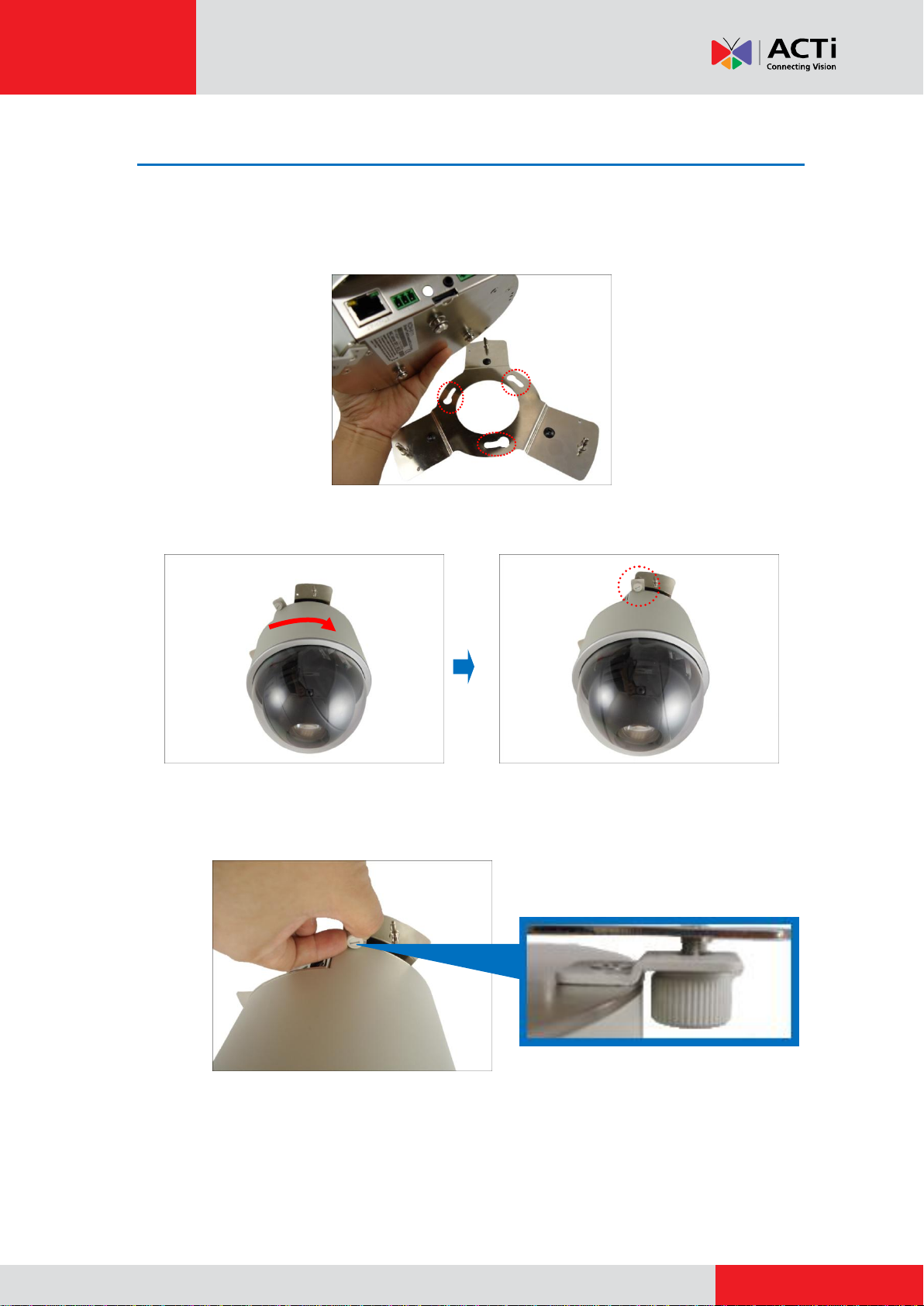

Step 4: Install the Camera

1. If necessary, insert a memory card into the card slot of the camera.

2. Align and insert the camera base hooks to the mounting holes of the metal plate.

3. Slide the camera clockwise to secure the hooks to the mount.

4. Tighten the screw on the fixing bracket to fix the camera position. This is to avoid accidental

camera movement as the camera performs PTZ functions.

www.acti.com

Installation Guide

5. Connect the network cable, power adaptor and any other cable connections (such as DI/DO,

audio in, etc.) to the camera.

NOTE:

The cables may be routed along the ceiling if the camera is installed on a hard ceiling.

Or, the cables may pass through a hole on the ceiling if the camera is installed on a

dropped ceiling.

For more information on connecting the terminal blocks for the power adaptor, Digital

Input / Output (DI/DO), or audio input, please refer to the camera model Hardware

Manual downloadable from the website (www.acti.com).

6. Remove the pre-cut tab on the cover ring using pliers.

7. Note that the cables will pass through the cut, align the metal plate hooks onto the holes of

the cover ring and then push to secure it in place.

Final installation would look similar to the picture below.

www.acti.com

Installation Guide

Step 5: Access the Camera Live View

Refer to the camera Hardware Manual downloadable from the website (www.acti.com) for more

information.

www.acti.com

Installation Guide

Safety Information

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to follow

the safety instruction given may directly endanger people, cause damage to the system or to

other equipment.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your local

office if you find any inaccuracies or omissions. We cannot be held responsible for any

typographical or technical errors and reserve the right to make changes to the product and

manuals without prior notice.

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may cause

hazards.

Do not use accessories not recommended by the manufacturer

Only install this device in a dry place protected from weather

Servicing

Do not attempt to service this video product yourself. Refer all servicing to qualified service

personnel.

www.acti.com

Installation Guide

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to qualified

service personnel under the following conditions.

1) When the power-supply cord or plug is damaged

2) If liquid has been spilled, or objects have fallen into the video product.

3) If the inner parts of video product have been directly exposed to rain or water.

4) If the video product does not operate normally by following the operating Instructions in this

manual. Adjust only those controls that are covered by the instruction manual, as an improper

adjustment of other controls may result in damage, and will often require extensive work by a

qualified technician to restore the video product to its normal operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to

perform safety checks to determine if the video product is in proper operating condition.
