ACTi E616 Manuel utilisateur

Indoor Dome Series

Hardware Manual

E610, E616, E617, E618, E621

2015/04/17

www.acti.com

Hardware Manual

Table of Contents

Precautions.............................................................4

Safety Instructions .................................................................................... 6

Introduction.............................................................7

The List of Models ..................................................................................... 7

Package Contents...................................................................................... 8

Physical Description ................................................................................. 9

Mounting Options.....................................................................................11

Other Mounting Accessories................................................................. 13

Before Installation.................................................14

Connecting the DI/DO Devices (Optional) ............................................. 14

Connecting Audio In / Out Devices (Optional) ...................................... 18

Installing the Camera on a Surface.....................19

Step 1: Drill the Holes.............................................................................. 19

Step 2: Open the Dome Cover................................................................ 20

Step 3: Install the Camera to the Surface.............................................. 21

Step 4: Connect the Cable ...................................................................... 22

Step 5: Access the Camera Live View.................................................... 22

Step 6: Adjust the Viewing Angle and Focus ........................................ 23

Step 7: Close the Dome Cover................................................................ 23

www.acti.com

Hardware Manual

Other Adjustments and Accessories ..................25

How to Install a Memory Card................................................................. 25

How to Insert the Memory Card ............................................................ 25

How to Remove the Memory Card........................................................ 25

How to Adjust the Viewing Angle and Flocus ....................................... 26

E610 ..................................................................................................... 26

E616, E617, E618, E621....................................................................... 28

How to Replace the Dome Cover............................................................ 29

Accessing the Camera .........................................31

Configure the IP Addresses.................................................................... 31

Access the Camera.................................................................................. 35

www.acti.com

Hardware Manual

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to follow

the safety instruction given may directly endanger people, cause damage to the system or to

other equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may expose

you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your local

office if you find any inaccuracies or omissions. We cannot be held responsible for any

typographical or technical errors and reserve the right to make changes to the product and

manuals without prior notice.

www.acti.com

Hardware Manual

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the

responsible party for compliance could void the user’s authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B

Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which

cause the user may be required to take adequate measures.

www.acti.com

Hardware Manual

Safety Instructions

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may cause

hazards.

Do not use accessories not recommended by the manufacturer

Install this device in a dry place protected from weather.

Servicing

Do not attempt to service this video product yourself. Refer all servicing to qualified service

personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to qualified

service personnel under the following conditions.

1) When the power-supply cord or plug is damaged

2) If liquid has been spilled, or objects have fallen into the video product.

3) If the inner parts of video product have been directly exposed to rain or water.

4) If the video product does not operate normally by following the operating Instructions in this

manual. Adjust only those controls that are covered by the instruction manual, as an improper

adjustment of other controls may result in damage, and will often require extensive work by a

qualified technician to restore the video product to its normal operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to

perform safety checks to determine if the video product is in proper operating condition.

www.acti.com

Hardware Manual

Introduction

The List of Models

This hardware manual contains the following models:

E610

10MP Indoor Dome with D/N, Adaptive IR, Basic WDR, Vari-focal lens

E616

5MP Indoor Zoom Dome with D/N, Adaptive IR, Basic WDR,

4.3x Zoom lens

E617

10MP Indoor Zoom Dome with D/N, Adaptive IR, Basic WDR,

4.3x Zoom lens

E618

3MP Indoor Zoom Dome with D/N, Adaptive IR, Superior WDR,

4.3x Zoom lens

E621

1.3MP Indoor Zoom Dome with D/N, Adaptive IR, Superior WDR, 4.3x

Zoom lens

www.acti.com

Hardware Manual

Package Contents

Camera

Mounting Screw Kit

Hexagon Screwdriver

Drill Template

Terminal Block

(for DI/DO)

Terminal Block

(for Audio In/Out)

Quick Installation Guide

Warranty Card

NOTE: The above pictures are for reference only; actual items may slightly differ.

Drill Template

www.acti.com

Hardware Manual

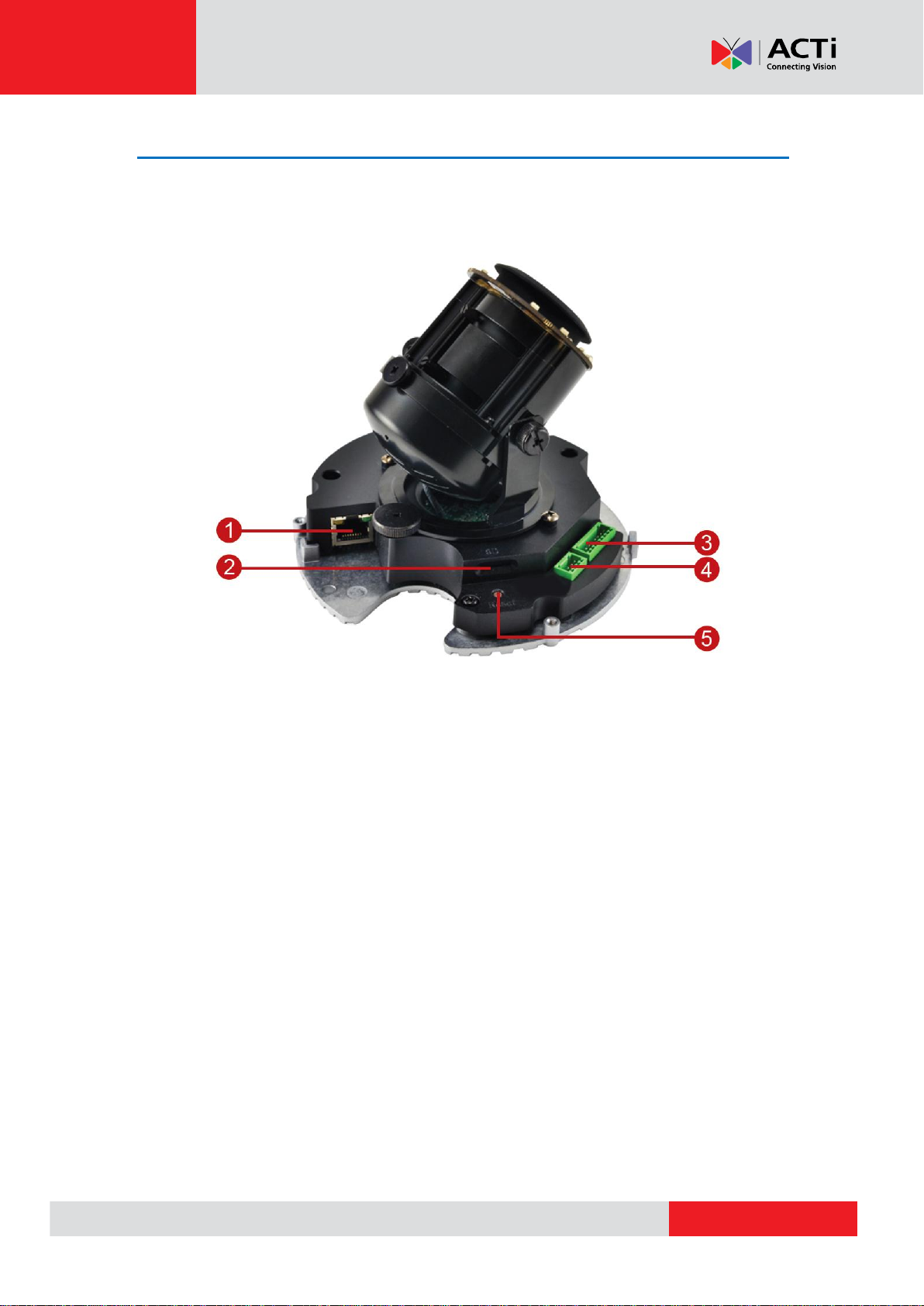

Physical Description

NOTE: The camera images on this documentation are for reference only. Actual camera may

slightly differ.

1) Ethernet Port

Connects to a network using an Ethernet cable.

2) Memory Card Slot

Insert a memory card into this slot for local recording purposes. See How to Install a

Memory Card on page 25 for more information.

NOTE: Supports microSDHC and microSDXC cards.

3) Digital Input / Output (DI/DO)

This connector connects to digital input or output devices, such as an alarm trigger, panic

button, etc. Digital Input (DI) and Digital Output (DO) devices are used in applications like

motion detection, event triggering, alarm notifications, etc. See Connecting the DI/DO

Devices (Optional) on page 14 for information on how to connect DI/DO devices to your

camera.

www.acti.com

Hardware Manual

4) Audio Input / Output

This connector connects to audio input and output devices, such as microphones and

speakers, using the bundled terminal block. See Connecting Audio In / Out Devices

(Optional) on page 18 for more information.

5) Reset Button

The purpose of reset button is to restore the factory default settings of the camera, including

the administrator’s password.

The reset button can be used for following purposes:

The administrator’s password has been forgotten and therefore the camera cannot be

accessed.

1. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to

modify these settings.

2. In case of connectivity issues or abnormal video quality.

How to do the reset properly?

Using a pointed object, such as a pen, press and hold the reset button for 5 seconds.
