ACTi CAM-7100 Manuel utilisateur
IP Rugged Dome
CAM-7100/CAM-7101
Quick Installation Guide
1 Getting Started
1.1 PACKAGE CONTENTS
CAM-7100/7101 Warranty Card
Software CD Terminal Blocks for Power & DI/O
PowerAdaptor Accessory
1
1.2 PHYSICAL DESCRIPTION
Rugged Dome Rear Panel
1. WAN port
The IP rugged dome connects to the WAN (wide area network) via a standard RJ45
connector. Supporting NWAY, this IP rugged dome can auto detect the speed of
local network segment (10Base-T/100Base-TX Ethernet). The WAN port is for
FTTH and can connect to a xDSL or cable modem.
With PoE built-in product, you can power the IP rugged dome via WAN port, LAN
port or DC input. You can power the IP rugged dome with multiple power inputs at
the same time. If you do, the IP rugged dome will gets the power from the first
power input plugged into it.
2. Power Input
DC 12V input.
PIN NAME DESCRIPTION
1 12V Power Input (DC +12V)
2 GND Ground Pin of Power Input
3 X No Connection
With PoE built-in product, you can power the IP rugged dome via WAN port, LAN
port or DC input. You can power the IP rugged dome with multiple power inputs at
NOTE: You may find a support package for help you getting
familiar with PoE. Please visit our web site, and get the support
document TS-00040.
the same time. If you do, the IP rugged dome will gets the power from the first
power input plugged into it.
3. Analog Video Output
The IP rugged dome supports one channel analog video output.
4. LAN port
The IP rugged dome connects to the LAN (local area network) via a standard RJ45
connector. Supporting NWAY, this IP rugged dome can auto detect the speed of
local network segment (10Base-T/100Base-TX Ethernet).
With PoE built-in product, you can power the IP rugged dome via WAN port, LAN
port or DC input. You can power the IP rugged dome with multiple power inputs at
the same time. If you do, the IP rugged dome will gets the power from the first
power input plugged into it.
5. Audio Input
Unbalanced, 1.0Vpp, 1Vrms, 3.5mm Jack
6. Reset Button
Step 1: Switch off IP rugged dome by disconnecting the power cable
Step 2: Using a suitable pointed object, press and continue to hold the Reset Button
depressed. While continuing to hold the reset button depressed, reconnect the
power cable.
Step 3: Keep holding the reset button depressed around 6 seconds, release the reset
button. The unit will start up with factory default settings.
7. Action LED Indicator
The LED will light up after IP rugged dome has successfully completed the boot
process.
8. DI/O
The IP rugged dome supports one alarm input and one alarm output.
DI:Logic Level 0: 0~0.4V; Logic Level 1: 3.3~30V
DO:Logic Level 0: 0.1~0.6V; Logic Level1: 2.4~5V
NOTE: You may find a support package for help you getting
familiar with PoE. Please visit our web site, and get the support
document TS-00040.
NOTE: You may find a support package for help you getting
familiar with PoE. Please visit our web site, and get the support
document TS-00040.
PIN NAME DESCRIPTION
1 GND Ground Pin
2 DI Digital Input
3 GND Ground Pin
4 DO Digital Output

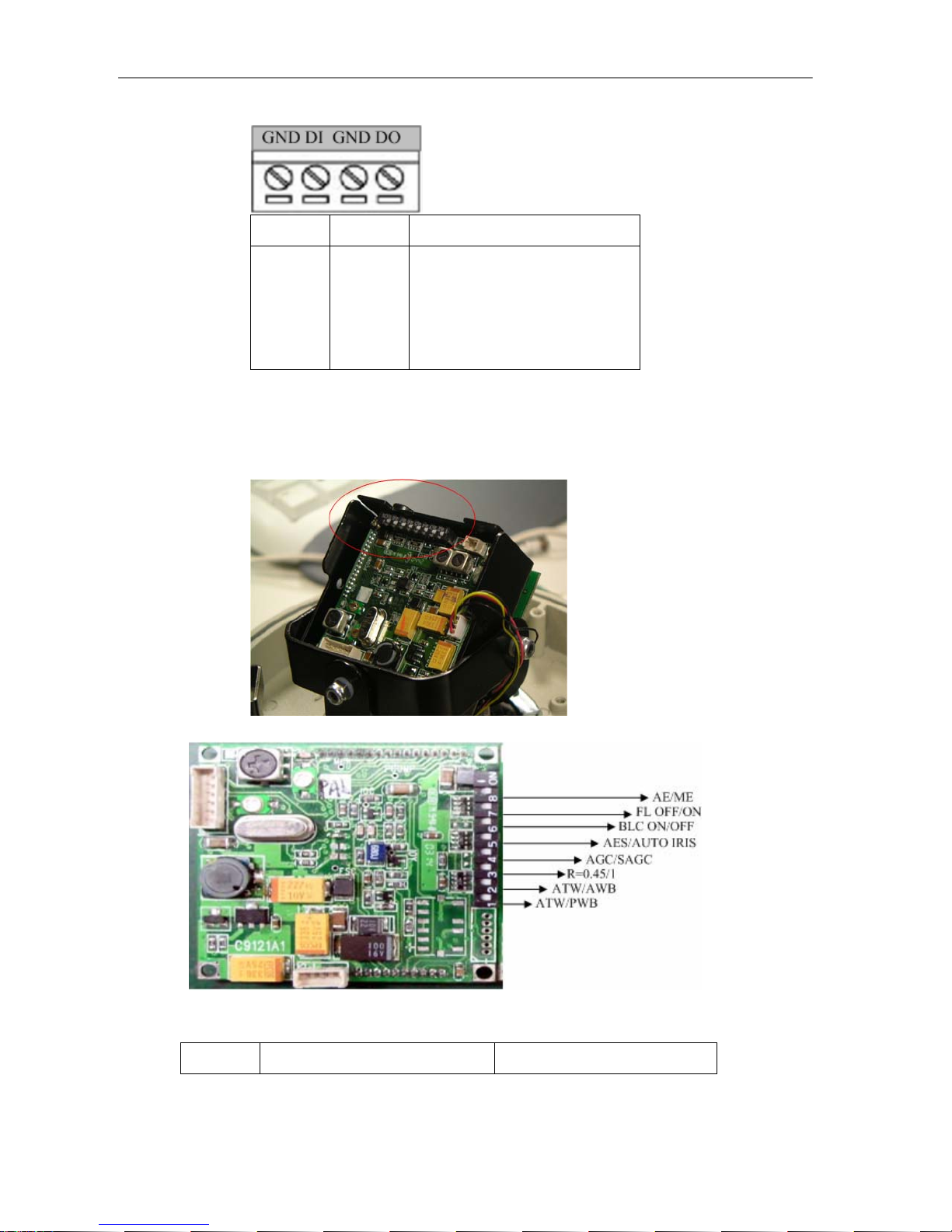

Camera Dip Switch
Pin Low Hi(ON)(3.3v)
8 AE ME
7 FL 0FF FL ON
6 BLC ON BLC OFF
5 AES Auto Iris
4 AGC Super AGC
3 r =0.45 r = 1
2 ATW AWB
1 ATW PWB
SHUTTER SPEED AE/ME
1/50 (1/60) SEC ME FL OFF BLC AEC
1/120 (1/100) SEC ME FL BLC AEC
1/250 SEC ME FL OFF BLC OFF AEC
1/500 SEC ME FL BLC OFF AEC
1/1000 SEC ME FL OFF BLC AUTO IRIS
1/2000 SEC ME FL BLC AUTO IRIS
1/4000 SEC ME FL OFF BLC OFF AUTO IRIS
1/10000 SEC ME FL BLC OFF AUTO IRIS
AWB mode – Conventional auto white balance
Procedure: Pin 2 set to High first, and then set Pin 1 to Low.
ATW mode – The operating colour temperature range is from 2500°K to 9500°K
approximately.
Procedure: Pin 2 set to Low first, and then set Pin 1 to Low.
PWB mode – Push to lock white balance
Procedure: Pin 2 set to High first, and then set Pin 1 to High.
1.3 CONNECT NECESSARY CABLES
The Ethernet cable and power cable are necessary for previewing function. Make sure all cables are
correctly and firmly connected.
1. Connect an analog monitor to IP rugged dome video out (BNC connector).
2. Connect the power adaptor to IP rugged dome
3. Connect IP rugged dome’s LAN port to an Ethernet (RJ45 connectors). If your IP rugged
dome has PoE built-in, you can regard it as a PD and connect it directly to a PSE
device like PoE switch.
4. Connect a PC to the Ethernet hub (RJ45 connectors)
NOTE: You may find a support package for help you getting familiar
with PoE. Please visit our web site, and get the support document
TS-00040.
2 Quick Tour
This section guides you with a quick tour on IP rugged dome.
2.1 Configure the IP Rugged Dome
2.1.1 Make sure network environment
Default IP of IP rugged dome is 192.168.0.100. Please make sure IP rugged
dome and your PC are on the same network segment before running the
installation.
2

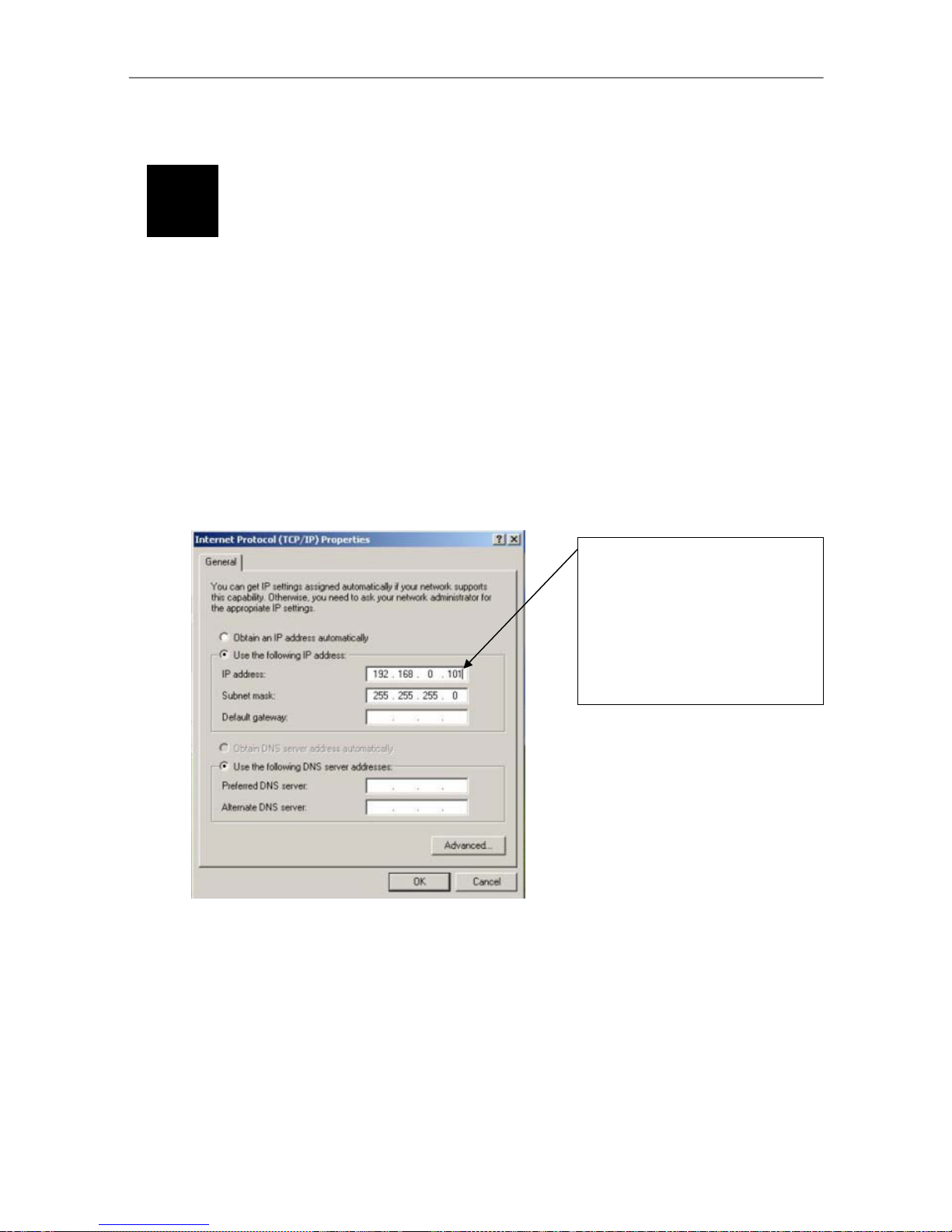

Please set the settings as below.
IP address: 192.168. 0.xxx
Subnet mask: 255.255.255. 0
(NOTE: xxx should be a number
from 1 to 254, but 100 is
excepted.)
2.1.2 Open Internet Explorer with IP address
NOTE: If your web browser is earlier than IE6, then download IE6 is
recommended.
NOTE: The IP rugged dome default IP address is set to 192.168.0.100
2.1.3 Login with default administrator’s account & password
NOTE: Default administrator account is set to Admin, password is set to
123456, and click button.

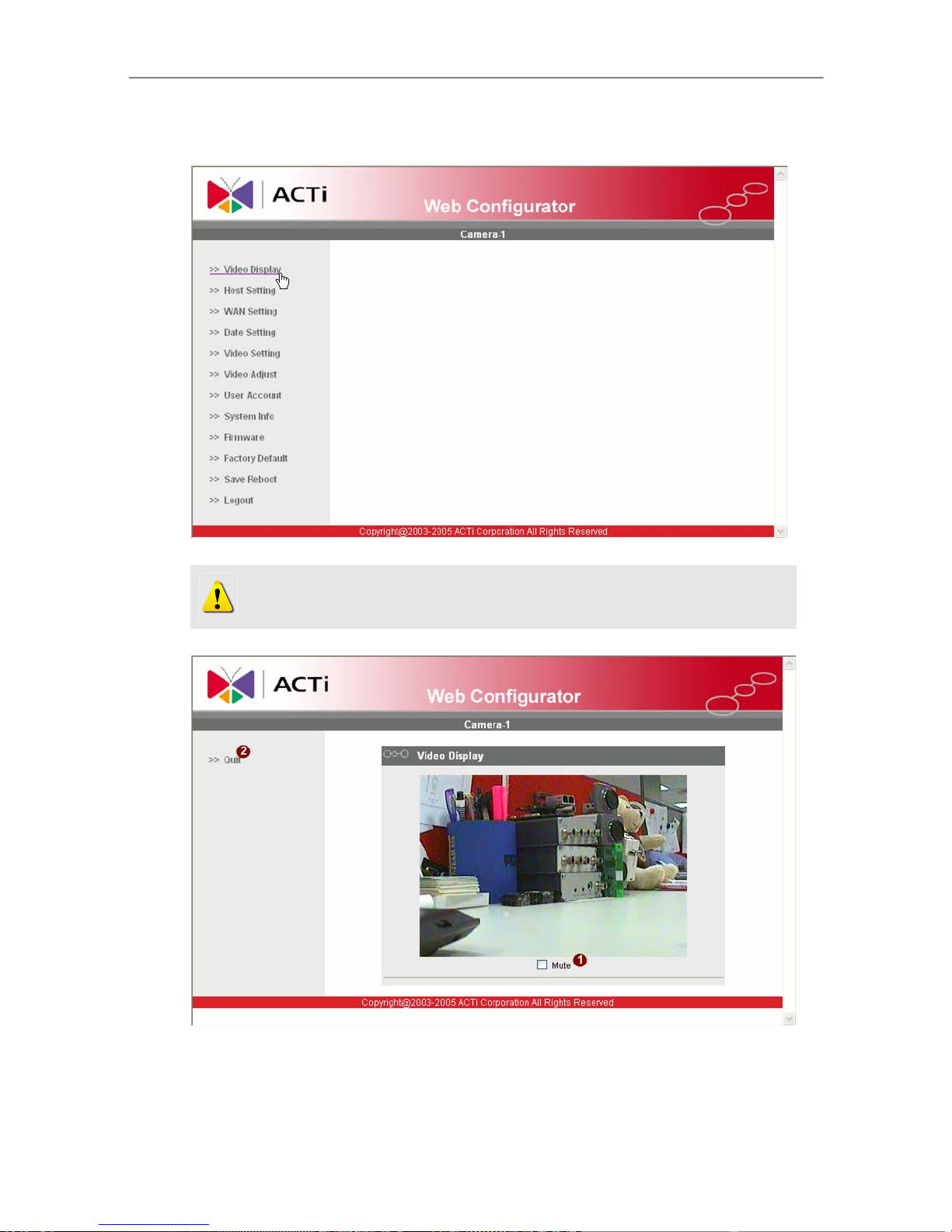

2.1.4 Preview the video
NOTE: In your Client PC, please make sure the setting of Network
Connections Type is set to Auto Negotation, since IP rugged dome follows
MII standard. Otherwise, you might not see the live image.
