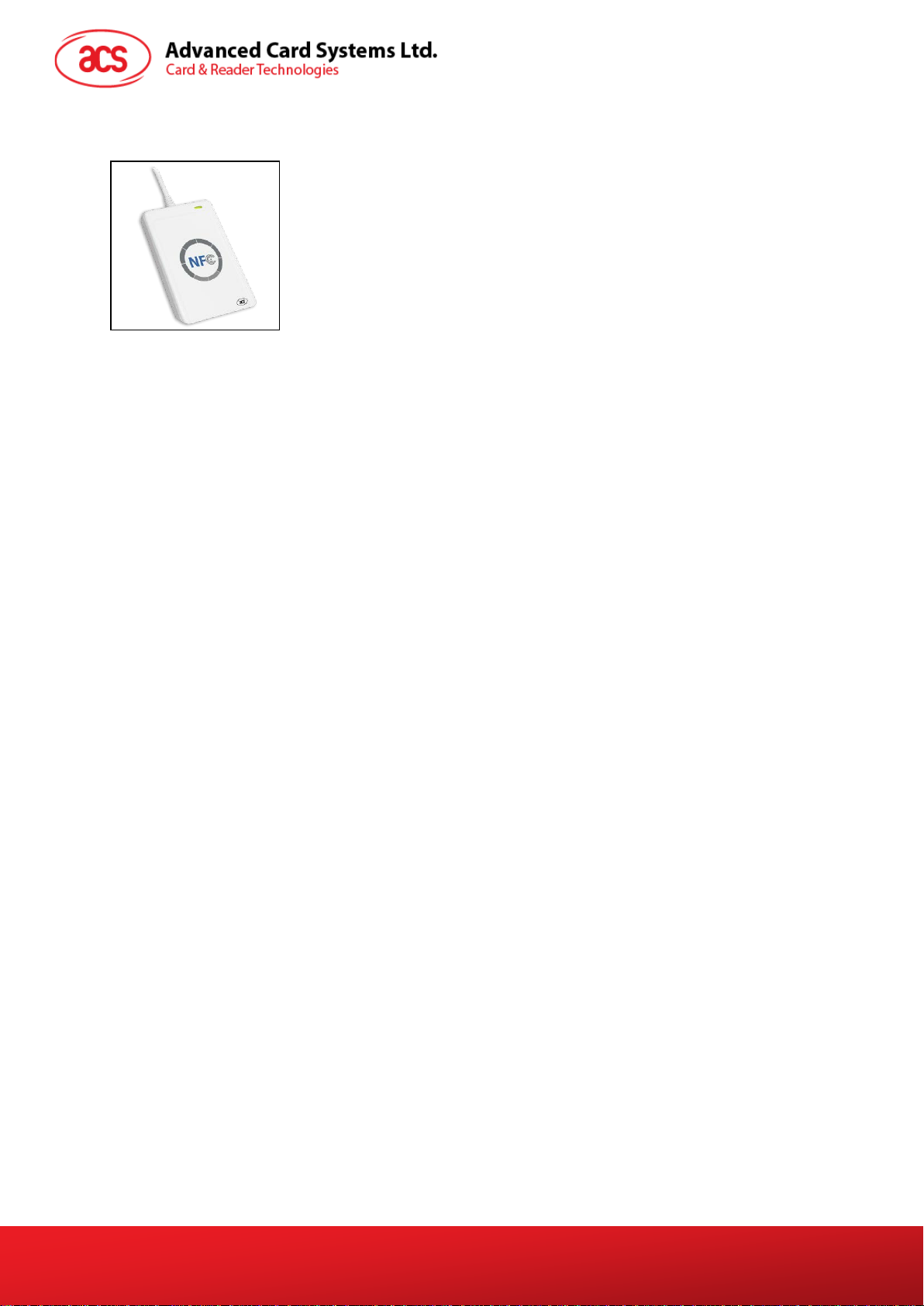

ACS ACR122U Manuel utilisateur

Subject to change without prior notice [email protected]k

www.acs.com.hk

Technical Specifications V3.06

ACR122U

USBNFCReader

ACR122U – Technical Specifications info@acs.com.hk

Version 3.06 www.acs.com.hk

Page 2 of 7

Table of Contents

1.0. Introduction ...............................................................................................................3

2.0. Features .....................................................................................................................4

3.0. Typical Applications .................................................................................................5

4.0. Technical Specifications ..........................................................................................6

ACR122U – Technical Specifications info@acs.com.hk

Version 3.06 www.acs.com.hk

Page 3 of 7

1.0.Introduction

The ACR122U is a PC-linked contactless smart card reader/writer

developed on the 13.56 MHz contactless technology. It is the world’s first

CCID-compliant contactless card reader/writer that follows both ISO 14443

and ISO 18092. This device is designed to support not only MIFARE® and

ISO 14443 Type A and B cards but also FeliCa and NFC tags.

By making use of up to 424 Kbps read/write speed for NFC tag access and

up to 12 Mbps for USB full speed, ACR122U can efficiently read from and

write to various contactless cards/tags. It is also PC/SC-compliant which

allows interoperability across different applications and platforms.

You can experience the convenience in using ACR122U, with its compact size and the various

features it offers, for applications such as payment, access control, time and attendance, and mass

transit.

ACR122U – Technical Specifications info@acs.com.hk

Version 3.06 www.acs.com.hk

Page 4 of 7

2.0.Features

•USB Full Speed Interface

•CCID-compliant

•Smart Card Reader:

oRead/Write speed of up to 424 Kbps

oBuilt-in antenna for contactless tag access, with card reading distance of up to 50 mm

(depending on tag type)

oSupports ISO 14443 Part 4 Type A and B cards, MIFARE Classic®, FeliCa, and all four

types of NFC (ISO/IEC 18092 tags)

oBuilt-in anti-collision feature (only one tag is accessed at any time)

•Built-in Peripherals:

oUser-controllable bi-color LED

oUser-controllable buzzer

•Application Programming Interface:

oSupports PC/SC

oSupports CT-API (through wrapper on top of PC/SC)

•Supports Android™ 3.1 and later1

•Compliant with the following standards:

oEN 60950/IEC 60950

oISO 14443

oISO 18092

oPC/SC

oCCID

oCE

oFCC

oRoHS 2

oREACH

oVCCI (Japan)

oKC (Korea)

oMicrosoft® WHQL

1Uses an ACS-defined Android Library

ACR122U – Technical Specifications info@acs.com.hk

Version 3.06 www.acs.com.hk

Page 5 of 7

3.0.Typical Applications

•e-Government

•e-Banking and e-Payment

•e-Healthcare

•Transportation

•Network Security

•Access Control

•Loyalty Program

ACR122U – Technical Specifications info@acs.com.hk

Version 3.06 www.acs.com.hk

Page 6 of 7

4.0.Technical Specifications

Physical Characteristics

Dimensions .................................... 98.0 mm (L) × 65.0 mm (W) × 12.8 mm (H)

Weight............................................ 70 g

Color .............................................. Pearl White

USB Host Interface

Protocol.......................................... USB CCID

Connector Type.............................. Standard Type A

Power Source................................. From USB port

Speed............................................. USB Full Speed (12 Mbps)

Supply Voltage............................... 5 V

Supply Current .............................. Max. 200 mA

Cable Length.................................. 1.0 m, Fixed

Contactless Smart Card Interface

Standard ........................................ ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa

Protocol.......................................... ISO 14443 T=CL for ISO 14443-4 compliant cards

....................................................... T=CL Emulation for MIFARE Classic, ISO 18092, FeliCa and NFC Tags

Operating Frequency ..................... 13.56 MHz

Operating Distance ........................ Up to 50 mm (depending on tag type)

Smart Card Read/Write Speed....... 106 Kbps, 212 Kbps, 424 Kbps

Antenna Size.................................. 50 mm × 40 mm

Built-in Peripherals

LED................................................ 1 bi-color: Red and Green

Buzzer............................................ Monotone

Application Programming Interface

PC-linked Mode.............................. PC/SC

....................................................... CT-API (through wrapper on top of PC/SC)

Operating Conditions

Temperature .................................. 0 °C – 60 °C

Humidity......................................... Max. 90% (non-condensing)

MTBF ............................................. 408,500 hrs

Certifications/Compliance

EN 60950/IEC 60950, ISO 14443, ISO 18092, USB Full Speed, PC/SC, CCID, CE, FCC, RoHS 2, REACH

VCCI (Japan), KC (Korea), Microsoft® WHQL

ACR122U – Technical Specifications info@acs.com.hk

Version 3.06 www.acs.com.hk

Page 7 of 7

Device Driver Operating System Support

Windows® CE 5.0, Windows® 6.0, Windows® Embedded Compact 7, Windows® XP, Windows Vista®,

Windows® 7, Windows® 8, Windows® 8.1, Windows® 10

Windows® Server 2003, Windows® Server 2003 R2, Windows® Server 2008, Windows® Server 2008 R2,

Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016

Linux®, Mac OS®, Solaris, Android™ 3.1 and later

Android is a trademark of Google LLC.

Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.

Mac OS is a trademark of Apple Inc., registered in the U.S. and other countries.

Microsoft, Windows and Windows Vista are registered trademarks of Microsoft Corporation in the United States and/or other countries.

MIFARE and MIFARE Classic are registered trademarks of NXP B.V. and are used under license.
