Reference Manual 1.00

ACR1281U-C2

CardUIDReader

ACR1281U-C2 – Reference Manual info@acs.com.hk

Version 1.00 www.acs.com.hk

Page 2 of 15

Table of Contents

1.0. Introduction .............................................................................................................3

2.0. Features ...................................................................................................................4

3.0. Typical Applications................................................................................................5

4.0. UID Output Settings ................................................................................................6

4.1. Output Format........................................................................................................................6

4.2. Character between each UID bytes.......................................................................................7

4.2.1. Reference Document....................................................................................................7

4.3. Character at the end of UID bytes.........................................................................................7

4.4. Current Output Settings.........................................................................................................7

5.0. Configure the UID using escape command...........................................................8

5.1. Example 1..............................................................................................................................9

5.2. Example 2............................................................................................................................11

5.3. Example 3............................................................................................................................13

Appendix A. Example of Output Data Table.................................................................15

List of Figures

Figure 1 : ACR1281U-C2 Sample Application.......................................................................................3

Figure 2 : HID Usage Table....................................................................................................................7

ACR1281U-C2 – Reference Manual info@acs.com.hk

Version 1.00 www.acs.com.hk

Page 3 of 15

1.0.Introduction

ACR1281U-C2 is a contactless card UID (Unique Identification Number) reader especially designed to

get the UID of any ISO 14443 Parts 1-4 Type A and B–compliant contactless card in an efficient way.

When a contactless card (e.g., MIFARE® DESFire® card) is tapped onto the ACR1281U-C2, the

reader retrieves the UID and automatically returns the UID to the computer. Since it is HID (Human

Interface Device)–compliant, this device does not require any additional driver to be installed in the

computer. However, its only function is to retrieve the card’s UID and display it directly in any text

editor such as Notepad, Microsoft® Excel and Microsoft® Word. The ACR1281U-C2 also has an anti-

collision feature that ensures only one card is accessed when multiple cards are presented at the

same time.

ACR1281U-C2 Card UID Reader is HID–compliant. It can also support Windows®, Linux®, Mac

OS®, and other embedded systems.

This document will discuss the commands and instructions on how the ACR1281U-C2 Reader Card

UID output can be configured using escape commands.

Figure 1: ACR1281U-C2 Sample Application

ACR1281U-C2 – Reference Manual info@acs.com.hk

Version 1.00 www.acs.com.hk

Page 4 of 15

2.0.Features

•USB 2.0 Full Speed Interface

•USB HID Keyboard Class Emulation

•USB Firmware Upgradability

•Contactless Card Support:

oRead/Write speed of up to 848 Kbps

oBuilt-in antenna for contactless tag access, with card reading distance of up to 50 mm

(depending on tag type)

oSupports ISO 14443 Part 4 Type A and B cards, and MIFARE® cards

oBuilt-in anti-collision feature (only one tag is accessed at any time)

•Compliant with the following standards:

oISO 14443

oCE

oFCC

oRoHS 2

ACR1281U-C2 – Reference Manual info@acs.com.hk

Version 1.00 www.acs.com.hk

Page 5 of 15

3.0.Typical Applications

•e-Government

•e-Banking and e-Payment

•e-Healthcare

•Transportation

•Network Security

•Access Control

•Loyalty Program

ACR1281U-C2 – Reference Manual info@acs.com.hk

Version 1.00 www.acs.com.hk

Page 6 of 15

4.0.UID Output Settings

4.1. Output Format

Command to configure: E0 00 00 40 02 ABXX

Parameter Detail:

A – Read Mode Configure

•Caps Lock/Caps Unlock

= 1xxxb -> Reserved

= 00x0b -> No Caps Lock before and after output

= 00x1b -> Caps Lock before and after output

•Length of UID

= 000xb -> Only Support 4 bytes UID

= 001xb -> Support 4, 7, 10 bytes UID

B – Output Format/Display Mode

= 0000b = 0h-> Hex

= 0001b = 1h-> Dec (byte by byte)

= 0010b = 2h-> Dec

XX – Output Order

= 00h -> Default order (UID Byte 0, UID Byte 1 … UID Byte N)

Example: aa cc bb dd (original /actual UID order)

= 01h -> Reverse order (UID Byte N, UID Byte N-1 … UID Byte 0)

Example: dd bb cc aa (reverse the UID order)

ACR1281U-C2 – Reference Manual info@acs.com.hk

Version 1.00 www.acs.com.hk

Page 7 of 15

4.2. Character between each UID bytes

Command to configure: E0 00 00 41 02 YY ZZ

Parameter Detail:

YY - the character between each UID

= FFh means no character between or

= for other character table, refer to http://www.usb.org/developers/hidpage/Hut1_12v2.pdf,

p53 - p59

4.2.1. Reference Document

The following related document is available from http://www.usb.org/developers/hidpage/.

•HID Usage Table document defines constants that can be interpreted by an application to

identify the purpose and meaning of a data filed in HID report.

Note: For keyboards, look at the usage table sections in both the HID Specifications and

Usage Table document.

Refer to this link: http://www.usb.org/developers/hidpage/Hut1_12v2.pdf, under pages 53 to

Usage ID (Dec) Usage ID (Hex) Usage Name

40 28 Keyboard Return (Enter)

41 29 Keyboard Escape

43 2B Keyboard Tab

44 2C Keyboard Spacebar

Figure 2: HID Usage Table

4.3. Character at the end of UID bytes

Command to configure: E0 00 00 41 02 YY ZZ

Parameter Detail:

ZZ - the character end of output

= FFh means no character follow or

= for other character table, refer to http://www.usb.org/developers/hidpage/Hut1_12v2.pdf,

p53 - p59

4.4. Current Output Settings

Below are the commands used in order to check the current UID output settings saved in the

EEPROM of ACR1281U-C2 UID Reader.

E0 00 00 40 00

E0 00 00 41 00

ACR1281U-C2 – Reference Manual info@acs.com.hk

Version 1.00 www.acs.com.hk

Page 8 of 15

5.0.Configure the UID using escape command

To configure the ACR1281U-C2 using the escape command:

1. Connect the ACR1281U-C2 smart card reader to your computer.

2. Run the PCSC Direct Command Application.

3. Under Connection – Share Mode, select Direct and then click Connect.

4. In the Data field, enter the Commands to configure and click Send.

ACR1281U-C2 – Reference Manual info@acs.com.hk

Version 1.00 www.acs.com.hk

Page 9 of 15

5.1. Example 1

Here’s the example of the output data given the following settings:

Display Mode: Hex Bytes

Length of UID: support 4, 7, 10

Letter Case: Caps Unlock

Order: Default order

Character: Space character between UID, "Enter" later all the UID

1. Command to configure: E0 00 00 40 02 ABXX

A = 0010b = 2h B = 0000b = 0h XX = 00h

2. Command to configure: E0 00 00 41 02 YYZZ

From "HID Usage Table," p53 - p59

YY = “Spacing” = Keyboard Spacebar = 2Ch

ZZ = “Enter” = Keyboard Return = 28h

Commands to configure:

•E0 00 00 40 02 2000

ACR1281U-C2 – Reference Manual info@acs.com.hk

Version 1.00 www.acs.com.hk

Page 10 of 15

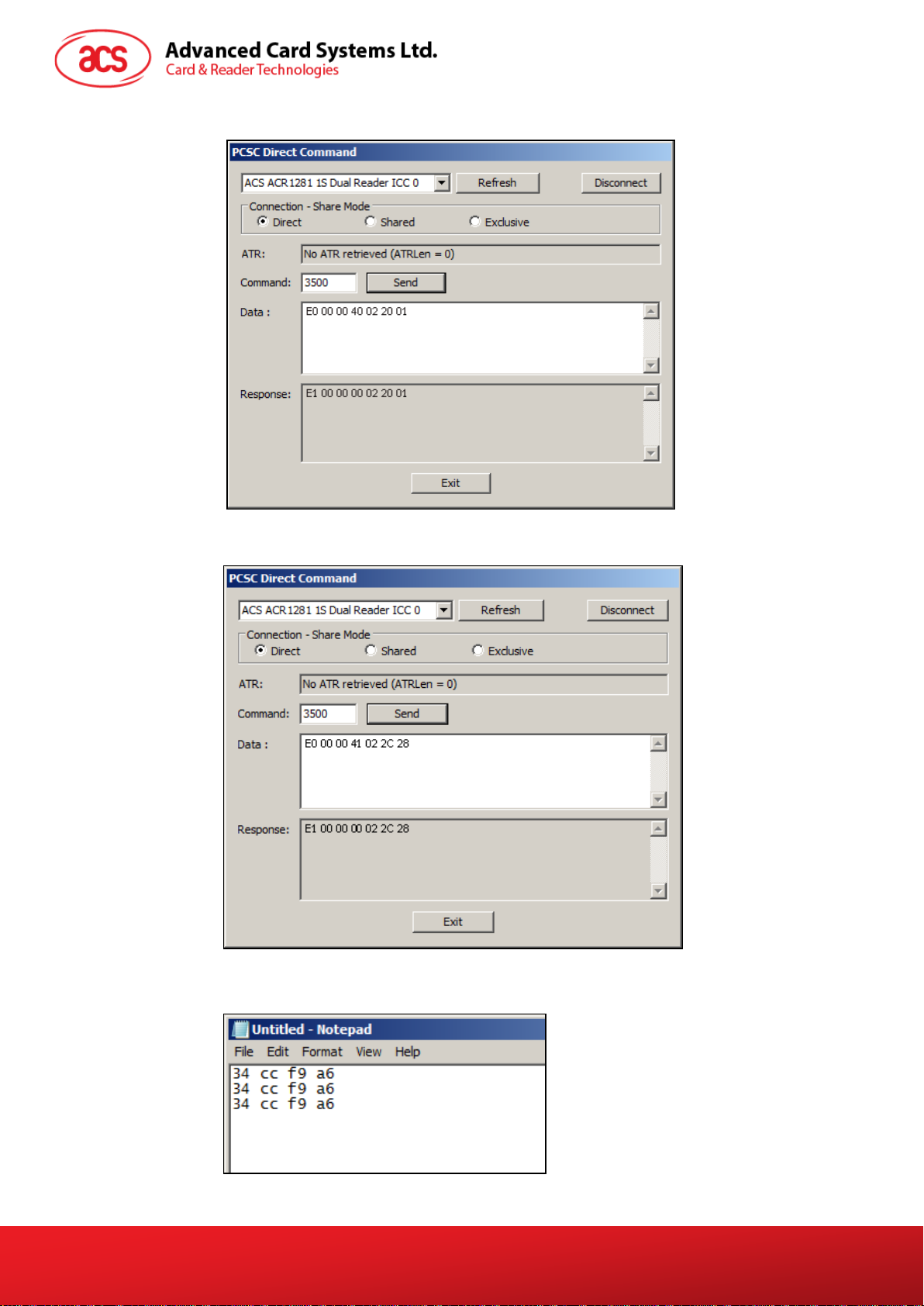

•E0 00 00 40 02 20 01

•E0 00 00 41 02 2C 28

•Display Result (UID = 34 CC F9 A6)
