Acrosser Technology AR-ES5495 Manuel utilisateur

Revision :1.0

Revision Description Date

1.0 Release 2009/11/25

AR-ES5495

Installation Guide

Revision :1.0

Contents

1 Introduction to AR-ES5495………………………………………………….……… 3

1.1 Specifications…………………………………………………………………… 3

1.2 Packing List……………………………………………………………………… 3

1.3 System Dissection………………………………………………………………. 4

1.3-1 Dimensions………………………………………………………………… 4

1.3-2 Front Panel………………………………………………………………… 4

1.3-3 I/O Bracket………………………………………………………………… 5

1.4 System Configuration……………………………………………………………………… 5

2 Procedure of Assembly/Disassembly……………………………………………… 6

2.1 Installation 3.5“ HDD…………………………………………………………… 6

2.2 Installation Memory Module……………………………………………………. 10

2.3 Installation IDE-DOM…………………………………………………………… 12

Revision :1.0

1 Introduction to AR-ES5495

AR-ES5495 is an Intel Atom N270 + 945GSE chipset based platform; it provides fanless,

low power consumption, tiny size, easy installation and light weight for you. It is design for

low cost communication device; user can use it to build up simply internal communication

environment.

1.1 Specifications

Item Description

System AR-ES5495

CPU Board AR-B5495

System Dimensions 230×215×65 (mm)

1.2 Packing List

Description Q’ty

AR-ES5495 1

1GB DDRII 667MHz SDRAM (pre-installed) 1

Utility CD 1

AR-ES5495 system manual 1

LPT Cable 1

SATA Cable 2

SATA Power convert cable 1

44 pin IDE Cable 1

COM Port Cable w/bracket 1

Revision :1.0

1.3 System Dissection

1.3-1 Dimensions

230mm

65mm

1.3-2 Front Panel

Power Button

Reset Botton

HDD Led(red)

Power Led(green)

2 x USB

Revision :1.0

1.3-3 I/O Bracket

Serial Port

(COM1)

Micro

hone

LAN Port x 2

Power Inlet

Line-out

USB Port x 4 Serial Port

(COM2)

GA1 Port

Parallel Port

PS2 Keyboard

PS2 Mouse

1.4 System Configuration

Power Supply

AR-ES5495 Case IDE DOM

HDD Bracket

RAM

AR-B5495 Board

Revision :1.0

2 Procedure of Assembly/Disassembly

2.1 HDD Installation

The following instructions guide you to install 3.5” HDD

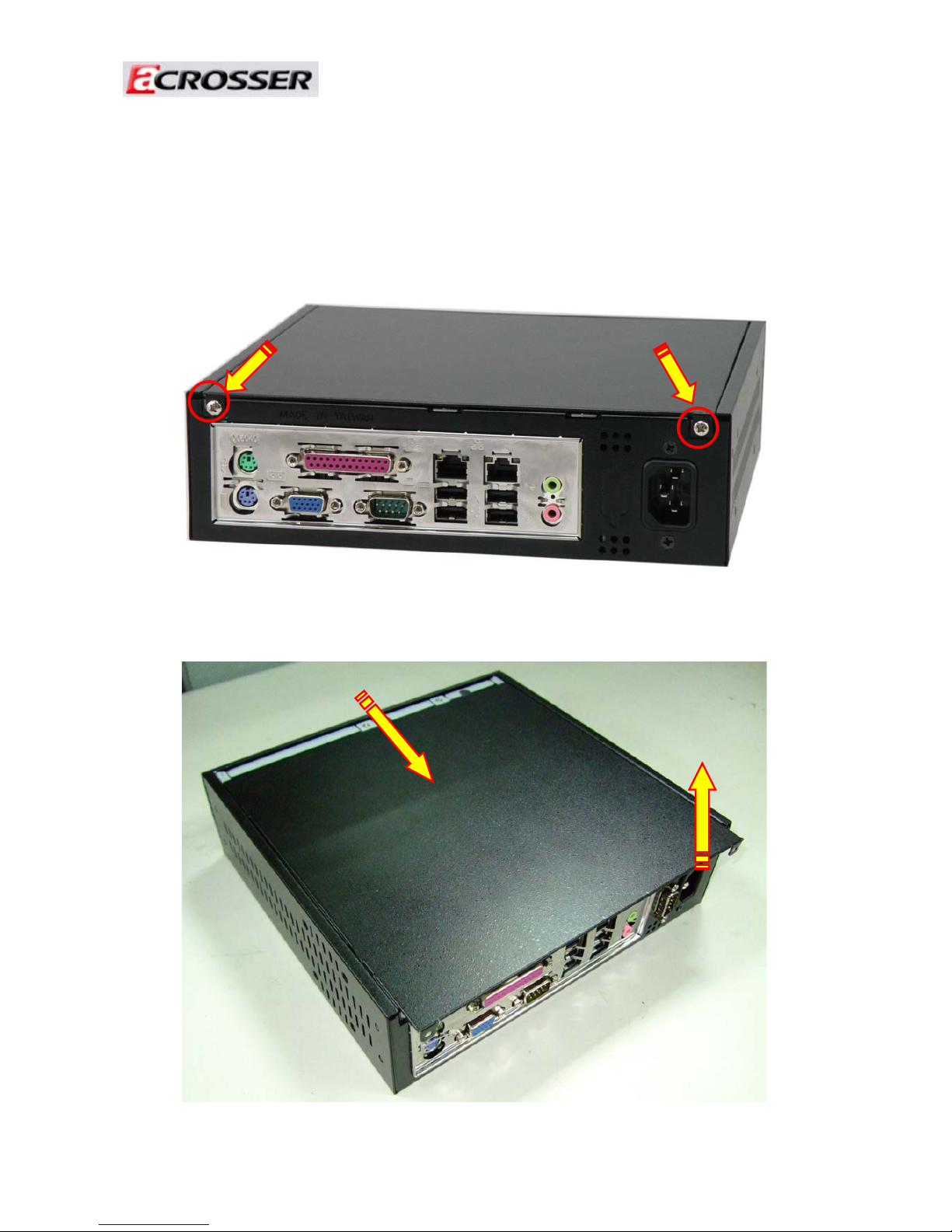

1. Unscrew two screws to unfasten the top cover.

Unscrew Unscrew

2. Take off the top cover.

Revision :1.0

3. Unscrew screws of the HDD-Bracket and take off the HDD-Bracket.

4. Put the 3.5” HDD on the HDD-Bracket and fix it by four screws.

Revision :1.0

5. Plug in the SATA cable and SATA power cable to the 3.5”HDD.

6. Then connect the SATA cable and SATA power cable to the AR-B5495 board.

SATA power cable

SATA cable

Revision :1.0

7. Put the HDD-Bracket back to chassis and fix it.

Screw

8. Fixed the top cover with the chassis.

Screw Screw

Revision :1.0

2.2 Installation Memory Module

1. Please follow the steps above to remove the top cover.

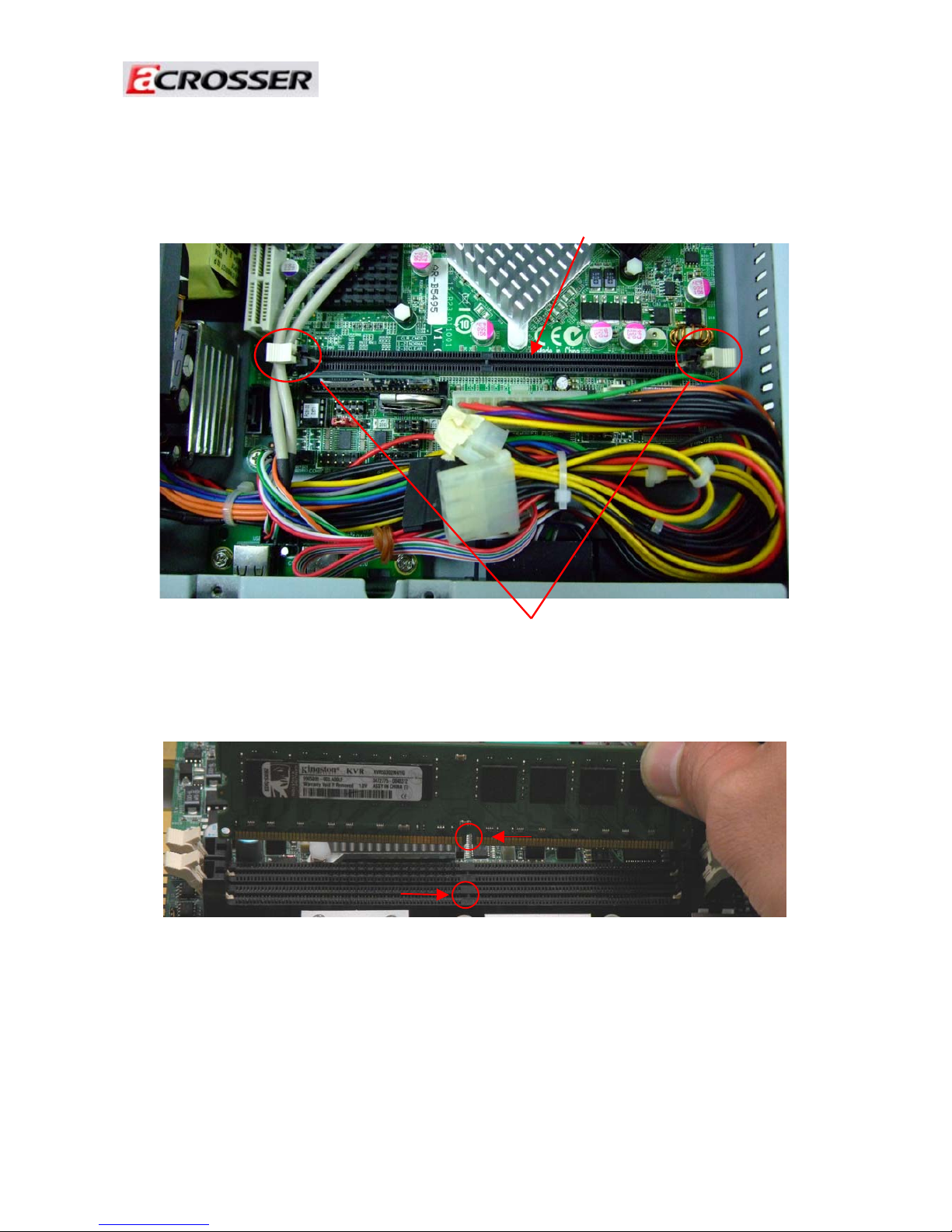

2. Open the two latch of memory slot.

Latch

RAM module

2. Align the memory cutout with the memory module slot notch.

Cut out

Notch
