User's Manual Version 1.0

6A815E1/EP1

Table of Contents

Introduction

1. Motherboard Description

1.1 Introduction 1-1

1.2 Package Contents 1-1

1.3 Features 1-2

1.4 6A815E1 & 6A815EP1 Motherboard Layout 1-5

1.5 CPU Installation 1-7

1.6 SDRAM Installation 1-8

1.7 Connectors & Jumper Setting

1.7.1 Back Panel Connectors

1.7.1.1 PS/2 Mouse/Keyboard CONN. 1-9

1.7.1.2 USB Connector: USB1 1-10

1.7.1.3 Serial Interface ports 1-10

1.7.1.4 Parallel Interface port 1-10

1.7.1.5 VGA Interface port 1-11

1.7.1.6 Joystick / Midi Connector 1-11

1.7.1.7 Audio Port Connector 1-11

1.7.2 ATX 20-pin Power Connector: ATX 1-11

1.7.3 Floppy Disk Connector: FDD1 1-12

1.7.4 Hard Disk Connectors: IDE1/IDE2 1-12

1.7.5 CPU Fan Connectors: FAN1/2/3 1-12

1.7.6 CD-Audio-IN Connector: CN1 1-13

1.7.7 Front Panel Connector: J7 1-14

1.7.8 CMOS Function Setting: JP6 1-15

1.7.9 BIOS Flash(JP4) 1-16

1.7.10 Keyboard wake up Setting: JP7 1-16

1.7.11 IrDA Connector: IR 1-17

1.7.12 Front two USB Connector: USB2 1-17

1.7.13 STR LED: LED1 1-17

1.7.14 CNR Card Setting: J8 1-17

Table of Contents

2. BIOS Setup

2.1 Main Menu 2-4

2.2 Standard CMOS Features 2-7

2.3 Advanced BIOS Features 2-10

2.4 Advanced Chipset Features 2-14

2.5 Integrated Peripherals 2-17

2.6 Power Management Setup 2-23

2.7 PnP/PCI Configurations 2-27

2.8 PC Health Status 2-31

2.9 Frequency/Voltage Control 2-33

2.10 Load Fail-Safe Defaults 2-34

2.11 Load Optimized Defaults 2-35

2.12 Set Supervisor/user Password 2-36

2.13 Save & Exit Setup 2-38

2.14 Exit Without Saving 2-39

3. Driver Installation

3.1 Auto-run Menu 3-1

3.2 Installing Intel INF Driver 3-2

3.3 Installing Intel Application Accelerator Driver 3-4

3.4 Installing VGADriver 3-8

3.5 Installing Audio Driver 3-10

a. Appendix

iii

1-11-1

1-1

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

1.1 Introduction1.1 Introduction

1.1 Introduction

The 6A815E1&EP1 motherboard is designed for using Intel

PIII Front Side Bus Frequency 133MHz CPU, which utilize the

Socket-370 design and the memory size expandable to 512MB.

This motherboard use the lastest Intel 815 B-step chipset,

appling 133MHz Front Side Bus frequency and 133MHz memory

interface delivers a clear upgrade path to the future generation of

133MHz processors, PC-100/PC-133 SDRAM. The

6A815E1&EP1 motherboard offers ULTRA ATA 100 to provide

speedier HDD throughout that boosts overall system performance.

It is ideal for multi-tasking and fully supporting MS-DOS,

Windows, Windows NT , Windows ME, Windows 2000, Novell,

OS/2, Windows95/98, Windows 98SE, Windows XP, UNIX, Liunx

, SCO UNIX etc. This manual also explains how to install the

mainboard for operation, and how to setup your CMOS

configuration with the BIOS setup program.

Chapter

1.2 Package Contents1.2 Package Contents

1.2 Package Contents

-HDD UDMA66/100 Cable.

-FDD Cable.

-Flash Memory Written for BIOS Update.

-COM2 Cable. (Only support 6A815E1 M/B)

-Fully Setup CD Driver built in Utility(Ghost, Antivirus,

Adobe Acrobat).

-Manual.

1-11-1

1-1

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

CPU

-Socket 370 for Intel Celeron/PIII Processors.

-Intel FC-PGA/FC-PGA2/PPGA Celeron Processors

600MHz~1.2GHz or higher processor with 66/100MHz

FSB.

-Intel FC-PGA Pentium III Processors 500MHz~

1.13GHz or higher processor with 100/133MHz FSB.

-VIA Cyrix III Processor with 100/133MHz FSB.

-Intel Tualatin Processor with 1.2GHz or higher processor.

Chipset

-North Bridge System Chipset : Intel 815 B-step

support 66/100/133 FSB.

-South Bridge System Chipset : Intel ICH2.

Biggest memory capacity

6A815E1/6A815EP1 is equipped with three DIMM

socket to support (8MB to 512MB) 168 pin 3.3v

SDRAM SPD(Special Presence Detect).

Maximum memory up to 512MB.

-Supports up to 3 of double sided DIMMs at

100MHz system memory bus.

-Supports up to 2 of double sided or 3 single

sided DIMMs at 133MHz system memory bus.

AGP for fast VGA solution

-AGP specification compliant.

-AGP 66 MHz 3.3v for 1X/2X/4X device support.

Bus Slot

-Provides five 32 bit PCI slots.

-Provide one AGP slot and one CNR slot.

1.3 Features1.3 Features

1.3 Features

1-31-3

1-3

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

On-Board IDE

-An IDE controller on the ICH2 chipset provides IDE

HDD/CD-ROM with PIO, Bus Master and Ultra DMA

33/66/100 operation modes.

-Can connect up to four IDE devices.

On-Board Peripherals

-1 floppy port supports 2 FDD with 360K,720K,1.2M,

1.44M and 2.88M byte.

-2 serial ports (COM1+COM2(10 pin) ).

-4 USB ports.

-1 VGA port.(Only support by 6A815E1 M/B)

-1 parallel port supports SPP/EPP/ECP mode.

Audio

-ICH2 chip integrated.

-AC’97 CODEC on board .

BIOS

-The mainboard BIOS provides “Plug & Play” BIOS

which detects the peripheral devices and expansion

cards of the board automatically.

-The mainboard provides a Desktop Management

Interface (DMI) function which records your

mainboard specifications.

-BIOS support CD-ROM, SCSI, LAN BOOT,

Temperature sensor, Wake on modem, Alarm Bus

CLK setup with BIOS.

Hardware Monitor Function

-CPU Fan Speed Monitor.

-System and CPU Temperature Monitor.

-System Voltage Monitor.

1.3 Features1.3 Features

1.3 Features

1-41-4

1-4

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

Support Ring on by modem/Alarm

Support System power up from Modem ring up or

timer of System. Required enabled in Ring on by

modem and Alarm on in BIOS.

Intel Accelerated Hub Architecture :

Features a dedicated high speed hub link between the

ICH2 and GMCH with a bandwidth of 266MB/sec-

twice the maximum bandwidth of the PCI bus.

Integrated Graphics :

(Only support 6A815E1 motherboard)

Controller supports 3D hyper pipelined architecture,

parallel data processing and compression, precise

pixel interpolation, full 2D hardware acceleration,

and motion video acceleration.

Suspend and Go :

Suspend-to-RAM (STR) provides maximum power

savings as an alternative to leave the computer ON

and Quickstart so that you do not have to wait for a

long time for booting system.

CNR Support :

One Communication and Networking Riser(CNR)

slot provides interface to support very

affordable multichannel audio, V.90 analog modem,

Home PNA, 10/100 Ethernet networking,USB hub, as

well as future technologies such as XDSL.

1.3 Features1.3 Features

1.3 Features

1-51-5

1-5

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

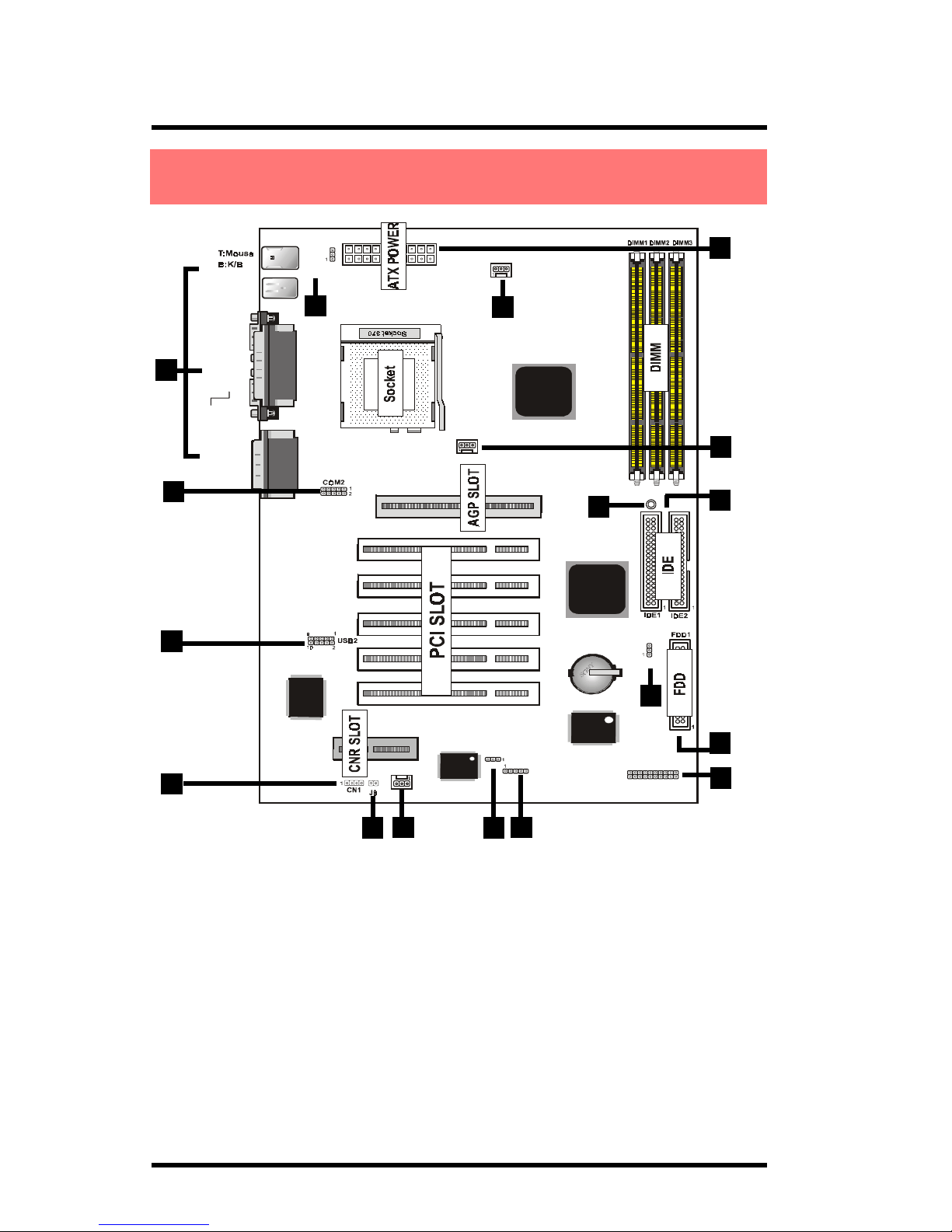

1.4 Motherboard Layout1.4 Motherboard Layout

1.4 Motherboard Layout

1-61-6

1-6

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

1.BabkOandkI.OCnnndbsnrr1.BabkOandkI.OCnnndbsnrr

1.BabkOandkI.OCnnndbsnrr1.CCAtchn-In Cnnndbsnr1.CCAtchn-In Cnnndbsnr

1.CCAtchn-In Cnnndbsnr1.CCAtchn-In Cnnndbsnr

1.CCAtchn-In Cnnndbsnr

3.Frnns COM1Cnnndbsnr3.Frnns COM1Cnnndbsnr

3.Frnns COM1Cnnndbsnr 4.Frnns OandkCnnndbsnr4.Frnns OandkCnnndbsnr

4.Frnns OandkCnnndbsnr4.Frnns OandkCnnndbsnr

4.Frnns OandkCnnndbsnr

5.FanCnnndbsnrr(Fan1.1.3(5.FanCnnndbsnrr(Fan1.1.3(

5.FanCnnndbsnrr(Fan1.1.3( 6.FknooyCnnndbsnr6.FknooyCnnndbsnr

6.FknooyCnnndbsnr6.FknooyCnnndbsnr

6.FknooyCnnndbsnr

7.ICD Cnnndbsnrr7.ICD Cnnndbsnrr

7.ICD Cnnndbsnrr8.IR Cnnndbsnr8.IR Cnnndbsnr

8.IR Cnnndbsnr8.IR Cnnndbsnr

8.IR Cnnndbsnr

9.Frnns USB1Cnnndbsnr9.Frnns USB1Cnnndbsnr

9.Frnns USB1Cnnndbsnr 10.ATX Onwdr Cnnndbsnr10.ATX Onwdr Cnnndbsnr

10.ATX Onwdr Cnnndbsnr10.ATX Onwdr Cnnndbsnr

10.ATX Onwdr Cnnndbsnr

11.BIOS Fkarh(IO4(11.BIOS Fkarh(IO4(

11.BIOS Fkarh(IO4(11.STR LDC(LDC1(11.STR LDC(LDC1(

11.STR LDC(LDC1(11.STR LDC(LDC1(

11.STR LDC(LDC1(

13.Jdyanarc wakd to Sdsshng(IO7(13.Jdyanarc wakd to Sdsshng(IO7(

13.Jdyanarc wakd to Sdsshng(IO7(

14.CNR Carc Sdsshng(I8(14.CNR Carc Sdsshng(I8(

14.CNR Carc Sdsshng(I8(

15.CMOS FtnbshnnSdsshng(IO6(15.CMOS FtnbshnnSdsshng(IO6(

15.CMOS FtnbshnnSdsshng(IO6(

USB1

COM1

6A815EP1

not onboard

VGA

AGP1

Speaker out

Line in

MIC in

Printer

FAN1

JP6

FAN3

GAME1

Intel

PCI SLOT2

PCI SLOT1

PCI SLOT3

PCI SLOT4

PCI SLOT5

CNR SLOT

FAN2

JP4

BIOS

I/O CHIP

LAN CHIP

JP7

LED1

VGA

Optional

1114

1.4 Motherboard Layout1.4 Motherboard Layout

1.4 Motherboard Layout

1-71-7

1-7

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

1.5 CPU Installtion1.5 CPU Installtion

1.5 CPU Installtion

USB1

COM1

6A815EP1

not onboard

VGA

AGP1

Speaker out

Line in

MIC in

Printer

FAN1

JP6

FAN3

GAME1

Intel

PCI SLOT2

PCI SLOT1

PCI SLOT3

PCI SLOT4

PCI SLOT5

CNR SLOT

FAN2

JP4

BIOS

I/O CHIP

LAN CHIP

JP7

LED1

VGA

Optional

The motherboard operates with Socket 370 for Intel PIIITM

processor. The CPU should always has a Heat Sink and cooling fan

attached to prevent overheating.

CPU Installation Procedure: Socket 370

1. Pull the lever sideways away from the socket then raise

the lever to a 90-degree angle.

2. Locate Pin 1 in the socket and look for the white dot or

cut edge in the CPU. Match Pin 1 with the white dot or

cut edge then insert the CPU.

3. Press the lever down to complete installation.

4. Make sure the spec of the heatsink is good enough.

5. Please lock the fan on CPU very carefully, or you

will damage the resistor array even circuit line

on the mainboard.

Notch

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Acorp Carte mère

Acorp

Acorp 6A815EP Manuel utilisateur

Acorp

Acorp 7KTA3 Manuel utilisateur

Acorp

Acorp N2PA-400 Manuel utilisateur

Acorp

Acorp 4845GVQ Manuel utilisateur

Acorp

Acorp 7KT333 Manuel utilisateur

Acorp

Acorp 6M810E Manuel utilisateur

Acorp

Acorp 4PM266M Manuel utilisateur

Acorp

Acorp 6M810E Manuel utilisateur

Acorp

Acorp 7KM400MN Manuel utilisateur

Acorp

Acorp 4D533 Manuel utilisateur

Acorp

Acorp 4PX400 Manuel utilisateur

Acorp

Acorp 4S845AL Manuel utilisateur

Acorp

Acorp 4845GLQ Manuel utilisateur

Acorp

Acorp 7KMM Manuel utilisateur

Acorp

Acorp 7KT400 Manuel utilisateur

Acorp

Acorp 4S845A Manuel utilisateur

Acorp

Acorp 4S648 Manuel utilisateur

Acorp

Acorp 7NFU400 Manuel utilisateur

Acorp

Acorp 694XT1 Manuel utilisateur

Acorp

Acorp 6M810E2 Manuel utilisateur

Acorp

Acorp 5VIA73 Manuel utilisateur

Acorp

Acorp 6A815EP Manuel utilisateur

Acorp

Acorp 6V8633A Manuel utilisateur

Acorp

Acorp 7KT400ANL Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
