Acnodes APW4028 Manuel utilisateur

User Manual

For lastest product information, please visit Acnodes’ website at www.acnodes.com

14628 Central Ave. Chino, CA91710 Tel: 909.597.7588 Fax: 909.597.1939

APW4028

28" 4K LCD Panel

Aluminum Front Bezel

Panel / VESA Mount Ready

Industrial Monitors

Legal Information

First English printing, March 2019

Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness

of the contents. The information in this document is subject to change without notice. We are not liable for any injury or

loss that results from the use of this equipment.

Safety Instructions

Please read all of these instructions carefully before you use the device. Save this manual for

future reference.

■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.

■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with

temperatures not exceeding 40º Celsius (104º Fahrenheit).

■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing

damage to other equipment or injury to persons nearby.

■When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the

power supply. Proper air convection is necessary to keep it from overheating.

■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.

■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current

labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed

on the equipment’s ratings label.

■Observe all precautions and warnings attached to the equipment.

■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being

damaged by transient over-voltage.

■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power

supply or on other hardware may cause damage, fire or electrical shock.

■Only qualif ed service personnel should open the chassis. Opening it yourself could damage the equipment and

invalidate its warranty.

■If any part of the equipment becomes damaged or stops functioning, have it checked by qualif ed service personnel.

What the warranty does not cover

■Any product, on which the serial number has been defaced, modified or removed.

■Damage, deterioration or malfunction resulting from:

□Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or

failure to follow instructions supplied with the product.

□Repair or attempted repair by anyone not authorized by us.

□Any damage of the product due to shipment.

□Removal or installation of the product.

□Causes external to the product, such as electric power fluctuation or failure.

□Use of supplies or parts not meeting our specif cations.

□Normal wear and tear.

□Any other causes which does not relate to a product defect.

■Removal, installation, and set-up service charges.

Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of

the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following measures:

■Re-position or relocate the receiving antenna.

■Increase the separation between the equipment and receiver.

■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Contents

< Part. 1 > APW4028

1.1 Package Content P.1

1.2 Structure Diagram & Dimension P.2 - 3

1.3 Mounting Hardware & Installation P.4

< Part. 2 > Specifications / OSD

2.1 P.5 - 6

2.2 P.7 - 9

2.3

Product Specifications

On-screen Display Operation ( OSD )

Picture In Picture ( PIP ) / Picture By Picture ( PBP ) P.10 -11

< Part. 3 > Options

P.12

P.13

P.14

P.15

P.16 - 17

P.18

3.1

3.2

3.3

3.4

3.5

3.6

3.7

Option Table

Remote Controller ( RC-2 )

3G / HD / SD-SDI Input

MCS Multi-display Control Solution

Touchscreen & Driver

DC Power : 12V / 24V / 48V / 125V

MIL-type or lockable connector P.19

■It is very important to mount the equipment in a suitable cabinet or on a stable surface.

■Make sure the place has a good ventilation, is out of direct sunlight, away from sources of

excessive dust, dirt, heat, water, moisture and vibration.

Before Installation

Caution :

■To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor

from or plugging your monitor into an electrical outlet.

■When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen

can scratch or damage your display. Pressure damage is not covered under warranty.

■Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not

made to clean monitors and monitor screens can scratch the LCD display or strip off the finish.

■Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids

directly onto the screen or case can cause damage which is not covered under warranty.

■Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any

wood based paper product such as paper towels can scratch your LCD screen.

Cleaning Your Monitor

To clean your LCD safely, please follow these steps :

Disconnect the power

Gently wipe the surface using a clean, microfiber cloth. Use as little pressure as possible.

Cleaning Tough Marks and Smudges

To remove tough marks and smudges, please follow these steps :

Disconnect the power cord.

Spray a small amount of non-abrasive cleanser on a microfiber cloth.

Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to

your microfiber cloth first, not directly on the parts you are cleaning.

Gently wipe the surface. Use as little pressure as possible.

Wait until your monitor is completely dry before plugging it in and powering it up.

Unpacking

The equipment comes with the standard parts shown in package content. Check and make sure

they are included and in good condition. If anything is missing, or damaged, contact

the supplier immediately.

How To Clean Your LCD Monitor

P. 1

28” 4K LCD Display x 1

6ft DP cable x 1

Power adapter x 1

Power cord x 1

Mounting hardware x 1 pack

APW4028

Basic I/O

Power

Audio out

HDMI 1.4 HDMI 2.0 DP

< Part 1 > APW4028

< 1.1 > Package Content

28” 4K LCD Display

P. 2

Rear case

LCD panel

6mm aluminum front bezel

Audio speaker, pair

LCD membrane

APW4028

Model Product Dimension

(W x D x H)

Packing Dimension

(W x D x H)

Net

Weight

Gross

Weight

APW4028703.9 x 71 x 424.5 mm

27.7 x 2.8 x 16.7 inch

785 x 175 x 527 mm

30.9 x 6.9 x 20.7 inch

16.8 kg

37 lb

20.4 kg

44.9 lb

Front View

Rear View

Side View

Bottom View

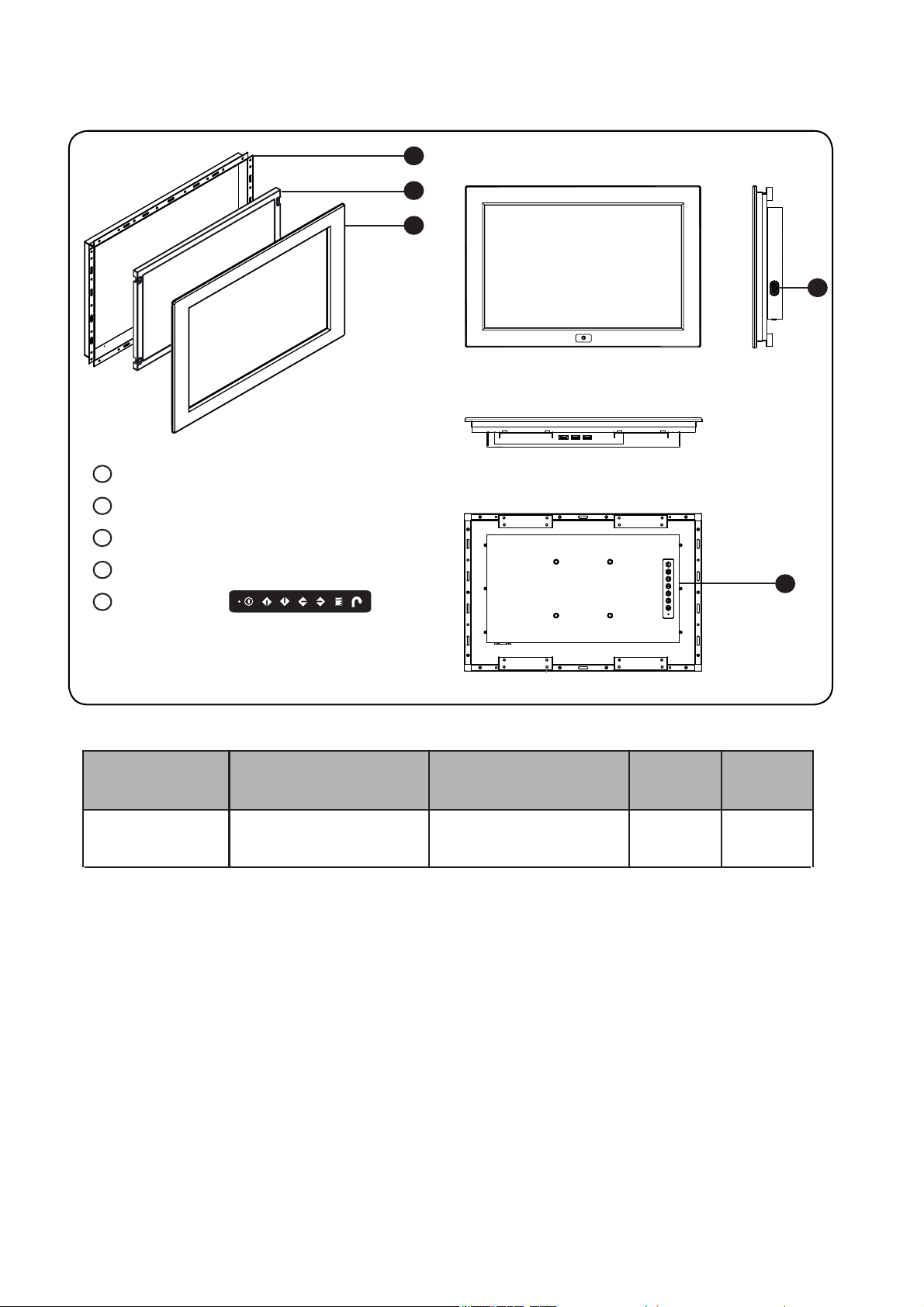

< 1.2 > Structure Diagram

28” 4K LCD Display

P. 3

Front View Side View

Rear View

UNIT : mm

1mm = 0.03937 inch

< 1.2 > Dimension

28” 4K LCD Display

APW4028

P. 4

x 2 pcs

Mounting

bracket x 4 pcs

M4*6mm screw

2 3

x 4 pcs

M4*50mm screw

Hardware set part no. UV-BK#2

■Install 2 mounting brackets with 4 x M4*6mm screws

■Adjust the LCD panel with 4 x M4*50mm screws and fix it on the surface.

Steps

■Hardware and M6*4 pcs for VESA mount are not provided

VESA mount ( 100*100mm )

( II ) VESA mount ( 100*100mm )

< 1.3 > VESA Installation

( I ) Panel mount

28” 4K LCD Display

P. 5

Protection 6mm front bezel or NEMA 4 / IP65

Front Panel Black, RAL 9005

Rear Casing Black, RAL 9005

VESA mount 100 x 100 mm

Universal mount -

Desktop stand Option

Panel mount Bundled

LCD Panel

Panel Size (diagonal ) 28-inch Widescreen TFT color LCD

Native Resolution 3840 x 2160

Brightness ( typ. ) 300

Contrast Ratio ( typ. ) 1000:1

Colors 1.07 Billion, 10-bit

Viewing Angle ( L/R/U/D ) 89/89/89/89

Response Time ( ms )

Dot pitch ( mm ) 0.181

Display Area ( mm ) 620.93H x 341.28V

Surface treatment Anti-glare

Surface hardness 3H

Backlight Type LED

MTBF ( hrs ) 30,000

Video

Digital Display port DP 1.2 / HDCP 1.3

HDMI HDMI 2.0 / HDCP 2.2

HDMI 1.4 / HDCP 1.4

Audio

Output

Connector 3.5mm stereo jack

Resistance / Power level 30kΩ / 2.8V

Speaker:

Dual Stereo 10W x 2

*When the audio output is connected, speaker output is OFF

Power

Input Auto-sensing 100 to 240VAC, 50 / 60Hz

Consumption:

Screen ON Max. 52W

Power saving mode Max. 9W

Power button OFF Max. 2W

Compliance

EMC FCC & CE certif ed

Safety CE / LVD certif ed

Environment RoHS2 & REACH compliant

Mechanical Design

< Part 2 >

< 2.1 > Product Specifications

28” 4K LCD Display

Environmental Conditions

Operating Temperature 0 to 55°C degree

Humidity 20~90%, non-condensing

Altitude 16,000 ft

Storage /

Non-operating

Temperature -20 to 60°C degree

Humidity 5~90%, non-condensing

Altitude 40,000 ft

Shock 10G acceleration ( 11ms duration )

Vibration 10~300Hz 0.5G RMS random vibration

Applicable Format

Display Port Input PC Signal 3840 x 2160 x 60Hz

1920 x 1080 x 60Hz

1600 x 1200 x 60Hz

1360 x 768 x 60Hz

1280 x 1024 x 60 / 75Hz

1280 x 768 x 60Hz

1024 x 768 x 60 / 70 / 75Hz

800 x 600 x 60 / 72 / 75Hz

720 x 400 x 70Hz

640 x 480 x 60 / 72 / 75Hz

Audio Signal 2ch Linear PCM

HDMI Input HDMI 2.0 3840 x 2160 x 60Hz

HDMI 2.0 / 1.4 3840 x 2160 x 30Hz

1920 x 1080 x 50 / 60Hz ( 1080p )

1920 x 1080 x 25 / 30Hz ( 1080i )

1280 x 720 x 50 / 60Hz ( 720p )

720 x 480 x 50 / 60Hz ( 576p / 480p )

Audio Signal 2ch Linear PCM

*In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD

may display incorrectly on a full screen. If so, please adjust the display card setting on display size to f x the issue.

Physical SpecifIcation

Product (W x D x H) mm

inch

Packing (W x D x H) mm

inch

785 x 175 x 527

30.9 x 6.9 x 20.7

Net Weight 16.8 kg / 37 lb(6mm front bezel)

Gross Weight 20.4 kg / 44.9 lb (6mm front bezel)

Chassis color Dark

Chassis materials Aluminum

703.9 x 71 x 424.5

27.7 x 2.8 x 16.7

P. 6

< 2.1 > Product Speciﬁcations

28” 4K LCD Display

18.6 kg / 40.9 lb (NEMA4 / IP65)

22.2 kg / 48.8 lb (NEMA4 / IP65)

Table des matières

Autres manuels Acnodes Tiroir LCD

Acnodes

Acnodes KD8172 Manuel utilisateur

Acnodes

Acnodes KD 8151 Manuel utilisateur

Acnodes

Acnodes RPH1190 Manuel utilisateur

Acnodes

Acnodes KD8121 Manuel utilisateur

Acnodes

Acnodes M3732 Manuel utilisateur

Acnodes

Acnodes KDC 81716 Manuel utilisateur

Acnodes

Acnodes KD 9151 Manuel utilisateur

Acnodes

Acnodes KD 9170 Manuel utilisateur

Acnodes

Acnodes M3932 Manuel utilisateur

Acnodes

Acnodes MKD6017U Manuel utilisateur

Acnodes

Acnodes KDM 3178 Manuel utilisateur

Acnodes

Acnodes KDF8170 Manuel utilisateur

Acnodes

Acnodes KD 8158 Manuel utilisateur

Acnodes

Acnodes KDN9172 Manuel utilisateur

Acnodes

Acnodes RK 1000B Manuel utilisateur

Acnodes

Acnodes RP 1205 Manuel utilisateur

Acnodes

Acnodes KDC 81732 Manuel utilisateur

Acnodes

Acnodes RP1150 Series Manuel utilisateur

Acnodes

Acnodes RP 1170 Manuel utilisateur

Acnodes

Acnodes KD8124 Manuel utilisateur

Acnodes

Acnodes KD82234 Manuel utilisateur

Acnodes

Acnodes RP 1172 Manuel utilisateur

Acnodes

Acnodes PKD 8170 Manuel utilisateur

Acnodes

Acnodes M3216 Manuel utilisateur

Manuels Tiroir LCD populaires d'autres marques

Ameriwood

Ameriwood 9524328PCOM Manuel utilisateur

Kesseböhmer

Kesseböhmer TANDEM solo Manuel utilisateur

Crystal Image Technologies

Crystal Image Technologies RMD-151-A Series Manuel utilisateur

APW Wyott

APW Wyott Ease Extreme HDX-1-120 Manuel utilisateur

NTI

NTI RACKMUX-V17-N Manuel utilisateur

Austin Hughes

Austin Hughes CyberView L120 Manuel utilisateur

Uplift Desk

Uplift Desk STR018 Manuel utilisateur

StarTech.com

StarTech.com DuraView RACKCONS1501 Manuel utilisateur

Mocka

Mocka Mischa Manuel utilisateur

GRASS

GRASS DWD XP Manuel utilisateur

StarTech.com

StarTech.com DuraView RACKCONS1701 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel IZONA CoolDrawer RB36S Manuel utilisateur

Synergy Global Technology

Synergy Global Technology LCD1U17-44 Manuel utilisateur

Fujitsu

Fujitsu RC25 Manuel utilisateur

I-Tech

I-Tech RKP115 Manuel utilisateur

iTech Company

iTech Company AMil-1900-D12e-AC Manuel utilisateur

Raloy

Raloy Slim 1U Rackmount Manuel utilisateur

MAVIS

MAVIS Falsterbo Chest Of Drawers Manuel utilisateur
