ACME Thunderroar Manuel utilisateur

CONTENTS

Safety Instruction ............................................................................... 2

Technical Specifications ...................................................................... 3

Installation and Connection ................................................................ 4

Description ........................................................................................... 6

4.1

Control Panel

.................................................................................. 6

How To Set The Unit ........................................................................... 7

5.1

Main Function

................................................................................. 7

5.2

Home Position Adjustment

........................................................... 13

Control By Universal DMX Controller ................................................ 16

6.1

Connection

................................................................................... 16

6.2

Address Setting

............................................................................. 17

6.3

DMX 512 Configuration

................................................................ 17

Error Information ............................................................................... 21

Troubleshooting ............................................................................... 22

Fixture Cleaning ................................................................................ 22

1.Safety Instruction

WARNING

Please read the instruction carefully which includes important information

about the installation, usage and maintenance.

Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure

that they also receive this instruction booklet.

Please unpack and check carefully there is no transportation damage before using the fixture.

Please ground the power cord to prevent electric shock.

Please disconnect main power before servicing and maintenance.

This product is suitable for indoor use and wet locations. Do not immerse in water.

The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces. Be sure that no ventilation slots are blocked.

The maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher

than this.

Unit surface temperature may reach up to 75℃. Don’t touch with bare hands during its operation.

In the event of serious operating problem, stop using the fixture immediately. Never try to repair the

fixture by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please

contact the nearest authorized technical assistance center. Always use the same type spare parts.

DO NOT connect the device to any dimmer pack.

DO NOT touch the wire when the lamp is running to avoid electric shock.

The housing must be replaced if they are visibly damaged.

DO NOT look straight at the light when it is on.

There are no user serviceable parts inside the fixture. Do not open the housing or attempt any

repairs by yourself. In the unlikely event your fixture may require service, please contact your nearest

dealer.

2.Technical Specifications



Power Voltage:

AC 100~240V, 50/60Hz



PowerConsumption:

710W



LightSource:

PBLA-15LTE-S



Beam Angle:

16°/31°/45°

Control:

DMX Channel: 14 channel modes

Control Mode: DMX512, RDM



Construction:

OLED display

Data In/Out: 3-pin IP XLR (5-pin IP XLR is optional)

Power In/Out: Waterproof Power Connector in/out

Protection Rating: IPX4

Dimension/Weight:

503 x 183 x 318mm, 10.5kgs

19.8"x 7.2" x 12.5"in,23.1lbs

Installation and Connection

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed

to avoid vibration and slipping while operating. Always ensure that the structure to which you are

attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always

use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.

The equipment must be fixed by professionals. And it must be fixed at a place where is out of the touch

of people and has no one pass by or under it. The installation height of the equipment is between 0 and

30 meters.

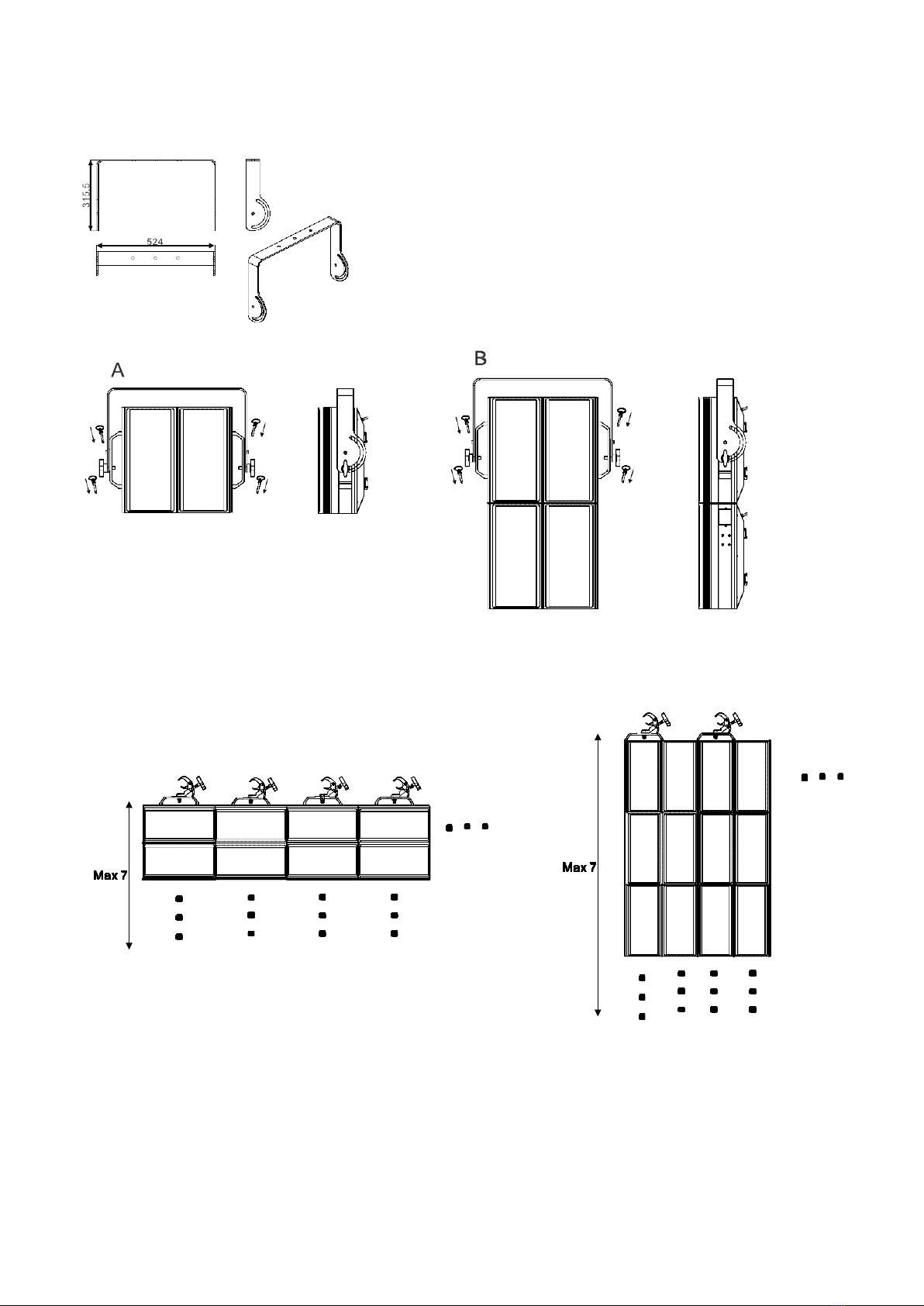

Installation mode of the hanging bracket: Installation mode of a single angle-adjustable

equipment’s hanging bracket:

Installation mode of the bolt: Assemblymethodbetweentwoequipment:

Installationmodeofthebighangingbracket(operational):

Assemblymethodbetweenmultipleequipment:

Warning: no more than 7 equipment can be spliced vertically

4. Description

4.1ControlPanel

Display:

To show the various menus and the selected function

Button:

To enter into move backward or leave the menu

To go backward to move up in the menu

DOWN

To go to move down in the menu

ENTER

To perform the desired functions

DMX input:

For DMX512 operation, use 3-pin XLR plug cable to link the units together. (5-pin IP XLR is

optional)

DMX output:

For DMX512 operation, use 3-pin XLR plug cable to link the next unit. (5-pin IP XLR is optional)

Power in:

Used to connect to supply power

Power out:

Used to connect to the next fixture

How To Set The Unit

5.1 MainFunction

Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the

required function is shown on the monitor. Select the function by the ENTER button. Use the UP/DOWN

button to choose the submenu, press the ENTER button to store and automatically return to the last

menu. Press the MENU button or let the unit idle one minute to exit menu mode.

The main functions are shown below (the grayed boxes are preset settings):

Manual

RDM UID xxxxxx

Error Logs

Fixture Errors

Reset Error Log No

Yes Passsword=050

RDM UID xxxxxx

Error Logs

Fixture Errors

Reset Error Log No

Yes Passsword=050

RDM UID xxxxxx

Error Logs

Fixture Errors

Reset Error Log No

Yes Passsword=050

RDM UID xxxxxx

Error Logs

Fixture Errors

Reset Error Log No

Yes Passsword=050

RDM UID xxxxxx

Error Logs

Fixture Errors

Reset Error Log No

Yes Passsword=050

RDM UID

XXXXXX

Error Logs

Passsword=050

Fixture Errors

Reset Error Log

DMX Settings

To select DMX Settings press the ENTER button to confirm. Use the UP/DOWN button to select DMX

Address, Channel Mode or No DMX Status.

DMX Address —DMX512 address setting

To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the

address from 001 to 504, press the ENTER button to store. Press the MENU button back to the last

menu or let the unit idle one minute to exit menu mode.

Channel Mode — channel mode

To select Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to select 5

channel 8bit channels mode, 8channel, 9 channel

, 10 channel 16 bit channels mode, 1pixel DMX

Channel,2Vpixel DMX Channel , 2Hpixel DMX Channel , 4Vpixel DMX Channel , 4Hpixel DMX Channel ,

8Vpixel DMX Channel , 8Hpixel DMX Channel , 16pixel DMX Channel ,or68channel press the ENTER

button to store. Press the

MENU button back to the last menu or let the unit idle one minute to exit

menu mode.

No DMX Status— fixture state while DMX single stops

To select No DMX Status, press the ENTER button to confirm. Use the UP/DOWN button to select

Black Out ， Hold or Manual, press the ENTER button to store. Press the MENU button back to the

last menu or let the unit idle one minute to exit menu mode.

Fixture Settings

To select Fixture Settings, press the ENTER button to confirm. Use the UP/DOWN button to select Fan

Mode, Dimmer Curve, Dimmer Speed or White Balance.

Fan Mode

To select Fan Mode, press the ENTER button to confirm. Use the UP/DOWN button to select Auto or

Silent, press the ENTER button to store. Press the MENU button back to the last menu or let the unit

idle one minute to exit menu mode.
