ACME ANIMA C Manuel utilisateur

CONTENTS

1. Safety Instructions ......................................................................................... 2

2. Technical Specifications ................................................................................. 3

3. Control Panel ................................................................................................. 5

4. Installation ..................................................................................................... 5

5. How To Set The Unit....................................................................................... 7

5.1 Main Function.......................................................................................... 7

5.2 Home Position Adjustment .................................................................... 12

6. Control By Universal DMX Controller ........................................................... 13

6.1 DMX512 Connection.............................................................................. 13

6.2 Address Setting ...................................................................................... 14

6.3 DMX512 Configuration........................................................................... 15

7. Error Information......................................................................................... 25

8. Troubleshooting........................................................................................... 25

9. Fixture Cleaning ........................................................................................... 26

1. Safety Instructions

WARNING

Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that

they also receive this instruction manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will

not accept liability for any resulting defects or problems.

Unpack and check carefully that there is no transportation damage before using the unit.

This product is for indoor use only. Use only in a dry location.

DO install and operate by qualified operator.

DO NOT allow children to operate the fixture.

Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.

The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces.

Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.

Before operating, ensure that the voltage and frequency of power supply match the power

requirements of the unit.

It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.

DO NOT connect the device to any dimmer pack.

Make sure there are no flammable materials close to the unit while operating to avoid fire

hazard.

Examine the power wires carefully; replace them immediately if there is any damage.

Unit’s surface temperature may reach up to 60℃. DO NOT touch the housing bare-handed

during its operation.

Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut

off the mains power immediately.

DO NOT operate in dirty or dusty environment, do clean fixtures regularly.

Please read the instruction carefully which includes important information about

the installation, usage and maintenance.

DO NOT touch any wire during operation as there might be a hazard of electric shock.

Avoid power wires together twist other cables.

The minimum distance between light output and the illuminated surface must be more than

0.5 meters.

In the event of serious operating problem, stop using the unit immediately.

Never turn on and off the unit time after time.

The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

DO NOT open the unit as there are no user serviceable parts inside.

Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to

damage or malfunction. Please contact the nearest authorized technical assistance center if

needed.

Disconnect the mains power if the fixture is has not been used for a long time.

DO use the original packing materials before transporting it again.

DO NOT look directly at the light while the LED is on.

DO NOT start on the unit without LED enclosure or when housing is damaged.

2. Technical Specifications

Power Voltage:

AC 100~240V, 50/60Hz

Power Consumption:

105W

Light Source:

36x3W RGB LED

Beam Angle:

4°/8°/12°/25°/45°

Dimmer/Shutter:

Smooth dimmer from 0-100%; outstanding variable speed strobe effect

Control:

DMX Channel: 1 0 8/1 5/1 1/3 Channels

Control Mode: DMX512

Firmware Upgrade via DMX link

Construction:

Display: OLED display

Data In/Out: 3-pinXLR (5-pin XLR is optional)

Power In/Out: Power connector in/out

Protection Rating: IP20

Features:

Compact design, light in weight

Multiple units can be split-jointed horizontally with connecting board

LED can be controlled pixel by pixel, delivering versatile effects

Dimensions/ Weight:

500x85x500mm, 9.3kgs

19.7”x3.3”x19.7”in, 20.5lbs

Photometrics Diagram:

3. Control Panel

1. Display: To show the various menus and the selected function

2. Button:

To enter into move backward or leave the menu

To go backward to move up in the menu

DOWN

To go forward to move down in the menu

ENTER

To perform the desired functions

3. DMX IN:

For DMX512 link, use 3-pin XLR cable to link the unit and DMX controller (5-pin XLR is optional)

4. DMX OUT:

For DMX512 link, use 3-pin XLR cable to link the next units (5-pin XLR is optional)

5. POWERCON IN: Connects to supply power

6. POWERCON OUT: Connects to the next fixture

4. Installation

Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating and make

sure that the structure to which you are attaching the unit is secure and is able to support a weight

of 10 times of the fixtures weight. Always use a safety cable that can hold 12 times of the weight of

the fixture when installing.

The equipment must be installed by professionals. It must be installed in a place where is out of the

reach of people and no one can pass by or under it.

1. Installation parallel to the plane

As shown in the figure, fix the clamp (B) on the hanger of the fixture by using screws and nuts (A)

and lock the clamp (B) on the truss.

2. Installation vertical to the plane

As shown in the figure, fix the clamp (C) on the splicing plate (A) of the fixture by using screws and

nuts (B) and lock the clamp (C) on the truss.

3. Multi-machine assembly

As shown in the figure, loosen the screws (A) of the splicing plate of the fixture. Then join the

fixtures together in pairs and move the splicing plate, tighten the screws and fix them on the two

fixtures; Fix the connecting plate (B) on the four corners of the fixtures by using screws and nuts so

that the fixtures are spliced and fastened to each other; Fix the clamp (D) on the splicing plate of

the fixture by using screws and nuts (C) and lock the clamp (D) on the truss.

5. How To Set The Unit

5.1 Main Function

Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until

the required function is shown on the monitor. Select the function by the ENTER button. Use the

UP/DOWN button to choose the submenu, press the ENTER button to store and automatically

return to the last menu. Press the MENU button or let the unit idle 30 seconds to exit menu mode.

The main functions are shown below:

DMX Settings

To select DMX Settings,press the ENTER button to confirm, use the UP/DOWN button to select

DMX Address, Channel Mode, No DMX State or View DMX Value.

DMX Address

To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the

address from 001 to 405/498/502/510, press the ENTER button to store. Press the MENU button back

to the last menu or let the unit idle 30 seconds to exit menu mode.

Channel Mode

To select Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to select

Mode1(108), Mode2(15), Mode3(11) or Mode4(3), press the ENTER button to store. Press the

MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode.

No DMX State

To select No DMX State, press the ENTER button to confirm. Use the UP/DOWN button to select

Hold(fixture continues to obey the last command it received Via DMX if DMX signal stops),

Blackout(fixture blacks out if DMX signal stops), or Manual(the fixture will automatically read the

DMX value in the “Manual Test” menu for operation after selecting this mode), press the ENTER

button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit

menu mode.

View DMX Value

To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to view

the DMX channel value. Press the MENU button back to the last menu or let the unit idle 30

seconds to exit menu mode.

Fixture Settings

To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select

Dimmer Curve, Dimmer Speed or White Balance.

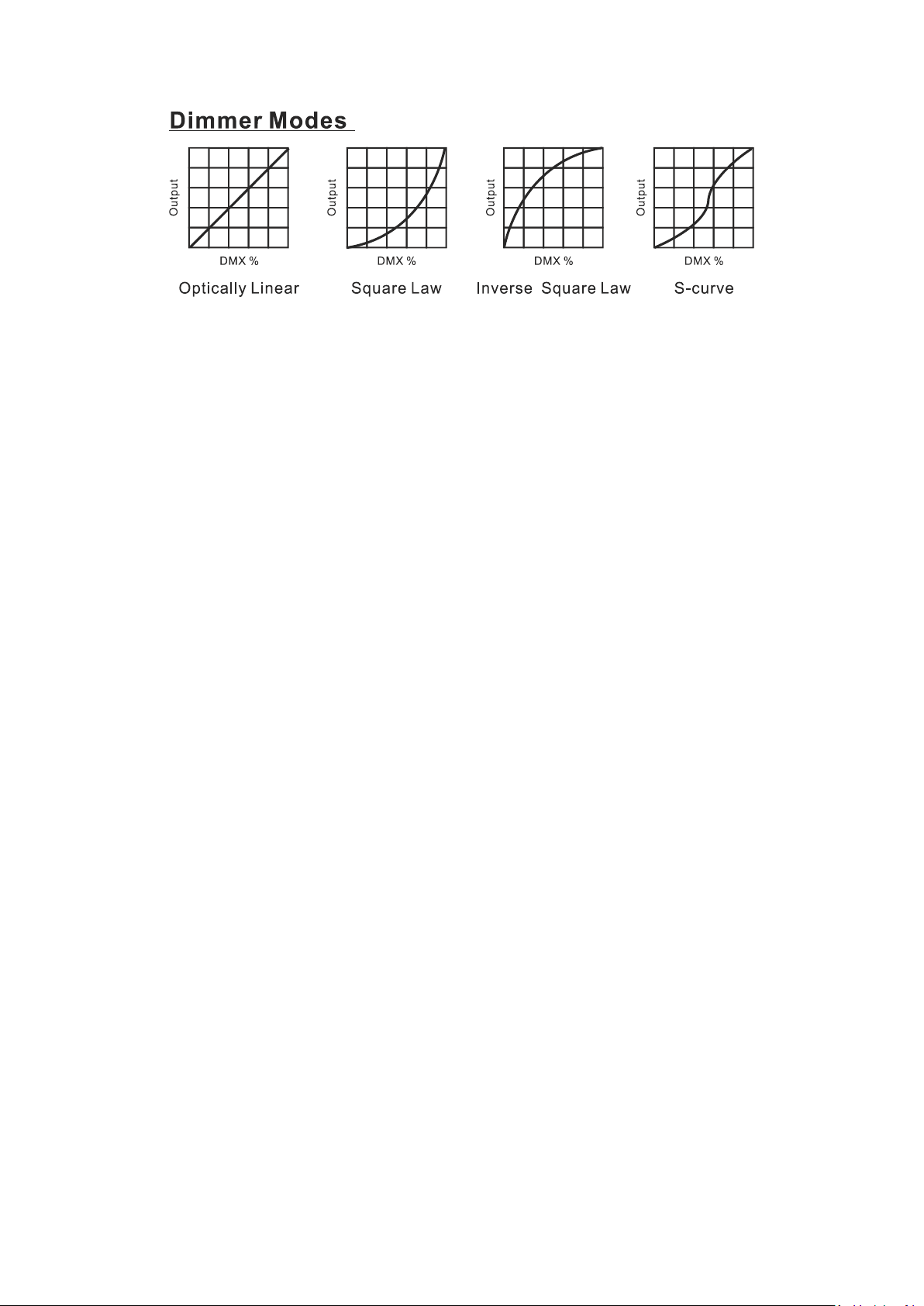

Dimmer Curve

To select Dimmer Curve, press the ENTER button to confirm. Use the DOWN/UP button to select

Linear, Square Law, Inv SQ Law or S Curve, press the ENTER button to store. Press the MENU button

back to the last menu or let the unit idle 30 seconds to exit menu mode.

Optically Linear: The increase in light intensity appears to be linear as DMX value is increased.

Square Law: Light intensity control is finer at low levels and coarser at high levels.

Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels.

S-Curve: Light intensity control is finger at low levels and high levels and coarser at medium levels.

Dimmer Speed

To select Dimmer Speed, press the ENTER button to confirm. Use the UP/DOWN button to select

Fast or Smooth, press the ENTER button to store. Press the MENU button back to the last menu or

let the unit idle 30 seconds to exit menu mode.

White Balance

To select White Balance, press the ENTER button to confirm. Use the UP/DOWN button to select

Red, Green, Blue, Red1, Green1, Blue1…… or Red36, Green36, Blue36, press the ENTER button to

store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu

mode.

Display Settings

To select Display Settings, press the ENTER button to confirm, use the UP/DOWN button to select

Display Invert, Temperature Unit, Display Warning or Fixture Language.

Display Invert

Select Display Invert, press the ENTER button to confirm, present mode will blink on the display, use

the UP/DOWN button to select Off (normal display) or On (invert display), press the ENTER button

to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu

mode.

Temperature Unit

Select Temperature Unit, press the ENTER button to confirm. Use the UP/DOWN button to

select

℃

℉

, press the ENTER button to store. Press the MENU button back to the last menu or

let the unit idle 30 seconds to exit menu mode.
