ACME GEIST BSWF Manuel utilisateur

CONTENTS

1. Safety Instructions ......................................................................................... 2

2. Technical Specifications ................................................................................. 4

3. Control Panel ................................................................................................. 6

4. Color/Gobo .................................................................................................... 7

5. How To Set The Unit....................................................................................... 7

5.1 Main Function.......................................................................................... 7

5.2 Home Position Adjustment .................................................................... 15

6. Control By Universal DMX Controller ........................................................... 20

6.1 DMX512 Connection.............................................................................. 20

6.2 Address Setting ...................................................................................... 21

6.3 DMX512 Configuration........................................................................... 22

7. Error Information......................................................................................... 31

8. Troubleshooting........................................................................................... 36

9. Fixture Cleaning ........................................................................................... 37

1. Safety Instructions

WARNING

Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that

they also receive this instruction manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will

not accept liability for any resulting defects or problems.

Unpack and check carefully to ensure that there is no transportation damage before using the

unit.

This product is for indoor use only. Use only in a dry location.

DO install and operate by qualified operator.

DO NOT allow children to operate the fixture.

Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.

The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces.

Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.

Before operation, ensure that you are connecting this product to the proper voltage in

accordance with the specifications in this manual or on the product’s specification label.

It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.Do not

operate this product at a lower or higher temperature.

DO NOT connect the device to any dimmer pack.

Keep flammable materials away from the fixture while operating to avoid fire hazard.

Make sure the power cord is not crimped or damaged; replace it immediately if damaged.

Unit’s surface temperature may reach up to 65℃. DO NOT touch the housing bare-handed

during its operation.

Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut off

the mains power immediately.

Please read the instruction carefully which includes important information about

the installation, usage and maintenance.

DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.

DO NOT touch any wire during operation as there might be a hazard of electric shock.

Avoid entanglement of the power cord with other wires.

The minimum distance to objects/surface must be more than 3 meters.

Disconnect mains power before fuse replacement or servicing.

Replace fuse only with the same type.

In the event of serious operating problem, stop using the unit immediately.

Never turn on and off the unit time after time.

The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

DO NOT open the housing as there are no user serviceable parts inside.

DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any repairs

yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please

contact the nearest authorized technical assistance center if needed.

Disconnect this product from its power source before servicing.

DO use the original packaging if the device is to be transported.

Avoid direct eye exposure to the light source while the product is on.

DO NOT operate this product if you see damage on the housing, shields, or cables. Have the

damaged parts replaced by an authorized technician at once.

Installation:

The fixture should be fixed on the clamp. Always ensure that the unit is firmly fixed to avoid

vibration and slipping off during operation. Ensure that the trussing or area of installation must be

able to hold 10 times the weight without any deformation. Always install a safety cable that can

hold at least 10 times the weight of the fixture when installing.

DO install and operate by qualified operator. It must be installed in a place where there is out of the

reach of people.

2. Technical Specifications

Power Voltage:

AC 100~240V, 50/60Hz

Power Consumption:

670W

Light Source:

SSL410 450W

Color Temperature:

7000K

Beam Angle:

6.5°~54°

Movement:

Pan: 540°

Tilt: 270°

Pan/Tilt Resolution: 16 bit

Fixation: Tilt lock

Dimmer/Shutter:

Smooth dimming from 0-100%; various strobe speeds

Color Wheel:

1 color wheel with 5 colors plus white

Gobo Wheel:

1 static gobo wheel with 8 gobos plus open

1 rotating gobo wheel with 7 gobos plus open, convenient replacement

Control:

DMX Channel: 34/25/29 channels

Protocols: DMX512, RDM, Art-Net, sACN

Firmware upgrade via DMX link or USB Disk

Construction:

Display: LCD display, backlit touch button

Data In/Out: 3-pin XLR (5-pin XLR is optional), RJ45

Power In/Out: Power Connector in/out

Protection Rating: IP20

Features:

High CRI mode Ra>90

Motorized focus

Linear CMY color mixing+Linear CTO color temperature

A 4-facet prism rotatable in either direction

2 different frost filters to create and improve the wash effect. They can be used independently and

overlayed

Motorized linear iris

4 fast and smooth framing shutters; The position and the angle of each shutter blade can be

controlled individually; Each shutter blade can block out light completely; The framing module can

rotate at ±45 degrees

Dimension/Weight:

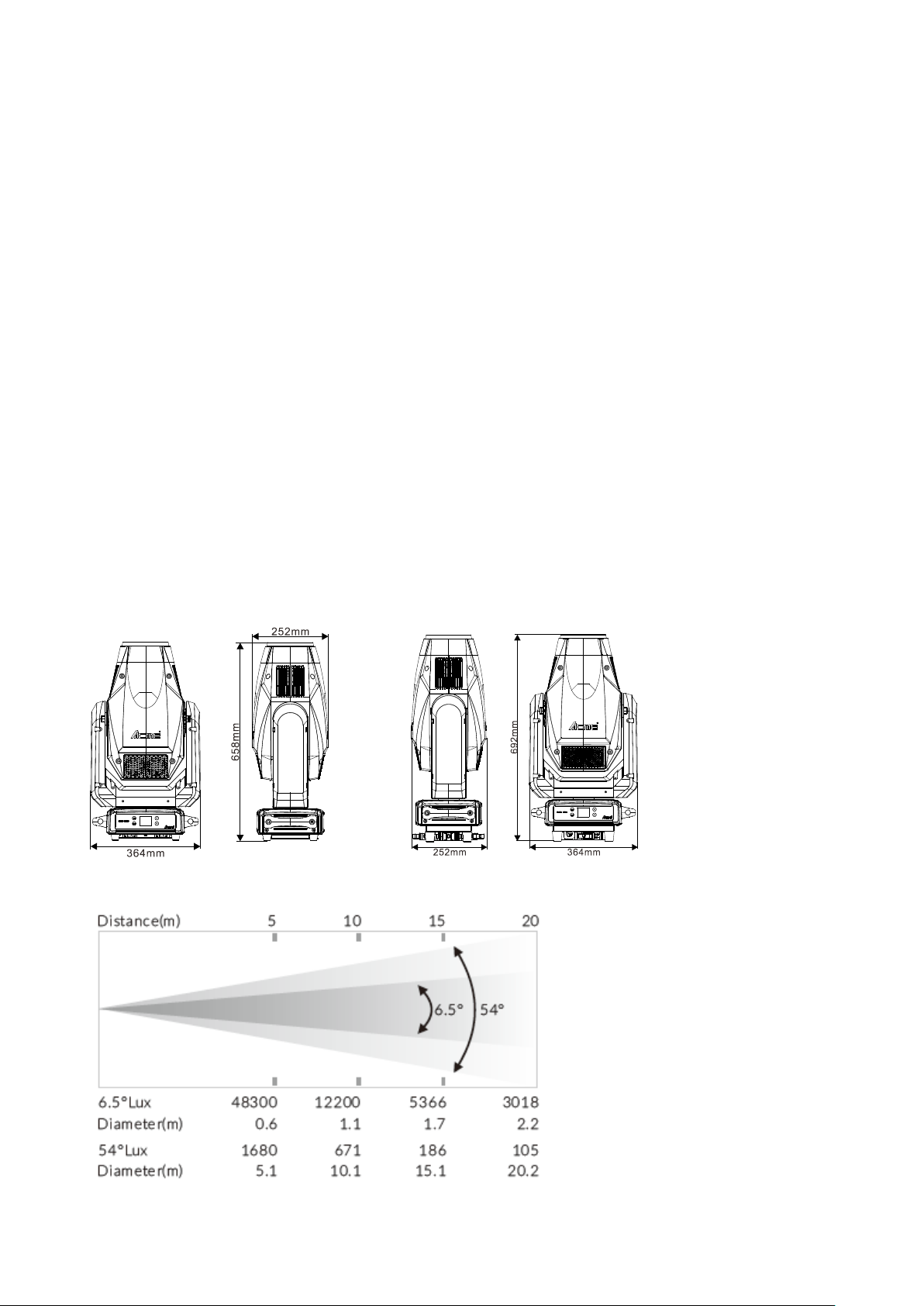

364x252x658mm, 24.5kgs // 364x252x692mm, 26.8kgs (with clamp)

14.3"x10"x26"in, 54lbs // 14.3"x10"x27.2"in, 59.1lbs (with clamp)

Photometric Diagram:

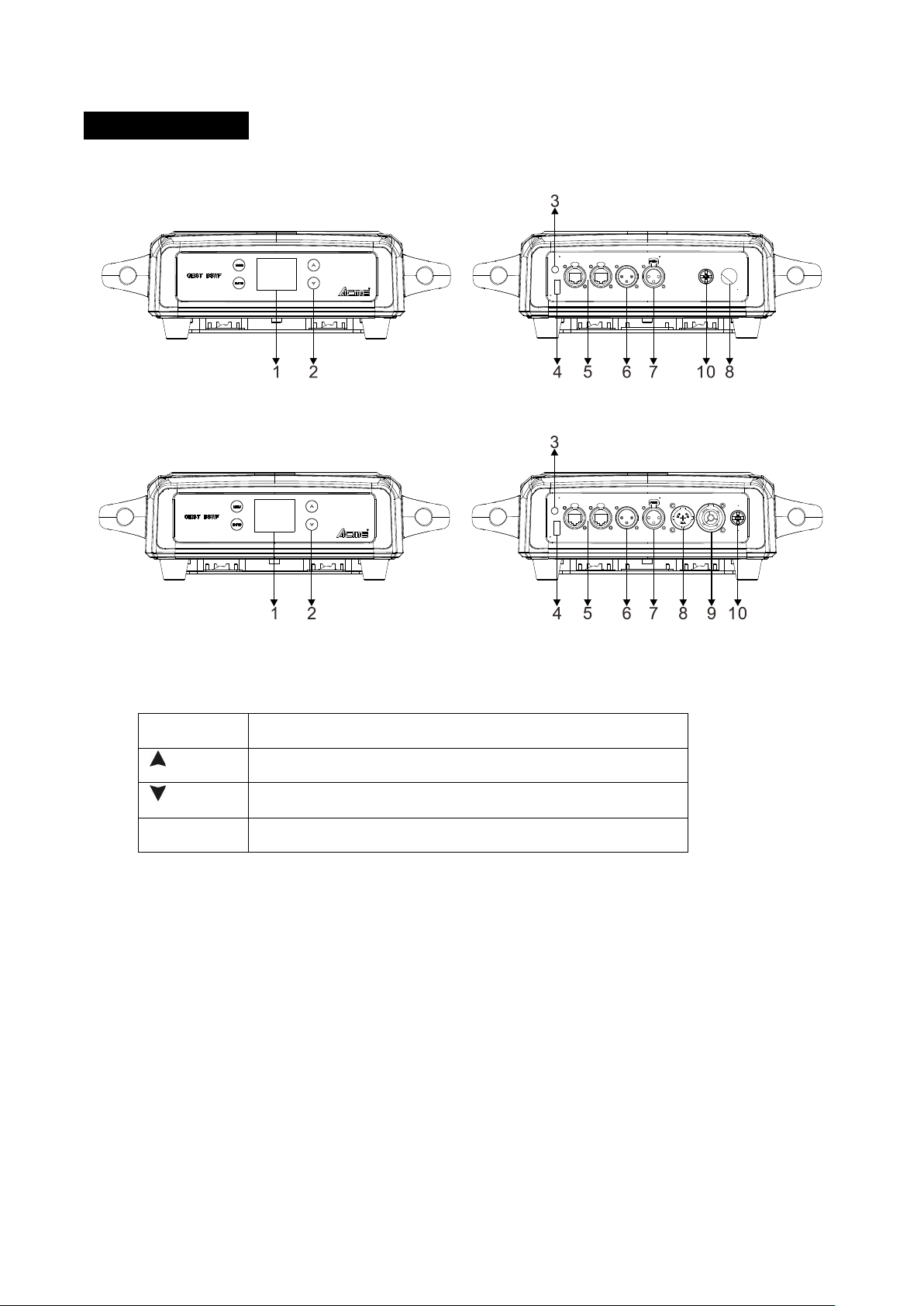

3. Control Panel

Wire Version:

POWERCON Version:

1. Display: To show the various menus and the selected function

2. Button:

To enter into move backward or leave the menu

To go backward to move up in the menu

DOWN

To go forward to move down in the menu

ENTER

To perform the desired functions

3. BATTERY DISPLAY

4. FIRMWARE UPGRADE: Used to upgrade the fixture’s firmware

5. ETHERNET: Transfers fixture’s information to a main controller

6. DMX IN:

For DMX512 link, use 3-pin XLR cable to link the unit and DMX controller (5-pin XLR is optional)

7. DMX OUT:

For DMX512 link, use 3-pin XLR cable to link the next units (5-pin XLR is optional)

8. POWER IN: To connect to supply power

9. POWER OUT(POWERCON Version): To connect to the next fixture

10. FUSE(T 10A): Protects the unit from over-voltage or short circuit

4. Color/Gobo

DANGER!

Install the color wheel/gobo wheels with the device switched off only.

Unplug from mains before changing the color wheel/gobo wheels!

CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be

opened!

5. How To Set The Unit

5.1 Main Function

Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until

the required function is shown on the monitor. Select the function by the ENTER button. Use the

UP/DOWN button to choose the submenu, press the ENTER button to store and automatically

return to the last menu. Press the MENU button or let the unit idle 30 seconds to exit menu mode.

The main functions are shown below:

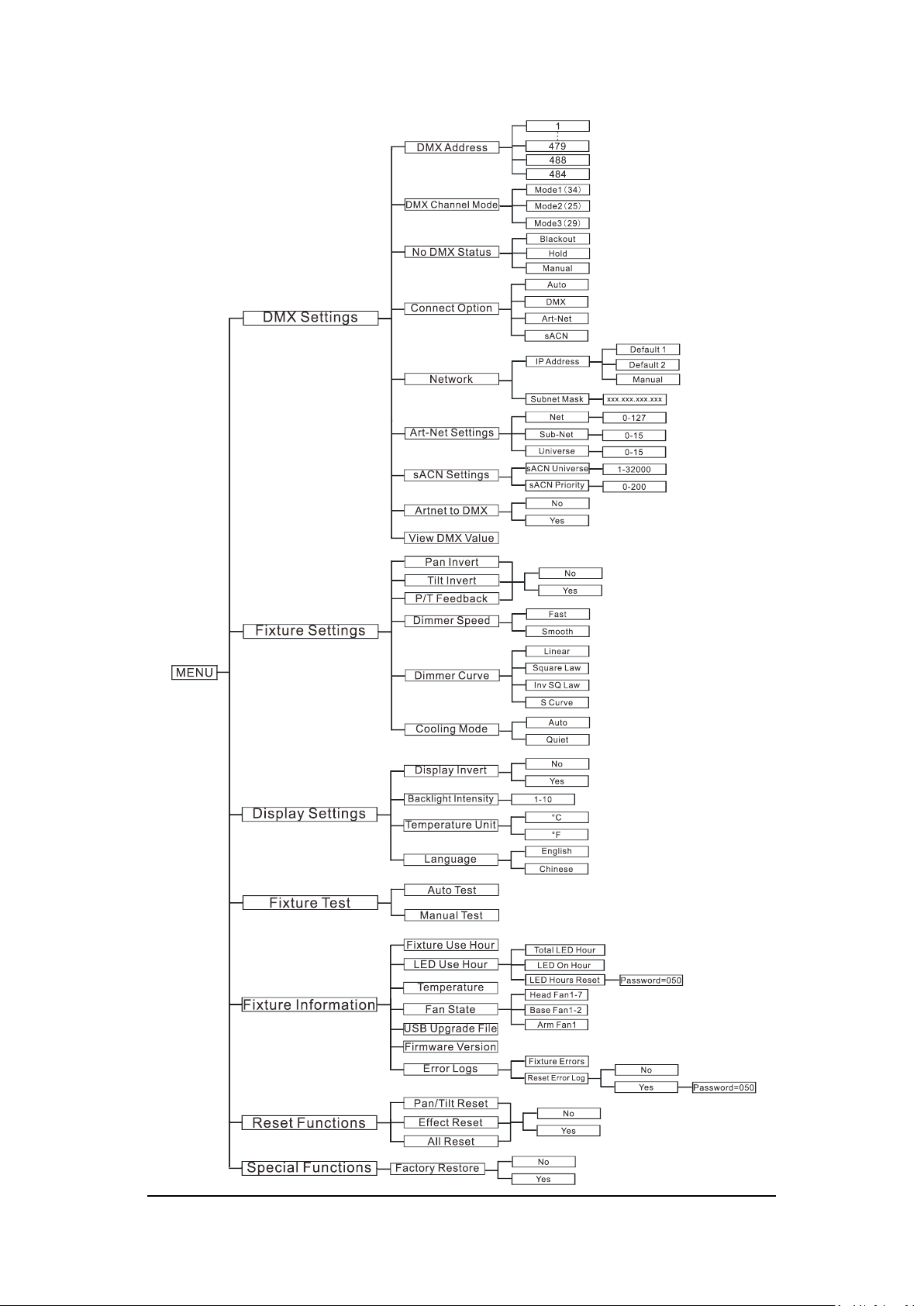

DMX Settings

To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select

DMX Address, DMX Channel Mode, No DMX Status, Connect Option, Network, Art-Net Settings,

sACN Settings, Artnet to DMX or View DMX Value.

DMX Address

To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the

address from 001 to 479/488/484, press the ENTER button to store. Press the MENU button back to

the last menu or let the unit idle 30 seconds to exit menu mode.

DMX Channel Mode

To select DMX Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to

select Mode1(34), Mode2(25) or Mode3(29), press the ENTER button to store. Press the MENU

button back to the last menu or let the unit idle 30 seconds to exit menu mode.

No DMX Status

To select No DMX Status, press the ENTER button to confirm. Use the UP/DOWN button to select

Blackout(fixture blacks out if DMX signal stops), Hold(fixture continues to obey the last command it

received Via DMX if DMX signal stops) or Manual(the fixture will automatically read the DMX value

in the “Manual Test” menu for operation after selecting this mode), press the ENTER button to store.

Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode.

Connect Option

To select Connect Option, press the ENTER button to confirm. Use the UP/DOWN button to select

Auto, DMX, Art-Net or sACN, press the ENTER button to store. Press the MENU button back to the

last menu or let the unit idle 30 seconds to exit menu mode.

Network

To select Network, press the ENTER button to confirm. Use the UP/DOWN button to select IP

Address or Subnet Mask, press the ENTER button to store. Press the MENU button back to the last

menu or let the unit idle 30 seconds to exit menu mode.

Art-Net Settings

To select Art-Net Settings, press the ENTER button to confirm. Use the UP/DOWN button to select

Net, Subnet or Universe, press the ENTER button to store. Press the MENU button back to the last

menu or let the unit idle 30 seconds to exit menu mode.
