ACME BIG BANG Manuel utilisateur

CONTENTS

1. Safety Instructions ......................................................................................... 2

2. Technical Specifications ................................................................................. 3

3. Control Panel ................................................................................................. 5

4. Installation ..................................................................................................... 5

5. Control By Universal DMX Controller ............................................................. 7

5.1 DMX512 Connection ................................................................................ 7

5.2 Address Setting ........................................................................................ 8

5.3 DMX512 Configuration............................................................................. 8

6. Troubleshooting........................................................................................... 21

7. Fixture Cleaning ........................................................................................... 22

1. Safety Instructions

WARNING

Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that

they also receive this instruction manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will

not accept liability for any resulting defects or problems.

Unpack and check carefully to ensure that there is no transportation damage before using the

unit.

This product is for indoor use only. Use only in a dry location.

DO install and operate by qualified operator.

DO NOT allow children to operate the fixture.

Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.

The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces.

Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.

Before operation, ensure that you are connecting this product to the proper voltage in

accordance with the specifications in this manual or on the product’s specification label.

It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.Do not

operate this product at a lower or higher temperature.

DO NOT connect the device to any dimmer pack.

Keep flammable materials away from the fixture while operating to avoid fire hazard.

Make sure the power cord is not crimped or damaged; replace it immediately if damaged.

Unit’s surface temperature may reach up to 75℃. DO NOT touch the housing bare-handed

during its operation.

Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut off

the mains power immediately.

Please read the instruction carefully which includes important information about

the installation, usage and maintenance.

DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.

DO NOT touch any wire during operation as there might be a hazard of electric shock.

Avoid entanglement of the power cord with other wires.

The minimum distance to objects/surface must be more than 0.5 meters.

In the event of serious operating problem, stop using the unit immediately.

Never turn on and off the unit time after time.

The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

DO NOT open the housing as there are no user serviceable parts inside.

DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any repairs

yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please

contact the nearest authorized technical assistance center if needed.

Disconnect this product from its power source before servicing.

DO use the original packaging if the device is to be transported.

Avoid direct eye exposure to the light source while the product is on.

DO NOT operate this product if you see damage on the housing, shields, or cables. Have the

damaged parts replaced by an authorized technician at once.

2. Technical Specifications

Power Voltage:

100-240V~ 50/60Hz

Power Consumption:

120W

Light Source:

441x0.3W RGB LED

Beam Angle:

110°

Field Angle:

150°

Movement:

Pan/Tilt Movement: 76°

Pan/Tilt Resolution: 16 bit

Dimmer/Shutter:

Smooth dimming from 0~100%; outstanding strobe effect with variable speed

Control:

DMX Channel: 156/16 channels

Control Mode: DMX512, RDM

Firmware Upgrade via DMX link

Construction:

Data In/Out: 5-pin XLR

Power In/Out: Power Connector in

Protection Rating: IP20

Features:

49 sections can be controlled individually

Quick splicing in horizontal and vertical direction, side hanging directly or hanging with clamp

Compact design, light in weight

Outstanding color mixing effect

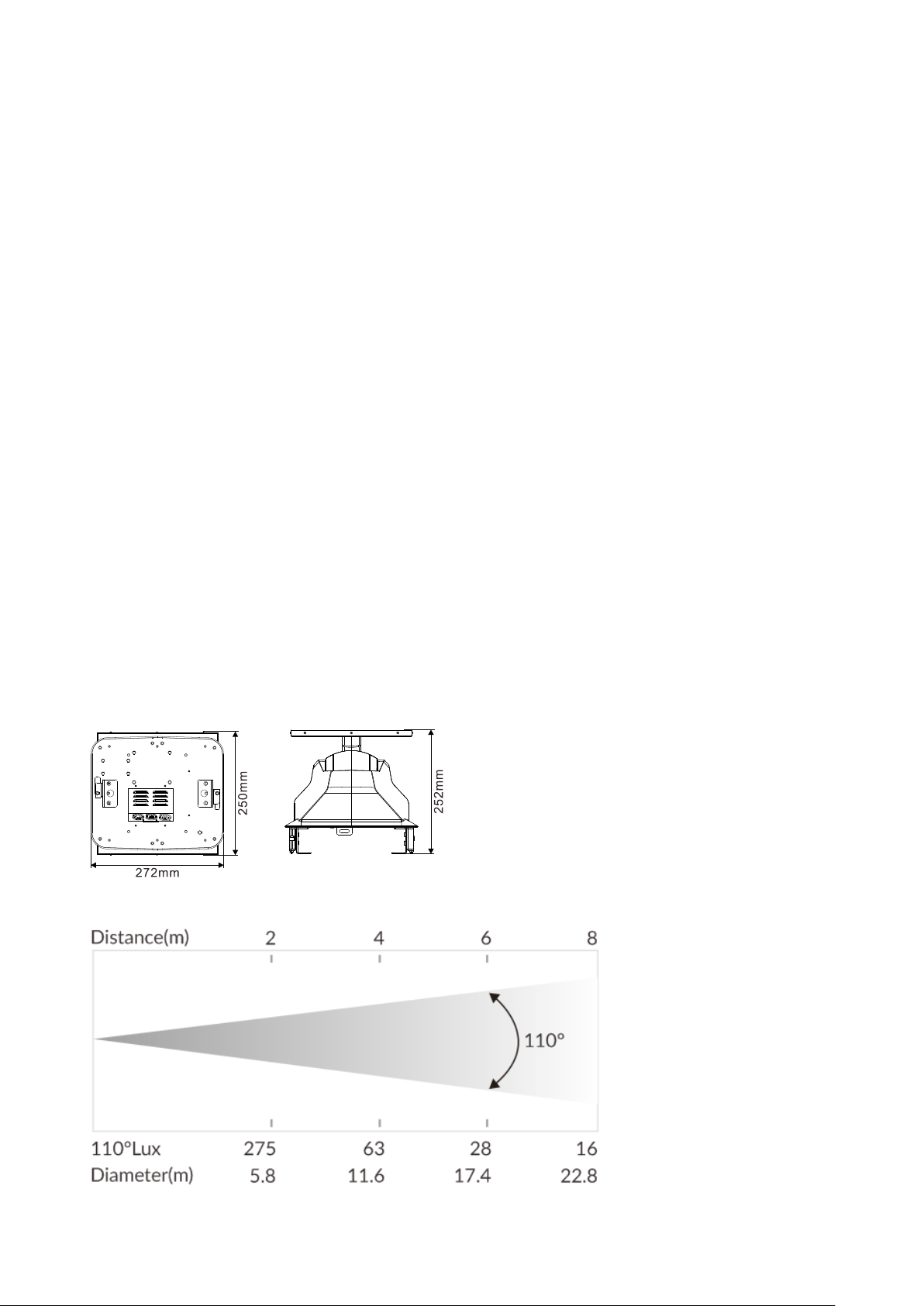

Dimensions/ Weight:

272x250x252mm, 5kgs

10.7”x9.8”x9.9”in, 11lbs

Photometric Diagram:

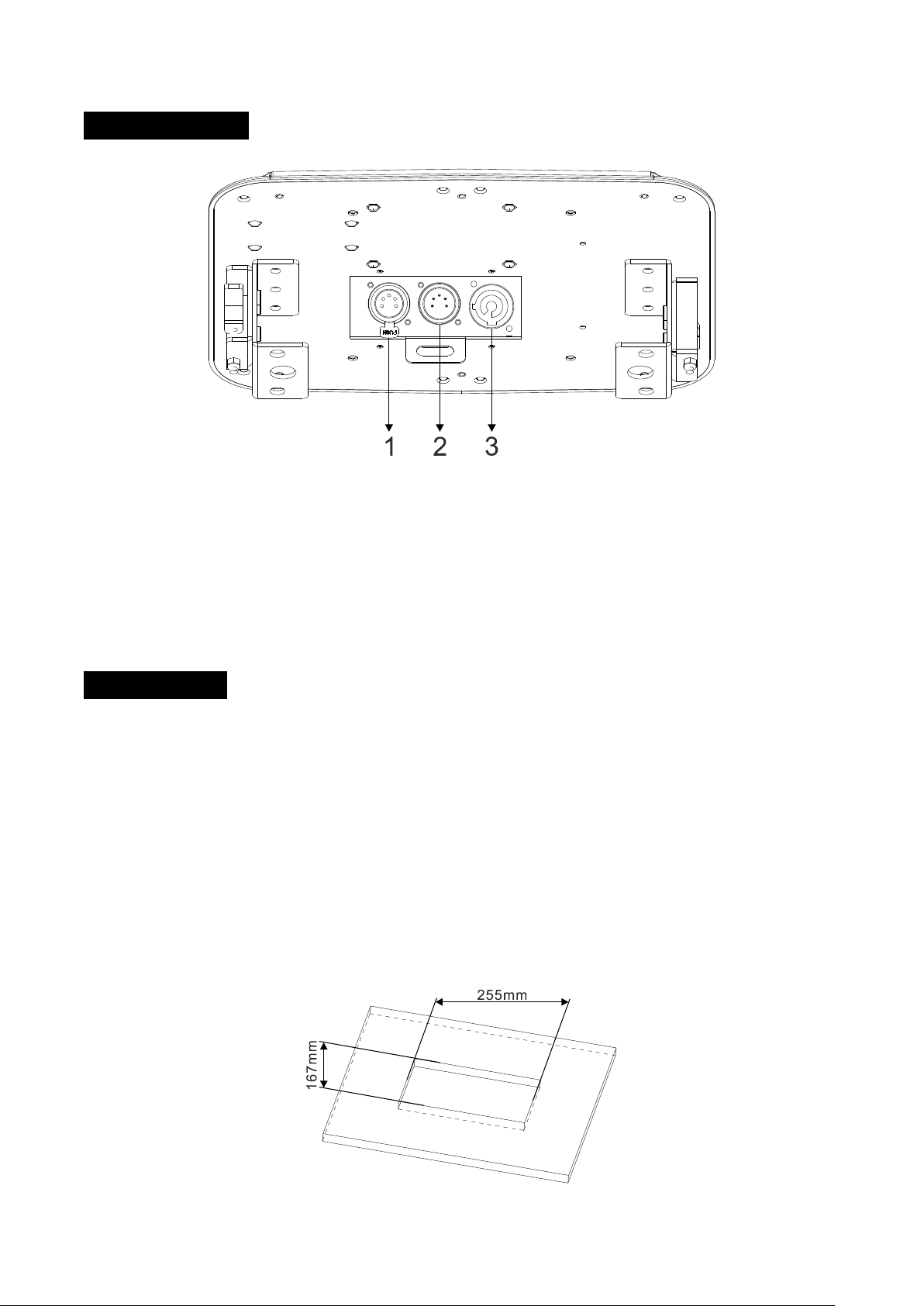

3. Control Panel

1. DMX OUT:

For DMX512 link, use 5-pin XLR cable to link the next units

2. DMX IN:

For DMX512 link, use 5-pin XLR cable to link the unit and controller

3. POWER IN: Connects to supply power

4. Installation

Always ensure that the unit is firmly fixed to avoid vibration and slipping off during operation.

Ensure that the trussing or area of installation must be able to hold 10 times the weight without any

deformation. Always install a safety cable that can hold at least 12 times the weight of the fixture

when installing.

DO install and operate by qualified operator. It must be installed in a place where there is out of the

reach of people.

1. Drill a rectangular hole with a length of 255mm and a width of 167mm in the ceiling. The ceiling

thickness range is 6mm≤L≤29mm.

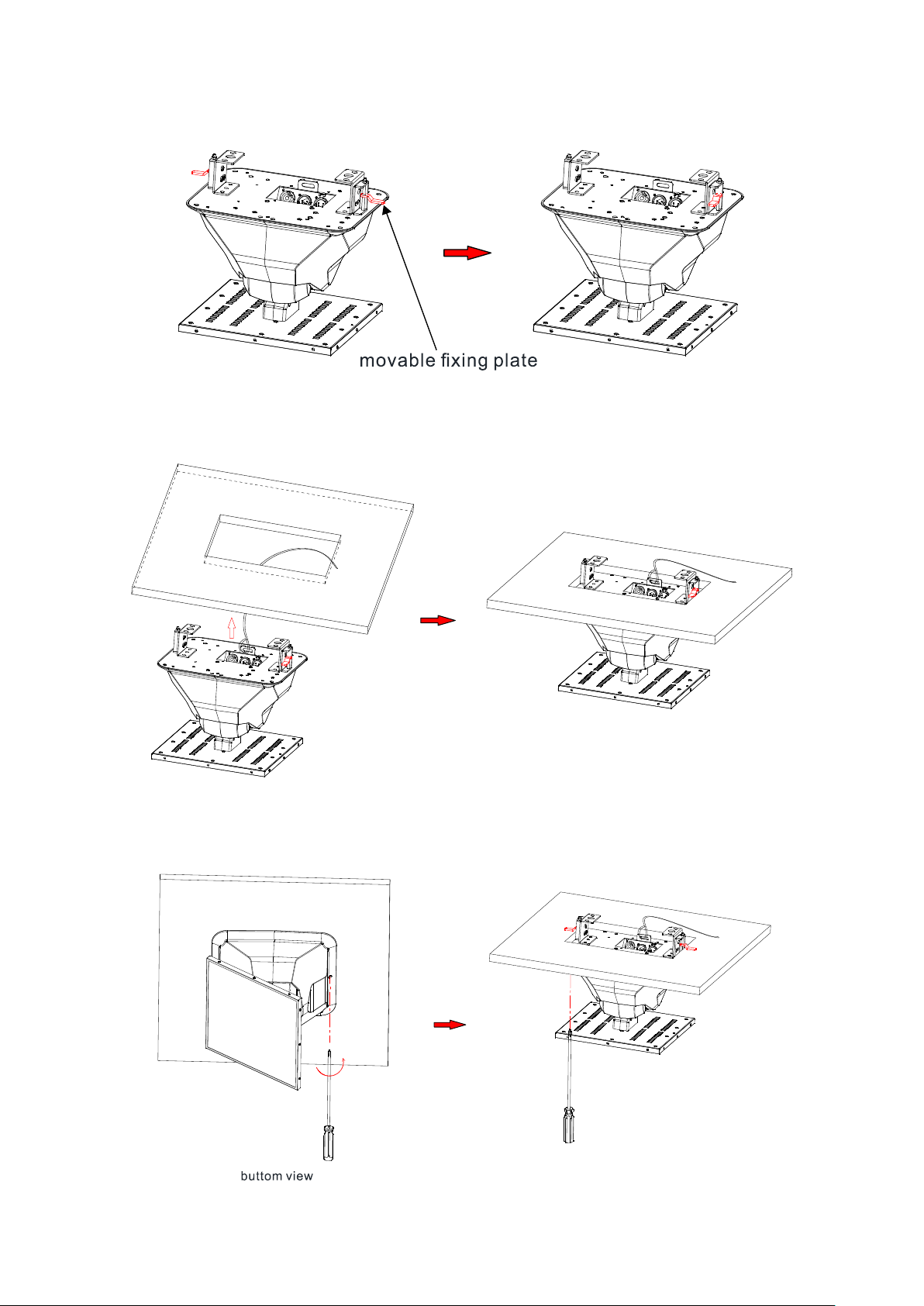

2. Adjust the two movable fixing plates of the luminaire inward and stick to the luminaire shell.

3. Install the safety cable and push the luminaire from the bottom to the ceiling to be flush with the

ceiling surfacing.

4. Screw the two screws to the right to open the movable fixing plates outwards and press the back

of the ceiling.

5. Installation completed.

5. Control By Universal DMX Controller

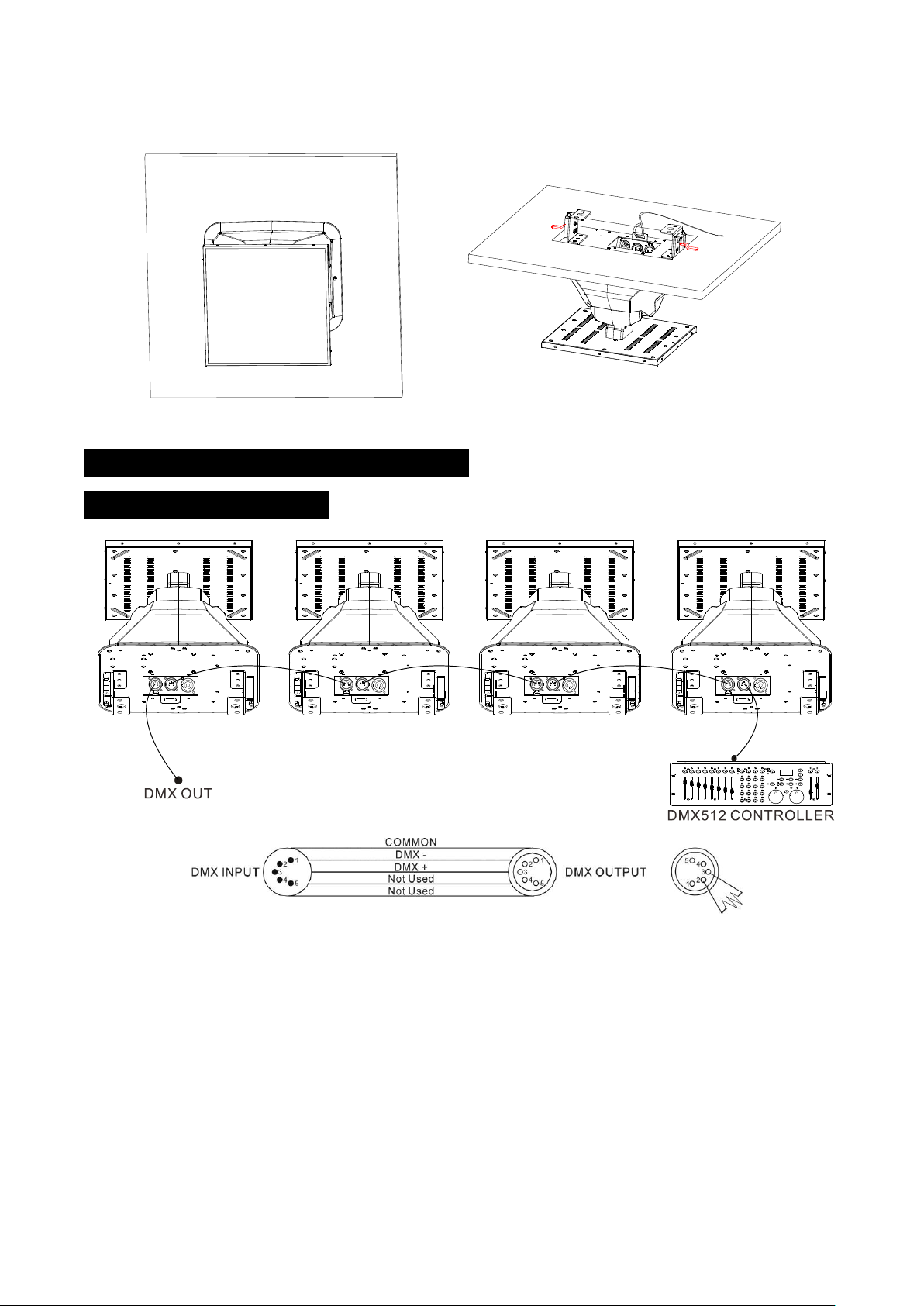

5.1 DMX512 Connection

1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W

resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output

of the last unit.

2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to

the input of the next unit. The cable can only be used in series and cannot be connected in parallel.

DMX 512 is a very high-speed signal. Inadequate or damaged cables, soldered joints or corroded

connectors can easily distort the signal and shut down the system.

3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one

of the units’ power is disconnected.

4. Each lighting unit needs to have a DMX address to receive the data by the controller. The

address number is between 1-512.

5. The end of the DMX 512 system should be terminated to reduce signal errors.

6. 3 pin XLR connectors are more popular than 5 pins XLR.

3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.

5.2 Address Setting

If you use a universal DMX controller to control the units, you have to set DMX address from 1 to

512 so that the units can receive DMX signal.

Please refer to the following diagram to address your DMX512 channel for the first 4 units.

Channel mode

Unit 1

Address

Unit 2

Address

Unit 3

Address

Unit 4

Address

156 channels

157

313

469

16 channels

5.3 DMX512 Configuration

Please control the fixture by referring to the configurations below

Attentions:

1. The unit will maintain the last condition until reset if you cut-off the DMX signal.

2. For the channel Function, keep the value for about 3 seconds, then the corresponding function

will take into effect.

156 Channels (Mode 1):

CHANNEL

VALUE

FUNCTION

000-255

PAN

0°76°

000-255

PAN FINE

000-255

TILT

0°76°

000-255

TILT FINE

000-255

PAN/TILT SPEED

Fast to Slow

000-007

008-015

016-131

132-139

140-181

182-189

190-231

232-239

240-247

248-255

STROBE

Open

Strobe from Slow to Fast

Open

Fast Close Slow Open

Open

Fast Open Slow Close

Open

Random Strobe

Open

000-255

DIMMER

0%100%

000-255

DIMMER FINE

000-009

010-019

020-029

030-039

040-049

050-059

060-069

070-079

080-089

090-099

100-109

110-119

120-129

130-139

140-149

150-159

160-169

170-179

SPECIAL FUNCTION

Null

Dimmer Curve: Linear

Dimmer Curve: Square Law

Dimmer Curve: Inverse Square Law

Dimmer Curve: S Curve

Null

Pan/Tilt Reset

Null
