ACME LED-ST50 Manuel utilisateur

LED-ST50

User Manual

Please read the instruction carefully before use

CONTENTS

1. Safety Instructions.................................................................................................. 2

2. Technical Specifications .......................................................................................... 4

3. How To Set The Unit ............................................................................................... 5

3.1 Control panel.................................................................................................... 5

3.2 Main Function .................................................................................................. 6

4. How To Control The Unit ...................................................................................... 11

4.1 Master/Slave Built In Preprogrammed Function............................................. 11

4.2 Easy Controller ............................................................................................... 11

4.3 DMX Controller............................................................................................... 12

5. DMX 512 Configuration ........................................................................................ 13

6. DMX512 Connection ............................................................................................ 15

7. Troubleshooting ................................................................................................... 16

8．Fixture Cleaning ................................................................................................. 17

1. Safety Instructions

WARNING

Please keep this User Guide for future consultation. If you sell the unit to another user, be sure

that they also receive this instruction booklet.

Unpack and check carefully there is no transportation damage before using the unit.

Before operating, ensure that the voltage and frequency of power supply match the power

requirements of the unit.

It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

The unit is for indoor use only. Use only in a dry location.

The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces. Be sure that no ventilation slots are blocked.

Disconnect main power before replacement or servicing.

Make sure there are no flammable materials close to the unit while operating as it is fire hazard.

Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always

by taking its base.

Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher

than this.

Unit surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand during its

operation. Turn off the power and allow about 15 minutes for the unit to cool down before

replacing or serving.

In the event of serious operating problem, stop using the unit immediately. Never try to repair

the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.

Please contact the nearest authorized technical assistance center. Always use the same type

spare parts.

DO NOT touch any wire during operation as high voltage might be causing electric shock.

Please read carefully the instruction, which includes important information

about the installation, usage and maintenance.

Warning:

To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or

moisture.

DO NOT open the unit within five minutes after switching off.

The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

Caution:

There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any

repairs yourself. In the unlikely event your unit may require service, please contact your nearest

dealer.

Installation:

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is

firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to

which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s

weight. Also always use a safety cable that can hold 12 times of the weight of the unit when

installing the fixture.

The equipment must be fixed by professionals. And it must be fixed at a place where is out of the

touch of people and has no one pass by or under it, the range of mounting height is 0~30 M.

For 230V 50Hz power supply, ma

ximum fixtures that can be connected on one power cable

is 10;

For 120V 60Hz power supply, maximum fixtures that can be connected on one power cable

is 6;

2. Technical Specifications

4 DMX Channel Modes: 1/2/10/12 Channels

3 operation modes: DMX512, Master/Slave and Sound Active.

Variable strobe speed and intensity can be adjustable by knobs.

Great built-in lighting shows under Master/Slave mode triggered by music.

Optional CA-8 for instant lighting shows.

Smooth 0~100% dimming and variable strobe speeds.

Ideal for pubs, clubs, bars, Mobile DJs and more.

◇

Power Voltage: AC 100V~240V, 50/60Hz

◇

Power Consumption: 60W

◇

LED Sources: 10pcs×5W White LEDs

◇

Fuse: T 2A

◇

Weight: 2.8Kgs

◇

Dimension: 602 × 114 × 141mm

3. How To Set The Unit

3.1 Control panel

1. FUSE

（

T 2A

）

:Protect the unit from the damage of the over current.

2. POWER IN: Connect to power supply.

3. POWER OUT:Connect to supply power for the next unit.

4. DISPLAY: Show the various menus and the selected functions.

BUTTON:

5. MENU To select the programming functions

6. DOWN To go backward in the selected functions

7. UP To go forward in the selected functions

8. ENTER To confirm the selected functions

LED:

9. DMX On DMX input present

10. MASTER On Master Mode

11. SLAVE On Slave Mode

12. SOUND Flashing Sound activation

13. SPEED: Manually adjust strobe value.

14. DIMMER: Manually adjust dimmer value.

15. MICROPHONE: Receive music for the sound active.

16. ONLY FOR REMOTE CONTROL: Connecting with CA-8 to control the unit for Stand by,

Function and Mode function.

17. DMX INPUT: For DMX512 link, use 3-pin XLR cable to link the unit together.

18. DMX OUTPUT: For DMX512 link, use 3-pin XLR plug cable to link the next unit.

3.2 Main Function

To select any of the given functions, press the MENU button up to when the required one is

showing on the display. Select the function by ENTER button and the display will blink. Use DOWN

and UP button to change the mode. Once the required mode has been selected, press the ENTER

button to confirm, to go back to the main function without any change press the MENU button

again. Hold and press the MENU button about one second or wait for 7 seconds to exit the current

mode.

The main functions are showing below:

DMX 512 ADDRESS

To select the , press the ENTER button to show the DMX ADDRESS on the display. Use the

DOWN/UP button to adjust the address from 1to 512. Once the address has been selected, press

the ENTER button to setup, to go back to the functions without any changes press the MENU

button again. Hold and press the MENU button for one second or wait for one minute to exit the

menu mode.

CHANNEL MODE

To select the , press the ENTER button to show the CHANNEL MODE on the display. Use the

DOWN/UP button to select the 1, 2, 10, 12 channel modes. Once the mode has been selected,

press the ENTER button to setup, to go back to the functions without any changes press the MENU

button again. Hold and press the MENU button for one second or wait for one minute to exit the

menu mode.

SLAVE MODE

To select the , press the ENTER button to show the SLAVE MODE on the display. Use the

DOWN/UP button to select the (SLAVE 1), (SLAVE 2)modes. Once the mode has

been selected, press the ENTER button to setup, to go back to the functions without any changes

press the MENU button again. Hold and press the MENU button for one second or wait for one

minute to exit the menu mode.

SHOW MODE

To select the , press the ENTER button to show the SHOW MODE on the display. Use the

DOWN/UP button to select the (Random show), (Show 1) or … or (Show

12)mode and (Manual show).Once the mode has been selected, press the ENTER button

to setup, to go back to the functions without any changes press the MENU button again. Hold and

press the MENU button for one second or wait for one minute to exit the menu mode.

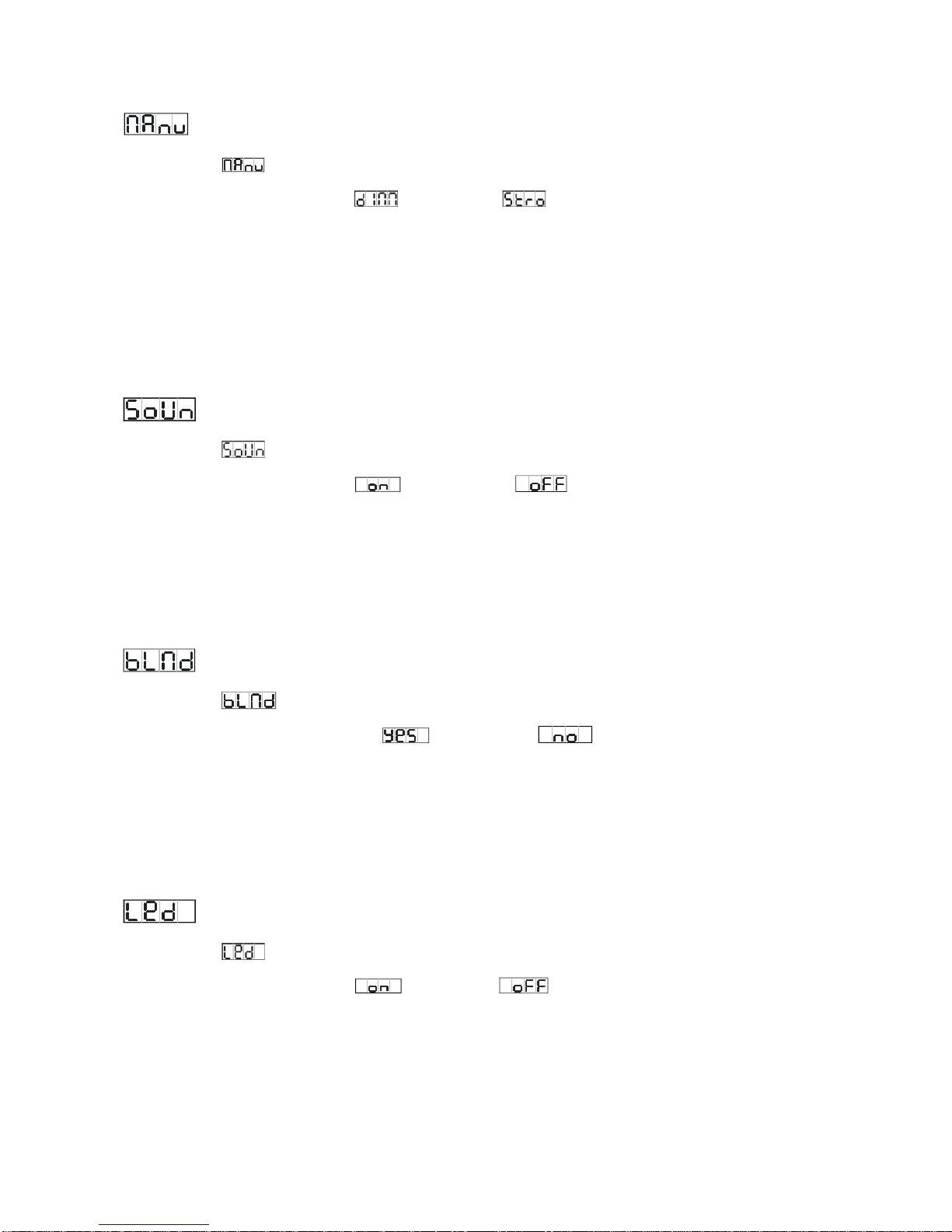

MANUAL MODE

To select the , press the ENTER button to show the MANUAL MODE on the display. Use the

DOWN/UP button to select the (Dimmer) or (Strobe). Once the mode has been

selected, press the ENTER button, and use the DOWN and UP button to adjust the value (0-255).

Once selected, press the ENTER button to setup, to go back to the functions without any changes

press the MENU button again. Hold and press the MENU button for one second or wait for one

minute to exit the menu mode.

SOUND MODE

To select the , press the ENTER button to show the SOUND MODE on the display. Use the

DOWN/UP button to select the (sound on) or (sound off) mode. Once the mode

has been selected, press the ENTER button to setup, to go back to the functions without any

changes press the MENU button again. Hold and press the MENU button for one second or wait

for one minute to exit the menu mode.

BLACKOUT MODE

To select the , press the ENTER button to show the BALCKOUT MODE on the display. Use

the DOWN/UP button to select the (blackout) or (normal) mode. Once the

mode has been selected, press the ENTER button to setup, to go back to the functions without any

changes press the MENU button again. Hold and press the MENU button for one second or wait

for one minute to exit the menu mode.

LED DISPLAY

To select the , press the ENTER button to show the LED DISPLAY on the display. Use the

DOWN/UP button to select the (LED on) or (LED off) mode. Once the mode has

been selected, press the ENTER button to setup, to go back to the functions without any changes

press the MENU button again. Hold and press the MENU button for one second or wait for one

minute to exit the menu mode.
