ACME LED-ST2000 Manuel utilisateur
MEGA STROBE
LED-ST2000
User Manual
Please read the user manual before use
1B
2B
Table of Contents
1，Safety Information…………………………………………………. 3
2，Rear Panel…………………………………………………………. 5
3，Preparation for Use ………………………………………………...5
4，Main Function …………………………………………………….. 6
5，Remote Control…………………………………………………….10
6，Technical Specification…………………………………………….13
3B
1. Safety Information
Warning: This product is for professional use only! It is not for
household use.
The LED-ST2000 presents risks of lethal or severe injury due to fire and
heat, electric shock, ultraviolet radiation, and falls. Flashing light is also
known to trigger epileptic seizures in persons who are photosensitive.
Read this manual before powering or installing the fixture, follow the
safety precautions listed below and observe all warnings in this manual
and printed on the fixture.
Noted: high voltage in the LED board!
Super power strobes, so please avoid extended periods of
continuous flashing
To guard against electric shock
Do not remove the rear cover: there are no user-serviceable parts inside.
Always ground (earth) the fixture electrically.
Use only a source of AC power that complies with local building and electrical
codes and has both overload and ground-fault protection.
Do not expose the fixture to rain or moisture.
To guard against UV radiation, burns, and fire
Never operate the fixture with the front glass open, missing or damaged.
Do not stare directly into the light. Never look at an exposed LED while it is lit.
Never attempt to bypass the fuse. Always replace defective fuses with ones of the
specified type and rating.
Verify that the power feed cable is rated for the current draw of all connected
fixtures.
Keep all combustible materials (for example fabric, wood, paper) at least 0.5 meters
(20 inches) away from the fixture. Keep flammable materials well away from the
fixture.
Minimum distance to illuminated surface is 10 meters.
Provide a minimum clearance of 0.1 meters (4 inches) around air vents.
Never place filters or other materials over the front glass cover.
The exterior of the fixture can reach temperatures up to 120° C (248° F). Allow the
4B
fixture to cool for at least 15 minutes before handling.
Do not modify the fixture or install other than genuine parts.
Do not operate the fixture if the ambient air temperature (Ta) exceeds 40° C (104°
F).
To guard against falls
When suspending the fixture above ground level, verify that the structure can hold
at least 10 times the weight of all installed devices.
Verify that all external covers and rigging hardware are securely fastened and use
an approved means of secondary attachment such as a safety cable.
Block access below the work area whenever installing or removing the fixture.
To guard against epileptic seizure
Do not operate the fixture near stairways.
Provide advance notice that strobe lighting is in use.
Avoid extended periods of continuous flashing, particularly at frequencies of 10 to
20 flashes per second.
5B

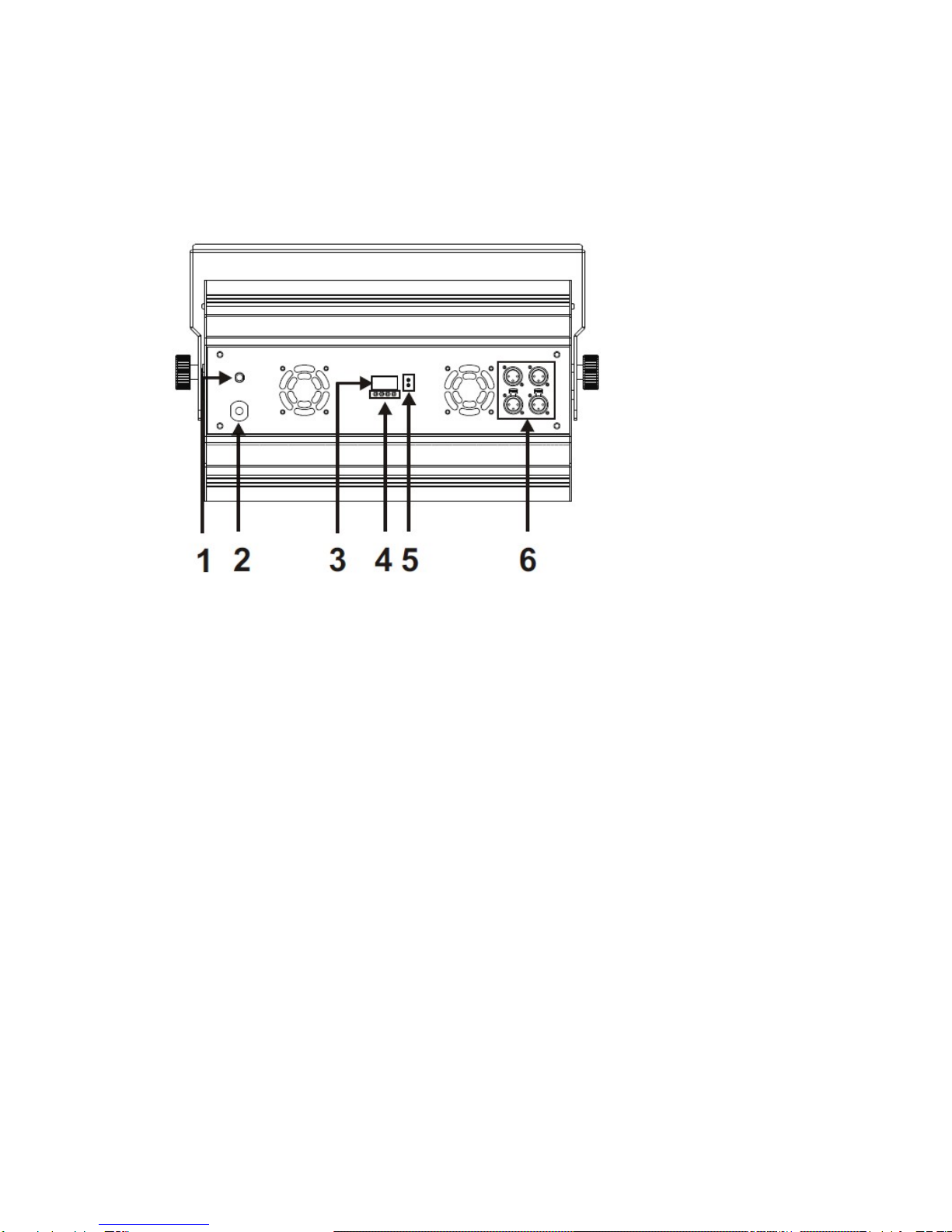

2. Rear Panel
1, Fuse Holder
2, Main Power
3. LED display
4, Menu /UP/DOWN/ Enter button
5, DMX signal/ Flash indicator
6, DMX input/output
3. Preparation for Use
Table1: Cord cap wirings
INSTALLATION
The LED-ST2000 may be installed in any orientation. The mounting bracket provides
five 12 mm holes for direct fastening or attachment of rigging clamps.
To install the mounting bracket
1. Place the fixture face down on a table.
2. Place an aluminum washer on each mounting bracket stud.
3. Make clear the direction of left and right side of bracket and lock the screws. After
6B
that, tighten one hand knob to lock the mounting bracket in one end of bracket.
4. MAIN FUNCTION
Press MENU button enter the function, then use UP/DOWN or MENU button
to select the function you want, final press ENTER button to confirm the
function you select. Wait for 30 seconds, it will return to main interface. If
you want back to main menu, please hold MENU button for 1 second. The
main menu as follow:
4.1 DMX 512 address setting
Select ADDR option and the display will blink, press ENTER button to
confirm your selection. You can check the current DMX address from LED
display. The DMX address can be changed by press UP/DOWN button and
then press ENTER button to confirm your selection. Wait for 30 seconds, it
will return to main interface. If you want back to main menu, please hold
MENU button for 1 second.
4.2 Channel mode setting
Select CHMD option, press ENTER button to confirm your selection. Change
the channel way (1/2/3/4) by press UP/DOWN button. Press ENTER button
to confirm your selection. Wait for 30 seconds, it will return to main interface.
7B
If you want back to main menu, please press MENU button.
4.3 LED display setting
Select the LED option, press ENTER button to confirm your selection. You
can see the current ON/OFF status of LED display now. You can change its
status by press UP/DOWN button. Then press ENTER button to confirm your
selection. If you choose OFF, than the LED display will close without any
operation for I min. Wait for 30 seconds, it will return to main interface. If you
want back to main menu, please hold MENU button for 1 second.
4.4 LED display direction setting
Select DISP option, press ENTER button to confirm your selection. Select
the DISP / DSIP by press UP/DOWN button. Press ENTER button to confirm
your selection. Wait for 30 seconds, it will return to main interface. If you
want back to main menu, please hold MENU button for 1 second.
4.5 Test setting
Select TEST option, press ENTER button to confirm your selection. The
flash indicator will light up and the unit will test automatically. Wait for
several seconds self-test, it will return to main interface. If you want back to
main menu, please hold MENU button for 1 second.
4.6 Temperature
Select the LEMP, press ENTER button and the display will show the
temperature of unit. Wait for 30 seconds, it will return to main interface. If
you want back to main menu, please hold MENU button for 1 second.
8B
4.7 Check the version number
Select the VER, press ENTER button to confirm. You can see the current
version number now (b 10/v 10) and check them by UP/DOWN. Wait for 30
seconds, it will return to main interface. If you want back to main menu,
please hold MENU button for 1 second.

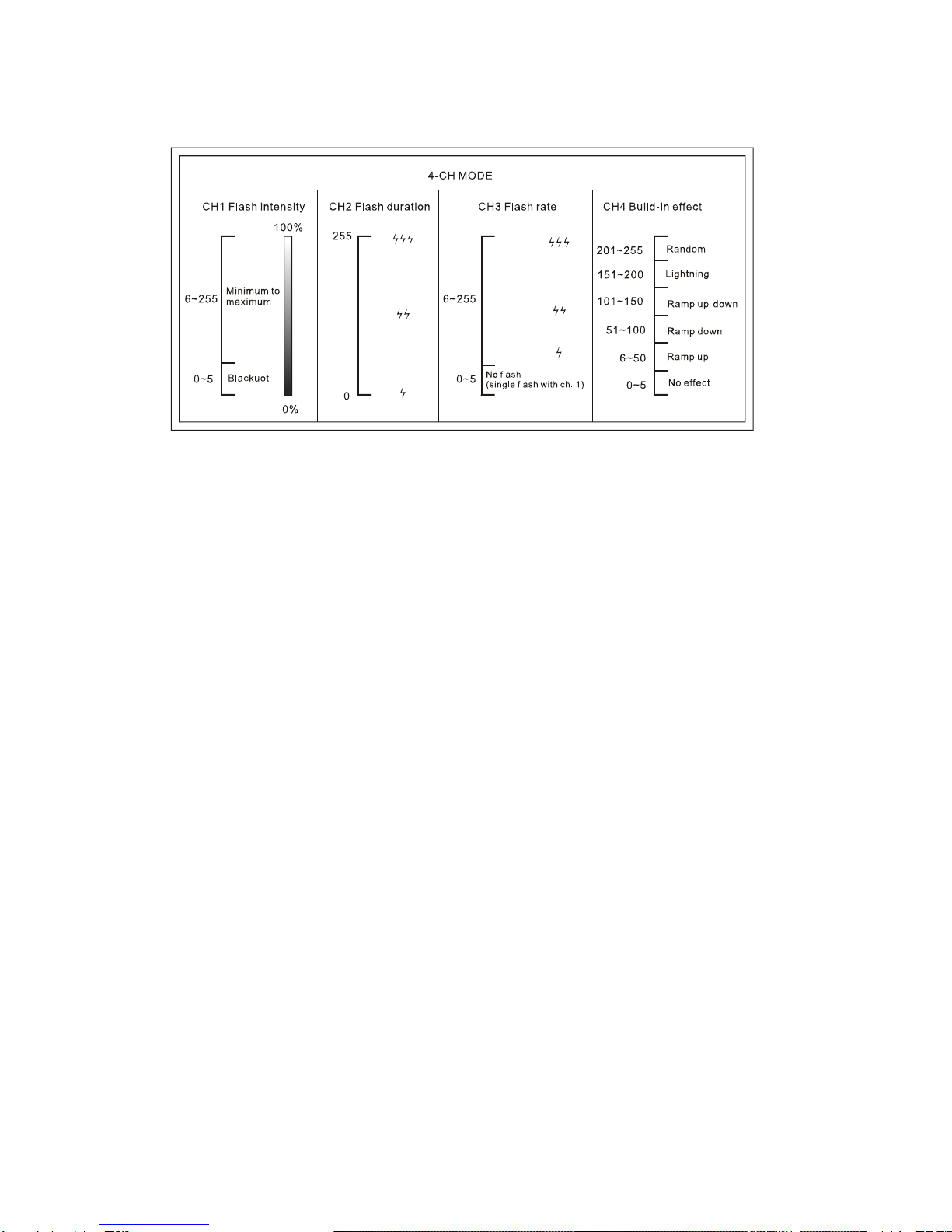

Channel Mode:
9B
DMX CONTROL SUMMARY
Intensity
Flash intensity can be set from minimum (blackout) to maximum on 1-channel DMX
modes, channel 2 in 2-channel DMX modes and channel 1 in the 3- and 4-channel
DMX modes.
The maximum intensity can be reduced by selecting low power mode as described
Duration
Flash duration can be set from 0 to 650 ms on 50 Hz power supplies, or 0 to 530 ms
on 60 Hz power supplies, on channel 2 in the 3- and 4-channel DMX modes. Flash
duration is fixed in 1 channel DMX mode.
Rate
Flash rate can be set from 0 flashes per second to 17.5 flashes per second Hz on 50
Hz power supplies or from 0 to 20 flashes per second on 60 Hz power supplies, on
channel 3 in the 3- and 4-channel DMX modes. Flash rate is also controllable in 1-
and 2-channel DMX mode.
Built-in effects
Six programmed effects are available on channel 4 in the 4-channel DMX mode
only. The effects may be altered using the intensity, duration, and rate controls.
