ACME LED-737 Manuel utilisateur

LED-737

User Manual

Please read the instructions carefully before use

TABLE OF CONTENTS

1. Safety Instructions

2. Technical Specifications

3. Main Function

4. How to control the fixture

5. DMX 512 Configuration

6. DMX 512 Connections

7. Troubleshooting

8. Fixture Cleaning

1. Safety Introductions

WARNING

Please keep this User Manual for future consultation. If you sell the fixture to another

user, be sure that they also receive this instruction booklet.

Unpack and check carefully there is no transportation damage before using the fixture.

Before operating, ensure that the voltage and frequency of power supply match the

power requirements of the fixture.

It’s important to ground the yellow/green conductor to earth in order to avoid electric

shock.

Disconnect main power before servicing and maintenance.

Use safety chain when fixes this fixture. Don’t handle the fixture by taking its head only,

but always by taking its base.

Maximum ambient temperature is Ta : 40℃. Don’t operate it where the temperature is

higher than this.

In the event of serious operating problem, stop using the fixture immediately. Never try

to repair the fixture by yourself. Repairs carried out by unskilled people can lead to

damage or malfunction. Please contact the nearest authorized technical assistance

center. Always use the same type spare parts.

Do not connect the device to any dimmer pack.

Do not touch any wire during operation and there might be a hazard of electric shock.

To prevent or reduce the risk of electrical shock or fire, do not expose the fixture to rain

or moisture.

The housing must be replaced if they are visibly damaged.

Do not look directly at the LED light beam while the fixture is on.

There are no user serviceable parts inside the fixture. Do not open the housing or

attempt any repairs by yourself. In the unlikely event your fixture may require service,

please contact your nearest dealer.

Please read the instructions carefully which includes important

information about the installation, operation and maintenance.

2. Technical Specifications

Power supply

Input Voltage：AC 100V-240V 50-60Hz

Power consumption：18W

LED

Total 156pcs, Red 48pcs, Green 36pcs, Blue 36pcs, White 36pcs

Channels

Channel 1 = Mode

Channel 2 = Pattern/Chase

Channel 3 = Pattern Strobe/Chase Speed

Channel 4 = Dimmer

It can be operated by DMX512 control or can be used as an individual unit without

controller.

It can be linked together as many as required in master/slave mode, and perform the

great built-in programmed lighting shows triggered by music.

Please use a 3 pin XLR cable/plug when connecting them together.

It features different pre-programmed chase patterns.

Fan cooled.

Dimension：

：：

：300mm x 308mm x 280mm

Weight：

：：

：4.2KG

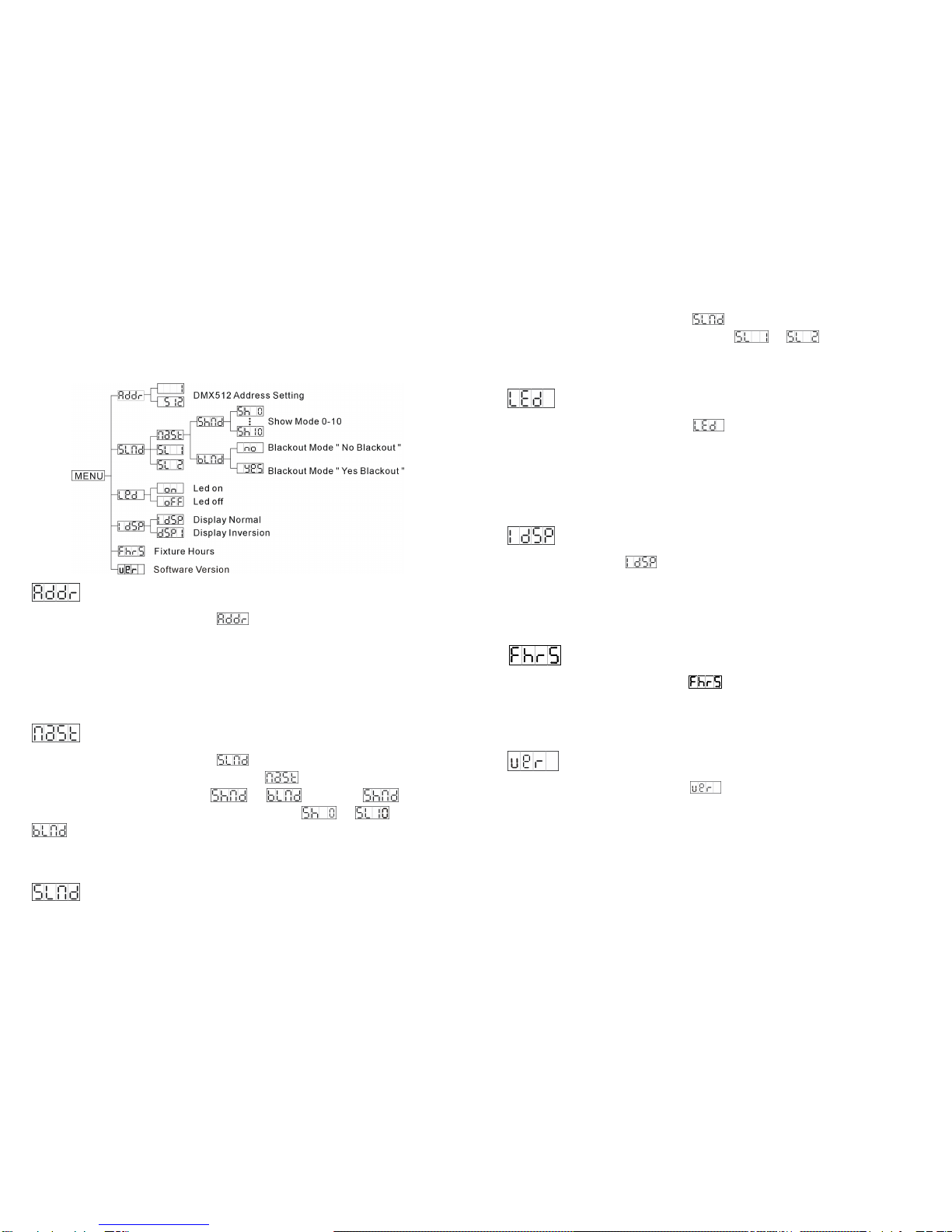

3. Main Function

To select any functions, press MENU button until the required one is shown on the display.

Select the function by ENTER button and the display will blink. Use DOWN and UP button to

change the mode. Once the required mode has been selected, press ENTER button to

setup or it will automatically return to the main functions without any change after idling 8

seconds. Back to the functions without any change press MENU button. The main functions

are shown below:

DMX 512 Address Setting

Press the MENU button up to when the is shown on the display. Pressing ENTER

button and the display will blink. Use DOWN and UP button to changethe DMX 512 address.

Once the address has been selected, press ENTER button to setup or automatically return

to the main functions without any change after 10 seconds. Back to the previous functions

without any change press MENU button.

Master Mode

Press the MENU button up to when the is shown on the display. Pressing ENTER

button, Use DOWN and UP button to select the , Pressing ENTER button, Use

DOWN and UP button to select the or . Select the Pressing

ENTER button, Use DOWN and UP button to select the or . Select the

Pressing ENTER button. Use DOWN and UP button to select the Yes or No

Blackout, Back to themain functions, press the MENU button twice.

Slave Mode

Press the MENU button up to when the is shown on the display. Pressing ENTER

button, Use DOWN and UP button to select the or (Slave Mode 1and 2).

Back to the previous functions without any change press MENU button.

LED

Press the MENU button up to when the is shown on the display. Pressing ENTER

button and the display will blink. Use DOWN and UP button to select the (ON) or (OFF)

mode. Once the mode has been selected, press ENTER button to setup or automatically

return to the main functions without any change after 10 seconds. Back to the functions

without any change press MENU button again.

Display Inverse

Press MENU button until is blinking on the display. Pressing ENTER button. Once

the mode has been selected, press ENTER button to setup or automatically return to the

main functions without any change after 10 seconds. Back to the functions without any

change press MENU button again.

Fixture Hours

Press the MENU button up to when the is blinking on the display. Pressing ENTER

button and the display will show the number of working hours of the unit. To go back to the

functions press the MENU button again.

Software version

Press the MENU button up to when the is blinking on the display. Pressing ENTER

button and the display will show the version of software of the unit. To go back to the

functions press the MENU button again.

4. How to control the fixture

Three ways to operation:

A. Master/Slave operation

B. Universal DMX controller

C. Easy controller CA-8

A. Master/Slave operation

The fixture will allow you to link the other fixtures together and operate without a controller.

In Master/Slave mode, the first fixture will control the others to give an automatic, sound

activated, synchronized light show. This function is good when you want an instant show.

The first fixture have to set in master mode, it’s DMX input cable will have nothing connect it,

and the other fixtures must be set in slave mode. Their DMX input cables connect the last

fixture DMX output cable.Any fixture can set as a Master or as a Slave.

In Master/Slave mode refer to the DMX settings below:

Master unit: DMX start address MUST be set to 001. (First DIP switch = ON, all other

are OFF)

Slave units: DMX start address may have any value but NOT 001 (example: set the

first 3 DIP switches to ON)

﹡2-light show

Dipswitch 10 ”off” means the unit works normally and “on” means inversion. In order to

create a great light show, you can set dip switch 10 ”on” on any unit that is linking to the

master unit to get contrast movement to the master unit, even if you have two units only.

Dipswitch 10 on the first (Master) unit is no use for the 2-light show as it is the master unit

that operates the light show.

B. Universal DMX controller

When using a universal DMX controller to control the chain of units, you have to set DMX

address by Dip switches from 1 to 9 to make sure all the units will receive its DMX signal.

Please refer to the following diagram to know how to address your DMX 512 system in the

binary code.

DMX address setting by dip-switches

1. Select the channels of DMX controller

2. Dipswitches

Dip-switches # 1 # 2 # 3 # 4 # 5 # 6 # 7 # 8 # 9 #10

Value 1 2 4 8 16 32 64 128 256 2-light show

• Examples:

Channel 01：dip / on : # 1（=1）

Channel 05：dip / on : # 1, # 3（1+4=5）

Channel 09：dip / on : # 1, # 4 （1+8=9）

Channel 13：dip / on : # 1, # 3, # 4（=13）

C. Easy Controller (by CA-8)

The easy remote control is used only in master/slave mode. There is a terminator for

connect the easy controller inside the fixture. By connecting the cable into DMX IN

waterproof cable entry gland to the CA-8 terminator of the first

fixture, you will find that the remote control on the first fixture will

control all the other fixtures for Stand by, Function and Mode

functions.

Blackout Blackout the unit

Function 1. Synchronous Strobe

2. Sound Strobe

3. Two light Strobe

Chase Select

(Chase 1-10)

Mode Sound/Strobe

(LED OFF) Chase

(LED ON)

5. DMX512 Configuration

6. DMX512 Connections

The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.

1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the

fixture to the input of the next fixture. The cable cannot be branched or split to a “Y”

cable. Inadequate or damaged cables, soldered joints or corroded connectors can

easily distort the signal and shut downthe system

2. The DMX output and input connectors are pass-through to maintain the DMX circuit

when no power is connected to the fixture.

3. At last fixture, the DMX cable has to be terminated with a terminator to reduce signal

errors. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a

3-pin XLR-plug and plug it in the DMX-output of the last fixture.

4. Each lighting fixture needs to have an address set to receive the data sent by the

10-

controller. The address number is between 0-511 (usually 0 & 1 are equal to 1).

5. 3 pin XLR connectors are more popular than 5 pins XLR.

3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

7. Troubleshooting

Following are a few common problems that may occur during operation. Here are some

suggestions for easy troubleshooting:

A. The fixture does not work, no light and the fan does not work

1. Check the connection of power and main fuse.

2. Measure the mains voltage on the main connector.

B. Not responding to DMX controller

1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.

2. If the DMX LED is on and no response to the channel, check the address settings and

DMX polarity.

3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB

of the fixture or the previous one.

4. Try to use another DMX controller.

5. Check if the DMX cables run near or run alongside to high voltage cables that may

cause damage or interference to DMX interface circuit.

C. Some fixtures don’t respond to the easy controller

1. You may have a break in the DMX cabling. Check the LED for the response of the

master/ slave mode signal.

2. Wrong DMX address in the fixture. Set the proper address.

D. No response to the sound

11-

1. Make sure the fixture does not receive DMX signal.

2. Check microphone to see if it is good by tapping the microphone.

E. One of the channels is not working well

1. The stepper motor might be damaged or the cable connected to the PCB is broken.

2. The motor’s drive IC on the PCB might be out of condition.

8. Fixture Cleaning

The cleaning of internal must be carried out periodically to optimize light output. Cleaning

frequency depends on the environment in which the fixture operates: damp, smoky or

particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.

Clean with soft cloth using normal glass cleaning fluid.

Always dry the parts carefully.

Clean the external optics at least every 20 days. Clean the internal optics at least every

30/60 days.

EC - Declaration of Conformity

We declare that our products (lighting equipments) comply with the following

specification and bears CE mark in accordance with the provision of the

Electromagnetic Compatibility (EMC) Directive 89/336/EEC.

EN55014-2: 1997A1: 2001, EN61000-4-2: 1995; EN61000-4-3: 2002;

EN61000-4-4: 1995; EN61000-4-5: 1995, EN61000-4-6: 1996,

EN61000-4-11: 1994.

Harmonized Standard

EN60598-1: 2000+ALL: 2000+A12: 2002

Safety of household and similar electrical appliances

Part 1: General requirements

12-

Innovation, Quality, Performance

Table des matières

Autres manuels ACME Matériel de DJ

ACME

ACME XA-500 Manuel utilisateur

ACME

ACME Ellipsoidal E-300 D2550 Manuel utilisateur

ACME

ACME FARANDOLE AM-BAR Manuel utilisateur

ACME

ACME SAMBA Color Manuel utilisateur

ACME

ACME Genesis move 25R Manuel utilisateur

ACME

ACME PAGEANT 300ZR II Manuel utilisateur

ACME

ACME LS-608 RGB Manuel utilisateur

ACME

ACME E-10C WW DXX Manuel utilisateur

ACME

ACME Color Par 36 Manuel utilisateur

ACME

ACME ARAS Manuel utilisateur

ACME

ACME LED?7TC Manuel utilisateur

ACME

ACME SPLENDOR 90 Manuel utilisateur

ACME

ACME LED-635S Manuel utilisateur

ACME

ACME ENERGY HYBRID Manuel utilisateur

ACME

ACME THUNDERBOLT Manuel utilisateur

ACME

ACME LED-MS50A Manuel utilisateur

ACME

ACME iColorLed 18TC Manuel utilisateur

ACME

ACME MH-575S Manuel utilisateur

ACME

ACME LED-BL8 Manuel utilisateur

ACME

ACME LED-245 II Manuel utilisateur

ACME

ACME Dotline 360 Manuel utilisateur

ACME

ACME Diamonds LS-1010 RGB Manuel utilisateur

ACME

ACME LED-747-1W Manuel utilisateur

ACME

ACME iMove 50SR Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
