Acer PD527D Series Manuel utilisateur

PD527D& PD523PD

Service Guide

PRINTED IN TAIWAN

Service guide files and updates are available

on the AIPG/CSD web; for more information,

please refer to http://csd.acer.com.tw

Revision History

Please refer to the table below for the updates made on PD527D& PD523PD service guide.

Date Chapter Updates

III

transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in

any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without

the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the

contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular

purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the

programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its

dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential

damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.

Intel is a registered trademark of Intel Corporation.

Pentium 4 and Celeron are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

Conventions

The following conventions are used in this manual:

Screen messages Denotes actual messages that appear

on screen.

NOTE Gives bits and pieces of additional

information related to the current

topic.

WARNING Alerts you to any damage that might

result from doing or not doing specific

actions.

CAUTION Gives precautionary measures to

avoid possible hardware or software

problems.

IMPORTANT Reminds you to do specific actions

relevant to the accomplishment of

procedures.

Preface

Before using this information and the product it supports, please read the following general information.

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION

decided for Acer's "global" product offering. To better fit local market requirements and enhance product

competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.

add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered

in this generic service guide. In such cases, please contact your regional offices or the responsible

personnel/channel to provide you with further technical details.

2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information

available on your regional web or channel. If, for whatever reason, a part number change is made, it will

not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer

office may have a DIFFERENT part number code to those given in the FRU list of this printed Service

Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and

service of customer machines.

1 Chapter 1

System Introduction (PD527D)

Technical Speciﬁ cation

Item Description

Dimensions (LxWxH) 256 x 283 x 104 mm

Weight Approx. 6.0 lbs (2.7 Kg)

Tilt Angle 7 degree with elevator mechanism

Keystone correction +/-16 degree (32 degree) (Horizontal)

Lamp Door Projection Lamp power supply shut off automatically when door open

Power Supply

- Universal AC 100-240V ~ 50-60Hz with PFC input

- 230W for OSRAM Lamp @ normal operation

- Variance FAN speed control (Depends on temperature variant)

Projection Lens [email protected], F/[email protected], 1.2X Mechanical Zoom Lens

Throw Distance 1.5m - 12m (Mechanical Travel)

Brightness

- 2550 ANSI Lumens (Typical; Full Power Mode)

- 2040 ANSI Lumens (Typical; Eco Mode)

- 1600 ANSI Lumens (Engineering Minimum; Full Power Mode)

Contrast - 1000 : 1 Full White and Black (Minimum; Full Power Mode)

- 1500 : 1 Full White and Black (Typical; Full Power Mode)

Uniformity - 70% Japan standard (Minimum; Full Power Mode)

- 85% Japan standard (Typical; Full Power Mode)

Temperature Opterating : 5~35oC Storage : -20~60oC

Maximum Humidity Operating : 5~35oC, 80%RH (Max.), non-condensing

Storage : -20~60oC, 80%RH (Max.), non-condensing

Acoustic noise level 36 dB(A) (Typical, Under 23 +/- 20C; Full Power Mode)

33 dB(A) (Typical, Under 23 +/- 20C; Eco Mode)

Lamp Life 2000 hours min, 50% survival rate (Full Power Mode)

2500 hours min, 50% survival rate (Eco Mode)

Altitude

Operating : 0~2,500 ft for 5 oC~35oC

2,500~5,000 ft for 5 oC~30oC

5,000~10,000 ft for 5 oC~25oC

Storage : 40,000 ft (Max.)

MTBF Operating more than 12,000 hours (90% Conﬁ dence Level)

XGA / Compression

1024(H) x 768(V)

Color Wheel

- Four segments (W110/R92/G83/B75)

- 7200 rpm

DMD Chip

- 0.7” 12

DDR XGA Digital Mirror Device

Chapter 1

Chapter 1 2

System Introduction (PD523PD)

Technical Speciﬁ cation

Item Description

Dimensions (LxWxH) 256 x 283 x 104 mm

Weight Approx. 6.0 lbs (2.7 Kg)

Tilt Angle 7 degree with elevator mechanism

Keystone correction +/-16 degree (32 degree) (Horizontal)

Lamp Door Projection Lamp power supply shut off automatically when door open

Power Supply

- Universal AC 100-240V ~ 50-60Hz with PFC input

- 230W for OSRAM Lamp @ normal operation

- Variance FAN speed control (Depends on temperature variant)

Projection Lens [email protected], F/[email protected], 1.2X Mechanical Zoom Lens

Throw Distance 1.5m - 12m (Mechanical Travel)

Brightness - 1564 Lumens (Engineering Minimum; Full Power Mode)

Contrast - 1000 : 1 Full White and Black (Minimum; Full Power Mode)

Uniformity - 70% Japan standard (Minimum; Full Power Mode)

Temperature Opterating : 5~35oC Storage : -20~60oC

Maximum Humidity Operating : 5~35oC, 80%RH (Max.), non-condensing

Storage : -20~60oC, 80%RH (Max.), non-condensing

Acoustic noise level 36 dB(A) (Typical, Under 23 +/- 20C; Full Power Mode)

33 dB(A) (Typical, Under 23 +/- 20C; Eco Mode)

Lamp Life 2000 hours min, 50% survival rate (Full Power Mode)

2500 hours min, 50% survival rate (Eco Mode)

Altitude

Operating : 0~2,500 ft for 5 oC~35oC

2,500~5,000 ft for 5 oC~30oC

5,000~10,000 ft for 5 oC~25oC

Storage : 40,000 ft (Max.)

MTBF Operating more than 12,000 hours (90% Conﬁ dence Level)

XGA / Compression

1024(H) x 768(V)

Color Wheel

- Four segments (W110/R92/G83/B75)

- 7200 rpm

DMD Chip - 0.55” 12o DDR XGA Digital Mirror Device

3 Chapter 1

Product Overview

Main Unit

Item Description

1 Focus Ring

2 Zoom Ring

3 Zoom Lens

4 Remote Control Receiver

5 Elevator Button

6 Elevator Foot

7 Connection Ports

8 Power Socket

9 Control Panel

Chapter 1 4

Control Panel

Item Description

1 Temp Indicator LED

2 Lamp Indicator LED

3 Power and Indicator LED (Power LED)

4 Source

5 Resync

6 Four Directional Select Keys

7 Menu

5 Chapter 1

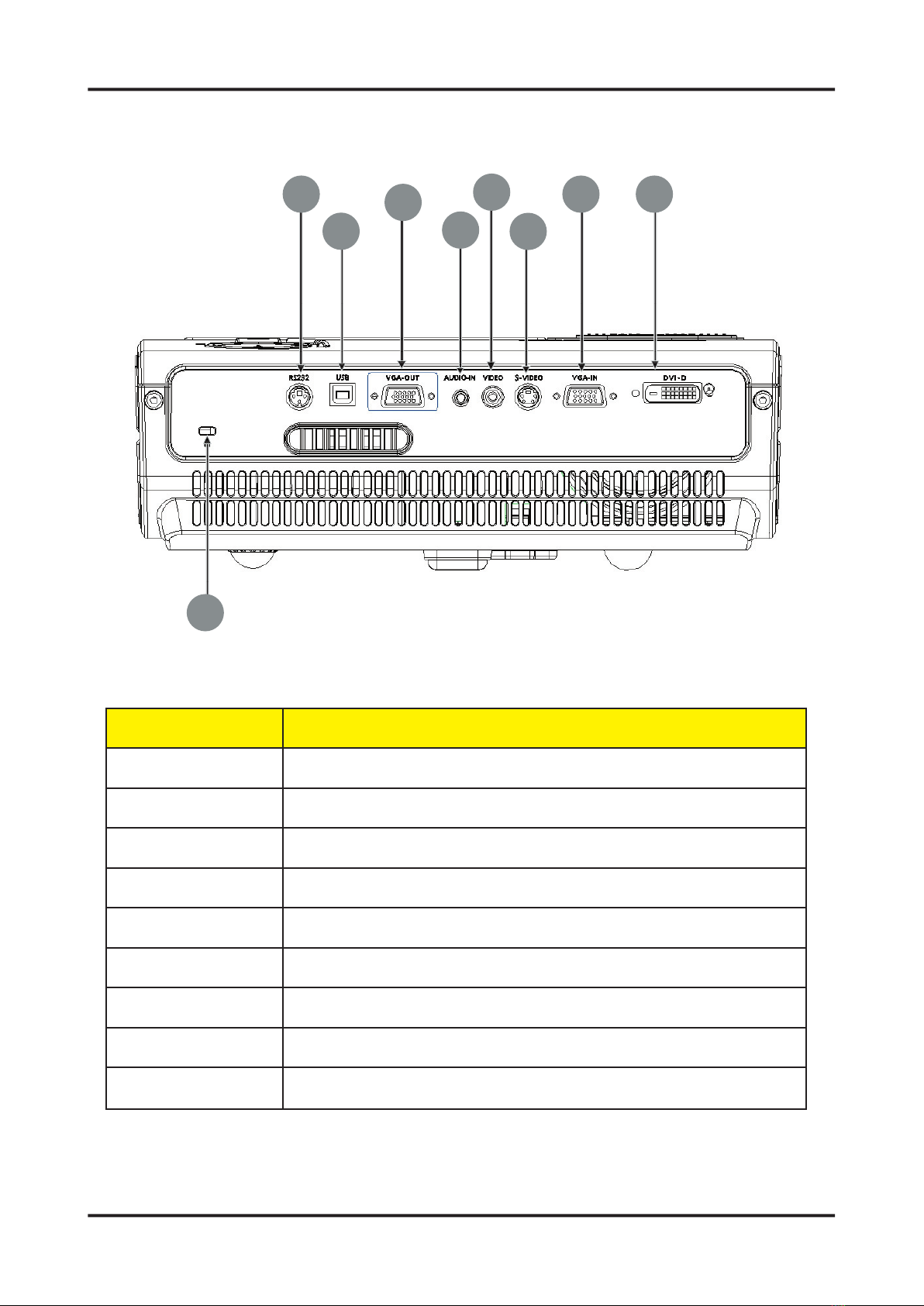

Connection Ports

Item Description

1 RS232 Connector

2 USB Connector

3 Monitor Loop-through Output Connector (VGA-Out)

4 Audio Input Connector

5 Composite Video Input Connector

6 S-Video Input Connector

7PC Analog Signal / HDTV / Component Video Input Connector

8DVI Input Connector (for Digital signal with HDCP function) (Optional)

9 KensingtonTM Lock Port
