1. Introduction

Dear customer,

We are pleased that you have chosen our product and thank you for your trust! You

made a good choice.

This siren (hereinafter referred to as the "device") has been developed and

manufactured with the utmost care. Please read these operating instructions

completely and observe all operating and safety instructions, as this ensures the best

possible handling of the device. This document is an installation and maintenance

manual.

All contained company names and product designations are trademarks of the

If you have any questions, please contact your specialist installer or specialist trade

partner!

1.1. Declaration of Conformity

ABUS Security-Center hereby declares that the enclosed product comply with

the requirements of the following directives

RED Directive (2014/53/EU), EMC Directive (2014/30/EU), Low Voltage Directive

(2014/35/EU) and RoHS Directive (2011/65/EU). The full EU Declaration of

Conformity text can be found at:

www.abus.com/product/SHSG10000

It can also be obtained at the following adress:

ABUS Security-Center GmbH & Co. KG,

Linker Kreuthweg 5, 86444 Affing, GERMANY

1.2. Disclaimer of Liability

These operating instructions have been prepared with the greatest care. Should you

nevertheless notice omissions or inaccuracies, please inform us in writing at the above

address.

Your rights are limited to the repair or replacement of this product as delivered. ABUS

Security Center assumes no liability for any special, incidental or consequential

damages, including but not limited to loss of revenue, loss of profit, restrictions in the

use of the software, loss or recovery of data, costs for replacement equipment,

downtime, property damage and claims of third parties, as a result of and in connection

with the use of the software.a. warranty, contractual, legal or claims for damages

notwithstanding other limited or implied warranty provisions or in the event that the

limited warranty does not apply, the scopeof liabilityof ABUS SecurityCenter is limited

to the purchase price of the product.

The contents of this manual are subject to change without notice.© ABUS Security-

Center GmbH & Co. KG, 09/2018

English

2. Important Safety Informations

2.1. Intended Use

Only use the device for the purpose for which it was built and designed. Any other use

is considered unintended.

All guarantee claims are invalid in the event of damage caused by non-

compliance with this safety information. We cannot be held liable for resulting

damage.

2.2. Unboxing

Handle the device with extreme care when unpacking it.

Packaging and packaging aids can be reused and, as far as possible, should be sent

for recycling.

If the original packaging has been damaged, inspect the device first. If the

device shows signs of damage, return it in the original packaging and inform

the delivery service.

2.3. Installation location / operating environment

Do not place any heavy objects on the device.The device is only designed for

operation in spaces with appropriate temperatures or humidity (e.g. bathrooms), or

excessive accumulation of dust. Please refer to the individual devices' technical data

for more detailed information. Ensure that: adequate ventilation is always guaranteed;

no direct sources of heat can affect the device; interior devices are not exposed to

direct sunlight or strong artificial light; the device is not in the immediate vicinity of

magnetic fields (e.g. loudspeakers); no naked flames (e.g. lit candles) are placed on

or next to the device; sprayed or dripping water is prevented from coming into contact

with interior devices and caustic fluids are avoided; the device is not operated in the

vicinity of water, in particular, the device should never be submerged (do not place

objects containing fluids, e.g. vases or drinks, on or near the device); no foreign bodies

penetrate the device; the device is not exposed to wide temperature variations, as

otherwise there may be condensation from humidity causing electrical short circuits;

the device is not exposed to excessive shock or vibration.

2.4. Children

Keep electrical devices out of reach of children. Never allow children to use electrical

devices unsupervised. Children may not always properly identify possible hazards.

Small parts may be fatal if swallowed. Keep packaging film away from children. There

is a risk of suffocation. This device is not intended for children. If usedincorrectly, parts

under spring tension may fly out and cause injury to children (e.g. to eyes).

2.5. Information on handling batteries

- Make sure that batteries are kept away from small children. Children may put

batteries in their mouths and swallow them. This can cause serious harm to their

health. If this happens, consult a doctor immediately.

- Do not charge normal batteries, heat them up or throw them into naked flames

(they may explode).

English

- The battery must not be directly exposed to heat or sunlight, and must not be

stored in a place with a very high temperature.

- The battery must not come into contact with water.

- The battery must not be dismantled, pierced or otherwise damaged.

- The battery contacts must not be short-circuited.

- Change low batteries in good time.

- Always change all the batteries at the same time and use batteries of the same

type.

- Leaky or damaged batteries can cause chemical burns on contact with the skin.

In this case, wear protective gloves. Clean the battery compartment with a dry

cloth.

2.6. Important information on battery disposal

Batteries with this label do not contain harmful substances such as

cadmium, lead and mercury. However, used batteries must not be

disposed of along with household waste in accordance with the battery

directive. To protect natural resources and promote the recycling of

materials, separate the batteries from other waste and deposit them at a

local recycling center. An additional label with the chemical symbols for

Hg, Cd or Pb means that the batteries contain quantities of mercury, cadmium or lead

which exceed the restrictions set by the EU Directive 2006/66/EG. If batteries are not

disposed of properly, these substances can cause harm to human health or the

environment

2.7. Cleaning

- Dusty devices must be cleaned. You can clean dust from the air vents using a

vacuum cleaner or compressed air. If necessary, you can remove the dust with

a brush.

- You can clean the surface using a cloth slightly dampened in soapy water. Only

use suitable microfiber cloths for high-gloss surfaces.

- Do not allow water to penetrate the device.

- Do not clean the device in a dishwasher.

- Do not use sharp, pointed, abrasive or corrosive cleaning materials or hard

brushes.

- Do not use chemicals.

- Do not use flammable liquids for cleaning the device.

2.8. Information on device disposal

Important: The EU Directive 2012/19/EU regulates the proper return,

treatment and recycling of used electronic devices. This symbol means

that in the interest of environmental protection the device must be

disposed of separately from household or industrial waste at the end of

its service life in accordance with applicable local legal guidelines.

Disposing of used devices can be done at official recycling centers in your

country. Obey local regulations when disposing of material. Further details on returns

(also for non-European countries) can be obtained at your local authority. Separate

English

collection and recycling saves natural resources and ensures that all the provisions

for protecting health and environment are observed when recycling the product.

2.9 Power Supply

Only operate this device through a power source which supplies the mains power

specified on the type plate. If you are unsure which voltage is supplied at the

installation location, contact your energy provider. Disconnect the device from the

power supply before carrying out maintenance or installation work. The device is only

fully disconnected from the mains network when the device is removed. In order to

eliminate the risk of fire, the device's mains plug should always be disconnected from

the mains socket, if the device is not being used for an extended period of time. Prior

to unstable weather and/or when there is a risk of lightning strike, disconnect the

device from the mains network or connect the device to a UPS. Avoid overloading

electrical sockets, extension cables and adapters, as this can result in fire or electric

shock.

3. Product introduction

3.1. Scope of delivery

- ABUS Z-Wave Siren

- Quickguide & Safety instructions

3.2. Device features

English

Label

Comment

Networking-Button

For inclusion / exclusion of the siren in a Z-Wave Gateway,

factory reset

Loudspeaker

In case of an alarm, a 95dB loud signal tone sounds here

Power Plug

For connection in the socket

Flashing Light

In case of alarm the ring lights up red

3.3 Operating Principle

The SHSG10000 was developed for use in home automation systems that use the Z-

Wave wireless standard. The siren serves as an alarm device and is equipped with a

loud siren (up to 95 dB) and a red LED flash. Thanks to the integrated backup battery,

the siren can still alert for up to 5 minutes or operate in standby mode for approx. 4

hours, even when removed from the power supply.

3.4 Performance features

The ABUS Z-Wave SHSG10000...:

- …is an radio siren with integrated backup battery

- …is Z-Wave PLUS compatible & certified

- …supports the Z-Wave S2 Standard (Security 2)

- …alarms loudly by the integrated 95dB siren

- …has a red LED flash which lights up in case of alarm

- …was developed for indoor use

3.5 Use in systems of different manufacturers

Communication is via the Z-Wave EU frequency (868.42 Mhz). You can integrate the

device into any Z-Wave network with a certified Z-Wave gateway, regardless of

manufacturer. All non-battery powered nodes in the network act as repeater to increase

the durability of the network.

4. Overview of functions

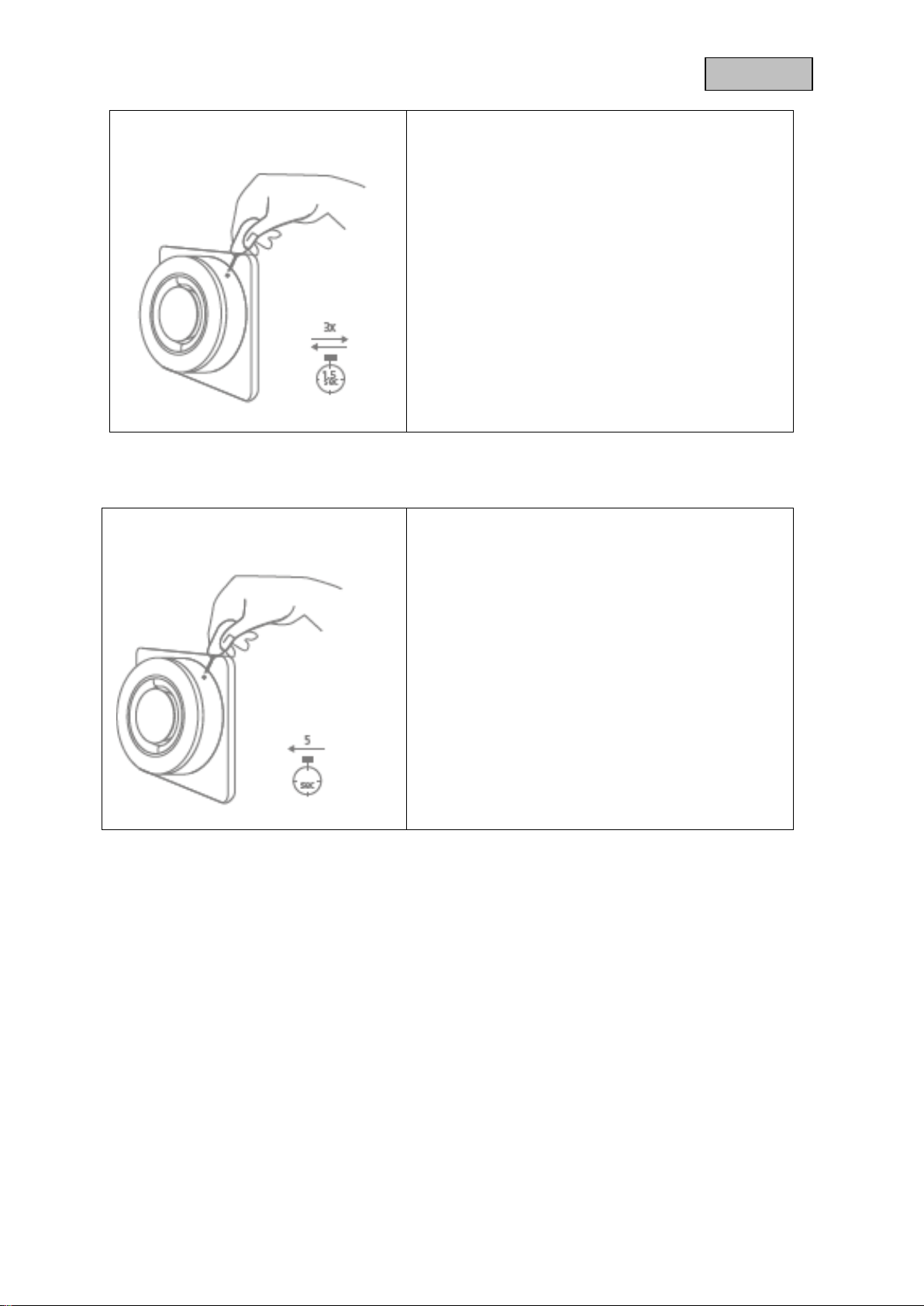

4.1. Inclusion / Add Device

Plug the device into a socket

English

Click the + (Add) button in your Z-Wave App

and follow the further instructions

Press the Network-button 3 times within 1.5

seconds and the Status-LED will flash 3 times

If the Add device process is successful, the

Status-LED will turn off.

Repeat the inclusion process from step B if it

was not successful.

4.2. Exclusion / Remove Device

Click the - (Remove) button in your Z-Wave

App and follow the further instructions

English

Press the Network-button 3 times within 1.5

seconds and the Status-LED will flash 3 times

If the Remove device process is successful,

the Status-LED flash 6 times.

Repeat the inclusion process from step B if it

was not successful.

4.3. Reset (Factory-Reset)

Press the Network-button for 10 seconds to

factory reset the device

Note:

1, This procedure should only be used if the

primary gateway is not capable of acting.

2, If the multi-sensor is set to the factory

setting, the status is set to "not included", the

association settings and possible

configurations are reset to default.

4.4 Important Note

Once the device is added to a Z-Wave gateway, the alarm can be released and

terminated In Event of an Alarm the high-volume siren (95dB) will sound and LED

strobe lights up.

In Event of main power loss, the Siren can even operate up to 5 minutes in Alarm-

case by the integrated backup-battery. (or 4 hours standby operation)

English

5. Advanced Z-Wave Parameters

5.1. Association Group Information

Z-Wave devices can control other devices directly. This direct control is called in Z-

Wave association. For this purpose, the device ID of the device to be controlled must

be stored in the controlling devices. This is done in so-called association groups. An

association group is always linked to an event in the controlling device (pressing a key

or triggering a sensor). When this event occurs, a control command - usually a BASIC

SET - is sent to all devices stored in an association group.

The siren supports the following association group:

Group

Number

Maximum

Devices

Transmitted Content

Group 1

0x05

Association group 1: Lifeline association group Include

command classes: Switch Binary report ,Battery and Device

Reset Locally notification.

5.2. Supported Command Classes

1 Z-Wave plus InfoVersion 2

2 Switch Binary Version 1

3 Association Version 2

4 Association Group Info Version 1

5 Transport Service Version 2

6 Version Version 3

7 Manufacturer Specific Version 2

8 Device Reset Locally Version 1

9 Powerlevel Version 1

10 Security 2 Version 1

11 Supervision Version 1

12 Basic Version2

Autres manuels pour SHSG10000

Table des matières

Autres manuels Abus Système de sécurité

Abus

Abus TVAC17000 Manuel utilisateur

Abus

Abus TVAC16000C Manuel utilisateur

Abus

Abus TVVR30004 Manuel utilisateur

Abus

Abus Bordo 6000 Manuel utilisateur

Abus

Abus WIRELESS ALARM SYSTEM Manuel utilisateur

Abus

Abus SECVEST Guide de l'utilisateur

Abus

Abus Outdoor motion detector PIR Manuel utilisateur

Abus

Abus Terxon MX Manuel utilisateur

Abus

Abus WIRELESS ALARM SYSTEM Manuel utilisateur

Abus

Abus FUWM30000 Manuel utilisateur

Abus

Abus FUSG30010 Manuel utilisateur

Abus

Abus FUSG50101 Manuel

Abus

Abus TVAC18000B Manuel utilisateur

Abus

Abus TVAC80000B Manuel utilisateur

Abus

Abus TVAC15300 Manuel utilisateur

Abus

Abus TVAC18000A Manuel utilisateur

Abus

Abus Security-Center EcoLine TV7000 Manuel utilisateur

Abus

Abus AirSecure CO2WM110 Manuel utilisateur

Abus

Abus SECVEST Guide de l'utilisateur

Abus

Abus TVAC71000 Manuel utilisateur

Abus

Abus Smartvest Manuel utilisateur

Abus

Abus Secvest IP Manuel utilisateur

Abus

Abus FUBE35001A Manuel utilisateur

Abus

Abus TVAC71070 Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
