Abus TVVR30004 Manuel utilisateur

Quick guide for Video Surveillance kit: TVVR30004 | TVVR30104 | TVVR30404 | TVVR30414

This quickstart guide describes the initial installation steps for your video surveillance kit.

More detailed information can be found in the accompanying user guide.

TVVR30004

English

Dear customers,

Thank you for purchasing this product.

This product complies with current domestic and European

regulations.

Conformity has been proven, and all related certications

are available from the manufacturer on request (ABUS

Security-Center GmbH & Co. KG, Linker Kreuthweg 5, 86444

Ang).

To maintain this status and to guarantee safe operation, it

is your obligation to observe these operating instructions!

Read the entire operating manual carefully before putting

the product into operation. Pay attention to all operating

and safety information! All company names and product

descriptions are trademarks of the corresponding owner. All

rights reserved.

If you have any questions, please contact your specialist

dealer.

English

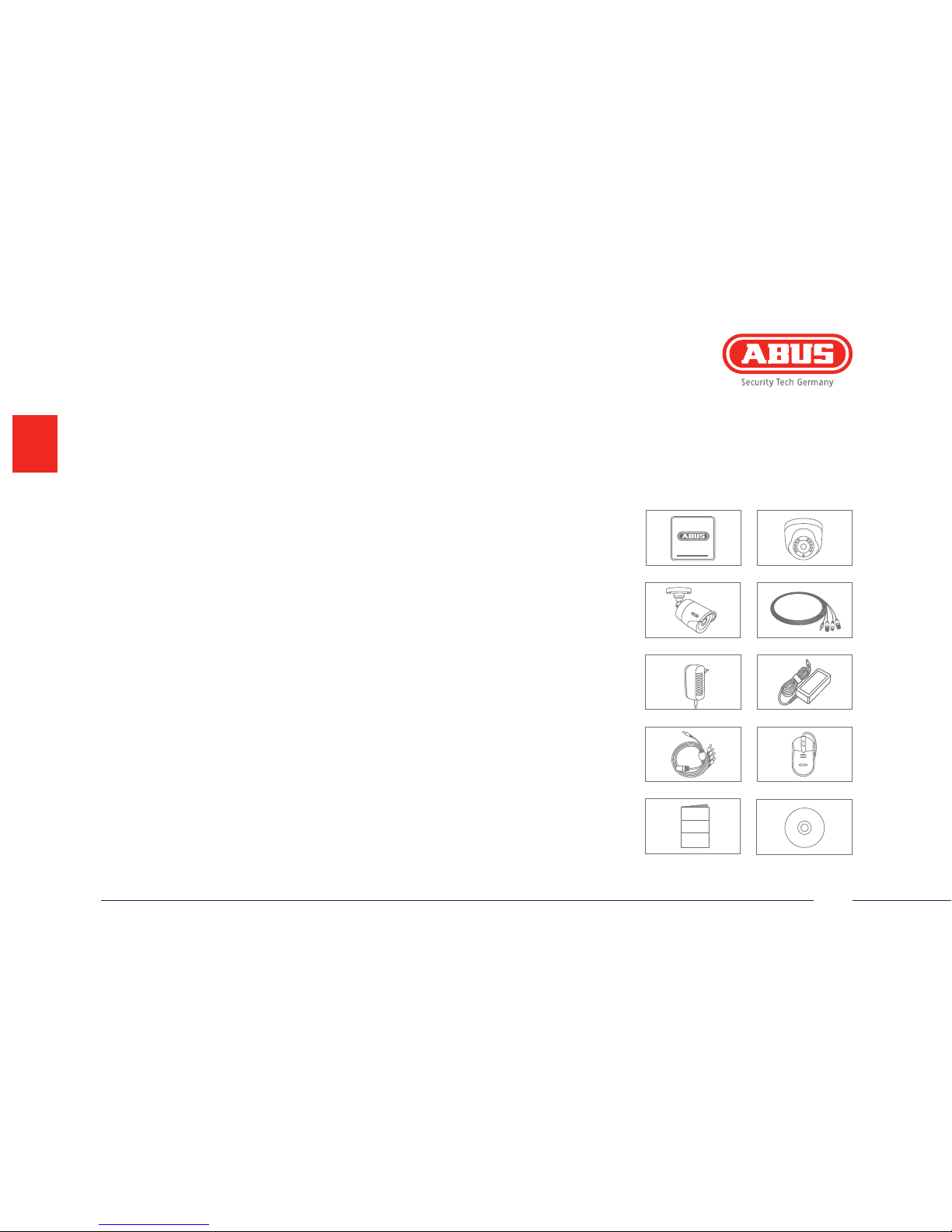

Scope of delivery

Manual

TVVR30004

TVVR30104

• 4-channel recorder incl. HDD

• 1x day/night vision outdoor camera

• Universal power supply unit

• 1x20 m coaxial cable

• USB mouse

• Quick guide

• Manual

• CD

TVVR30404

• 4-channel recorder incl. HDD

• 4x day/night vision outdoor cameras

• Universal power supply unit

• 4x20 m coaxial cable

• USB mouse

• Quick guide

• Manual

• CD

TVVR30414

• 4-channel recorder incl. HDD

• 4x day/night vision outdoor dome cameras

• Universal power supply unit

• 4x20 m coaxial cable

• USB mouse

• Quick guide

• Manual

• CD

TVVR30004

• 4-channel recorder

• Power supply unit

• USB mouse

• Quick guide

• Manual

• CD

English

Warnings

Only store the recorder and camera

in the ambient conditions recom-

mended by the manufacturer.

Ensure that there is always

sucient ventilation.

Ensure an uninterrupted

power supply.

Keep the recorder and camera away

from strong magnetic elds.

Keep liquids away from the recorder.

Turn the recorder o before

connecting or removing

peripheral devices

English

Connections

Video - In

BNC input for analogue cameras

Video - OUT

BNC plug for video output to connect to a

monitor as an alternative to VGA output

USB

Connection for USB devices

12 V

12 V: 12 V DC power connection

LAN

RJ45 port for a

network connection

English

Hardware Installation

Remove the 4 screws on the

underside of the recorder.

Open the box carefully. Align the hard disk drive

with the base plate of the

recorder.

Please ensure that you begin with step

for the hardware installation of TVVR30004. The hardware installation for the video surveillance kits TVVR30104, TVVR30404 and TVVR30414

starts at step

, as the hard disk drive is pre-installed for these models.

Secure the hard disk drive

onto the underside of the

recorder with the accompa-

nying screws.

1 3 42

English

Connect the hard disk

drive to the motherboard

with the data cable (small

connector) and the power

cable (large connector).

Now place the box over the

base plate of the recorder.

Ensure that the box is placed

along the guide rails.

Then secure the box and

the base plate with the 4

screws.

Connect your cameras to

the recorder.

5 6 7 8

English

Tips for camera installation

Plug the recorder into the power supply.

The blue LED bar on top of the recorder

indicates that the device is on. You

can choose to turn o the light

on the LED bar via the menu.

English

Avoid backlight or direct sunlight

Do not place cameras directly behind glass,

as this can result in reections

The camera must not be

installed on unstable surfaces

Please be aware that notice of video surveillance

is required by law in public places

English

Soware Set-up

1 2 3

If you untick the box, then the setup

wizard will no longer run automati-

cally at the next start-up. Click Next.

Select a language and click Next. In the Admin Password eld, enter

12345. Conrm with Enter.
