IES318 series

Unmanaged Industrial Ethernet

Switch Quick Installation Guide

3onedata Co., Ltd.

Address: 3/B, Zone 1, Baiwangxin High Technology

Industrial Park, Xili, Nanshan District, Shenzhen

Website: www.3onedata.com

Tel: +86 0755-26702688

Fax: +86 0755-26703485

Package Checklist

Please check the integrity of package and accessories while

first using the switch.

1. Industrial Ethernet switch ⅹ1 (with wiring terminal block)

2. Manual 3. DIN-Rail mounting attachment

4. Certification 5. Warranty card

If any of these items are damaged or lost, please contact our

company or dealers, we will solve it asap.

Product Overview

The series products are unmanaged industrial Ethernet

switches, including the following models:

Model I IES318 (8 ports)

Model II IES318-1F (7 ports + 1 fiber port)

Model III IES318-2F (6 ports + 2 fiber ports)

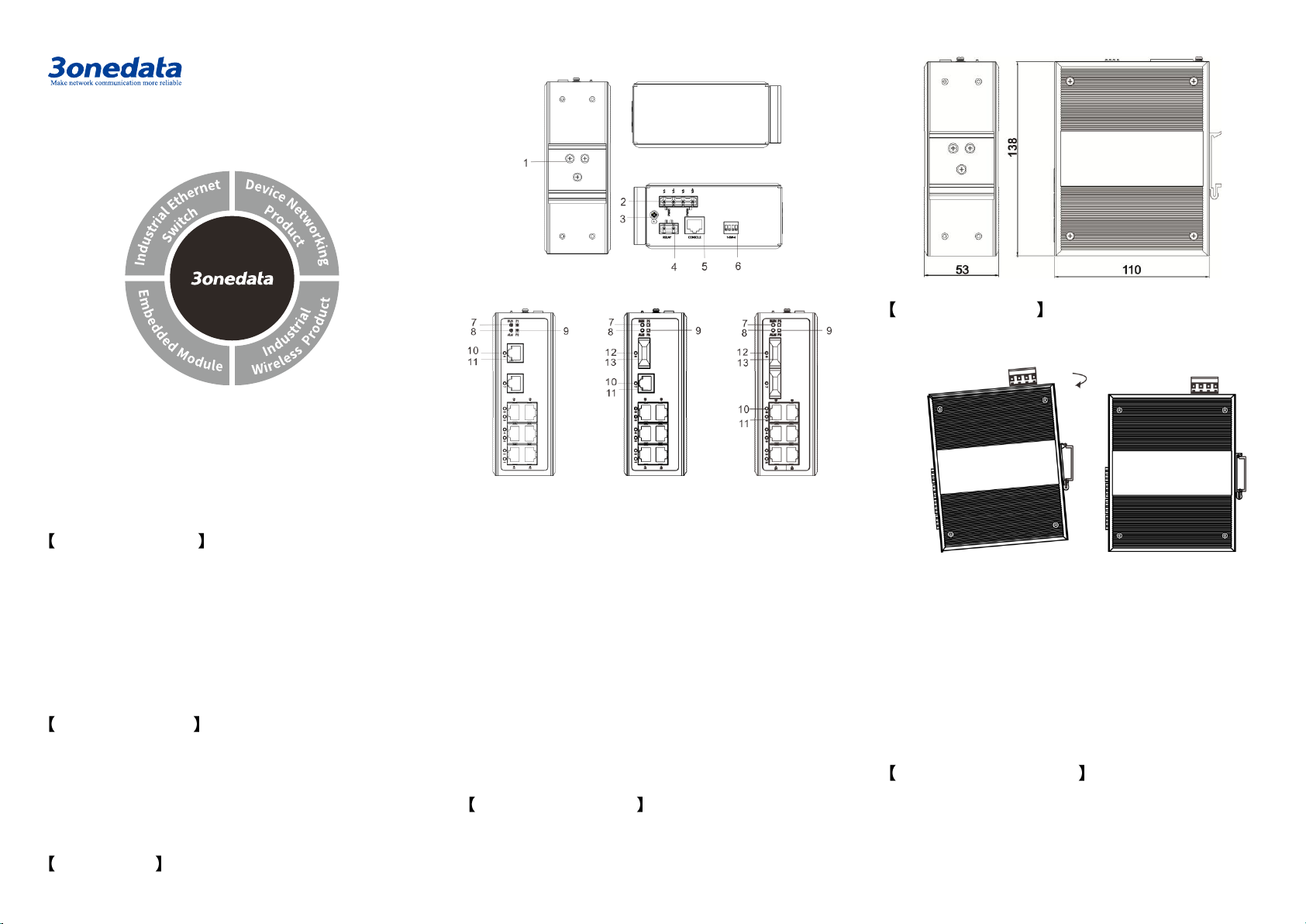

Panel design

Rear view, Bottom view and Top view

Front view

Model I Model II Model III

1. DIN-Rail mounting kit

2. 4-pin terminal block for power input

3. Grounding screw

4. Relay interface

5. Console port

6. DIP switch

7. Running status indicator

8. Alarm indicator

9. Power supply indicator

10. 100Base-TX connection status indicator

11. 100Base-TX

12. 100Base-FX connection status indicator

13. 100Base-FX

Mounting Dimension

Unit (mm)

DIN-Rail Mounting

For convenient usage in industrial environments, the product

adopts 35mm DIN-Rail mounting, mounting steps as below:

Step 1 Check if the DIN-Rail mounting kit is installed firmly.

Step 2 Insert the bottom of DIN-Rail mounting kit (one side

with spring support) into DIN-Rail, and then insert

the top into DIN-Rail.

Tips:

Insert a little to the bottom, lift upward and then

insert to the top.

Step 3 Check and confirm the product is firmly installed on

DIN-Rail, then mounting ends.

Disassembling DIN-Rail

Step 1 Device power off.

Step 2 After lift the device upward slightly, first shift out the

top of DIN-Rail mounting kit, then shift out the

bottom of DIN-Rail, disassembling ends.

Note:

1. Don't place or install the device in area near water or

moist, keep the relative humidity of the device

surrounding between 5%~95% without condensation.

2. Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the

device.

3. The device surface temperature is high after running;

please don't directly contact to avoid scalding.

Power Supply Connection

DC power supply

The series devices provide 4 bits power

supply input terminal blocks and two

independent DC power supply systems

for PWR1 and PWR2. The power supply

has nonpolarity and anti-reverse

functions, it can normally operate after reverse connection.

Power supply range: 12～48VDC

Note:

1. Power ON operation: First insert the power supply

terminal block into the device power supply interface,

and then plug the power supply plug contact and power

on.

2. Power OFF operation: first unpin the power plug, then

remove the terminal block wiring part, please note the

operation order above.

Relay Connection

Relay terminals are a pair of normally open

contacts in device alarm relay. They are open

circuit in normal non alarm state, closed when

any alarm information occurs. E.g. it's closed

when power off, and send out alarm. This series switches

support 1 channel relay alarm information output, support

network abnormal alarm output, it can be connected to

alerting lamp, alarm buzzer, or other switching value

collecting devices for timely warning operating staffs when

alarm information occurs.

DIP Switch Setting

Provide 4-bits DIP switch for function setting,

where "ON" is enable valid terminal. Changing

the status of DIP switch doesn't need power off

and power on again.

DIP switch define as follow:

1. Flow control 2. Force 10M (RJ45)

3. Port alarm 4. Reserved

Checking LED Indicator

LED indictor monitors the operating status to

comprehensively simplify the fault solution. The function of

each LED is described in the table as below:

LED

State

Description

PWR1

PWR1 is connected and running

normally

OFF

PWR1 is disconnected and

running abnormally

PWR2

PWR2 is connected and running

normally

OFF

PWR2 is disconnected and

running abnormally

ALM

Port link alarm

OFF

Port link without alarm

RUN

ON/OFF

Device abnormal

Blinking

Device is running well

Link/ACT

Port connection is active

Blinking

Data transmitted

OFF

Port connection is not active

Specification

Panel

100Base-FX

100Base-FX, interface SC/ST/FC

optional

100Base-TX

10/100Base-T(X) self-adapting RJ45

port, half/full duplex self-adapting or

compulsive working mode, support

MDI/MDI-X self-adapting

Console port

Reserved

Alarm

interface

2-core 7.62mm pitch terminal block,

support 1 relay alarm output

Indicator

Power indicator, run indicator, interface

indicator, alarm indicator

Exchange attributes

Backplane

bandwidth

1.6G

Packet buffer

size

1Mbit

MAC table

size

Power supply

Input power

supply

DC power supply series products 12 ~

48VDC

support redundant double power

supply, nonpolarity

Access

terminal

4-core 7.62mm pitch terminal blocks

Consumption

IES318

No-load consumption: 1.3W@48VDC

Full-load consumption: 3.6W@48VDC

IES318-1F

No-load consumption: 3.2W@48VDC

Full-load consumption: 4.5W@48VDC

IES318-2F

No-load consumption: 4.5W@48VDC

Full-load consumption: 8.5W@48VDC

Working environment

Temperature

Working temperature:-40℃～75℃

Storage temperature: -40℃～85℃

Working

humidity

5%～95% (no condensation)

Protection

grade

IP40 (metal shell)
