3M S50/X50 Manuel

S50/X50

Multimedia Projector

Operator's Guide

USING THE MAGNIFY FEATURE ... 21

ACCESSORIES .............................. 39

Page

PROJECTOR FEATURES............... 2

PREPARATIONS ............................. 2

PART NAMES.................................. 4

SETTING UP THE PROJECTOR .... 6

CONNECTING YOUR DEVICES..... 8

USING

THE REMOTE CONTROL ........... 13

TURNING ON THE POWER .......... 14

TURNING OFF THE POWER ........ 16

ADJUSTING THE VOLUME........... 17

TEMPORARILY

MUTING THE SOUND ...................17

ADJUSTING THE POSITION ........ 18

USING THE AUTOMATIC

ADJUSTMENT FEATURE ...........19

CORRECTING

KEYSTONE DISTORTIONS......... 20

Page

FREEZING THE SCREEN ............. 21

SIGNAL SEARCHING ................... 22

SELECTING

THE ASPECT RATIO ..................... 22

TEMPORARILY

BLANKING THE SCREEN .......... 22

USING THE MENU FUNCTIONS .. 23

MULTIFUNCTIONAL

SETTINGS .................................... 24

THE LAMP ..................................... 30

THE AIR FILTER ............................ 32

OTHER CARE ................................ 34

WHAT TO DO

WHEN YOU THINK A MACHINE

DEFECT HAS OCCURRED ......... 35

SPECIFICATIONS .......................... 38

OPERATING THE PC SCREEN .... 29

CONTENTS

Thank you for purchasing this projector.

• The information in this manual is subject to change without notice.

• The manufacturer assumes no responsibility for any errors that may appear in this manual

• The reproduction, transmission or use of this document or contents is not permitted without express

written authority.

TRADEMARK ACKNOWLEDGEMENT :

• PS/2, VGA and XGA are registered trademarks of the International Business Machines Corporation.

• Apple, Mac and ADB are registered trademarks of Apple Computer, Inc.

• VESA and SVGA are trademarks of the Video Electronics Standard Association.

• Windows is a registered trademark of Microsoft Corporation.

• All other trademarks are the property of their respective owners.

NOTE

CP-S317/327W/最終03.5.272:22PMページ1

S50/X50 Multimedia Projector

Operator's Guide

Please read the "Product Safety Guide" and this "Operator's Guide"

thoroughly to ensure correct usage through understanding.

After reading, store this instruction manual in a safe place for future reference.

CAUTION

●

Ultra High Brightness

Crisp, ultra-bright presentations is achieved

by using a UHB (ultra high brightness) lamp

and a highly efficient optical system

●

Partial Magnification Function

Interesting parts of images can be magnified

for closer viewing

●

Keystone Distortion Correction

Quick correction of distorted images electrically

●

Whisper Mode Equipped

Special mode is available for reducing

projector noise to achieve quieter operation

PREPARATIONS Your projector should come with the items

shown below. Check to make sure that all the

items are included. Contact your dealer if

anything is missing.

Projector

Soft case

Power cord

(US Type)

Power cord

(UK Type) Power cord

(Europe Type)

RGB cable

VIDEO

ASPECT

HOME

END

MUTE

PAGE DOWN

KEYSTONEFREEZE

OFF

MENUPOSITION

ENTER

ESC RESET

PAGE UP VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

Remote control

Two AA batteries

(for the remote

control)

Video/Audio Componet Video

PROJECTOR

FEATURES

This liquid crystal projector is used to project

various computer signals as well as NTSC / PAL /

SECAM video signals onto a screen. Little space

is required for installation and large images can

easily be realized.

•Keep the original packing material for future reshipment.

NOTE

CP-S317/327W/最終03.5.272:22PMページ2

Product Safety Guide

Warranty

Quick Start Guide

Operator's Guide

USB mouse

cable

cable cable

(with white lead) (with green lead)

S50/X50

Multimedia Projector

Operator's Guide

S50/X50 Projecteur multimedia - Guide de L' opérateur

S50/X50 Multimedia-Projektor - Benutzerhandbuch

S50/X50 Proyector de Multimedia - Guía del usuario

S50/X50 Proiettore Multimediale - Guida dell' operatore

S50/X50 Multimedia Projector - Gebruiksaanwijzing

S50/X50 Projector dos Multimedia - Guia da operador

S50/X50 Multimedia Projektør- Brukerhåndbok

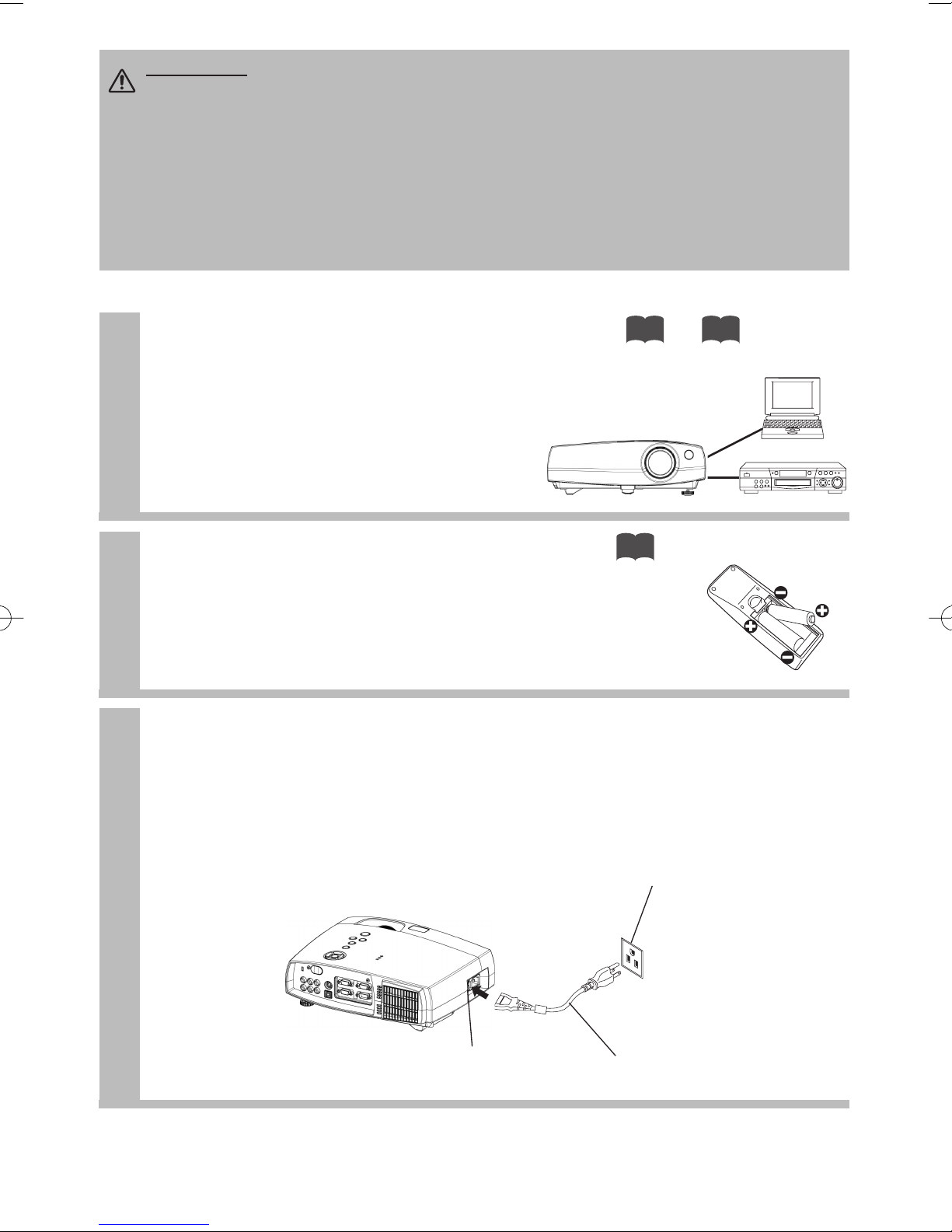

1Connect your devices to the projector

Connect your computer, VCR and/or other

devices you will be using to the projector.

Insert the batteries into the remote

control

3Connect the power cord

(1)

Connect the connector of the electrical power cord to the AC inlet of the main unit.

(2) Firmly plug the power cord's plug into the outlet

WARNING Precautions to observe in regards to the power cord: Please use extra

caution when connecting the projector's power cord as incorrect or faulty

connections may result in FIRE AND/OR ELECTRICAL SHOCK. Please adhere to the

following safety guidelines to insure safe operation of the projector:

•

Only plug the power cord into outlets rated for use with the power cord's specified voltage range.

•Only use the power cord that came with the projector.

•NEVER ATTEMPT TO DEFEAT THE GROUND CONNECTION OF THE THREE-

PRONGED PLUG!

•Make sure that you firmly connect the power cord to the projector and wall outlet.

〜

812

(1) (2)

Power outlet

Power cordAC inlet

CP-S317/327W/最終03.5.272:22PMページ3

PART NAMES THE PROJECTOR

Focus ring

Zoom ring

Air filter

keystone button

video button

reset button

menu button

power indicator

lamp indicator

Indicates the corresponding

reference page

AC power inlet

s-video in port

rgb in 1 port

video in port

usb port

Power switch

cursor buttons

Remote sensor

CP-S317/327W/最終03.5.272:22PMページ4

component video

CR/PRport

CB/PBport

Yport

coontrol port

11 rgb in 2 port

audio in Lport

rgb out port

Elevator button

Terminal panel

rgb button

23 29

,,,

Lens

on/off button

Rear adjuster foot

Speaker

audio in Rport

temp indicator

Elavator foot

THE REMOTE CONTROL

STANDBY/ON button

VIDEO button 15

MENU button

RGB button 15

BLANK button

SEARCH button

VOLUME button

MUTE button

KEYSTONE button

ASPECT button 22

AUTO button

MAGNIFY buttons 21

KEYBOARD buttons

FREEZE button 21

POSITION button 18

ESC button 23

,,,

Cursor buttons 23

RESET button

ENTER button

VIDEO

ASPECT

HOME

END MUTE

PAGE DOWN

KEYSTONEFREEZE

OFF

MENUPOSITION

ENTER

ESC RESET

PAGE UP VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

CP-S317/327W/最終03.5.272:22PMページ5

Adjusting the Projector's Elevator Foot

1Press and hold in the elevator

button

2Raise or lower the projector to the

desired height and then release the

elevator button

When you release the elevator button, the elevator

foot will lock into position.

3As necessary, you can also finely

adjust the left-right slope of the

projector by twisting the rear foot

You can use the elevator foot to make adjustments if the surface on which you

need to set the projector is uneven or if you otherwise need to adjust the angle of

projection. The adjustment range of the elevator foot is 0 to 9 degrees.

CAUTION •

Install the projector in a suitable environment according to instructions

of the "Product Safety Guide" and this "Operator's Guide".

•If you press the elevator button without holding the projector, the projector might

crash down, overturn, smash your fingers and possibly result in malfunction. To

prevent damaging the projector and injuring yourself, ALWAYS HOLD THE

PROJECTOR whenever using the elevator button to adjust the elevator foot.

SETTING UP THE PROJECTOR

CP-S317/327W/最終03.5.272:22PMページ6

Rear Foot Adjuster

adjuster screw by hand

Refer to the illustrations and tables below to determine the screen size and

projection distance.

Adjusting the Screen Size and Projection Distance

Top view

Lens center

The screen

Side view

Top view

Lens center

The screen

Side view

If 4:3 aspect ratio

If 16:9 aspect ratio

The values shown in the table are calculated for a full size screen

(S50: 800x600 pixels/X50: 1024x768 pixels).

a:Distance from the projector to the screen (±10%)

b:Distance from the lens center to the bottom of the screen (±10%)

c:Distance from the lens center to the top of the screen (±10%)

Screen Size [inch (m)] a [inch (m)] b

[inch (cm)]

Min. Max.

30 (0.8) 35 (0.9) 42 (1.1) 1 (2) 17 (44)

40 (1.0) 47 (1.2) 56 (1.4) 1 (3) 23 (58)

50 (1.3) 59 (1.5) 71 (1.8) 1 (4) 29 (73)

60 (1.5) 71 (1.8) 85 (2.2) 2 (4) 34 (87)

70 (1.8) 83 (2.1)

100 (2.5)

2 (5) 40 (102)

80 (2.0) 95 (2.4)

114 (2.9)

2 (6) 46 (116)

90 (2.3)

107 (2.7) 129 (3.3)

3 (7) 51 (131)

100 (2.5)

119 (3.0) 143 (3.6)

3 (7) 57 (145)

120 (3.0)

143 (3.6) 172 (4.4)

3 (9) 69 (174)

150 (3.8)

180 (4.6) 216 (5.5)

4 (11) 86 (218)

200 (5.0)

240 (6.1) 288 (7.3)

6 (15)

114 (290)

250 (6.3)

300 (7.6) 361 (9.2)

7 (18)

143 (363)

300 (7.5)

360 (9.2)

433 (11.0)

9 (22)

171 (435)

Screen Size [inch (m)] a [inch (m)] b

[inch (cm)]

Min. Max.

30 (0.8) 38 (1.0) 46 (1.2) 2 (4) 16 (41)

40 (1.0) 51 (1.3) 61 (1.6) 2 (5) 22 (55)

50 (1.3) 64 (1.6) 77 (2.0) 3 (6) 27 (69)

60 (1.5) 77 (2.0) 93 (2.4) 3 (8) 32 (82)

70 (1.8) 90 (2.3)

109 (2.8)

4 (9) 38 (96)

80 (2.0)

104 (2.6) 125 (3.2)

4 (10) 43 (110)

90 (2.3)

117 (3.0) 140 (3.6)

5 (12) 49 (124)

100 (2.5)

130 (3.3) 156 (4.0)

5 (13) 54 (137)

120 (3.0)

156 (4.0) 188 (4.8)

6 (15) 65 (165)

150 (3.8)

196 (5.0) 235 (6.0)

8 (19) 81 (206)

200 (5.0)

261 (6.6) 314 (8.0)

10 (26)

108 (275)

250 (6.3)

327 (8.3)

393 (10.0)

13 (32)

135 (343)

300 (7.5)

393 (10.0)

472 (12.0)

15 (39)

162 (412)

CP-S317/327W/最終03.5.272:22PMページ7

Display monitors

DVD players

VCRs

Laptop computers

Desktop computers

Indicates the

corresponding

reference page

ATTENTION

Precautions to observe when connecting other devices to the projector

•Whenever attempting to connect other devices to the projector, please thoroughly

read the manual of each device to be connected.

•TURN OFF ALL DEVICES prior to connecting them to the projector. Attempting to

connect a live device to the projector may generate extremely loud noises or other

abnormalities that may result in malfunction and/or damage to the device and/or

projector. Refer to the “TECHNICAL”for the pin assignment of connectors and

RS-232C communication data.

•Make sure that you connect devices to the correct port. Incorrect connection may

result in malfunction and/or damage to the device and/or projector.

•A component cable and some other cables have to be used with core set. Use the

accessory cable or a designated-type cable for the connection. For cables that have

a core only at one end, connect the core to the projector.

•Secure the screws on the connectors and tighten.

CONNECTING YOUR DEVICES

Devices You Can Connect to the Projector

(Refer to this section for planning your device

configuration to use for your presentation.)

CAUTION •Incorrect connecting could result in fire or electrical shock. Please

read the "Product Safety Guide" and this "Operator's Guide".

CP-S317/327W/最終03.5.272:22PMページ8

Ports and Cables

Refer to the table below to find out which projector port and cable to use for connecting a

given device. Use this table for determining which cables to prepare.

About Plug-and-Play Capability

•This projector is compatible with VESA DDC 1/2B. Plug-and-Play can be achieved by

connecting this projector to computers that are VESA DDC (display data channel)

compatible. Please take advantage of this function by connecting the accessory RGB

cable to the rgb in 1port (DDC 1/2B compatible). Plug-and-Play may not work

properly if any other type of connection is attempted.

•Plug-and-Play is a system composed of the computer, its operating system and

peripheral equipment (i.e. display devices).

•Please use the standard drivers as this projector is a Plug-and-Play monitor.

•

Plug-and-Play may not function properly with some type of computers. Use the rgb in 2

port if Plug-and-Play does not function correctly.

NOTE

Function Projector Port Connection Cables

RGB input rgb in 1 Accessory RGB cable or optional RGB

cable with D-sub 15-pin shrink jack and

inch thread screws

rgb in 2

RGB output rgb out

USB mouse control usb Accessory USB cable

PS/2 mouse control

control

Optional PS/2 mouse cable

ADB mouse control Optional ADB mouse cable

Serial mouse control Optional serial mouse cable

RS-232C communication Optional RS-232C cable

S-video input s-video in Optional S-video cable with mini DIN 4-pin

jack

Video input video in Accessory audio/video cable

Component video input

component video Y

Optional component video cablecomponent video CB/PB

component video CR/PR

Audio input audio in L Accessory audio/video cable or optional

audio cable with RCA jack

audio in R

CP-S317/327W/最終03.5.272:22PMページ9

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels 3M Projecteur

3M Multimedia Projector MP8630 Manuel utilisateur

3M Multimedia Projector S55i Manuel utilisateur

3M Multimedia Projector S15 Manuel utilisateur

3M Multimedia Projector S15 Manuel

3M 9800 Manuel utilisateur

3M Multimedia Projector S15 Manuel d'utilisation

3M MP410 Manuel utilisateur

3M 9050 Guide de configuration

3M Digital Projector X75 Manuel

3M MP220 Manuel d'installation et d'exploitation

3M Multimedia Projector S20 Manuel d'installation et d'exploitation

3M X64W - Digital Projector XGA LCD Manuel utilisateur

3M X36 Manuel

3M Digital Projector X30N Manuel

3M X64W - Digital Projector XGA LCD Manuel d'installation et d'exploitation

3M Multimedia Projector MP7650/MP7750 Manuel

3M X95I - Digital Projector XGA LCD Manuel utilisateur

3M X64W - Digital Projector XGA LCD Manuel

3M Multimedia Projector MP7760 Manuel

3M Multimedia Projector MP8030 Manuel

3M Multimedia Projector MP8730 Manuel

3M Digital Media Systems 800 Series Manuel d'installation et d'exploitation

3M X21i Manuel

3M Digital Projector X64 Manuel

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
