3M S15I - Digital Projector SVGA LCD Manuel

S15i

Multimedia Projector

Operator's Guide

Thank you for purchasing this projector.

WARNING ŹBefore using, read the "Product Safety Guide" and these

manuals to ensure correct usage through understanding. After reading, store

them in a safe place for future reference.

About this manual

Various symbols are used in this manual. The meanings of these symbols are

described below.

WARNING This symbol indicates information that, if ignored, could possibly

result in personal injury or even death due to incorrect handling.

CAUTION This symbol indicates information that, if ignored, could result

possibly in personal injury or physical damage due to incorrect

handling.

Please refer to the pages written following this symbol.

NOTE • The information in this manual is subject to change without notice.

• The manufacturer assumes no responsibility for any errors that may appear in this manual.

• The reproduction, transmission or use of this document or contents is not permitted without

express written authority.

Trademark acknowledgment

• VGA and XGA are registered trademarks of the International Business Machines

Corporation.

• Apple and Mac are registered trademarks of Apple Computer, Inc.

• VESA and SVGA are trademarks of the Video Electronics Standard Association.

• Windows is a registered trademark of Microsoft Corporation.

• Internet Explorer is a trademark of Microsoft Corporation.

All other trademarks are the property of their respective owners.

About this manual.......... 1

Contents . ................ 2

Projector features.......... 3

About contents of package . . 3

Part names . .............. 4

Projector . .....................4

Controls .......................5

Remote control . ................5

Preparations .............. 6

Fastening the lens cover ..........6

Putting batteries . ...............7

Using the remote control ..........8

$ERXWWKH¿OWHUFRYHUIRUERWWRPXSXVH

....9

Setting up . .............. 10

Arrangement . .................11

Adjusting the projector's elevator

....12

Connecting your devices .........13

Connecting power supply . .......15

Power on/off . ............ 16

Turning on the power............16

Turning off the power............17

Operating . .............. 18

Adjusting the volume ............18

Temporarily muting the sound .....18

Selecting an input signal .........18

Searching an input signal . .......19

Selecting an aspect ratio .........19

Adjusting the zoom (magnifying

power) .......................19

Adjusting the focus . ............19

Using the automatic adjustment

feature .......................20

Adjusting the position . ..........20

Correcting the keystone distortions

....20

Using the partial magnify feature

....21

Freezing the screen.............21

Temporarily blanking the screen

....21

Multifunctional settings . . . . 22

Using the menu function .........22

Contents

EASY MENU ..................25

Aspect, Zoom, Keystone, Mode,

Bright, Contrast, Color, Tint,

Sharpness, Whisper, Mirror, Reset,

Filter time, Language,

Go to advanced menu

PICTURE menu................27

Bright, Contrast, Gamma, Color temp,

Color, Tint, Sharpness, Progressive,

My memory

IMAGE menu..................30

Aspect, Over scan, V. position,

H. position, H. phase, H. size,

Auto adjust execute

INPUT menu . .................32

Color space, Video format, Frame lock,

Information

SETUP menu..................34

Zoom, Keystone, Whisper, Mirror,

Volume

SCREEN menu ................35

Language, Menu position, OSD bright,

Blank, Start up, MyScreen,

MyScreen lock, Message

OPTION menu.................38

Auto search, Auto off, Lamp time,

Filter time, Service

Maintenance ............. 41

Lamp........................41

$LU¿OWHr ......................43

Other care ....................45

Troubleshooting . ......... 46

Related messages..............46

Regarding the indicator lamps.....48

Phenomena that may easily be

mistaken for machine defects . ....50

6SHFLÀFDWLRQs............ 52

Technical(English only)

(Please see the end of this book,

although in English.)

 

Projector features / About contents of package

Projector features

This projector is used to project various computer signals as well as NTSC / PAL

/ SECAM video signals onto a screen. It requires just a little space for installation

and gets a large image from short distance.

High Brightness

Newly developed 165W UHB (Ultra High Brightness) lamp gives you a higher

brightness image on a screen. The image can be still kept as bright and clean

enough for use in bright rooms.

Low Noise

WHISPER mode is equipped for reducing acoustic noise to realize quieter

operation. It is perfect for use in low luminance rooms where low noise is more

important than brightness.

Compact Body

Even with its many features, this projector is extremely compact and slim,

ZKLFKJLYHV\RXPRUHÀH[LELOLW\DQGXVDELOLW\WRXVHLWZKHUH\RXZDQW

About contents of package

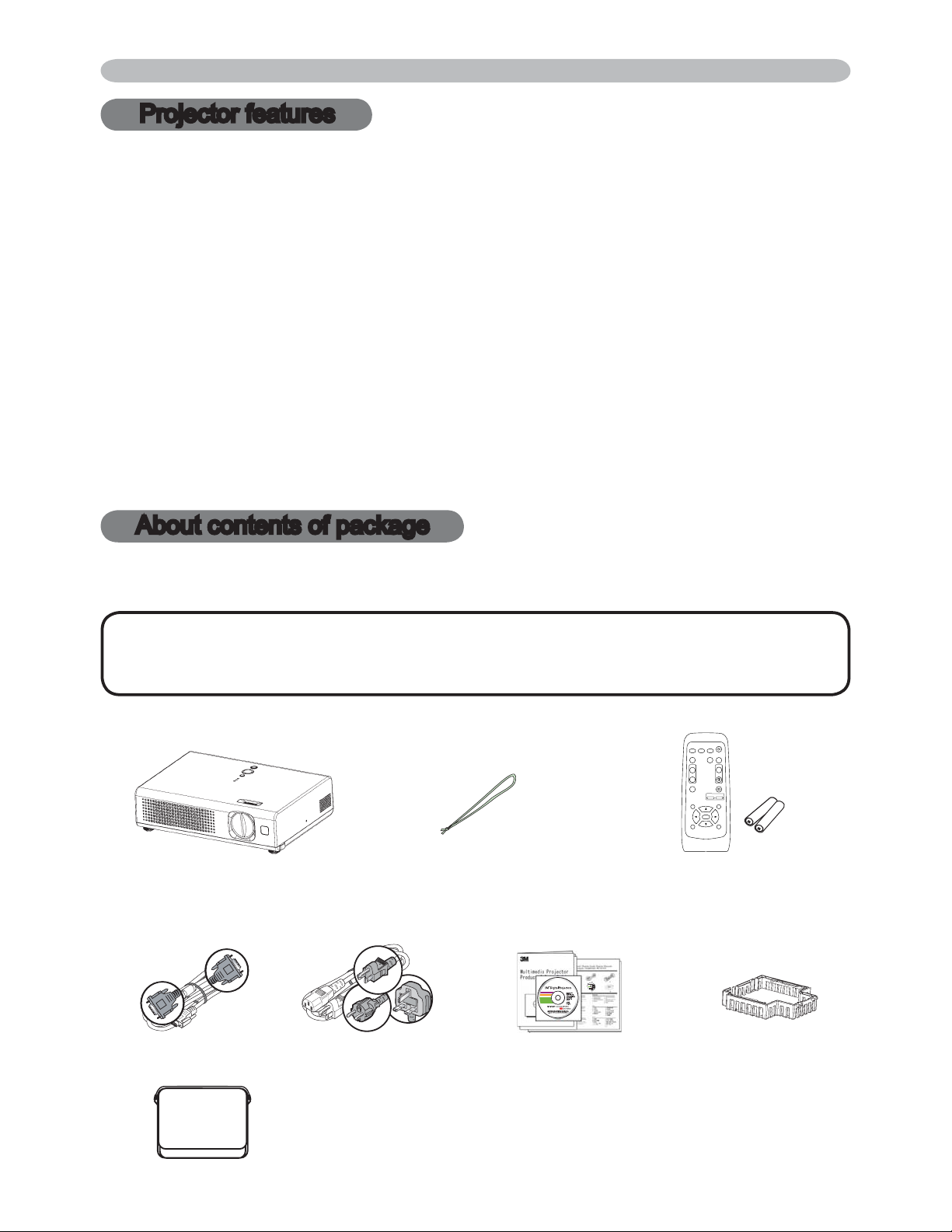

Your projector should come with the items shown below. Contact immediately your

dealer if anything is missing.

NOTE • Keep the original packing materials for future reshipment. For

moving the projector, be sure to use the original packing material. Use special

caution for the lens part.

Power cord

(US, UK, EUROPE)

Filter cover

IRUERWWRPXSXVH

VGA cable

Operator's Guide

Product SafetyGuide

Quick Start Guide

Warranty

S15i

Strap

(for Lens cover)

Projector

(with Lens cover)

Remote control

(with two AA batteries)

VIDEO RGB SEARCH

FREEZE

OFF

MAGNIFY

ASPECT

STANDBY/ON

AUTO BLANK

MUTE

VOLUME

KEYSTONE

POSITION

ESC

ENTER

RESET

ZOOM

Soft case

Part names

Lens (16, 45)

Lens cover (6, 16)

Filter cover (9, 10, 43)

$LU¿OWHUDQGLQWDNHYHQW

are inside.)

Elevator button (12)

Elevator foot (12)

Remote sensor (8)

Focus ring (19)

Vent (10)

AC inlet (15)

Power switch (16, 17)

Elevator button (12)

69,'(2SRUW

(14)

VIDEO port (14)

CONTROL port (14)

Part names

Projector

Lamp door (42)

(Lamp unit is inside.)

Elevator foot (12)

Bottom side

Speaker

)URQW5LJKWVLGH

5HDU/HIWVLGH

Control buttons (5)

Ports

(See below.)

Vent (10)

Ports

AUDIO port (14)

Restart switch (50)

RGB port (14)

Kensington lock slot

NOTE (*) About Restart switch: This projector is controlled by an internal

microprocessor. Under certain exceptional circumstances, the projector may not

operate correctly and the microprocessor will need to be reset. In such a case,

please push the Restart switch by using a cocktail stick or similar, and before

turning on again, make the projector cool down at least 10 minutes without

operating. Only push the Restart switch in these exceptional instances.

S-VIDEO VIDEO AUDIO

RGB

CONTROL

Part names

LAMP indicator (48)

TEMP indicator (48)

POWER indicator (16, 17, 48)

INPUT button (18)

Cursor buttons

ŸźŻŹ18~40)

STANDBY/ON button (16, 17)

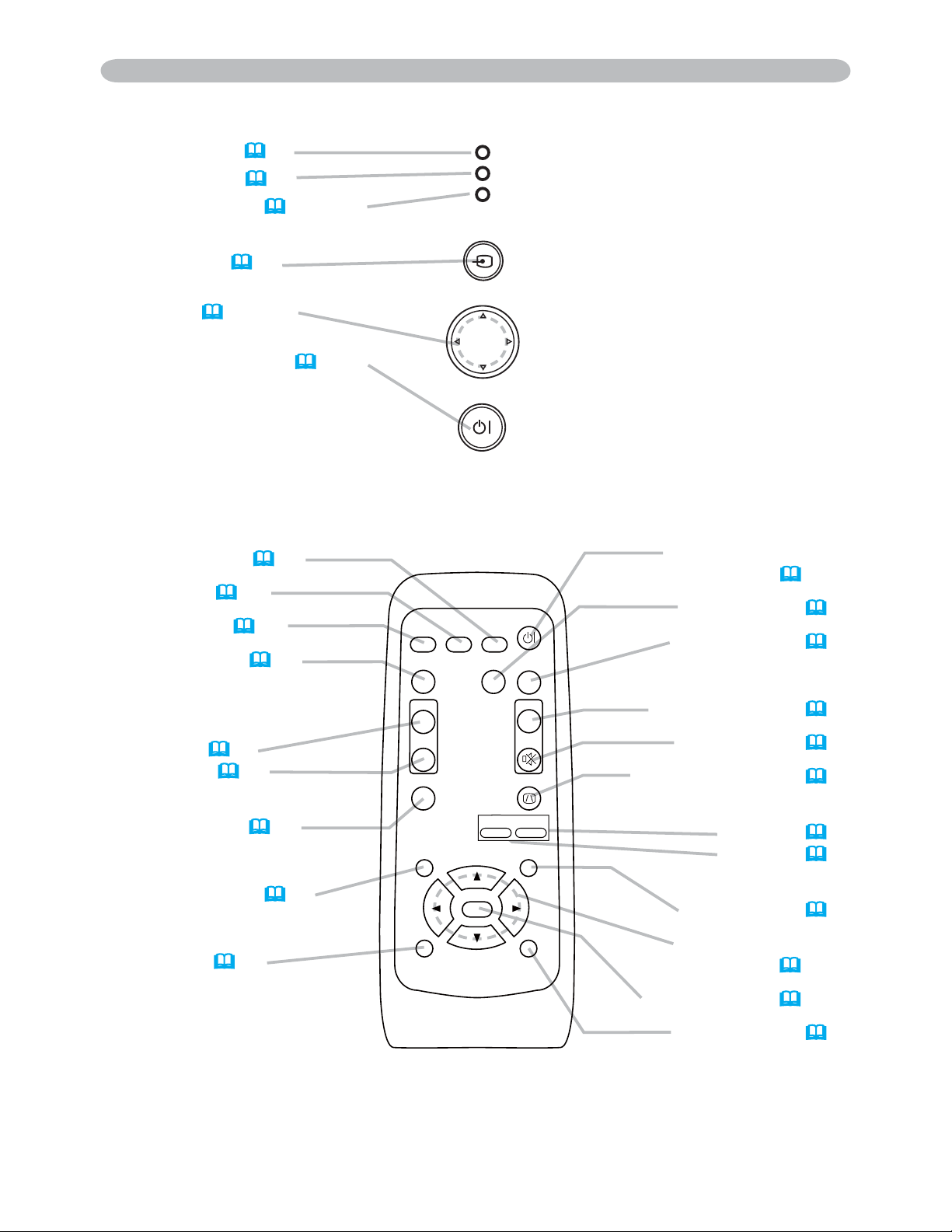

Controls

Remote control

SEARCH button (19)

RGB button (18)

VIDEO button (18)

ASPECT button (19)

MAGNIFY

ON button (21)

OFF button (21)

FREEZE button (21)

POSITION button (20)

ESC button (24)

STANDBY/ON button

(16, 17)

AUTO button (20)

BLANK button (21)

VOLUME button (18)

MUTE button (18)

KEYSTONE button (20)

Zoom

+ button (19)

EXWWRQ19)

MENU button (22)

Menu cursor buttons

ŸźŻŹ18~40)

ENTER button (18~40)

RESET button (24)

VIDEO RGB SEARCH

FREEZE

OFF

MAGNIFY

ASPECT

STANDBY/ON

AUTO BLANK

MUTE

VOLUME

KEYSTONE

POSITION

ESC

ENTER

RESET

ZOOM

STANDBY/ON

INPUT

LAMP

TEMP

POWER

Preparations

Fastening the lens cover

WARNING ŹDo not fasten the lens cover during use or immediately after

use. Handling while the projector is in a high temperature could cause a burn

and/or malfunction to the projector. Before operating, make sure that the power

switch is off, that the power cord is not plugged in, and that the projector is cool

adequately.

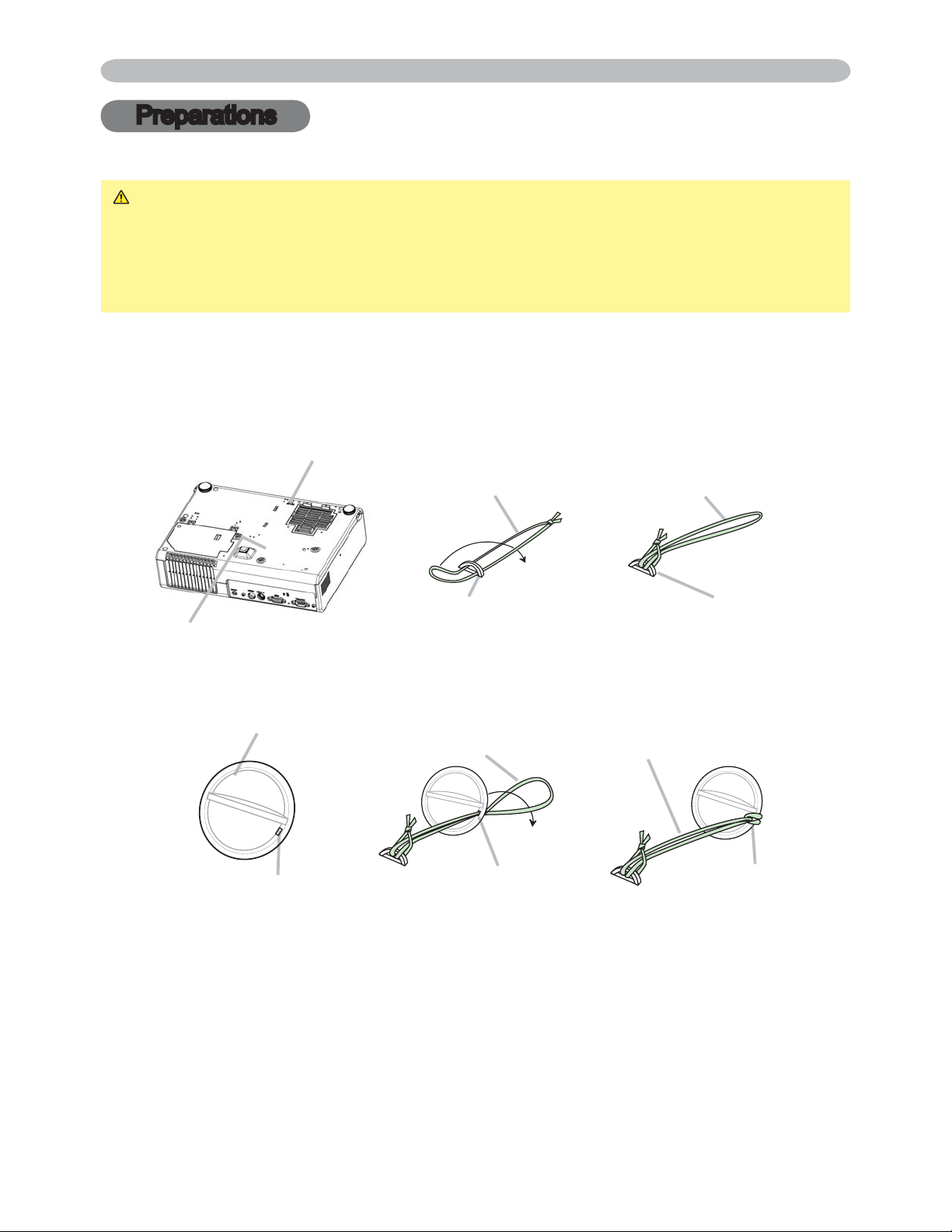

To avoid losing, please fasten the lens cover to the projector using the strap.

1. Slowly turn over the projector, so that the bottom is facing up.

2. Fix the strap to the strap ring of projector.

3. Fix the strap to the strap ring of lens cover.

4. Attach the lens cover to the lens of projector, and slowly turn over the

projector, so that the top is facing up.

Preparations

Strap ring

Projector (Bottom side)

Strap

Strap ring

Strap

Strap ring

(1)

Lens cover

Strap

Strap ring

Strap

Strap ring

(2)

(1) (2)

Preparations

Putting batteries

WARNING ŹAlways handle the batteries with care and use them only as

directed. Improper use may result in battery explosion, cracking or leakage,

ZKLFKFRXOGUHVXOWLQ¿UHLQMXU\DQGRUSROOXWLRQRIWKHVXUURXQGLQJHQYLURQPHQW

%HVXUHWRXVHRQO\WKHEDWWHULHVVSHFL¿HG'RQRWXVHEDWWHULHVRIGLIIHUHQW

types at the same time. Do not mix a new battery with used one.

• Make sure the plus and minus terminals are correctly aligned when loading a

battery.

• Keep a battery away from children and pets.

• Do not recharge, short circuit, solder or disassemble a battery.

'RQRWDOORZDEDWWHU\LQD¿UHRUZDWHU.HHSEDWWHULHVLQDGDUNFRRODQGGU\

place.

• Do not give the battery a physical impact.

,I\RXREVHUYHDOHDNDJHRIDEDWWHU\ZLSHRXWWKHÀRZHUDQGWKHQUHSODFH

DEDWWHU\,IWKHÀRZHUDGKHUHV\RXUERG\RUFORWKHVULQVHZHOOZLWKZDWHU

immediately.

• Obey the local laws on disposing a battery.

To use the remote control, please load the batteries. Whenever the remote control

starts to malfunction, replace the batteries. If you won’t use the remote control for

an extended period, remove the batteries from the remote control and store them

in a safe place.

1. Remove the battery cover.

Slide back and remove the battery cover in the direction of the arrow.

2. Take old batteries out and/or put new batteries in.

When putting in batteries, align and insert the two AA batteries according to

their plus and minus terminals as indicated in the remote control.

3. Close the battery cover.

Replace the battery cover in the direction of the arrow and snap it back into

place.

Preparations

Using the remote control

CAUTION ŹBe careful in handling the remote control. Incorrect handling

could cause damage or malfunction.

• Do not drop or otherwise expose the remote control to physical impact.

• Do not get the remote control wet or place it on wet objects.

• Remove the batteries from the remote control and store them in a safe place if

you won’t be using the remote control for an extended period.

• Replace the batteries whenever the remote control starts to malfunction.

• When strong lights such as direct sunlight or light from an extremely close

UDQJHVXFKDVIURPDQLQYHUWHUÀXRUHVFHQWODPSKLWWKHSURMHFWRU¶VUHPRWH

sensor, the remote control may not function correctly. Adjust the direction of the

projector to keep light from directly hitting the projector’s remote sensor.

The remote control works with the projector’s remote sensor.

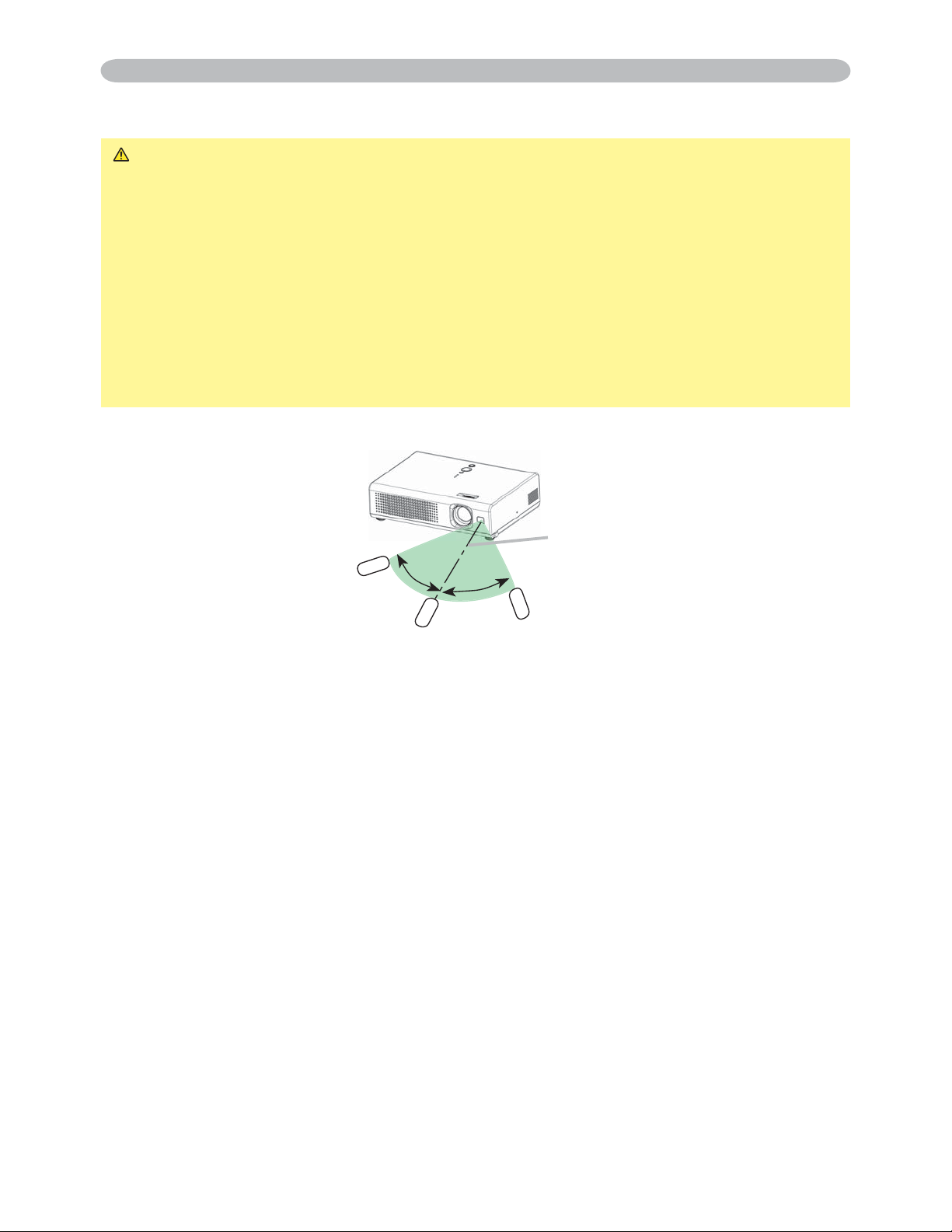

• The range of the remote sensor is 3 meters with a 60 degree range (30 degrees

to the left and right of the remote sensor).

$OVRDUHPRWHVLJQDOUHÀHFWHGLQWKHVFUHHQHWFPD\EHDYDLODEOH,ILWLVGLI¿FXOW

to send a remote signal to the sensor directly, please try.

• Since the remote control uses infrared light to send signals to the projector

(Class1 LED), be sure to use the remote control in an area free from obstacles

that could block the remote control’s output signal to the projector.

approx. 3 meters

30º

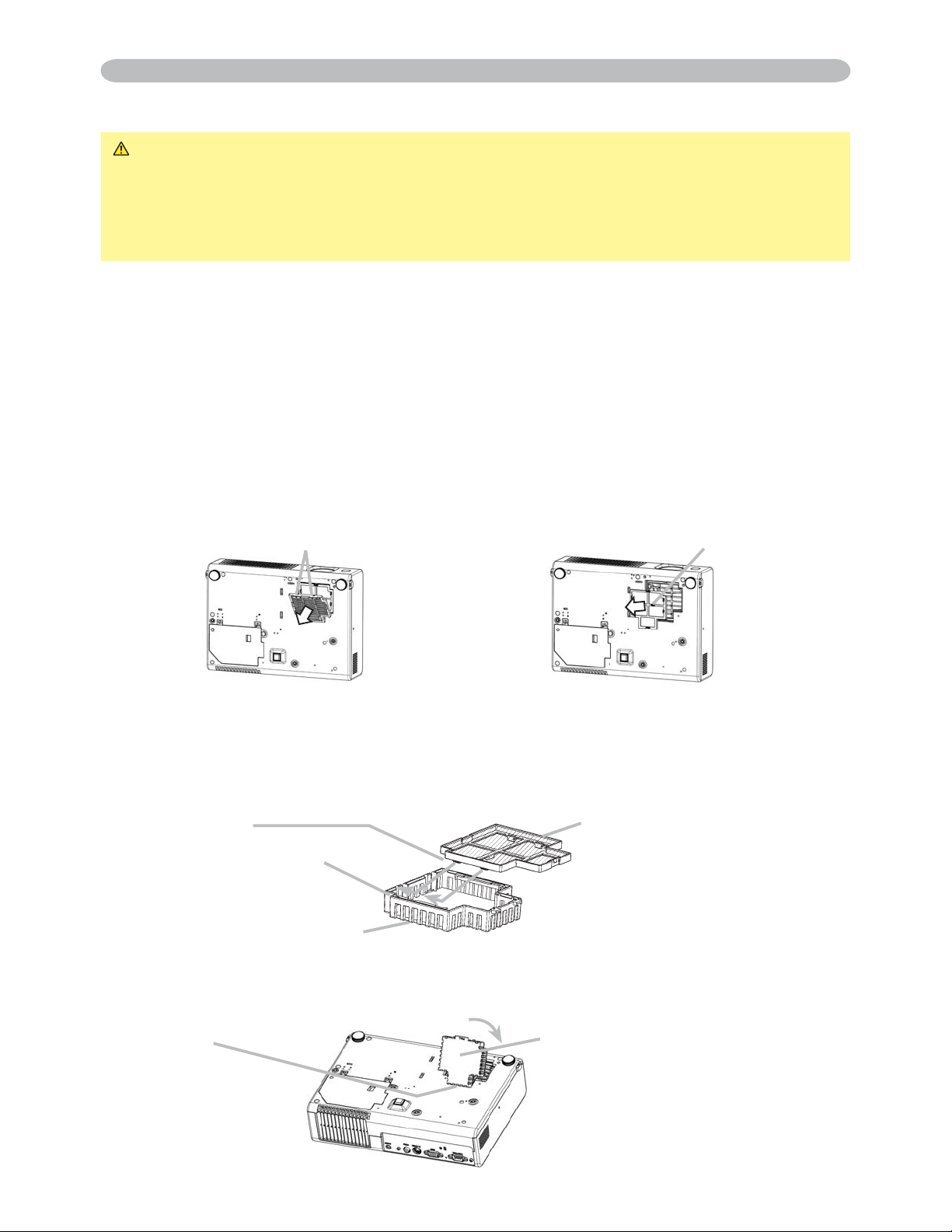

Preparations

$ERXWWKHÀOWHUFRYHUIRUERWWRPXSXVH

WARNING Ź'RQRWUHSODFHWKH¿OWHUFRYHUDQGRUDLU¿OWHUGXULQJXVHRU

immediately after use. Handling while the projector is in a high temperature

could cause a burn and/or malfunction to the projector. Before operating, make

sure that the power switch is off, that the power cord is not plugged in, and that

the projector is cool adequately.

:KHQWKHSURMHFWRULVLQVWDOOHGERWWRPXSSOHDVHXVHWKHDFFHVVRU\¿OWHUFRYHU

IRUERWWRPXSXVH,WLVKLJKHUWKDQXVXDO¿OWHUFRYHUWRNHHSWKHVSDFHIRULQWDNH

ventilation. Please change in the following procedure.

1. Disconnect all the connectors and adapters that were connected to the

SURMHFWRU¶VSRUWV7KHQVORZO\WXUQWKHSURMHFWRUVRWKDWWKHOHQVVLGHLVIDFLQJ

up. Please be careful for a projector not to fall. While the projector is placed

OHQVVLGHXSKROGWKHSURMHFWRU

2. 5HPRYHWKH¿OWHUFRYHUDQGWKHDLU¿OWHU+ROGWKHNQREVZKLOHSXOOLQJRXWLW

3. Slowly turn the projector so that the bottom is facing up.

4. 6HWDQHZRUFOHDQHGDLU¿OWHUWRWKH¿OWHUFRYHUIRUERWWRPXSXVH0DNHWKH

FODZVVOLGHDORQJWKHUDLODQGVHWWKHDLU¿OWHULQWRSODFH

5. ,QWHUORFNLQJWKHWDEVVQDSWKH¿OWHUFRYHUIRUERWWRPXSXVHLQWRSODFH

$LU¿OWHU¶VNQRE

Claws

Filter cover’s knob

5DLORIDLU¿OWHU

)LOWHUFRYHUIRUERWWRPXSXVH

$LU¿OWHU1HZRUFOHDQHG

)LOWHUFRYHUIRUERWWRPXSXVH

ZLWKDQDLU¿OWHU

Tabs

Setting up

WARNING ŹPlace the projector in a stable position horizontally. A fall or

a turnover could cause an injury and/or damage to the projector. Then using

GDPDJHGSURMHFWRUFRXOGUHVXOWLQD¿UHDQGRUDQHOHFWULFVKRFN

• Don’t place the projector on an unstable, slant or vibrant surface such as a

wobbly or inclined stand.

'RQRWSODFHWKHSURMHFWRULQWKHVLGHIURQWUHDUXSSRVLWLRQH[FHSWFDUHRIWKH

DLU¿OWHU

)RUWKHSURMHFWRULQVWDOOHGERWWRPXSXVHWKHDFFHVVRU\¿OWHUFRYHUIRUERWWRP

up use. And in the case of a ceiling installation or the like, contact your dealer

before installation.

Ź3ODFHWKHSURMHFWLRQLQDFRROSODFHDQGSD\DWWHQWLRQHQRXJKWRYHQWLODWLRQ

7KHKLJKWHPSHUDWXUHRIWKHSURMHFWRUFRXOGFDXVHD¿UHDEXUQDQGRU

malfunction to the projector.

• Don’t stop up, block and cover the projector's vents.

• Keep a space of 30 cm or more between the sides and other objects such as

walls.

• Don’t place the projector on a metallic thing or anything weak in heat.

• Don’t place the projector on a carpet, cushion or bedding.

• Don’t place the projector in direct sunlight or near a hot object such as heater.

• Put nothing about lens and vents of the projector. Put nothing on the projector.

• Put nothing that is sucked or sticks to the bottom of projector. This projector

has some intake vents also on the bottom.

Ź'RQRWSODFHWKHSURMHFWRURQWKHSODFHWKDWJHWVZHW'DPSLQJWKHSURMHFWRU

RULQVHUWLQJOLTXLGLQWKHSURMHFWRUFRXOGFDXVHD¿UHDQHOHFWULFVKRFNDQGRU

malfunction to the projector.

• Don’t place the projector in a bathroom or the outdoors.

• Put nothing containing the liquid near the projector.

CAUTION Ź$YRLGDVPRN\KXPLGRUGXVW\SODFH3ODFLQJWKHSURMHFWRU

LQVXFKSODFHFRXOGFDXVHD¿UHDQHOHFWULFVKRFNDQGRUPDOIXQFWLRQWRWKH

projector.

•'RQ¶WSODFHWKHSURMHFWRUQHDUDKXPLGL¿HUDVPRNLQJVSDFHRUDNLWFKHQ

• Put nothing containing the liquid near the projector.

Ź$GMXVWWKHGLUHFWLRQRIWKHSURMHFWRUWRNHHSOLJKWIURPGLUHFWO\KLWWLQJWKH

projector's remote sensor.

Autres manuels pour S15I - Digital Projector SVGA LCD

Table des matières

Autres manuels 3M Projecteur

3M MP225a Guide de configuration

3M Digital Projector WX66 Manuel

3M 1881 Plus Manuel utilisateur

3M SCP712 - Super Close Projection System XGA DLP... Manuel utilisateur

3M WX20 - Digital Projector WXGA LCD Manuel utilisateur

3M Overhead Projector 1600 Series Manuel utilisateur

3M X76 - Digital Projector XGA LCD Manuel utilisateur

3M X70/X80 Manuel

3M 900 Series Guide de configuration

3M Personal Projector MP7720 Manuel utilisateur

3M SCP725 Manuel

3M X90 Manuel de la liste des pièces

3M Liquid Crystal Projector MP8775 Manuel utilisateur

3M X95I - Digital Projector XGA LCD Manuel d'installation et d'exploitation

3M 9800 Guide de configuration

3M Digital Projector WX66 Manuel d'utilisation

3M X56 Manuel

3M X21i Manuel utilisateur

3M Multimedia Projector MP8795 Manuel

3M Overhead Projector 1700 Manuel utilisateur

3M 1895 Plus Manuel utilisateur

3M X76 - Digital Projector XGA LCD Manuel

3M MP8670l Manuel utilisateur

3M X66 - Digital Projector XGA LCD Manuel d'utilisation

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
