3M 9800 Manuel utilisateur

Rétroprojecteur

ManualOpérateur

Tageslichtprojektor

Bedienungsanleitung

Retroproyector

Manualdeloperador

LavagnaLuminosa

Manualed’Uso

OverheadProsjektør

Bruksanvisning

Overheadprojector

Handleiding

Retroprojector

Manualdo usuário

Overhead Projector

Operating Instructions

9800

Go to

Main Menu Go to Operator Guide

Table of Contents

Thank

GB Thank you for choosing 3M overhead projection equipment. This product has been produced in

accordance with 3M’s highest quality and safety standards to ensure a smooth and troublefree use in the

years to come. Your purchase of this product proves that you appreciate this.

For optimum performance we kindly ask you to follow these operating instructions carefully. We hope you

will enjoy using this high performance product in your meeting, training and presentation sessions.

FNous vous remercions de votre décision d’avoir choisi un retroprojecteur 3M. Ce produit offre toutes les

garanties de qualité et sécurité.

Veuillez observer soigneusement manuel d’opération suivant pour que vous puissiez utiliser i’appareil de

façon optimale. Nous espérons que ce produit à haute performance vous fera donnera satisfaction.

DVielen Dank, daβSie sich für einen 3M Tageslichtprojektor entschieden haben. Dieses Produkt erfüllt die

höchsten Ansprüche an Qualität und Sicherheit und gewährleistet eine problemlose und störungsfreie

Bedienung für viele Jahre.

Bitte beachten Sie die folgende Bedienungsanleitung sorgfältig, damit Sie das Gerät optimal einsetzen

können. Wir hoffen, daβSie bei der Arbeit mit diesem 3M Tageslichtprojektor viel Freude haben werden

und wünschen Ihnen viele erfolgreiche Präsentationen.

EGracias por escoger este equipo de retroproyección 3M. Este producto ha sido construído según los

estándares más altos de calidad y seguridad 3M, para así asegurar su funcionaniemto libre de problemas

durante los siguientes años.

Con la compra de este producto Ud. ha demostrado que aprecia esto. Para un rendimiento óptimo le

recomendamos seguir las instrucciones detalladas en el manual del operador. Esperamos que disfrute al

usar este producto de alto rendimiento en sus reuniónes, cursillos y demostraciones.

IVi ringraziamo di aver scelto una lavagna luminosa della 3M. Questo apparecchio è stato prodotto in

conformità alle norme di qualità e sicurezza per assicurarvi negli anni futuri l’utilizzo senza difficoltà o

problemi. Con l’acquisto di tale prodotto avete mostrato di apprezzare la qualità.

Per un rendimento ottimale Vi preghiamo di leggere accuratamente le seguenti istruzioni.

Speriamo che l’utilizzo di un prodotto di un così elevato rendimento sia di Vostro gradimento durante le

Vostro riunioni di conferenza, di addestramento e di presentazione.

NVi takker for at du har bestemt deg for en overhead projektor fra 3M. Dette produktet oppfyller de høyeste

krav til kvalitet og sikkerhet og garanterer problemløs og feilfri betjening i mange âr.

Vennligst følg vedlagte bruksveiledning onhyggelig, slik at du kan utnytte apparatet optimalt. Vi vil gjerne at

du har mye glede av dette kvalitetsproduktet.

NL Wij danken u voor de aanschaf van 3M overheadprojectie-apparatuur. Dit produkt is vervaardigd conform

de strengste kwaliteits-en veiligheidsnormen van 3M, zodat u gedurende vele jaren verzekerd bent van

een soepel en storingvrij gebruik. Uw keuze voor 3M geeft aan dat u dit op prijs stelt.

Voor optimale prestaties verzoeken wij u de instructies in deze gebruiksaanwijzing zorgvuldig op te volgen.

Wij hopen dat dit kwaliteitsprodukt u uitstekend van dienst zal zijn tijdens vergaderingen, trainingen en

presentaties.

PAgradecemos a escolha dum retroprojector 3M. Este produto foi concebido segundo os mais altos

padrões de qualidade e segurança 3M. A fim de lhe assegurar um funcionamento sem problemas durante

os próximos anos.

Para obter um melhor rendimento do aparelho recomendamos a leitura deste manual. Esperamos que

este produto de elevado rendimento seja do seu agrado e lhe proporcione prazer nas suas reuniõnes,

cursos e demonstrações.

Go to

Main Menu Go to Operator Guide

Table of Contents

Projector to Screen Distance

Projector to screen distance - Liste de distances projecteur/écran de projection -

Entfernungstabelle Projektor/Projektionswand - Escala de distancia

proyector/superficie de proyección - Tabella delle distanze proiettore/schermo di

proiezione - Avstandstabell eyskastor/projeksjonregg - Afstandstabell

projector/projectieviak - Tabela de diståncias projector/pantalha de projecão

127 cm

152 cm

177 cm

213 cm

243 cm

50Ix 50I60Ix 60I70Ix 70I84Ix 84I96Ix 96I

9800 EVD

FL = 342 mm

13.5

187 cm

(74I)217 cm

(86I)248 cm

(98I)291 cm

(114I)327 cm

(129I)

9800 EVD

FL = 342 mm

x50Ix60Ix70Ix84Ix96I

342

13.5

Ix = 21.3 cm

(8.4I)239 cm

(94I)279 cm

(110I)320 cm

(126I)377 cm

(148I)426 cm

(168I)

x = 24.1 cm

(9.5I)215 cm

(85I)251 cm

(99I)287 cm

(113I)338 cm

(133I)381 cm

(150I)

x = 26.4 cm

(10.4I)199 cm

(78I)232 cm

(91I)265 cm

(104I)311 cm

(122I)351 cm

(138I)

9800 EVD

FL = 292 mm

1.5

x = 21.3 cm

(8.4I)203 cm

(80I)238 cm

(94I)273 cm

(107I)321 cm

(126I)363 cm

(143I)

x = 24.1 cm

(9.5I)183 cm

(72I)214 cm

(84I)244 cm

(96I)288 cm

(113I)324 cm

(128I)

x = 26.4 cm

(10.4I)170 cm

(67I)198 cm

(78I)226 cm

(89I)266 cm

(104I)299 cm

(118I)

ENGLISH

Go to

Main Menu Go to Operator Guide

Table of Contents

3M 9800 Operator’s Guide

GB IMPORTANT SAFEGUARDS

When using your overhead projection equipment,

basic safety precautions should always be

followed, including the following:

1. Read and understand all instructions

before using. Pay particular attention to

areas where this symbol !is shown.

2. Close supervision is necessary when any

appliance is used by or near children. Do not

leave appliance unattended while in use.

!3. Care must be taken as burns can occur from

touching hot parts.

4. Do not operate appliance with a damaged

cord or if the appliance has been dropped or

damaged until it has been examined by a

qualified serviceman.

!5. Position the cord so that it will not be tripped

over, pulled, or contact hot surfaces.

6. If an extension cord is necessary, a cord with

a current rating at least equal to that of the

appliance should be used. Cords rated for

less amperage than the appliance may

overheat.

7. Always unplug appliance from electrical outlet

before cleaning and servicing and when not in

use. Never yank cord to pull plug from outlet.

Grasp plug and pull to disconnect.

!8. Let appliance cool completely before putting

away or when replacing lamp.

9. To reduce the risk of electric shock, do not

immerse this appliance in water or other

liquids.

10. To reduce the risk of electric shock, do not

disassemble this appliance, but take it to a

qualified technician when service or repair

work is required. Incorrect reassembling can

cause electric shock when the appliance is

used subsequently.

11. The use of an accessory attachment not

recommended by the manufacturer may

cause a risk of fire, electric shock, or injury to

persons.

12. Do not overload accessory circuit.

13. Connect this appliance to a grounded outlet.

14. Disconnect this unit from its source of supply

before replacing the projection lamp.

!15. This unit is equipped with optical lenses and

should not be exposed to direct sunlight.

16. Keep ventilation openings free of any

obstructions.

17. This unit is connected by a special cable that,

if it is damaged, has to be replaced by the

same type of cable. This cable can be

ordered from your local 3M dealer and has to

be installed by a qualified serviceman.

SAVE THESE INSTRUCTIONS

The information contained in this manual will help

you operate and maintain your Overhead

Projector.

ENGLISH

Go to

Main Menu Go to Operator Guide

Table of Contents

53M 9800 Operator’s Guide

Product Description and Machine Characteristics

The 3MtOverhead Projector 9800 is designed to be

safe, efficient and easy to use. It features an open head,

triplet projection lens with 1.3X magnifier, high output

lamp, lamp changer, lamp brightness control, external

colour tuning adjustment, unswitched power outlets for

accessories, and lamp interrupt switches to prevent

damage.

Refer to the illustration below to identify the external

machine characteristics for the 9800.

16 15

20a

20c

20b

Part Identification List

1. Open Projection Head

2. Projection Mirror

3. Triplet Projection Lens

4. 1.3X Magnifier Lens

5. Arm

6. Focus Knob

7. Post

8. Post Latch

9. Post Cradle

10. Carrying Handle

11. Accessory Outlets (design varies by country)

12. Cord Wrap

13. Circuit Breaker (5 amps)

14. Power Cord

15. Stage Glass

16. Top Cover

17. Top Cover Release Latch (with interlock)

18. Colour Tuning Adjustment (left side of machine)

19. Internal Voltage Switch (raise top cover to access)

20. Control Panel Door (with lamp interrupt switch)

a. Lamp Changer Dial

b. High/Low Lamp Brightness Switch

c. Lamp “Burned Out” or “Missing” Indicator

21. Pencil Holder

22. On/Off Power Switch

23. Machine Identification Plate

24. Internal Lamp Voltage Protector (raise top cover to

access)

ENGLISH

Go to

Main Menu Go to Operator Guide

Table of Contents

63M 9800 Operator’s Guide

Set Up Projector

1. Raise the post (1) until it locks into place.

2. Plug in power cord (2) and depress on/off power

switch.

3. Raise projection mirror (3) to screen elevation.

4. Rotate focus knob (4) for sharpest image.

5. Rotate colour tuning knob for colour-free image.

See Colour Tuning for details.

Fold Down Projector

1. Unplug power cord (1) and coil onto cord wrap (2).

2. Rotate 1.3X magnifier lens (3) under projector lens.

3. Rotate focus knob (4) clockwise to raise projection

head to maximum position.

4. Release post latch (5) and lower post until it locks

in the post cradle.

5. Rotate focus knob (6) anticlockwise to lower head

until it stops.

6. To move projector, lift from bottom or use the

carrying handle.

ENGLISH

Go to

Main Menu Go to Operator Guide

Table of Contents

3M 9800 Operator’s Guide

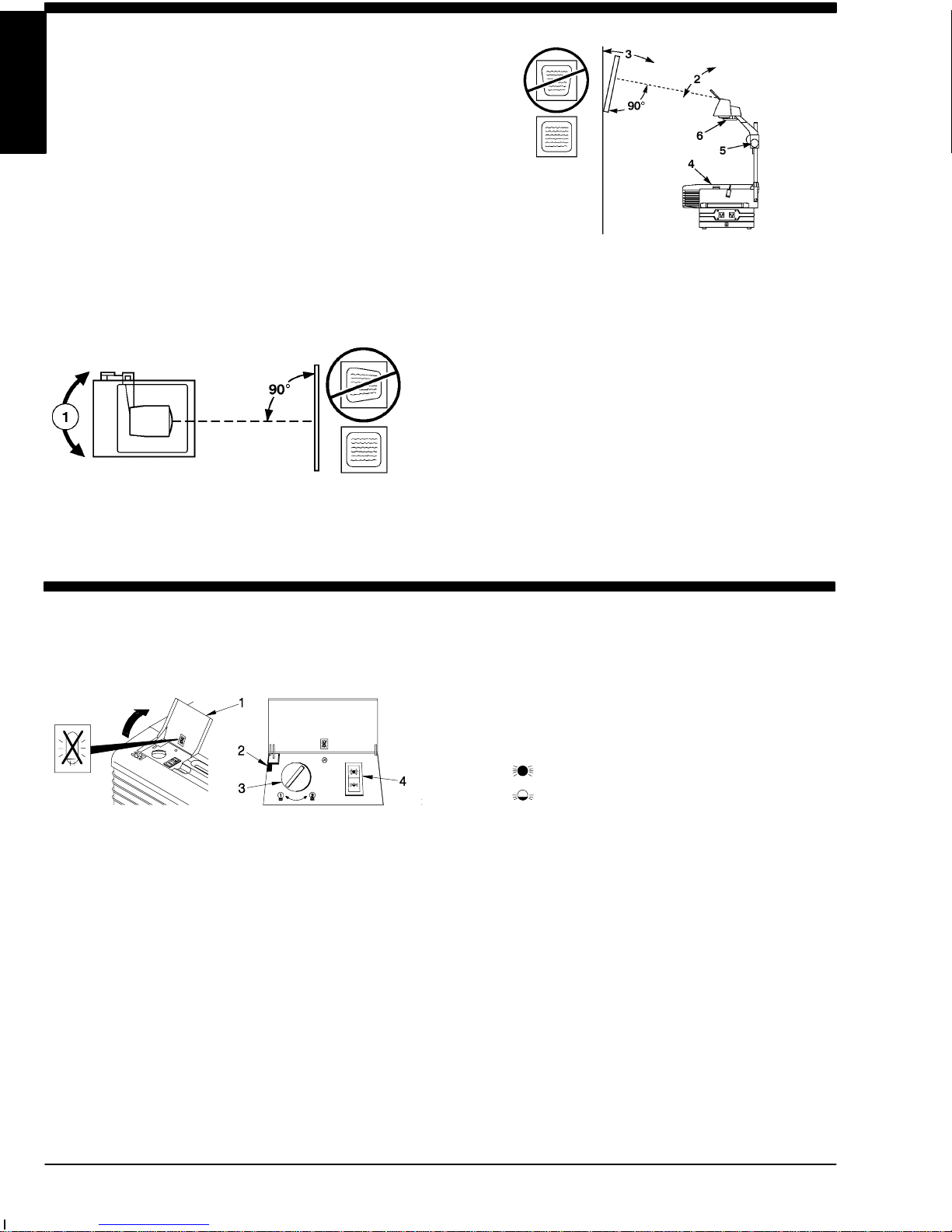

Operating The Projector

Read the Important Safeguards before operating the

9800 projector.

1. Position projector in front of projection screen. The

distance from the screen controls the size of the

projected image.

2. Uncoil power cord and plug into electric outlet.

3. Push power switch “On” to illuminate lamp.

| =ON

O= OFF

4. Rotate projector (1) until projected light beam is

perpendicular (90_) to the screen surface. The

height at the left and right sides of the projected

image should be equal.

5. Adjust angle of projection mirror (2) to raise or

lower the image on the screen.

6. For best results, tilt projection screen (3) toward

projector until the width of the projected image is

equal at both the top and bottom.

7. Place LCD projection panel or film transparency in

the center of stage glass (4).

8. Set lamp brightness to “High” or “Low” position.

See “High/Low Lamp Control” below.

9. Rotate focus knob (5) for sharpest image.

10. Rotate magnifier lens (6) under projector lens to

enlarge LCD projection panel or transparency film

image size by 1.3X. Adjust focus knob (5) for

sharpest image. Note

The magnifier lens glass and metal frame get

warm to the touch during use. Grasp the

insulated tab to rotate the lens.

Lamp Changer

If the selected lamp (position 1 or 2) is burned out or

missing, a red X appears through the window in the

control panel door.

1. Open control panel door (1).

2. Lamp interrupt switch (2) cuts power to lamps.

3. Rotate lamp changer dial (3) to select alternate

lamp. Turn dial fully until it stops.

4. Close control panel door to illuminate lamp.

Note

Replace burned out or missing lamps to remove

red “X” from control panel door.

High/Low Lamp Control

Activate High/Low switch to select High (brightest) or

Low (normal) lamp illumination. See diagram to left.

1. Open control panel door (1).

2. Lamp interrupt switch (2) cuts power to lamps.

3. Press High/Low switch (4) to set desired

brightness.

a. = Brightest image, shorter lamp life

b. = Normal image, longer lamp life

4. Close control panel door to illuminate lamp.

Important

Lamp will not illuminate unless Control

Panel door is closed.

ENGLISH

Go to

Main Menu Go to Operator Guide

Table of Contents

3M 9800 Operator’s Guide

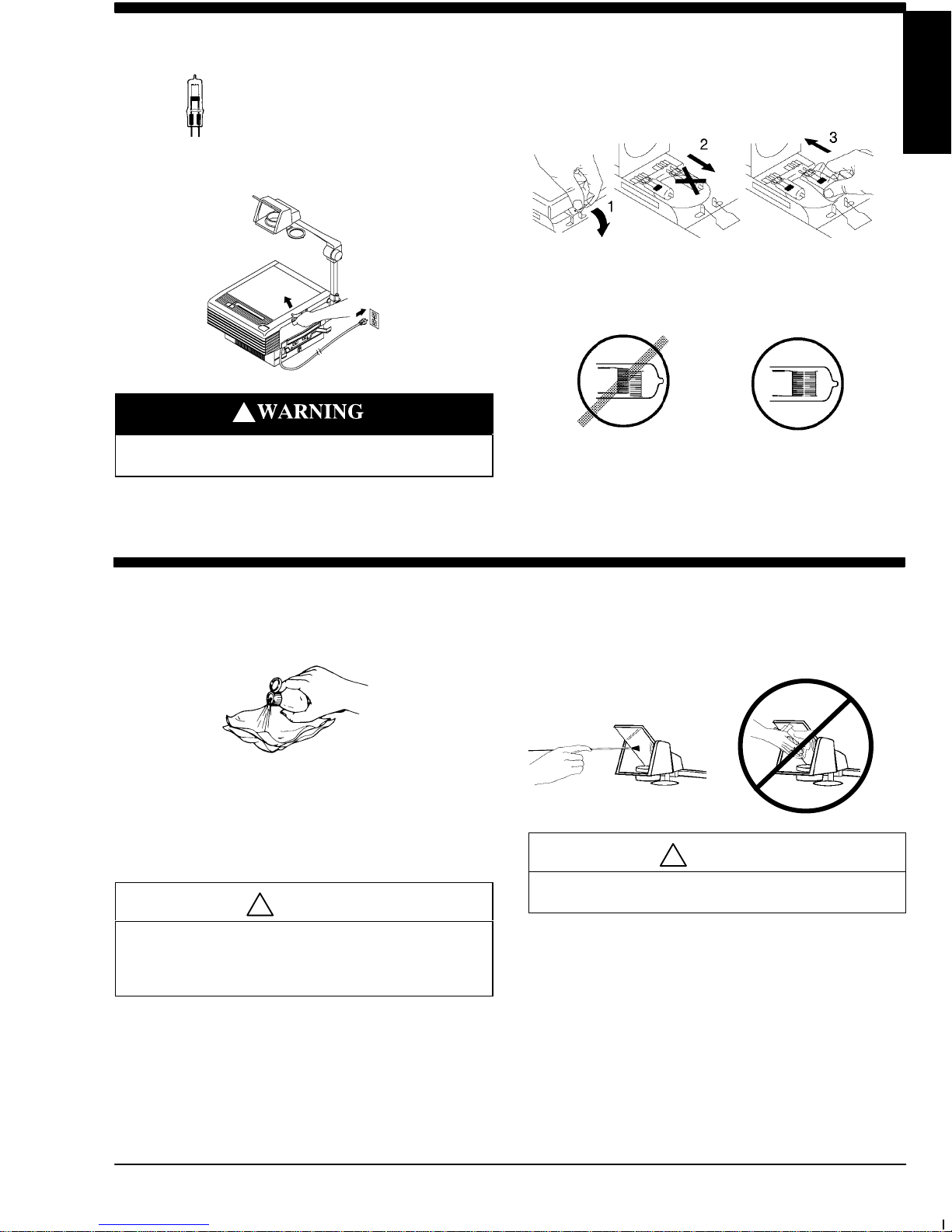

Lamp Replacement

EVD 400W 36V

1. Push power switch to “Off” and unplug projector.

2. Release cover latch and lift up top cover.

Lamp and adjacent metal parts are hot. Allow lamp

to cool before replacing.

3. After lamp has cooled, release spring clip (1) and

raise condenser lens frame to access lamp.

4. Pull lamp out (2) and discard.

5. Push new lamp (3) fully and squarely into socket.

Do not touch bulb glass with fingers.

6. Close condenser lens frame and secure with spring

clip.

7. Look through condenser lens and check lamp

filament for correct alignment. If filament and its

reflection are not aligned, repeat steps 3, 5 and 6.

NOT

ALIGNED ALIGNED

8. Close top cover and plug in power cord.

Cleaning

For best performance, keep your projector free of

excess dust and surface dirt.

Daily Cleaning: Use a soft cloth to remove dust from

the stage and projector base areas.

Stage Glass and Lenses: Use 3M lens cleaner and a

soft, lint-free cloth to remove surface dirt from the stage

glass, projector lens, 1.3X magnifier lens and bottom of

Fresnel Lens.

Caution

Cleaning the underside of the stage glass or Fresnel

lens is not recommended. Improper cleaning or

disassembly may damage the optics. Contact your

3M Dealer or Service Center for assistance.

Projection Mirror: Use a soft brush to remove surface

dirt from the projection mirror.

Caution

The projection mirror is a front-surface mirror and

must not be wiped clean.

ENGLISH

Go to

Main Menu Go to Operator Guide

Table of Contents

93M 9800 Operator’s Guide

Colour Tuning

Rotate the colour tuning dial to eliminate any

yellow/orange to brown or blue corners. A colour-free

projection stage will produce the sharpest colour

images.

1. Clear stage area and turn on projector.

2. Rotate dial anticlockwise to remove blue corners.

3. Rotate dial clockwise to remove yellow/orange or

brown corners.

AC Electrical Outlets

There are two unswitched AC power outlets, connected

to a 5 amp circuit breaker, for powering accessories.

Caution

Do not overload outlets with accessories that exceed

a total of 5 amps.

To Reset the Circuit Breaker:

1. Unplug accessories.

2. Push circuit breaker lever down to reset.

Internal

oltage Switch

The voltage switch is located inside the projector body.

Set the switch to high for areas with normal input

voltage or low for areas with very high input

voltage.

1. Unplug projector from power outlet.

2. Open top cover to access voltage switch.

3. Depress rocker switch for input voltage.

= Normal input voltage

= Very high input voltage

4. Close top cover.

Lamp

oltage Protector

The lamp voltage protector is a circuit board located

inside the projector body next to the internal voltage

switch. This circuit monitors incoming voltage from

the AC outlet and automatically adjusts lamp voltage to

produce the brightest lumen output with the longest

lamp life.

Autres manuels pour 9800

Table des matières

Autres manuels 3M Projecteur

3M X64W - Digital Projector XGA LCD Instructions d'installation et d'entretien

3M Multimedia Projector X68 Manuel utilisateur

3M S15I - Digital Projector SVGA LCD Manuel

3M S50/X50 Manuel

3M Digital Projector X30N Instructions d'installation et d'entretien

3M SCP712 - Super Close Projection System XGA DLP... Manuel

3M Multimedia Projector S15 Manuel utilisateur

3M Multimedia Projector MP7650 Manuel utilisateur

3M Multimedia Projector S55i Manuel utilisateur

3M X95 - Digital Projector XGA LCD Instructions d'installation et d'entretien

3M 1610 Manuel utilisateur

3M X31i Manuel

3M X66 - Digital Projector XGA LCD Manuel d'utilisation

3M Multimedia Projector H10 Manuel d'utilisation

3M MP8775i Manuel utilisateur

3M 9050 Guide de configuration

3M Multimedia Projector MP8635 Manuel

3M MP220 Manuel d'installation et d'exploitation

3M Multimedia Projector MP8795 Manuel utilisateur

3M Digital Projector X64 Manuel utilisateur

3M X64W - Digital Projector XGA LCD Manuel

3M DMS800 - Digital Media System 800 XGA DLP... Manuel d'installation et d'exploitation

3M DX70i Manuel utilisateur

3M Multimedia Projector X62w Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
