3M TN2000 Manuel

Wheel Weight System TN2000

Safety and Set-Up Instructions for the 3M™ Cutting Stand

TN252 (PN61480), 3M™ Universal Cutter TN201 (PN61479),

3M™ Dual Box Holder Kit TN222 (PN99428) and 3M™ Dual

Cutter Bracket TN211 (PN99429)

Technical Bulletin November 2008

Safety Statement Read, understand and follow all safety information contained in these instructions

prior to setup and operation of the 3M™ Cutting Stand TN252 (PN61480), 3M™

Universal Cutter TN201 (PN61479), 3M™ Dual Box Holder Kit TN222

(PN99428), and the 3M™ Dual Cutter Bracket TN211 (PN99429) for the 3M™

Wheel Weight System TN2000. Retain these instructions for future reference.

Intended Use The 3M Cutting Stand TN252 (PN61480) and 3M Universal Cutter TN201

(PN61479) are intended for use in handling, feeding, measuring and cutting

required lengths of 3M™ Wheel Weight TN2015 (PN61403), TN2023 (PN61405)

and TN4014 (PN99427) roll goods for use in the balancing of automotive wheels.

The 3M™ Wheel Weight System TN2000 is used in a commercial environment by

trained personnel.

The 3M Wheel Weight System must be set up and operated in the commercial

automotive environment as intended. It has not been evaluated for other uses

or locations.

Safety EXPLANATION OF SIGNAL WORD CONSEQUENCES

WARNING: Indicates a potentially hazardous situation, which, if

not avoided, could result in death or serious injury

and/or property damage.

CAUTION: Indicates a potentially hazardous situation, which, if

not avoided, may result in minor or moderate injury

and/or property damage.

Technical Update

3M™ Wheel Weight System TN2000 – Safety and Instructions

Page 2 of 8

Safety

(Continued) WARNING

To reduce the risks associated with the sharp cutting blade, which, if not

avoided, could result in serious injury:

Prior to use, read, understand, follow and retain for future reference the

safety information in these user instructions.

Sharp edge (labels on the cutter).

Do not use with a damaged or missing cutting blade guard.

Always latch the cutter handles closed when not in use.

Keep hands away from cutting area.

Handle replacement cutter blades with care when replacing and disposing of

them.

CAUTION

To reduce the risks associated with impact, which, if not avoided, may

result in minor or moderate injury and/or property damage:

Locate and operate the cutter tool and stand in an area where it will not be

bumped into.

Cutter stand foot pads must be securley fastened.

Ensure the box holder set screws are secure prior to use.

Ensure the locking collar on the upper stand arm for the double box holder

kit is in place, is not damaged and is secure prior to use.

Ensure the upper-stand to lower-stand locking bolt is not damaged and

secure prior to use.

Ensure the cutter is properly mounted to the upper stand, is not damaged

and the fastener is secure prior to use.

Ensure that the added box holder for the dual feed kit is properly mounted,

that both the front and back detents are engaged and that no more than two

box holders are mounted to the stand prior to use.

Technical Update

3M™ Wheel Weight System TN2000 – Safety and Instructions

Page 3 of 8

3M™ Cutting Stand TN252 (PN61480) and 3M™ Universal

Cutter TN201 (PN61479)

Set-Up and

Instructions 1) Secure the foot pads on the 3M

Cutting Stand to the floor.

2) Adjust the upper stand to the

desired height.

3) Using set screws, adjust the box

holder to the desired angle.

4) Using the cap screws provided (A),

attach the 3M Universal Cutter

TN201 to collar clamp.

Using collar clamp screw (B),

adjust the cutter to desired angle.

Technical Update

3M™ Wheel Weight System TN2000 – Safety and Instructions

Page 4 of 8

Set-Up and

Instructions

(continued)

5) Open the 3M™ Wheel Weight

TN2015 (PN61403), TN2023

(PN61405) or TN4014 (PN99427)

box and place in box holder.

Thread the wheel weight to the

infeed side of the cutter.

IMPORTANT!

Match scale to material designator

on box.

6) Position scale against stop on

outfeed tray of cutter and secure in

place with thumbscrew.

7) Using thumbscrews (A) on

backside of guide, position guide

(B) to create loose-fitting slot for

material. Extended liner will pass

underneath guide.

8) Advance material to desired weight

and cut.

Technical Update

3M™ Wheel Weight System TN2000 – Safety and Instructions

Page 5 of 8

3M™ Dual Box Holder Kit TN222 (PN99428) and 3M™

Dual Cutter Bracket TN211 (PN99429)

Set-Up and

Instructions 1) Remove 3M™ Universal Cutter

TN201 (PN61479) from the 3M™

Cutting Stand TN252 (PN61480).

Loosen socket head cap screws

(A), with a 5/32” allen wrench and

remove. Set cap screws aside for

later use. Remove metal collar

from tube with a 3/16” allen

wrench. Recycle metal collar.

2) Insert dual cutter bracket onto blue

stand orienting roughly as shown in

photo, with hex nuts facing rear

and cutter slots oriented horizontal

to floor. Tighten hex nuts with

7/16” box wrench. This may need

to be adjusted later for operator

comfort.

3) From the bottom side of the

bracket, insert one cutter into the

right side slot as shown. Secure

with two supplied socket head cap

screws (A) using a 5/32” allen

wrench as shown.

Technical Update

3M™ Wheel Weight System TN2000 – Safety and Instructions

Page 6 of 8

Set-Up and

Instructions

(continued)

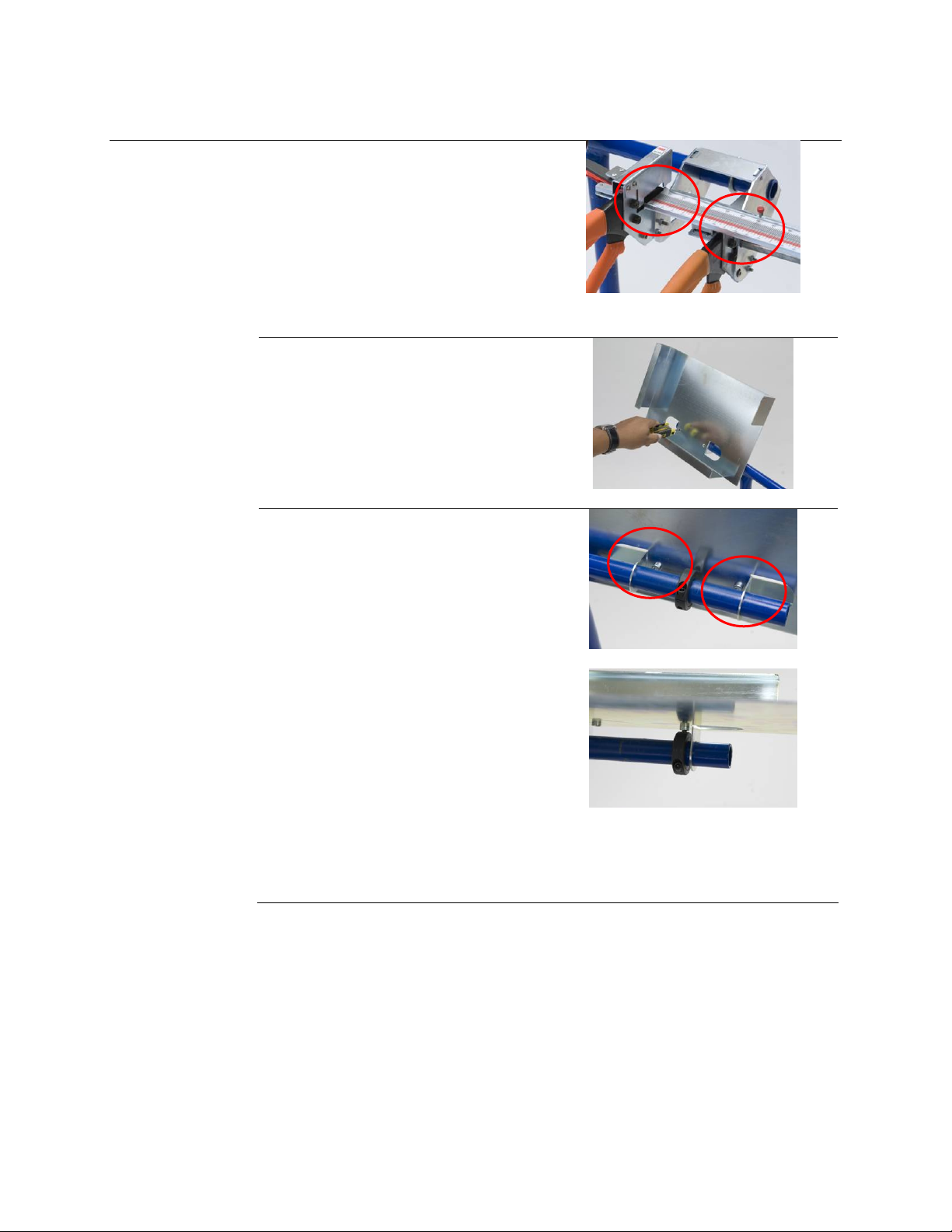

4) Insert second cutter onto left side

of bracket, aligning mount holes as

shown. Secure with two supplied

socket head cap screws (A) using a

5/32” allen wrench. Insert desired

product rulers into each cutter

assembly. Adjust orientation of

dual cutter bracket so both product

rulers are easy to read.

5) Remove box holder from stand by

loosening (2) set screws using a

1/8” allen wrench as shown.

6) Slide one ear of the box holder

back over the stand tube, then slide

the collar provided in the box

holder kit onto the stand tube, and

then slide second ear of box holder

back onto the tube as shown.

Align hole in collar with outermost

set screw hole location in box

holder. Install this box holder set

screw through collar hole and

tighten on stand tube using 1/8”

allen wrench. Also install second

set screw in box holder and tighten.

Adjust orientation of box holder to

allow feeding product directly into

right side cutter. Finally, tighten

collar clamp onto tube using 3/16”

allen wrench.

Technical Update

3M™ Wheel Weight System TN2000 – Safety and Instructions

Page 7 of 8

Set-Up and

Instructions

(continued)

7) Slide second box holder over first

making sure that bottom and left

side flanges fully engage the

original box holder sides. With a

pliers or channel lock, twist the

locking tab to secure the second

box holder to the original as

shown.

8) Insert material into box holders.

Advance material into

corresponding cutter.

IMPORTANT!

Match scale to material designator

on box.

TN2015

Technical Update

3M™ Wheel Weight System TN2000 – Safety and Instructions

Page 8 of 8

3M is a Trademark of 3M Company.

Technical Information: The technical information, recommendations and other statements contained in this document are based

upon tests or experience that 3M believes are reliable, but the accuracy or completeness of such information is not guaranteed.

Product Use: Many factors beyond 3M’s control and uniquely within user’s knowledge and control can affect the use and

performance of a 3M product in a particular application Given the variety of factors that can affect the use and performance of a

3M product, user is solely responsible for evaluating the 3M product and determining whether it is fit for a particular purpose and

suitable for user’s method of application.

Warranty, Limited Remedy, and Disclaimer: Unless an additional warranty is specifically stated on the applicable 3M

product packaging or product literature, 3M warrants that each 3M product meets the applicable 3M product specification at the

time 3M ships the product. 3M MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE OR ANY IMPLIED WARRANTY OR CONDITION ARISING OUT OF A

COURSE OF DEALING, CUSTOM OR USAGE OF TRADE. If the 3M product does not conform to this warranty, then the

sole and exclusive remedy is, at 3M’s option, replacement of the 3M product or refund of the purchase price.

Limitation of Liability: Except where prohibited by law, 3M will not be liable for any loss or damage arising from the 3M

product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty,

contract, negligence or strict liability.

Automotive Aftermarket Division

3M Center, Building 223-6N-01

St. Paul, MN 55144-1000

www.3M.com/wheelweights

75-3470-8712-6

Printed in U.S.A.
