3Dfactories EASY 3D MAKER Manuel utilisateur

- 1 -

VERSION: 1.9.2012

Thank you for chooding our 3D printer

Before any manipulation with the printer carefully read this user

guide

U S E R S G U I D E

T Y P E : E A S Y 3 D M A K E R



- 2 -

VERSION: 1.9.2012

IMPORTANT SAFETY NOTICE:

1. CAUSING DAMAGE A 3D PRINTER DUE TO FAILURE OF FOLLOWING INSTRUCTION IN THIS USER MANUAL,

EXPIRING THE WARRANTY VOID.

2. SECOND MATERIAL FOR DAMAGES AND PERSONAL INJURY CAUSED BY THE PRINTER MISAPPLICATION IN

VIOLATION OF THIS USER'S MANUALS OR FAILURE TO SAFETY REGULATIONS IS FULLY RESPONSIBLE USER

OF THIS DEVICE.

3. RISK OF A POSSIBLE BURNS CAUSED BY THE ACCIDENT! BE CAREFUL!

4. THIS DEVICE IS NOT TOY! KEEP AWAY FROM CHILDREN!

5. NEVER LEAVE EQUIPMENT WORK WITHOUT SUPERVISION!

6. CAUTION HOT ITEMS ABOVE 70 ° C! RISK OF BURNS!

7. PERSONS WHO ARE NOT ABLE TO MENTALLY OR MOTORIZED EQUIPMENT FULLY OPERATE, MAY OPERATE

THIS DEVICE ONLY UNDER THE SUPERVISION OF A COMPETENT PERSON.

8. BEFORE USING MAKE SURE THAT THE PRODUCT IS COMPLETE.

9. RISK OF ELECTRIC SHOCK.

10. DEVICE MAY OPERATE AT LEAST 18 YEARS OF AGE, OTHERWISE UNDER ADULT SUPERVISION.

11. DEVICE MAY NOT be disposed of via standard WASTE.

PRINTER CAN BE ONLY IN A PLACE THAT IS:

• DRY WITHOUT DUST

• STABLE

• GOOD VENTILATION

• NEAR AN EASILY ACCESSIBLE POWER OUTLET

• AWAY FROM OBJECTS THAT MIGHT BLOCK THE VENTILATION HOLE OF THE PRINTER AT A SAFE DISTANCE FROM

FLAMMABLE OBJECTS (EG CURTAINS) AWAY FROM SPLASHING LIQUIDS, AWAY FROM ORGANIC GASES (SUCH AS

AMMONIA)

•

AWAY FROM DIRECT SUNLIGHT

•

SEVERE TEMPERATURE FLUCTUATIONS

•

AWAY FROM OUTLETS HEATING, VENTILATION AND AIR CONDITIONING SYSTEMS

- 3 -

VERSION: 1.9.2012

CONTENT PAGE

1. PACKAGE CONTENTS 3

2. DESCRIPTION OF PARTS 4

3. EQUIPMENT TO PRINT 4

4. MINIMUM PC REQUIREMENTS 5

5. INSTALL SOFTWARE – G3DMAKER 5

6. PRINTER CONNECTION 5

7. TURN ON - OFF MACHINE 5

8. BEFORE PRINT 6

8.1 PRINT BED 6

8.2 REMOVING OF DEBRIS 6

8.3 PRINT BAD CALIBRATION 7

8.4 CONTROL OF PRINT BED FLATNESS 9

8.5 NOZZLE CLEARING 9

9. PRINT 11

9.1 PRINT MATERIALS 11

9.2 NEW FILAMENT, CHANGE OF FILAMENT 11

9.3 PREPARE FILE FOR PRINT MANUÁL K G3DMAKER

9.4 START PRINT MANUÁL K G3DMAKER

9.5 REMOVE OBJECT FROM PRINTER

10. CLEANING AND MAINTENANCE

11. HOW TO SOLVE TROUBLE CASE

12. PRINT IS NOT GOOD

13. CRUNCH THE X OR Y

14. TECHNICAL SUPPORT

WARRANTY AND SPARE PARTS

HOW TO ORDER SPARE PARTS

DECLARATION OF CONFORMITY

1. PACKAGE CONTENTS

1x POWER SOURCE 24 V 1x 3D PRINTER

1x USB CABLE

1x CD

- 4 -

VERSION: 1.9.2012

2. DESCRIPTION OF PATRS

EXTRUDER AXIS Y AXIS X

PRINT BED

AXIS

SPOOL OF MATERIAL

3. EQUIPMENT TO PRINT

All equipments is possible order via our distributost or in the special shops.

For model removing from the print bed and for cleaning of bed use knife (with caution) of spatula.

- 5 -

VERSION: 1.9.2012

4. MINIMUM PC

REQUIREMENTS

- Intel Cel. 2,8 GHz

- RAM 1 GB

- Intel HD Graphics or better

- HDD 50GB

- DVD

- Keyboard, mause, USB port

- Windows XP and newer + FRAMEWORK 3.5 and newer

5. POSTUP INSTALACE OBSLUŽNÉHO SOFTWARU G3DMAKER

Put CD into and CD reader on your compiuter and follow the instruction. If process will not start find on CD

G3DMAKER_setup.exe and double click on it.

6. PŘIPOJENÍ TISKÁRNY

After instalation of software connect printer to an eletricity with the adapter 24V 5A which is part of the

package. To the compiuter i sprinter connectet with USB cable. After connect compiuter asky ou for driver of

USB. Follow instruction. Driver is on the CD in USB driver folder, map this folder and install driver.

7. APNUTÍ – VYPNUTÍ TISKÁRNY

Printer has three positional switch. Middle position is OFF. I turn on only light. II turn on printer.

- 6 -

VERSION: 1.9.2012

8. PŘÍPRAVA PŘED TISKEM

Before print is necessary do this few steps. Please pay attention to this.

• Doublecheck if the print bed is clean

• Remove all debris and rests of material

• Doublecheck if the print bed is put in the right way and strongly attached

• Doublecheck it the nozzle is clean

• Doublecheck and correct height of nozzle over print bed

• Doublecheck if the filament is correctly put into extruder and spool is correctly put in printer

8.1 TISKOVÁ PLOCHA

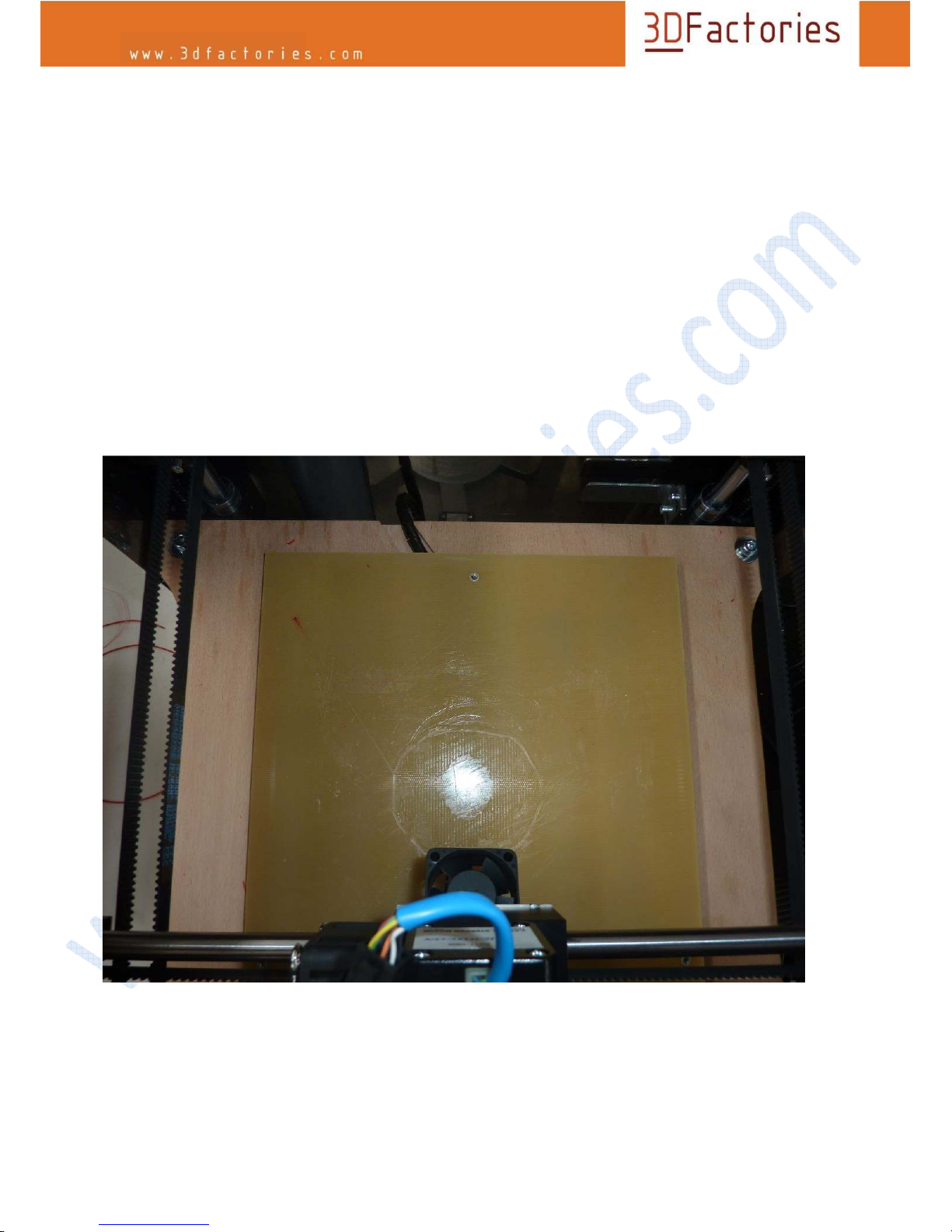

Before first launch of the printer check if the print bed is clear and without rest of material. Each printer is

tested before packing and can happen that there will be some rests of material. By the same way check it

before each next print.

8.2 ODSTRANĚNÍ NEČISTOT

If on the print bed are some debris, remove it with spatula or knife.

- 7 -

VERSION: 1.9.2012

Scratching the surface, which occurs during the operation is not reason for impossibility to print.

Print quality is affected and the risk of damage to your printer comes with deeper grooves, pits and uneven

print surface. See flatness control the print area

8.3 KALIBRACE TISKOVÉ PLOCHY

Due to transportation, changes in temperature and humidity or wear of mechanical components operating is

shifting print area and must be reset. This setting has a direct impact on the quality of printing, but also the

safe operation of the printer. Nozzle height above the floor must be always the same control points.

Need to calibrate a standard sheet of paper 80 g/m2 to insert between the nozzle and the surface of the table.

First Turn on the printer and run the software G3DMAKER. Go to MANUAL CONTROL menu and here at the

bottom click on HOME Z. printer moves to the reference position to the Z axis, then turn off the printer.

Remove material carefully avoid to damage of print bed

- 8 -

VERSION: 1.9.2012

TURN OFF THE MACHINE CALIBRATION PROCEDURE IS PERFORMED IN PRINTER disconnected from electricity!

First put the paper on the print bed. Set screws so that the paper is just touching the nozzle. ATTENTION -

PAPER must move a little freely! Do this for 3 position and be used to check again. Crossing the nozzle into the

appropriate positions perform manually.

8.4 KONTROLA TISKOVÉ PLOCHY

Check the flatness of the print area and visually using a ruler or other flat surface.

If the print surface deflection, make sure that no point no higher than the lowest set point of nozzle. If

necessary, readjust the height of the nozzle or replace the print area.

- 9 -

VERSION: 1.9.2012

8.5 TRYSKA A ČIŠTĚNÍ TRYSKY

SAFETY WARNING!

o the nozzle flowing molten material coating layers. Nozzle temperature can reach up to 280 ° C, please

observe caution.

o To print ran correctly, it is necessary to keep the nozzle clean.

o Do not touch the print head when the machine Danger of burns!

o Clean the print nozzles always turned off the machine and when the print nozzle has cooled down for

about 30 minutes after the last press and switched off.

Make sure the nozzle is clean, residue-free material. If necessary, remove waste material.

If the material even after warming up and running extruder still leaking, check that it is properly implemented

filament or carefully clean with the drill bit diameter of 0.5 mm nozzle. Cleaning should be done very carefully

and always perpendicular to the hole. Never hold drill in hand, but only on the horns. This cleaning takes place

when the material is A hot! Danger of burns!

9. TISK

For fixing the printed object to the base use paper labels or using a special adhesive. Here is also described a

procedure of operations.

9.1 TISKOVÉ MATERIÁLY

Supported is PLA as a basic material. The melting point is 190 ° C. The diameter of the filament is 1.75 mm and

it is possible to order the material in several colors (natural, red, black, blue … see www.3dfactories.com) The

coil weight is 1 kg or 2Kg.

- 10 -

VERSION: 1.9.2012

UPORO NĚNÍ !

Do not use other then recomendet materials. The printer can be damage.

9.2 AVEDENÍ STRUNY A VÝMĚNA STRUNY (BARVY, MATERIÁLU)

Ze zásobníku ve spodní části stroje je vyvedeno vedení struny (bílá trubička) do tiskové hlavy extrudéru. Konec

struny upravte dle obrázku a nasuňte do vedení.

Leadership strings (white tube) out of the extruder and pull the string about 10 cm so that sticking out of the

tube. Push the end of the line between the pressure and the drive wheel (see picture below). The program

G3DMAKER start extruder and set the interval to run the extruder 30 mm and adjust the feed rate of 100 mm /

min. Temperature of extruder depend on material ABS 230°C and PLA 190°C preheat it before. Make sure the

string properly introduced into the hole under the drive wheel. After loading strings insert lines (white tube)

back into the extruder.
