3D Systems CUBE Manuel utilisateur
3rd Generation
Personal 3D Printer
Quick Start Guide
See Inside for Use and Safety Information
Congratulations on the purchase of your new Cube®3D Printer! This Quick Start Guide has the
use and safety information you need to get started. Welcome to the 3D creative revolution – let
the possibilities begin!
If you have any questions, do not hesitate to reach us at CubifySupport@Cubify.com.
This Quick Start Guide will give you basic instructions on how to get your Cube®3D Printer plugged in
and printing so you can start making your creations. For more detailed instructions, please access the
Cube®User Guide available to you at Cubify.com.
CONTENTS
SAFETY ........................................................................................................................ 1
YOUR CUBE AT A GLANCE ........................................................................................ 2
UNPACK YOUR CUBE................................................................................................. 3
What’s Included .........................................................................................................................6
SETTING UP AND ACTIVATING YOUR CUBE ........................................................... 7
FINISHING YOUR CREATION ................................................................................... 22
Removing your Creation from the Print Pad.........................................................................22
Removing Supports and Rafts (If Required).........................................................................22
MAINTENANCE.......................................................................................................... 23
Print Pad Maintenance............................................................................................................23
Gap Verication .......................................................................................................................25
Manual Gap Adjustment .........................................................................................................27
1
SAFETY
Hot Surface Hazard: A hot surface is accessible in the vicinity of this sign or at the print jet.
Avoid contact with these areas. Hot surfaces can cause severe burns.
Caution: Indicates something may happen that could cause loss of data,
damage to equipment, or could cause personal injury.
Caution: Indicates a pinch point hazard that could cause personal injury.
• Follow all safety rules in this section and observe all cautions and warnings in this guide.
• DO NOT modify any safety features or make modications to the Cube. Doing so is prohibited and
voids your warranty.
• Use of print materials other than 3D Systems print materials and genuine 3D Systems components
may void warranty.
• Adult supervision is required; observe children closely and intervene as necessary to prevent
potential safety problems and ensure the appropriate use of the Cube. Ensure small 3D prints are
not accessible to young children. These 3D prints are potential choking hazards for young children.
• DO NOT change a material cartridge during printing; doing so may damage the Cube.
WARNING: DO NOT TOUCH THE PRINT JETS DURING SETUP AND OPERATION. THE
PRINT JETS BECOME VERY HOT.
Caution: DO NOT unplug the Cube while the print jet is hot. Refer to the
touchscreen to determine when the print jets are cool enough.
CAUTION: Read and follow all instructions prior to setting up the printer.
To ensure safety, please exercise caution when operating your Cube. Read and follow all safety
precautions as outlined in this document and the Cube User Guide. Be careful when operating your
Cube 3D Printer to ensure proper printing and be mindful of and avoid hot surfaces.
2
YOUR CUBE AT A GLANCE
B
A
Print Jets
B
Print Jet Cords
C
Material Cartridges
D
Print Pad
E
Print Platform
F
Touchscreen Display
G
On / Off Button
H
USB Inlet Port (Mass
Storage Device)
I
Power Inlet
J
Refuse Bins
B
CC
DE
F G
I
H I
H
A
J
3
UNPACK YOUR CUBE
NOTE: Keep all packing materials in case the printer would need to be returned.
Returning the printer without the original packing materials may damage the printer
and void the manufacturer’s warranty.

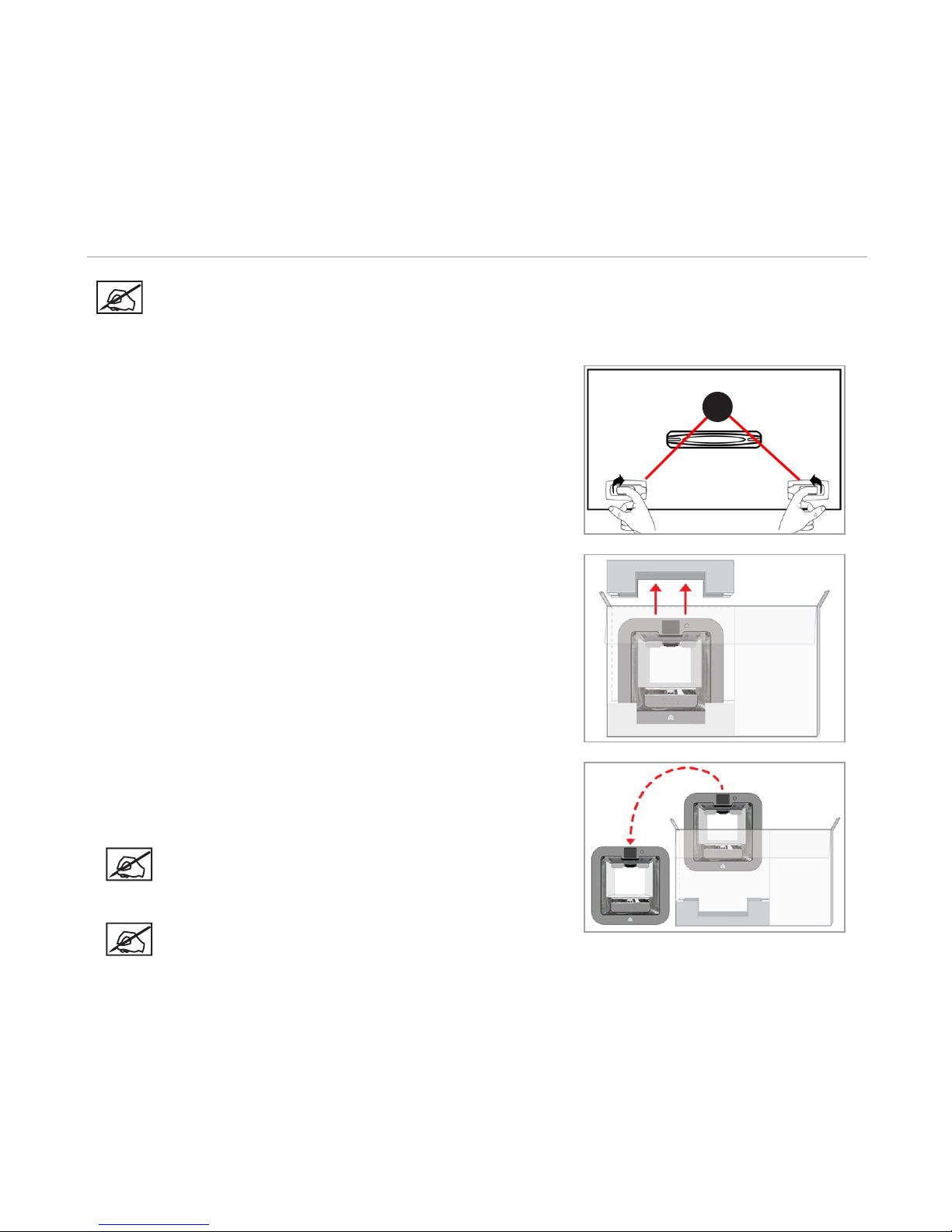

1. Pull the clips (A) and remove them from the top of the
printer box and open the box.
2. Remove the upper foam support.
3. Remove the printer from the lower box and remove the
printer from the protective bag. Place the printer on a
solid, level base where you intend to use it.
NOTE: When installing the printer there must
be a minimum of 8” (203 mm) of space on top
and on either side of the printer.
NOTE: There must be a minimum of 4” (102
mm) space in front of and behind the printer.
A
4
8” (203 mm)
8” (203 mm)
8” (203 mm)
Hand Clearance Around the Printer Build Plate Travel Area
4” (102 mm)
4” (102 mm)
Back
Front
Front View Top View
4. Remove the top insert.
5. Fold the sides inward and remove the lower insert from
the printer.
Insert
5
6. Raise the print platform (A) and remove the spacer (B)
from the printer.
7. Open the accessories box and unpack the material cartridges, the USB mass storage device,
the power supply, cord, and the Cube Glue bottle.
8. Connect the power supply cable to the power inlet port
(A) on the printer.
NOTE: Ensure the connection is secure. The
cable should lock in place. To remove the
cable, pull back on the outer cable end and
carefully pull it out from the printer.
9. Connect the power cord to utility power and to the power
supply.
NOTE: Ensure the connection is secure.
10. Power on the Cube by pressing the button next to the touchscreen display.
A
A
B
6
WHAT’S INCLUDED
*Depending on your printer model or conguration, up to two cartridges may be included.
NOTE: The appearance of some components may vary.
Envelope
Print Pad
cubify.com
USB Mass
Storage Device
Cartridges*Cube Cube Glue
Power Supply Power Cord Quick Start
Guide
1.5 mm Allen
Wrench
Pliers Scraper
Gap Gauge
Sandpaper
7
SETTING UP AND ACTIVATING YOUR CUBE
1. Select your language. Press the checkmark to conrm
your selection.
NOTE: The selected language will be indicated.
2. Enter a name for your printer. Scroll through the letters
by pressing the arrow symbols on each side of the
screen. Select the letters to spell out the name. Select
the checkmark to conrm your choice. If you do not
wish to name your Cube, select SKIP to continue.
NOTE: The abc button toggles between
lowercase letters, uppercase letters and
numerals.
3. Connect your printer to your network. Use the up or
down arrows to scroll to your network choice. Select the
desired network.
NOTE: The printer can also connect to an ad
hoc network, a decentralized network that
connects a local computer to the printer with
a wireless connection. Refer to the User Guide
for more information about connecting to an ad
hoc network.
