2N IP series Manuel utilisateur
www.2n.cz
Automation manual for
2N IP intercoms
Configuration Manual
Version: 2.22
The 2N TELEKOMUNIKACE a.s. is a Czech manufacturer and supplier of
telecommunications equipment.
The product family developed by 2N TELEKOMUNIKACE a.s. includes GSM gateways,
private branch exchanges (PBX), and door and lift communicators. 2N
TELEKOMUNIKACE a.s. has been ranked among the Czech top companies for years
and represented a symbol of stability and prosperity on the telecommunications
market for almost two decades. At present, we export our products into over 120
countries worldwide and have exclusive distributors on all continents.
2N is a registered trademark of 2N TELEKOMUNIKACE a.s. Any product and/or other
®
names mentioned herein are registered trademarks and/or trademarks or brands
protected by law.
2N TELEKOMUNIKACE a.s. administers the FAQ database to help you quickly find
information and to answer your questions about 2N products and services. On www.
faq.2n.cz you can find information regarding products adjustment and instructions for
optimum use and procedures „What to do if...".
2N TELEKOMUNIKACE a.s. hereby declares that the 2N product complies with all
®
basic requirements and other relevant provisions of the 1999/5/EC directive. For the
full wording of the Declaration of Conformity see the CD-ROM (if enclosed) or our
website at www.2n.cz.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
The 2N TELEKOMUNIKACE a.s. is the holder of the ISO 9001:2009 certificate. All
development, production and distribution processes of the company are managed by
this standard and guarantee a high quality, technical level and professional aspect of
all our products.
2N TELEKOMUNIKACE a.s., www.2n.cz 4/104
Content:
1. Terms and Symbols
2. 2N® IP Automation Configuration
3. Events
4. Actions
5. Conditions
6. Utilities
7. Available Digital Inputs and Outputs
8. Examples of Use
2N TELEKOMUNIKACE a.s., www.2n.cz 5/104
1. Terms and Symbols
The following symbols and pictograms are used in the manual:
Safety
Always abide by this information to prevent persons from injury.
Warning
Always abide by this information to prevent damage to the device.
Caution
Important information for system functionality.
Tip
Useful information for quick and efficient functionality.
Note
Routines or advice for efficient use of the device.
2N TELEKOMUNIKACE a.s., www.2n.cz 6/104
2. 2N® IP Automation
Configuration
2N IP intercoms provide flexible setting options depending on the user's requirements.
If the standard setting options (switch/call settings, e.g.) are insufficient for the
intended use, apply a special programmable interface – . Typically, Automation
is helpful for applications that require rather complex interconnection Automation
with the third parties' systems.
Note
Automation works only with a valid or Enhanced Integration Gold
licence key.
Some intercom models are equipped with a number of digital inputs and 2N IP
outputs, most of which can be configured like standard intercom switches (refer 2N IP
to the Switches subsection). You can make use of all of these inputs and Automation
outputs in variable combinations.
Automation helps you combine the arising in the system (such as key pressing, Events
RFID card use, digital input status change, etc.) with specific s (such as digital Action
output activation, user sound playing, call, etc.) as necessary. Moreover, the execution
of actions can be bound by selected s (time profile state, logic input state, e.Condition
g.).
2N TELEKOMUNIKACE a.s., www.2n.cz 7/104
The figure above shows a typical interconnection of the Event, Action and Condition
blocks. It holds true in general that an action is always tied with a selected event and
is executed when a selected condition is met. The condition is optional and if none is
selected, the action is executed whenever the assigned event occurs. Automation
defines a number of events, actions and conditions to be further set. Refer to the
subsections below for the full list.
The example shown in the figure above can be interpreted as follows: The SetOutput
action (digital output setting) is executed if the event (logic input1 InputChanged
change from log 0 to log 1) arises and the (active profile 1) condition is met.Profile
2N TELEKOMUNIKACE a.s., www.2n.cz 8/104
Automation Control
– intercom allows up to 30 blocks at 5 independent Bookmark Function 2N IP
pages to be created and interconnected (regardless of the block type – events,
actions and conditions). Multiple actions can be assigned to an event or
condition. Thus, you can create 15 actions and assign them to 15 events or create
29 actions and assign them to 1 event, for example.
– function enableEnabled
– function nameName
– function state: Started/Stopped/Empty/ErrorState
– click to set the function and to delete the function.Action
2N TELEKOMUNIKACE a.s., www.2n.cz 9/104
Automation Controls
Refer to the figure below for an empty Automation function.
– includes four groups of function blocks: Function block column Events,
. Drag and drop the items to the desktop.Actions, Conditions, Utilities
– includes function controlsToolbar
Pictogram Description
function name
function editing mode
function block moving mode
help mode for function blocks. Click a block to display
the block help.
magnification
zoom out/in
import/export
2N TELEKOMUNIKACE a.s., www.2n.cz 10/104

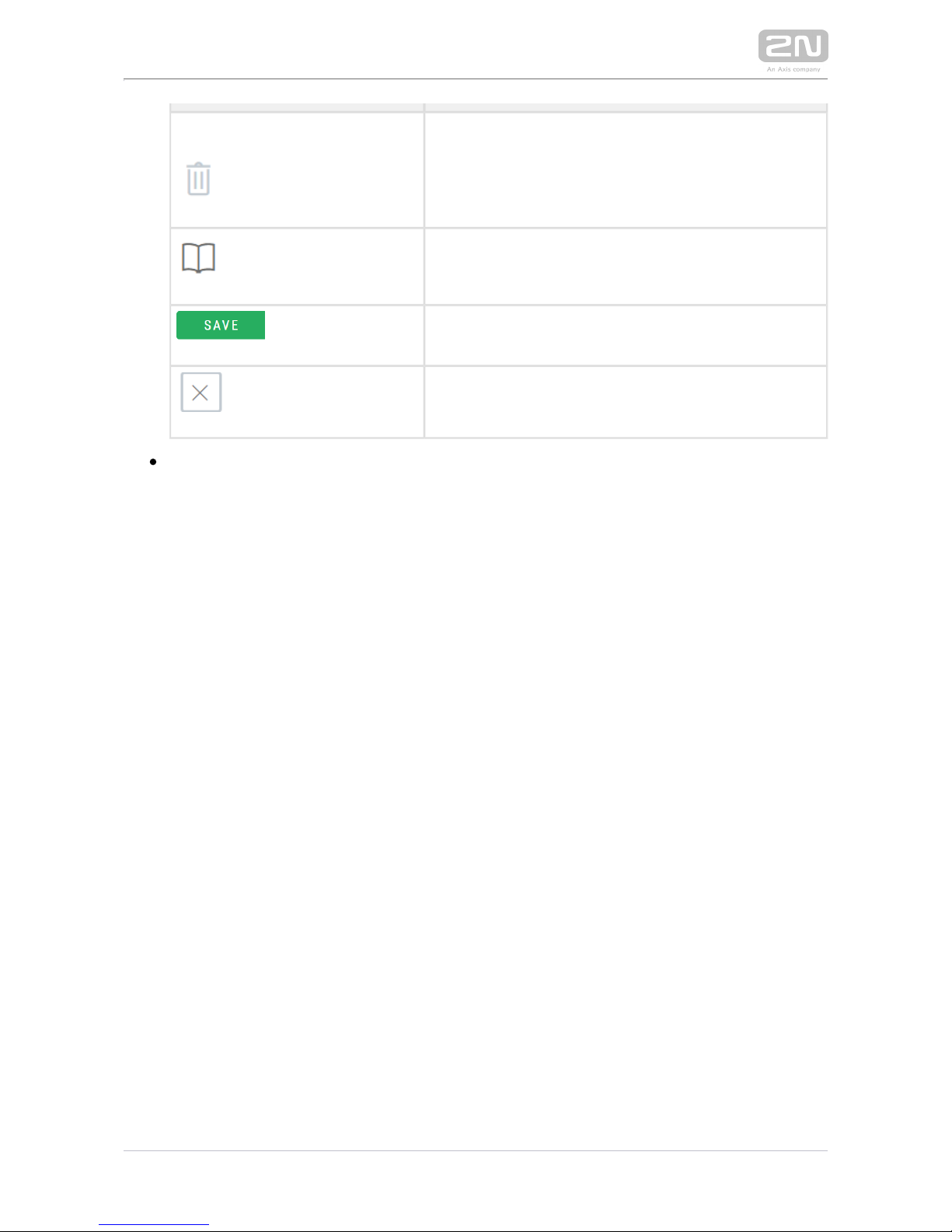

block deletion
Automation manual reference
save
quit function editing
The helps you place and interconnect the function blocks. desktop
