2N Helios IP Manuel utilisateur

2n Helios IP

INSTRUCTION MANUAL

Versiyon

1.0

www.yonnet.com.tr

2N®Helios

General Assembly & Wiring Diagram

www.yonnet.com.tr

2 Overview and Settings

I have written this script is ready written OK to extension in real time the status of

negotiations. UNKNOWN those written inaccessible.

POWER SUPPLY

• 802.3af (PoE) 48 V / 380 mA DC

• Adaptor 230 V10%,

50/60 Hz / 12V DC

DC POWER SUPPLY

• 12 V / 1A DC

VOIP Communication

SIP

VOICEC0DEC

G.711 PCM, 64 kbps

G.729

VIDE0 C0DECS

H.264, 64 –2048 kbit/s

H.263

H.263+

INTERFACE

• Ethernet

• Ethernet speed 10/100 BASE-T

• RöleÇıkışı

Max voltaj 30 V DC

Max current 1 A DC

OTHER

•Dimensions

210x100x29 mm (h×w×d)

• Weight

max. 500 g

• Operating Temperatures

-–20 with 55 ºC between

www.yonnet.com.tr

2N®Helios

General Assembly & Wiring Diagram 2.1

2.1 / 2.2

2.1 General Assemblyand Wiring Diagram

The Allen key in the screw on the bottom of

the product box with the metal surface is

removed.

The screws in the 4 corners of the plastic

plate is removed with a screwdriver

through the star before us.

After removing the plastic plate is held on the connection specified in the figure below.

2.2 General Operating Principles and Architecture

•The product display, the buttons on the left and right of the screen is used as a shortcut to

search for assigning apartments.

• The product at the bottom of the display is reserved for use only finds the last two button

menu. So this can’t be performed by pressing the search button.

• Perform the screen display menu settings in the phone book can be defined. This interface

design process is set through 2N Helios IP Manager Program.

• Numbering of the office being sought is identified In addition, it opens the door lock with a

defined password.

• There RTSP feature on the camera. In this way, it is externally accessible to the camera

image.

• For unlock to the door;,sending signals or short circuit in the device, which relays are

provided

• The card access model;Opening the card by defining the door lock is provided.

www.yonnet.com.tr

2N®Helios

Static & DHC IP Settings

2.3

2.3 Over DeviceStaticand DHCP IP settings

• For static IP to;

StandardIP:192.168.1.100 ıt is set.

• 2N Helios’ power connection is made.

• Work is expected that the first warning tone.

• According to the model applied the following button combination.

• 1 for push-button models;

• 15 times within 30 seconds of the single button needs to be pressed.

• 3-button models for;

• 1, 1, 1, 2, 2, 3 button must be pressed to include in 30 seconds.

• 6-button models for;

• 4, 4, 4, 5, 5, 6 button must be pressed to include in 30 seconds.

www.yonnet.com.tr

2N®Helios

Static & DHC IP Settings

2.3

• Givetothe DHCP IP;

• 2N®Helios’power connection is made.

• Work is expected that the first warning tone.

• According to the model applied the following button combination.

• 1 button models for;

• 15 times within 30 seconds of the single button needs to be pressed.

• 3 button models for;

• 2, 1, 1, 2, 2, 3 button must be pressed to include in 30 seconds.

• 6 button models for;

• 5, 4, 4, 5, 5, 6 button must be pressed to include in 30 seconds.

www.yonnet.com.tr

2N®Helios

Access Device

2.4

2.4 Access Devices

Devices in the open position at the factory have come DHCP.Modem or access point

distributes the IP the device can receive IPs. IP through the device defined screening

programs with mac address, the IP can be found in a comfortable way.If the IP does not

deploy, a system that is not performed, above static IP settings.The IP with which the

device is connected to interface.

User Name : admin

Password

Information

: 2n

www.yonnet.com.tr

2N®Helios

Access Device

2.4

The first screen contains information about the device.

Product name

Bootloader version

Hardware version

Serial number

MAC address

Uptime

RegistrationStatus:?

SIP number

Registration at

Registration time

DHCP status

IP address

Net mask

Default gateway

Primary DNS

Secondary DNS

Camera

Display

Card reader

Number of buttons

Numeric keypad

www.yonnet.com.tr

2N®Helios

Basic Settings

2.5.1

2.5.1 Phonebook

www.yonnet.com.tr

2N®Helios

Basic Settings

2.5.1

As shown in the above image from the first 10 and the arrow keys are called even numbers

going forward position.

Each position corresponds to the desired each number dialed.

Position enabled:Position aktif/pasif

Position name

E-mail

: Position name

: The email address of the person to be searched in this section is defined

position.

If the mail can’t get an answer at the door to allow you to send mail as a picture of who's

Calling. It is importantthatdetailsof 2NHeliosemergenceofthe Internetand SMTP(Simple

MailTransfer Protocol)server tobeaneed forsupport.

Number 1,2,3

Time Proﬁle

Group Call

: Andtelephone numbers ofpeopleyou want to searchis definedhere.

: Number 1, determined time proﬁle also ıf responding in rangeNumber 2’

either provide the call through.

: Defined Number 1, 2, 3 the addresses of all provide simultaneous to

play.

www.yonnet.com.tr

2N®Helios

Basic Settings

2.5.2

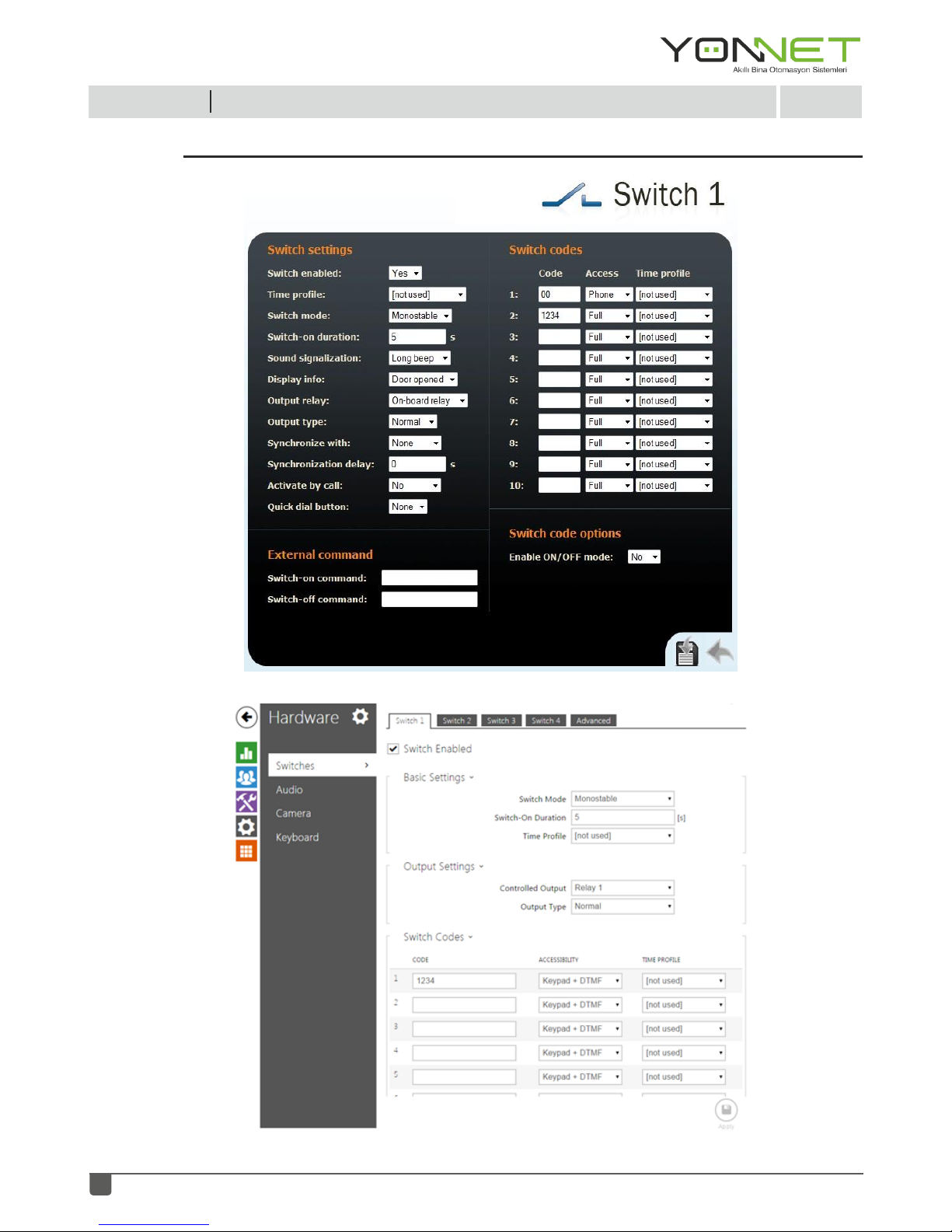

2.5.2 Switch
