MES-3528

28-port FE L2 Switch

MES-3528

28-port FE L2 Switch

Ł

16K MAC address table

Ł

Policy-based QoS optimizes

multi-service quality

Ł

IGMP Snooping v1, v2, v3, MVR

Ł

Multilayer-aware (L2/L3/L4)

ACL for security protection

Ł

High redundancy and resilient

architecture with RSTP,VRRP &

Port Trunking

The ZyXEL MES-3528 is specially designed for service providers to deliver profitable Ethernet

services.With the high-performance hardware platform, service providers can easily extend

network topologies while enabling robust security, QoS and management functions to help

customers fulfilling differentiated needs for Metro Ethernet services.

Benefits

Advanced QoS for significant services

Consistent service quality and reliable connecting ability in a converged network is the key for

service providers to win customers and build loyalty; therefore the ability to control traffic flow and

set traffic policy becomes more critical than ever.The ZyXEL MES-3528 offers wire-speed flow control

that classifies and prioritizes the incoming packets according to the predefine QoS policies that

meet requirements of service providers.

In terms of classification, the Differentiated Services Code Point (DSCP) field and the 802.1p class of

service (CoS) field are identified to assess the priority of incoming packets. Classification and

reclassification can be based on criteria as specific as rules based on IP, MAC addresses,VLAN ID or

TCP/UDP port number. For bandwidth management, the MES-3528 provides 8 priority queues per

port for different types of traffics, allowing service providers to set rule-based rate limitations that

take full advantage of constrained network resources and guarantee the best performance.

Enhanced security for protection among customers

Avoiding subscribers affecting each other on a shared network or shared device is a major concern

for service providers.The ZyXEL MES-3528 offers a complete set of security features to protect user

data while administrating the traffics. Port security provides the ability to deny unauthorized users

from accessing the network.Moreover,the 802.1x feature cooperating with RADIUS is useful to

prevent unauthorized access based on username and password (or other credentials) and acts as

powerful access control for converged networks with mixed wired and wireless access.

The MES-3528 provides a multilayer (L2/L3/L4) ACL suite of sophisticated policy-based control

mechanisms that enables service providers to deploy easily based on actual network environment

needs via a Web GUI or command line interface to prevent abnormal or illegal access.The policies

can be defined to deny packets based on source and destination MAC addresses, IP addresses or

TCP/UDP ports.

Telco-class Layer 2 Fast Ethernet

Switch with Access Control List (ACL)

MES-3528

28-port FE L2 Switch

MES-3528

28-port FE L2 Switch

Resilient and redundant design

A quick recovery and round-the-clock network is vital for service providers to establish a robust network.The MES-3528 provides comprehensive features

to make sure network is well operated.The IEEE 802.3ad Link Aggregation feature reduces network downtime by providing redundant paths and

bandwidth aggregation to critical connections, while IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) and IEEE 802.1s Multiple Spanning Tree Protocol

(MSTP) allow immediate recovery from failed connections by sending packets via the backup link.

Digital Diagnostics Monitoring Interface (DDMI) SFP support

The enhanced digital interface allows real-time access to device operating parameters, and includes optional digital features such as soft control and

monitoring of SFP I/O signals. In addition, it fully incorporates the functionality needed to implement digital alarms and warnings.

The digital diagnostic monitoring interface enables users to have the capability of performing component monitoring,fault isolation and failure

prediction tasks on their transceiver-based applications.

DDMI Monitors:

• Temperature

• Supply voltage

• Transmitted bias current

• Transmitted power

• Received power

All features listed above include alarm and warning thresholds.

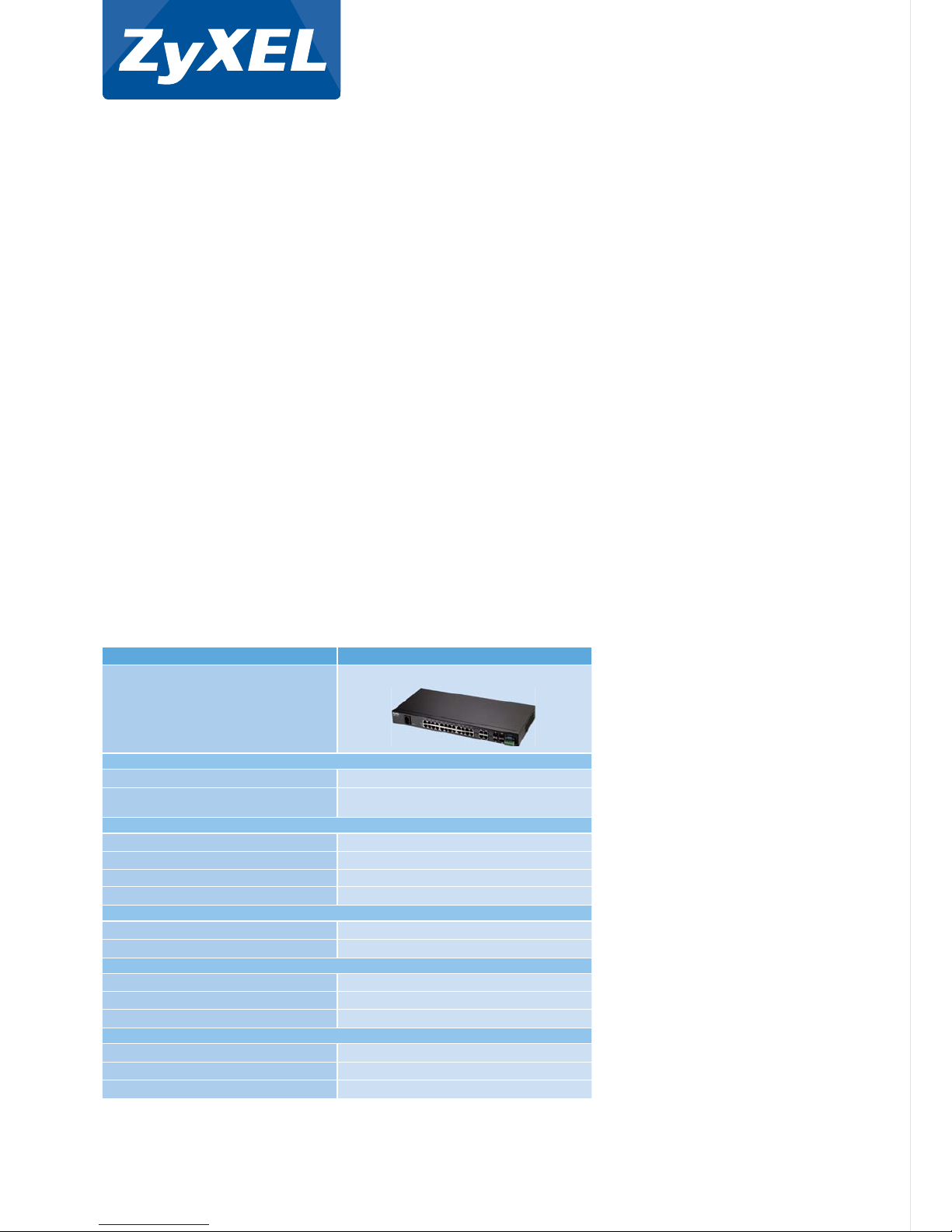

Specifications

Model MES-3528

28-port FE L2 Switch

Product Name

Port Density

10/100Base-TX, fixed 24

Dual personality ports 4

(Fixed RJ45 1000Base-T or SFP Open slots)

Performance

Switch fabric speed (Gbps) 12.8

Forwarding Rate (Mpps) 9.6

Packet buffer (Bytes) 448K

MAC address table 16K

Power Requirement—Input Power

AC Power 100 - 240 V AC, 50/60 Hz

DC Power -37 to -72 V DC

Physical Specification

Dimensions (WxDxH)(mm/in.) 438 x 174 x 44.5/17.24 x 6.85 x 1.75

Weight (kg/lb.) 2.8/6.17

Mean Time Between Failure (MTBF)(hours) 161,039

Environmental Specification

Operating temperature 0°C to 50°C/32°F to 122°F

Storage temperature -10°C to 70°C/14°F to 158°F

Operating humidity 10% to 90%, (non-condensing)

Features

Standard Compliance

• IEEE 802.3 10Base-T Ethernet

• IEEE 802.3u 100Base-Tx Ethernet

• IEEE 802.ab 1000Base-T Ethernet

• IEEE 802.3z 1000Base-X

• IEEE 802.3x flow control

• IEEE 802.1d spanning tree protocol

• IEEE 802.1w rapid spanning tree protocol

• IEEE 802.1s multiple spanning tree protocol

• IEEE 802.1p class of service, priority protocols

• IEEE 802.1Q VLAN tagging

• IEEE 802.1x port authentication

• IEEE 802.3ad LACP aggregation

Traffic Management and QoS

• Broadcast storm control

• IEEE 802.1p with 8 hardware priority queues per

port for different types of traffic

• IEEE 802.1Q tag-based and port-based VLAN

• Weighted Fair Queuing (WFQ)/WRR/SPQ

scheduling algorithm

• Policy based rate limiting

• Policy based bandwidth control

• Port based traffic shaping

• Rule-based traffic mirroring

• IGMP snooping (v1, v2, v3)

• IGMP filtering

• Jumbo frame support (9K Bytes) for high

performance data backup or recovery services

• Support GVRP, automatic VLAN member

registration

• Multicast VLAN Registration (MVR)

Link Aggregation

• IEEE 802.3ad LACP link aggregation compliant

• Support static manually port trunking

• Up to 6 aggregation groups,8 ports/per group

randomly selected

• VLAN trunking

Redundancy for Fault Backup

• IEEE 802.1w Rapid Spanning Tree Protocol

(RSTP) provides rapid convergence of spanning

tree independent of spanning-tree timer

• IEEE 802.1s multiple spanning tree provides link

availability in multiple VLAN environments by

allowing multiple spanning trees

• MRSTP—Multiple RSTP

User Security and Authentication

• IEEE 802.1x authentication

• IP source guard (static IP/MAC binding, DHCP

snooping, ARP inspection)

• IP subnet VLAN & VLAN isolation

• Limiting MAC number per port

• Loop guard prevents a switch from being

affected by another switch which is already in a

looping status

• MAC filtering per port secures access to each

port

• MAC freeze

• Port security, port isolation, port mirroring

• Static MAC forwarding per port: only specified

MAC addresses can access the network (port

security)

• Wire speed filtering per MAC/IP/TCP/UDP

• Wire speed mirroring per MAC/IP/TCP/UDP

• Wire speed rate limiting per MAC/IP/TCP/UDP

• GVRP, automatic VLAN member registration

Network Administration Security

• SSH v1/v2

• SSL

• RADIUS accounting

• TACACS+ authentication, accounting

• NTP, daylight saving

Network Management

• Supports ZyXEL iStacking™, up to 24 switches

can be managed by one IP address

• Intuitive Web-based management with all

features configurable

• Text-based configuration profile for massive

deployment

• Telnet CLI (Cisco like)

• SNMP v1, v2c, v3

• SNMP trap group

• RMON four RMON groups 1, 2, 3, 9 (history,

statistics, alarms, and events) for enhanced

traffic management, monitoring, and analysis

• Out-of-Band management: RS-232c local

console

• Firmware upgrade, configuration backup/

restore via ftp

• Alarm led indicator for early warning of

hardware troubles

• Send system trap to trap server

• DHCP relay, DHCP relay per VLAN, DHCP relay

option 82, DHCP client

• Port mirroring: supports source/destination/

both port mirroring

• IEEE 802.3ah Ethernet Operations,

Administration and Management (OAM)

Intelligent ACL

(L2/L3/L4 Access List Control)

• Based on port

• Based on MAC + VLAN ID

• Based on IP address (source/destination)

• Based on protocol type

• Based on TCP/UDP port number

MIB Information

• RFC1213 MIB II

• RFC1493 Bridge MIB

• RFC1643 Ethernet MIB

• RFC1757 RMON group 1, 2, 3, 9

• RFC2011 IP MIB

• RFC2012 TCP MIB

• RFC2013 UDP MIB

• RFC2233 ifVHC Packet Group

• RFC2674 VLAN MIB

• RFC2925 PING-MIB and TRACEROUTE-MIB

• ZyXEL private MIB

Safety Agency Certification

• UL 60950-1

• CSA 60950-1

• EN 60950-1

• IEC 60950-1

• EU RoHS compliant

5-100-01011006 05/11

For more product information, visit us on the web at www.ZyXEL.com

ZyXEL Communications Corp. All other brands, product names, or trademarks mentioned are the property of their

respective owners. All specifications are subject to change without notice.

MES-3528

28-port FE L2 Switch

MES-3528

28-port FE L2 Switch

Accessories

SFP Transceivers (Optional)

Speed Model Type Description

SFP-1000T RJ-45 connector Up to 100 m using standard Ethernet cable

SFP-SX-D LC connector SFP SX 550 m commercial type transceiver, DDMI version

SFP-LX-10-D LC connector SFP LX 10 km commercial type transceiver, DDMI version

Gigabit SFP-BX1310-10-D LC connector Bidirectional singlemode, up to 10 km reach, DDMI version*

SFP-BX1490-10-D LC connector Bidirectional singlemode, up to 10 km reach, DDMI version*

SFP-LHX1310-40-D LC connector SFP LHX 1310 wavelength 40 km commercial type transceiver, DDMI version

SFP-ZX-80-D LC connector SFP ZX 80 km commercial type transceiver, DDMI version

*: Bi-directional SFP must be used in pairs (Example: Connect 1 x SFP-BX1310-10-D and 1 x SFP-BX1490-10-D together as a solution.)
