ZyXEL Communications GS-105S Manuel utilisateur

GS-105S

GS-108S

5/8-Port Desktop Gigabit

Ethernet Media Switch

GS-105S

GS-108S

5/8-Port Desktop Gigabit

Ethernet Media Switch

The ZyXEL GS-105S/GS-108S 5/8-Port Desktop Gigabit Ethernet Media Switch can easily

connect multiple media devices to home networks at blazing-fast Gigabit speed

simultaneously. Moreover, the newly designed QoS ports of GS-105S/GS-108S allow smooth

video streaming and online gaming as well.

Benefits

Plug-and-play,stylish design

With easy plug-and-play, you can connect the GS-105S/GS-108S to media players, game consoles

and smart TVs to your home network without any configuration effort.With its stylish modern look

and streamlined design, the GS-105S/GS-108S fits nicely into any home décor.

Smooth multimedia streaming and gaming

The ZyXEL GS-105S/GS-108S features QoS ports for you to assign high, medium or low priorities for

your preferred network applications. For instance, if you are a movie enthusiast, you can connect

media players or smart TVs to the high-priority ports for smooth video streaming and the best

home 3D streaming experience.If you prefer lag-free online gaming,simply connect the game

console through the high-priority QoS port and assign media players, PC and other network

devices to the medium- or low-priority QoS ports according to your need.

Blazing-fast Gigabit speed

The GS-105S/GS-108S 10/100/1000 Mbps switch is designed for reliable high-performance media

networks 10 times faster than Fast Ethernet connections. It perfectly fulfills the demands for

multimedia streaming and online gaming.

Prioritize Multimedia Streams for

Optimized Video and Online

Gaming Enjoyments

1000

100

Mbps

Low Priority

High Priority

Medium Priority

www

Ł

Plug-and-play,stylish design

that fits home environments

Ł

Enjoy smooth multimedia

streaming and gaming

through QoS ports with 3-level

prioritization

Ł

Stream multimedia with

blazing-fast Gigabit speed

Ł

Green switch design for

energy saving

5-100-00211029 02/12

For more product information, visit us on the web at www.ZyXEL.com

ZyXEL Communications Corp. All other brands, product names, or trademarks mentioned are the property of their

respective owners. All specifications are subject to change without notice.

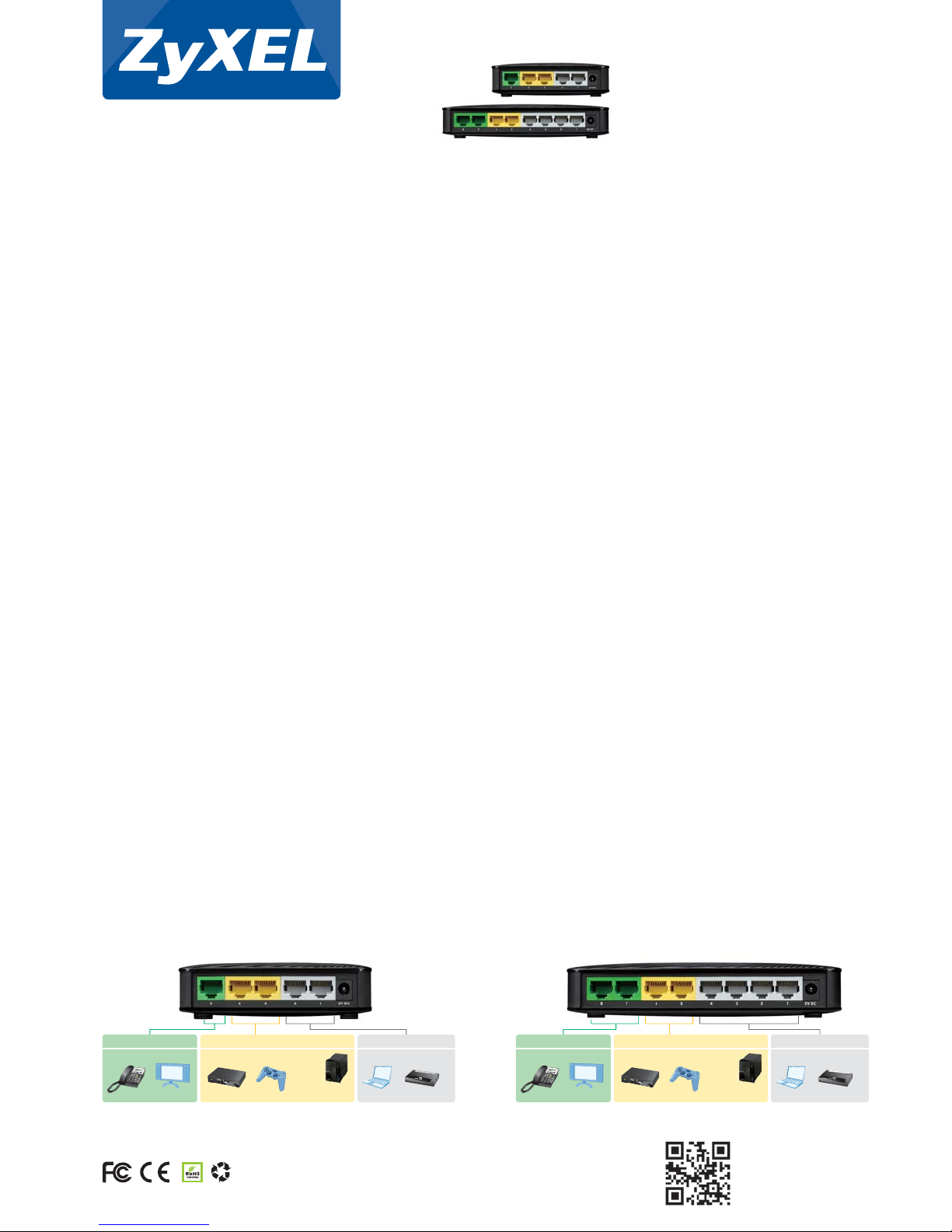

GS-105S GS-108S

Game

Console

IP Phone Smart TV Media Player

High-Priority Port Medium-Priority Ports Low-Priority Ports

Laptop Internet Modem

P-600series

ANDSLINTERNET

1234

PWR/SYS

2-Bay Power Plus

Media Server

NSA325

Video/Gaming Internet/Web/E-mailVoIP/Video

Game

Console

IP Phone Smart TV Media Player

High-Priority Ports Medium-Priority Ports Low-Priority Ports

Laptop Internet Modem

P-600series

ANDSLINTERNET

1234

PWR/SY

2-Bay Power Plus

Media Server

NSA325

Video/Gaming Internet/Web/E-mailVoIP/Video

GS-105S

GS-108S

5/8-Port Desktop Gigabit

Ethernet Media Switch

GS-105S

GS-108S

5/8-Port Desktop Gigabit

Ethernet Media Switch

Green switch saves energy

Compliant with the IEEE 802.3az Energy Efficient Ethernet standard, the GS-105S/GS-108S provides power-saving benefits without compromising

performance. Moreover, the GS-105S/GS-108S automatically adjusts power consumption according to the number of active, connected network devices and

cable length.That is, fewer active connected network devices or shorter Ethernet cable length allows the switch to consume less power.

System Specifications

Standard

• IEEE 802.3 10BASE-T Ethernet

• IEEE 802.3u 100BASE-TX Fast Ethernet

• IEEE 802.3ab 1000BASE-T Gigabit Ethernet

• IEEE 802.3 Nway auto-negotiation

• IEEE 802.3x full duplex operation and flow

control

• IEEE 802.3az Energy Efficient Ethernet

Performance

• Data transfer rate (half duplex/full duplex):

■

Ethernet: 10/20 Mbps

■

Fast Ethernet: 100/200 Mbps

■

Gigabit Ethernet: 1000/2000 Mbps

• MAC address table:

■

GS-105S: 2 K

■

GS-108S: 8 K

• Memory buffer:

■

GS-105S: 128 KB

■

GS-108S: 128 KB

• Switching fabric (non-blocking):

■

GS-105S: 10 Gbps

■

GS-108S: 16 Gbps

Features

• Auto-MDI/MDIX in all ports

• Transmission method:

■

Store-and-forward architecture

• Loop detection support

• Port-based QoS support

• Jumbo frame support up to 9 KB

• IGMP snooping v1/v2 support (GS-105S)

Hardware Specifications

Interface

• GS-105S: Five RJ-45 10/100/1000 Mbps Ethernet

ports with auto MDI/MDIX support

• GS-108S: Eight RJ-45 10/100/1000 Mbps

Ethernet ports with auto MDI/MDIX support

QoS Ports

• GS-105S: One high-priority QoS port, two

medium-priority QoS ports, and two

low-priority QoS ports

• GS-108S:Two high-priority QoS ports, two

medium-priority QoS ports, and four low-priority

QoS ports

LED Indicator

• PWR: Power

• Per port: Link/Activity

Power Supply

• GS-105S:

■

Input: 100-240 V AC

■

Output: 5 V DC, 1 A

• GS-108S:

■

Input: 100-240 V AC

■

Output: 5 V DC, 1 A

Power Consumption

• GS-105S: 2.5 watt max.

• GS-108S: 4.5 watt max.

Physical Specifications

• Item dimensions (WxDxH):

■

GS-105S: 106 x 75 x 32 mm (4.17”x 2.95”x 1.26”)

■

GS-108S: 152 x 80 x 32 mm (5.99”x 3.15”x 1.26”)

• Item weight:

■

GS-105S: 105 g (0.23 lb.)

■

GS-108S: 150 g (0.33 lb.)

• Packing dimensions (WxDxH):

■

GS-105S: 127 x 82 x 95 mm (5.00” x 3.23” x 3.74”)

■

GS-108S: 157 x 86 x 96 mm (6.18” x 3.39” x 3.78”)

• Packing weight:

■

GS-105S: 205 g (0.45 lb.)

■

GS-108S: 250 g (0.55 lb.)

Environmental Specifications

Operating Environment

• Temperature: 0°C to 40°C (32°F to 104°F)

• Humidity: 10% to 90% (Non-condensing)

Storage Environment

• Temperature: -20°C to 70°C (-4°F to 158°F)

• Humidity: 10% to 90% (Non-condensing)

Certification

• CE, FCC Class B, C-Tick, BSMI

Package Contents

• Gigabit switch

• Power adapter

• Quick start guide

• Warranty card

Specifications

Application Diagram
