The ZyXEL GS1900 Series of 8/16/24/48-port GbE Smart Managed Switch with Gigabit speed and
essential managing functions bring your business network more exibility and connectivity. The
1900 Series consists of eight (8) models—the GS1900-8, GS1900-8HP, GS1900-16, GS1900-24E,
GS1900-24, GS1900-24HP, GS1900-48 and GS1900-48HP. Providing GbE switches with power-
saving functions, fanless design and full IPv6 support ensure your network to be ready for future
expansions. In addition, the PoE models GS1900-8HP/24HP/48HP Gigabit switch complies with
the IEEE 802.3at Power over Ethernet (PoE) Plus standard. The complete GS1900 Series has been
designed with useful features and advanced performances that empower your networks with
speed and security as well as silent operation in your oce environments.
Benets
Versatility and exibility for dierent needs
The complete ZyXEL GS1900 Series has an essential portfolio of 8/16/24/48-port compact desktop and
rackmount size with GbE connectivity. All models support multiple deployment methods to fulll the
needs for small oces and meeting room environments such as wall-, under table- or desktop-mounting
and rackmount options. It’s now quick and eortless to enjoy the high-speed business network
applications without a hitch. Additionally, the GS1900-24/24HP/48/48HP is equipped with 2 extra SFP
slots to provide 100M and GbE speeds for long-distance deployments.
The GS1900-8HP/24HP/48HP features IEEE 802.3at PoE Plus provide 8 PoE ports with up to 30 W powers
per port to exibly extend network deployment, especially for high-power devices such as Wi-Fi APs, IP
cams and IP phones. The 802.3at PoE Plus capability makes the switch ideal for connecting numerous
powered devices to form a awless business network.
Simple, intuitive wizard set up
For small businesses that want to manage their infrastructure in advance, the ZyXEL GS1900 Series
comes with a friendly built-in Web-based browser for simple conguration and management. Moreover,
the friendly step-by-step intuitive wizard helps avoiding multiple complicated conguration pages for
quick set up with few clicks in the matter of minutes. To guide the users from start-up, VLAN, Guest VLAN
to QoS setting, the ZyXEL Series oers four most common steps and combines them into a quick and
easy setup wizard; which does not just save deployment time and eorts, but is also helpful especially
for the non-IT sta.
• 10/100/1000 Mbps GbE ports
• Easy browser-based switch
management
• Quick and easy set up wizard
• Advanced network error
prevention features (loop
protection, dual images, storm
control, DoS and SSL)
• Fanless design
(GS1900-8/8HP/16/24/24E/48)
• Green Ethernet IEEE 802.3az
support and intelligent ZyXEL
green features
• High-power PoE support
IEEE 802.3at (GS1900-
8HP/24HP/48HP)
Simple, Fast and Smart Managed Switches
for Small Business Connectivity
GS1900 Series
8/16/24/48-port GbE
Smart Managed Switch
Start up VLAN QoS Link
aggregation
2
GS1900 Series
8/16/24/48-port GbE Smart Managed Switch
Avoiding network errors with easy management
The ZyXEL GS1900 Series is equipped with advanced management features to make the network stable and secure: loop protection that prevents
network ooding, dual images to provide a backup FW if one crashes and storm control to ensure network eciency, friendly on/o DoS with simple click
to enable/disable instead of several setup pages, while SSL ensures the management frames are well encrypted when the device is accessed. The GS1900
Series provides network error prevention features and integrated network security for reduced risk and improved data streaming.
Energy saving for IEEE 802.3az
As operating overheads such as electric bills increase constantly due to the arising green awareness, businesses have to avoid unnecessary energy
waste. The built-in IEEE 802.3az Energy Ecient Ethernet (EEE) and more ZyXEL innovative green features of ZyXEL GS1900 Series can reduce energy
consumption of Ethernet devices through multiple intelligent ways.
• Trac detection—Energy Ecient Ethernet (EEE) compliance
The IEEE 802.3az Energy Ecient Ethernet (EEE) feature automatically detects network trac and adjusts power consumption dynamically, as such the
switch can reduce power consumption during low link utilization periods.
• Inactive link detection
The inactive link detection function automatically reduces power usage when inactive links or devices are detected. The ZyXEL GS1900 Series can adjust
power consumption according to the link status and number of the active network devices.
• Cable length detection
This green feature enables the switch to automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter
the cable length, the less power it consumes.
Intelligence to power more devices (GS1900-8HP/24HP/48HP)
ZyXEL’s Intelligent PoE feature provides two PoE supply modes: classication mode and consumption mode. Especially in consumption mode, the GS1900-
8HP/24HP/48HP reserves the actual required power automatically, and you can set power feeding priorities on dierent ports to get the optimized use of
power resource. This capability increases the number of devices connected and deliver a better ROI for the business. In addition, the GS1900-8HP supports
the IEEE 802.3at standard on all 8 ports, providing a maximum of 30 watts per port, total 70 watts. Besides, the GS1900-24HP and 48HP both provide 170
watts of total budget power for devices with higher power requirements such as IP phones, IP cameras and wireless access points.

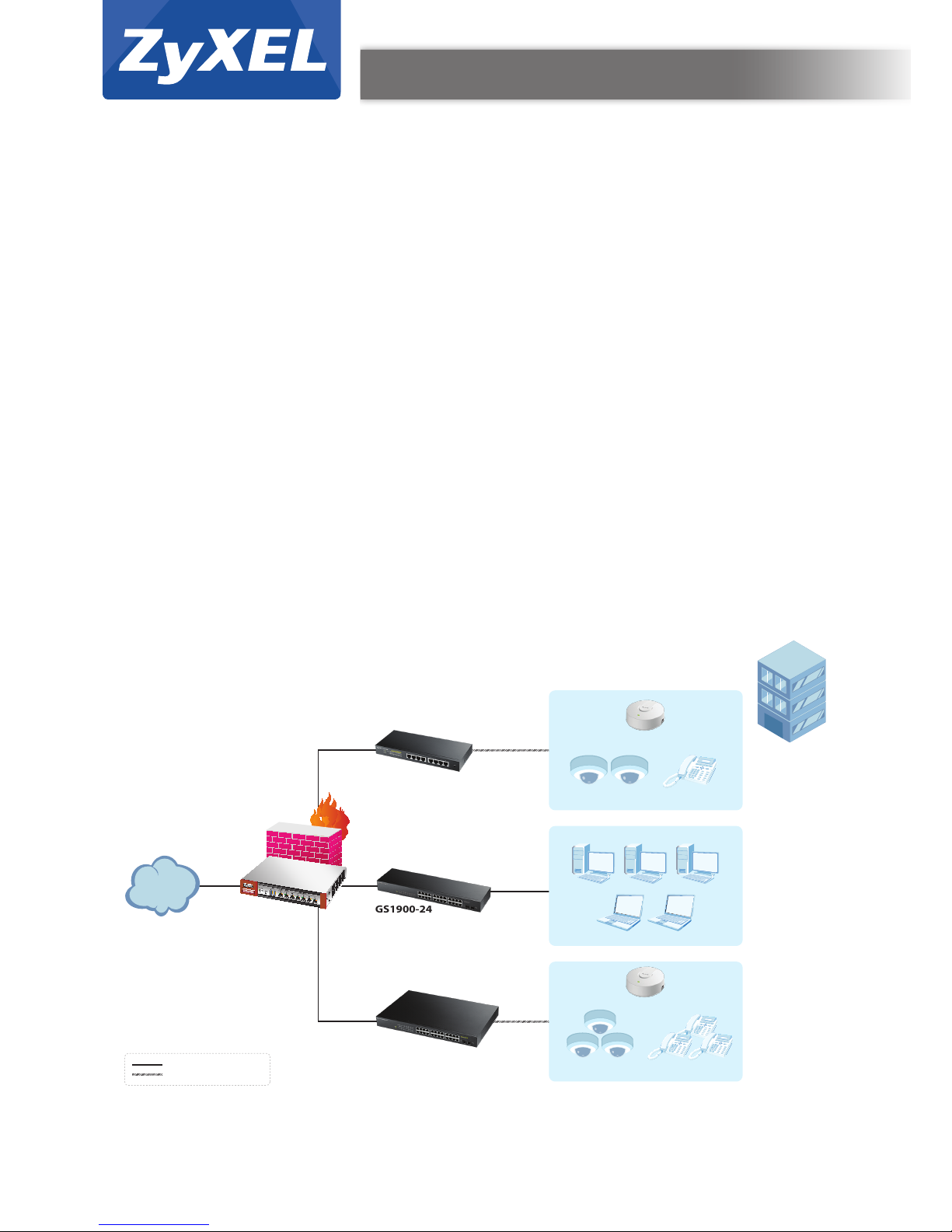

Key Applications
GS1900-8HP
8-port GbE Smart
Managed PoE Switch
Internet
In Office
IP Phone
GS1900-24
24-port GbE Smart
Managed Switch
with GbE Uplink
GS1900-24HP
24-port GbE Smart
Managed PoE Switch
with GbE Uplink
Access Point
Access Point
IP Camera
IP PhoneIP Camera
USG 100
Unied Security
Gateway
10/100/1000 Mbps/Copper
Gigabit PoE
3
GS1900 Series
8/16/24/48-port GbE Smart Managed Switch
Specications
Model GS1900-8 GS1900-8HP GS1900-16 GS1900-24E GS1900-24 GS1900-24HP GS1900-48 GS1900-48HP
Product name
8-port GbE
Smart
Managed
Switch
8-port GbE
Smart
Managed PoE
Switch
16-port GbE
Smart
Managed
Switch
24-port GbE
Smart
Managed
Switch
24-port
GbE Smart
Managed
Switch with
GbE Uplink
24-port
GbE Smart
Managed PoE
Switch with
GbE Uplink
48-port
GbE Smart
Managed
Switch with
GbE Uplink
48-port
GbE Smart
Managed PoE
Switch with
GbE Uplink
Port Density
10/100/1000 BASE-T,
fixed 8 - 16 24 24 - 48 24
10/100/1000 BASE-T,
PoE, fixed - 8 - - - 24 - 24
SFP 100/1000 Mbps - - - - 2 2 2 2
Performance
Switching capacity
(Gbps) 16 16 32 48 52 52 100 100
Switch forwarding rate
(Mpps) 11.9 11.9 23.8 35.7 39 39 74 74
Packet buffer (byte) 525 K 525 K 525 K 525 K 525 K 525 K 1.5 M 1.5 M
MAC address 8 K 8 K 8 K 8 K 8 K 8 K 8 K 8 K
Jumbo frame (byte) 9 K 9 K 9 K 9 K 9 K 9 K 9 K 9 K
Power
Input voltage of AC 100 - 240 V AC, 50/60 Hz
Max. power
consumption (watt) 6.5 90 11 14.6 16 215 36.9 250
PoE power budget
(watt) - 70 - - - 170 - 170
Physical Specifications
Item
Dimensions
(WxDxH)
(mm/in.)
250 x 104 x 27/
9.84 x 4.10
x 1.06
250 x 104 x 27/
9.84 x 4.10
x 1.06
216 x 133 x 42/
8.50 x 5.23
x 1.65
267 x 162 x 42/
10.51 x 6.37
x 1.65
440 x 131 x 44/
17.32 x 5.16
x 1.73
440 x 310 x 45/
17.32 x 12.20
x 1.77
440 x 200 x 44/
17.32 x 7.87
x 1.73
440 x 330 x 45/
17.32 x 13
x 1.77
Weight
(kg/lb.) 0.65/1.43 0.66/1.46 0.97/2.13 1.56/3.44 2.09/4.60 4.03/8.88 2.9/6.39 4.24/9.35
Packing
Dimensions
(WxDxH)
(mm/in.)
302 x 227 x 64/
11.89 x 8.94
x 2.52
302 x 227 x 64/
11.89 x 8.94
x 2.52
325 x 223 x 71/
12.80 x 8.78
x 2.80
325 x 223 x 71/
12.80 x 8.78
x 2.80
561 x 217 x 82/
21.97 x 8.54
x 3.23
583 x 451 x 98/
22.95 x 17.76
x 3.86
509 x 292 x 93/
20.03 x 11.50
x 3.66
583 x 451 x 98/
22.95 x 17.76
x 3.86
Weight
(kg/lb.) 1.04/2.30 1.51/3.33 1.80/3.97 2.05/4.52 2.85/6.28 5.1/11.24 4.3/9.48 5.31/11.70
Environmental Specifications
Operating
temperature 0°C to 50°C/32°F to 122°F
Storage
temperature -40°C to 70°C/-40°F to 158°F
Operating humidity 10% to 95% (non-condensing)
MTBF (hr) 862,561 533,086 843,668 804,714 432,673 318,142 229,313 175,767
Heat dissipation
(BTU/hr) 22.17 306.90 37.51 49.79 55 733 126 853
For more product information, visit us on the web at www.ZyXEL.com
Copyright © 2013 ZyXEL Communications Corp. All rights reserved. ZyXEL, ZyXEL logoare registered trademarks
of ZyXEL Communications Corp. All other brands, product names, or trademarks mentioned are the property of
their respective owners. All specications are subject to change without notice.
5-100-01013015 10/13
GS1900 Series
8/16/24/48-port GbE Smart Managed Switch
Features
Standard Compliance
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Ethernet
• IEEE 802.3ab (1000BASE-T) Ethernet
• IEEE 802.3x ow control
• IEEE 802.3az EEE support
• IEEE 802.1p CoS support
• IEEE 802.3af PoE (GS1900-8HP/24HP/48HP)
• IEEE 802.3at PoE plus
(GS1900-8HP/24HP/48HP)
• Full-duplex and half duplex operation with
IEEE 802.3x ow control and backpressure
• Store and forward
• Auto MDI/MID-X
Trac Management and QoS
• Port-based VLAN
• IEEE 802.1Q VLAN tagging
• IEEE 802.3ad LACP
• Guest VLAN
• Voice VLAN
• Storm control
• IEEE 802.1p priority queues per port
• IEEE 802.1p Queuing method (scheduler)
• Input priority mapping
• Rate limiting per port (ingress/egress)
• IEEE 802.3x ow control
Class of Service (CoS)
• IEEE 802.1p class of service (SPQ, WRR)
• Port-based CoS
• IP TOS precedence
Security
• IEEE 802.1x
• Port security
• Layer 2 MAC ltering
• Static MAC forwarding
• RADIUS
• TACACS+
• SSL
• Management VLAN
• CPU defense engine
• DoS prevention
Layer 2 Multicast
• IGMP snooping (v1, v2, v3)
IPv6
• IPv6 over Ethernet (RFC 2464)
• Dual-stack (RFC 4213)
• ICMPv6 (RFC 4884)
• Neighbor discovery (RFC 4861)
• Auto conguration
• Static IPv6 address and prex length
• Static IPv6 default gateway
• IPv6 duplicate address detection
Discovery
• IEEE 802.1 AB LLDP
• LLDP-MED
Network Management
• SNMP v1, v2, v3
• RMON (1, 2, 3, 9)
• ICMP echo/echo reply
• Syslog
MIB
• RFC 1213 MIB II
• RFC 2819 RMON (group 1, 2, 3, 9)
• RFC 1215 generic traps
• RFC 1493 bridge
• Private MIB
Certications
• EMC
■CE, FCC, C-Tick, Class A
(GS1900-8HP/24/24HP/48/48HP)
■CE, FCC, C-Tick, Class B (GS1900-8/16/24E)
■BSMI CNS13438
• Safety
■LVD EN60950-1
■BSMI CNS14336-1
• RoHS compliant
