GS-105A/GS-108A

Gigabit Switch

User’s Guide

Version 1.0

February 2004

GS-105A/GS-108A User’s Guide

The contents of this publication may not be reproduced in any part or as a

whole, transcribed, stored in a retrieval system, translated into any

language, or transmitted in any form or by any means, electronic,

mechanical, magnetic, optical, chemical, photocopying, manual, or

otherwise, without the prior written permission of ZyXEL

Communications Corporation.

Disclaimer

ZyXEL does not assume any liability arising out of the application or use

of any products, or software described herein. Neither does it convey any

license under its patent rights nor the patents rights of others. ZyXEL

further reserves the right to make changes in any products described

herein without notice. This publication is subject to change without notice.

Trademarks

Trademarks mentioned in this publication are used for identification

purposes only and may be properties of their respective owners.

Interference Statements and Warnings

FCC Interference Statement

This device complies with Part 15 of the FCC rules. Operation is subject

to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including

interference that may cause undesired operations.

GS-105A/GS-108A User’s Guide

iii

FCC Warning

This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely

to cause harmful interference in which case the user will be required to

correct the interference at his own expense.

CE Mark Warning

This is a class A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take

adequate measures.

Taiwanese BSMI (Bureau of Standards,

Metrology and Inspection) A Warning

Certifications

Refer to the product

page at

www.zyxel.com.

ZyXEL Limited Warranty

ZyXEL warrants to the original end user (purchaser) that this product is

free from any defects in materials or workmanship for a period of up to

two (2) years from the date of purchase. During the warranty period and

upon proof of purchase, should the product have indications of failure due

to faulty workmanship and/or materials, ZyXEL will, at its discretion,

repair or replace the defective products or components without charge for

either parts or labor and to whatever extent it shall deem necessary to

restore the product or components to proper operating condition. Any

replacement will consist of a new or re-manufactured functionally

equivalent product of equal value, and will be solely at the discretion of

GS-105A/GS-108A User’s Guide

ZyXEL. This warranty shall not apply if the product is modified, misused,

tampered with, damaged by an act of God, or subjected to abnormal

working conditions.

Note

Repair or replacement, as provided under this warranty, is the exclusive

remedy of the purchaser. This warranty is in lieu of all other warranties,

express or implied, including any implied warranty of merchantability or

fitness for a particular use or purpose. ZyXEL shall in no event be held

liable for indirect or consequential damages of any kind of character to the

purchaser.

To obtain the services of this warranty, contact ZyXEL's Service Center

for your Return Material Authorization number (RMA). Products must be

returned Postage Prepaid. It is recommended that the unit be insured when

shipped. Any returned products without proof of purchase or those with an

out-dated warranty will be repaired or replaced (at the discretion of

ZyXEL) and the customer will be billed for parts and labor. All repaired

or replaced products will be shipped by ZyXEL to the corresponding

return address, Postage Paid. This warranty gives you specific legal rights,

and you may also have other rights that vary from country to country.

GS-105A/GS-108A User’s Guide

Customer Support

If you have questions about your ZyXEL product or desire assistance,

contact ZyXEL Communications Corporation offices worldwide, in one of

the following ways:

Contacting Customer Support

When you contact your customer support representative, have the

following information ready:

♦ Product model and serial number.

♦ Warranty information.

♦ Date you received your product.

♦ Brief description of the problem and the steps you took to solve it.

METHOD E-MAIL: SUPPORT TELEPHONE WEB SITE

LOCATION SALES FAX FTP SITE

REGULAR MAIL

[email protected].tw +886-3-578-3942 www.zyxel.com

www.europe.zyxel.com

WORLDWIDE

sales@zyxel.com.tw +886-3-578-2439 ftp.europe.zyxel.com

ZyXEL Communications

Corp., 6 Innovation Road II,

Science-Based Industrial

Park, Hsinchu, 300, Taiwan

[email protected] +1-800-255-4101 www.us.zyxel.comNORTH

AMERICA

sales@zyxel.com ftp.us.zyxel.com

ZyXEL Communications Inc.,

1130 N. Miller St.

Anaheim, CA 92806, U.S.A.

support@zyxel.dk +45-3955-0700 www.zyxel.dkSCANDINAVIA

sales@zyxel.dk +45-3955-0707 ftp.zyxel.dk

ZyXEL Communications A/S,

Columbusvej 5, 2860

Soeborg, Denmark

[email protected] +49-2405-6909-0 www.zyxel.deGERMANY

sales@zyxel.de +49-2405-6909-99

ZyXEL Deutschland GmbH.

Adenauerstr. 20/A2 D-52146

Wuerselen, Germany

GS-105A/GS-108A User’s Guide

Table of Contents

ENGLISH......................................................................................... 1

DEUTSCH ....................................................................................... 5

FRANÇAIS ...................................................................................... 9

ESPAÑOL ..................................................................................... 13

ITALIANO......................................................................................17

中文................................................................................................21

ENGLISH

Getting to Know Your Switch

Introduction

The switch is a multi-port switch that can be used to build high-

performance switched networks. The switch is a store-and-forward device

that offers low latency for high-speed networking. The switch is designed

for SOHO (Small Office Home Office) businesses.

Standalone Workgroup Application

The switch can be used as a standalone switch to which computers, servers

and print server are directly connected to form a small workgroup.

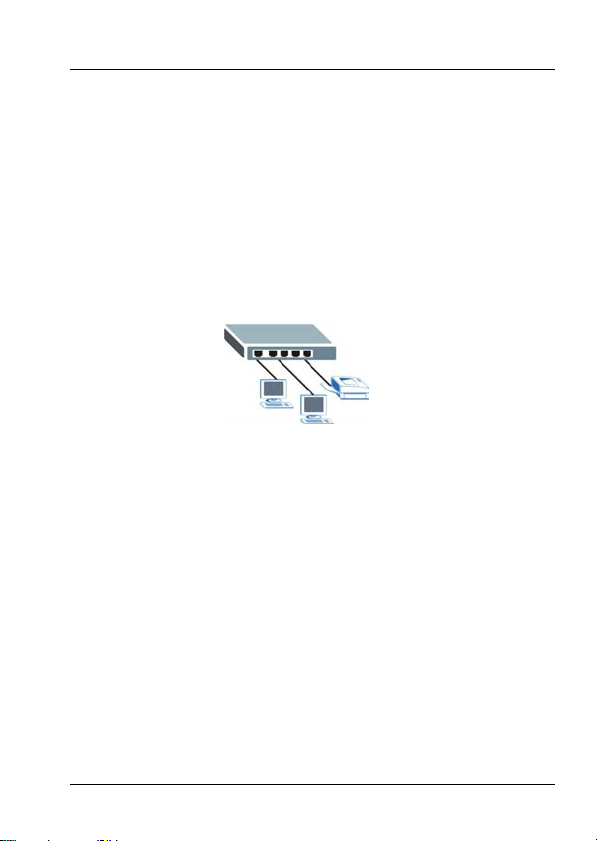

Standalone Workgroup Example

Hardware Installation

The switch is suitable for an office environment where it can be placed on

a desktop.

Step 1. Make sure the switch is clean and dry.

Step 2. Set the switch on a smooth, level flat space strong enough to

support the weight of the switch and the connected cables.

Make sure there is a power outlet nearby.

Step 3. Use only the supplied power adaptor to connect your switch to

a power source. Refer to the label on the power adapter for

more information.

ENGLISH

Do not block the ventilation holes.

Hardware Connection

The power and the Ethernet ports are located on the rear panel.

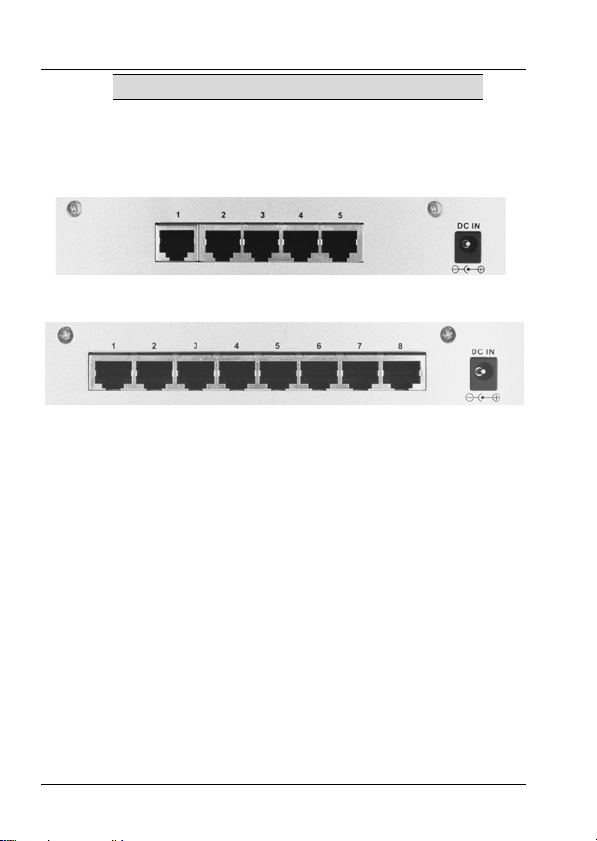

Rear PanelGS-105A

Rear Panel: GS-108A

Power Connection

Connect one end of the supplied power adaptor to the power port on the

rear panel of the switch and the other end to the appropriate power source.

The PWR LED turns on.

RJ-45 Auto-negotiating Ports

The switch comes with 5 or 8 10/100/1000M RJ-45 ports depending on

the model of your switch. The auto-negotiation feature allows the switch

to detect the speed of incoming transmission and adjust appropriately

without manual intervention. It allows data transfers of 10 Mbps, 100

Mbps or 1000 Mbps in either half-duplex or full-duplex mode depending

on your Ethernet network.

ENGLISH

Auto-crossover Ethernet Ports

All ports are auto-crossover, that is auto-MDIX ports (Media Dependent

Interface Crossover), so you may use either a straight-through Ethernet

cable or crossover Ethernet cable for all Ethernet port connections. Auto-

crossover ports automatically sense whether they need to function as

crossover or straight ports, so crossover cables can connect both

computers and switches/hubs.

Refer to the Product Specifications section for the types of network cable

used for the different connection speeds.

Front Panel LEDs

The LEDs on the front panel indicate the real-time status of the switch.

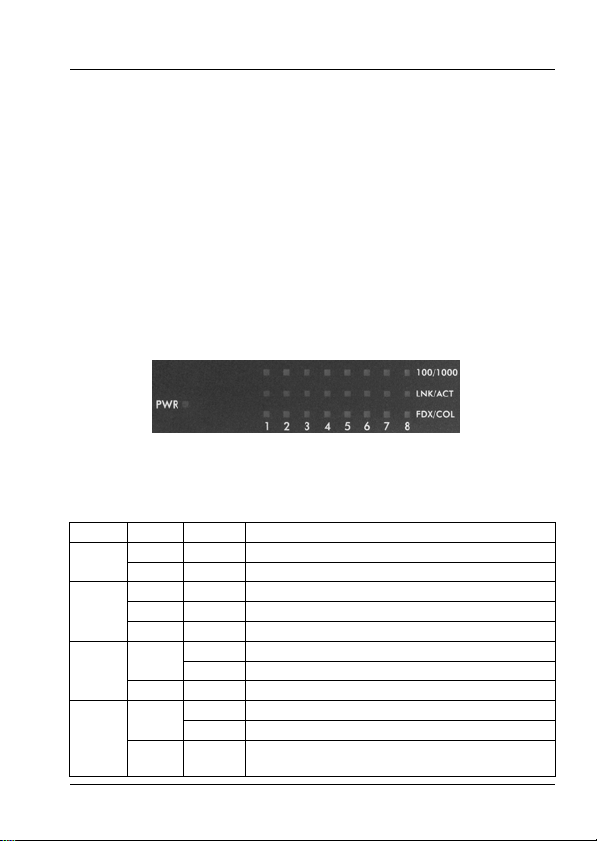

Front Panel LED: GS-108A

Table 1 Front Panel LED Descriptions

LED COLOR STATUS DESCRIPTION

PWR Green On The switch is on and receiving power.

Off The switch is not receiving power.

100/1000 Green On The port is operating at 1000Mbps.

Amber On The port is operating at 100Mbps.

Off The port is operating at 10Mbps or no device is attached.

LNK/ACT Green On The port is connected to an Ethernet network.

Blinking The port is receiving or transmitting data.

Off The port is not connected to an Ethernet network.

Amber On The port is operating in full-duplex mode.

Blinking Packet collision occurred on this port.

FDX/COL

Off The port is operating in half-duplex mode or no Ethernet

device is connected to this port.

ENGLISH

Product Specifications

Standard

IEEE 802.3 10BASE-T Ethernet,

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE802.3x Flow Control and Back-pressure

Protocol CSMA/CD

Technology Store-and-Forward switching architecture

Transfer Rate

14,880 pps for 10Mbps

148,800 pps for 100Mbps

1,488,000 pps for 1000Mbps

Connector 5/8 Gigabit Copper: RJ-45 ; Auto-MDIX on all ports

MAC Address 4K Mac address table

Memory Buffer 1Mbits

Network Cable

(Up to 100m or 328ft)

10BASE-T: 100Ω2-pair UTP/STP Cat. 3, 4, 5

100BASE-TX: 100Ω2-pair UTP/STP Cat. 5

Gigabit Copper: 100Ω4-pair UTP/STP Cat. 5

Backplane GS-105A: 10Gbps

GS-108A: 16Gbps

LED Per port: 100/1000, LNK/ACT, FDX/ COL

Per unit: PWR

Power Supply External power DC 12V/1.3A

Power Consumption GS-105A: 7.5 Watt (maximum)

GS-108A: 13.2Watt (maximum)

Operation

Temperature 0º C to 45º C (32º F to 113º F)

Operation Humidity 10% to 90% (Non-condensing)

Dimension 165 x 100 x 32.5 mm (L x W x H)

EMI & Safety FCC Class A, CE, UL

Autres manuels pour GS-105A

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ZyXEL Communications Changer

ZyXEL Communications

ZyXEL Communications GS1350 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications XGS1930 series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications XGS3700 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications GS-105S Manuel utilisateur

ZyXEL Communications

ZyXEL Communications 2108 Series Manuel

ZyXEL Communications

ZyXEL Communications IES-5000 Series Manuel

ZyXEL Communications

ZyXEL Communications NWA-3160 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications IES-5000 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Dimension Ethernet Switches Manuel utilisateur

ZyXEL Communications

ZyXEL Communications VDSL SWITCH VES-1616F-3X Manuel utilisateur

ZyXEL Communications

ZyXEL Communications GS2210 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications XS3800-28 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications GS1920-48HP Manuel du propriétaire

ZyXEL Communications

ZyXEL Communications DES-5004 Mode d’emploi

ZyXEL Communications

ZyXEL Communications GS-105B v2 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications AVS108 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ExtraSmart ES-1552 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ES-315 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Dimension ES-4124 Mode d’emploi

ZyXEL Communications

ZyXEL Communications GS1915 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ES1100-8P Manuel utilisateur

ZyXEL Communications

ZyXEL Communications GS1920 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ES-315 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZyXEL Dimension ES-2724 Guide de référence

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
