Reserve VIP Ports for Online

Media-rich Applications

5/8-port

Desktop Ethernet Switch

es-105a/108a

Benefits

VIP Ports for Priority Application Performance

With advanced switching technology, ZyXEL specifically designs a series of

Desktop Ethernet Switches with designated priority“VIP” ports reserved for

media-rich applications.The ES-105A reserves two ports, while the ES-108A

reserves three, for intensive network demands like Internet surfing, on-line

gaming and media-rich applications.

Better Performance and Efficiency

The ZyXEL Desktop Ethernet Switch,with 5/8-port, is designed to boost

your home network with better performance and efficiency.With the N-way

auto-negotiation function, the ES-105A/108A connects the network

counterparts with highest possible network speed and activates duplex

mode automatically. Besides, the store-and-forward service brings low

latency and error-free packet delivering.The plug-and-play and multiple

network protocol compatibility of the ES-105A/108A make the installation

and management easier and faster than ever.

Stylish and Compact Design

With the new ZyXEL-exclusive stylish and compact exterior design, the ES-

105A/108A fits into your home ambiance for a trouble-free, inspiring

networking environment signifying ZyXEL’s first design priority.

Designed for Home network, ZyXEL Desktop Ethernet Switch, the ES-

105A/ES-108A, offers advanced“VIP ports”to boost performance and user

experience of Internet surfing, online gaming, multimedia, or any

application you prefer with prioritized bandwidth.More than just intriguing

features,the stylish compact design of the ES-105A/108A fits your home

ambiance to create an inspiring networking environment for your ultimate

online experience.

switch

5/8-port

Desktop Ethernet Switch

es-105a/

es-108a

65-100-102406G 06/05

product names, or trademarks mentioned are the property of their respective owners. All specifications are subject to change without notice.

For more product information, visit us on the web www.ZyXEL.com

Corporate Headquarters

ZyXEL Communications Corp.

Tel: +886-3-578-3942

Fax: +886-3-578-2439

Email: [email protected]

http://www.zyxel.com

http://www.zyxel.com.tw

Tel: +7-095 542-8920

Fax: +7-095 542-8925

Email: [email protected]

http://www.zyxel.ru

ZyXEL Russia

Tel: +1-714-632-0882

Fax: +1-714-632-0858

Email: [email protected]

http://www.us.zyxel.com

ZyXEL North America

Tel: +45 39 55 07 00

Fax: +45 39 55 07 07

Email: [email protected]

http://www.zyxel.dk

ZyXEL Denmark A/S

Tel: +380 44 494 49 31

Fax: +380 44 494 49 32

http://ua.zyxel.com

ZyXEL Ukraine

Tel:

+33 (0) 4 72 52 97 97

Fax:

+33 (0) 4 72 52 19 20

Email: in[email protected]

http://www.zyxel.fr

ZyXEL France SARL

Tel: +36-1-336-1643

Fax: +36-1-325-9100

http://www.zyxel.hu

ZyXEL Hungary ZyXEL Sweden A/S

Tel: +46 31 744 7700

Fax: +46 31 744 7701

Email: [email protected]

http://www.zyxel.se

Tel: +420 241091350

Fax: +420 241091359

Email: [email protected]

http://cz.zyxel.com

ZyXEL Czech s.r.o.

Tel: +47 22 80 61 80

Fax: +47 22 80 61 81

Email: [email protected]

http://www.zyxel.no

ZyXEL Norway A/S

Tel:

+358-9-4780 8400

Fax:

+358-9-4780 8448

Email: [email protected]

http://www.zyxel.fi

ZyXEL Finland Oy

Tel: +49 2405 6909 0

Fax: +49 2405 6909 99

Email: [email protected]

http://www.zyxel.de

ZyXEL Germany GmbH. ZyXEL Kazakhstan

Tel: +7 (3272) 590699

Fax: +7 (3272) 590689

Email: [email protected]

ZyXEL Spain

Tel: +34 902 195 420

Fax: +34 913 005 345

Email: [email protected]

http://www.zyxel.es

ZyXEL UK Ltd.

Tel: +44 (0) 8702 909090

Fax: +44 (0) 8702 909091

Email: [email protected]

http://www.zyxel.co.uk

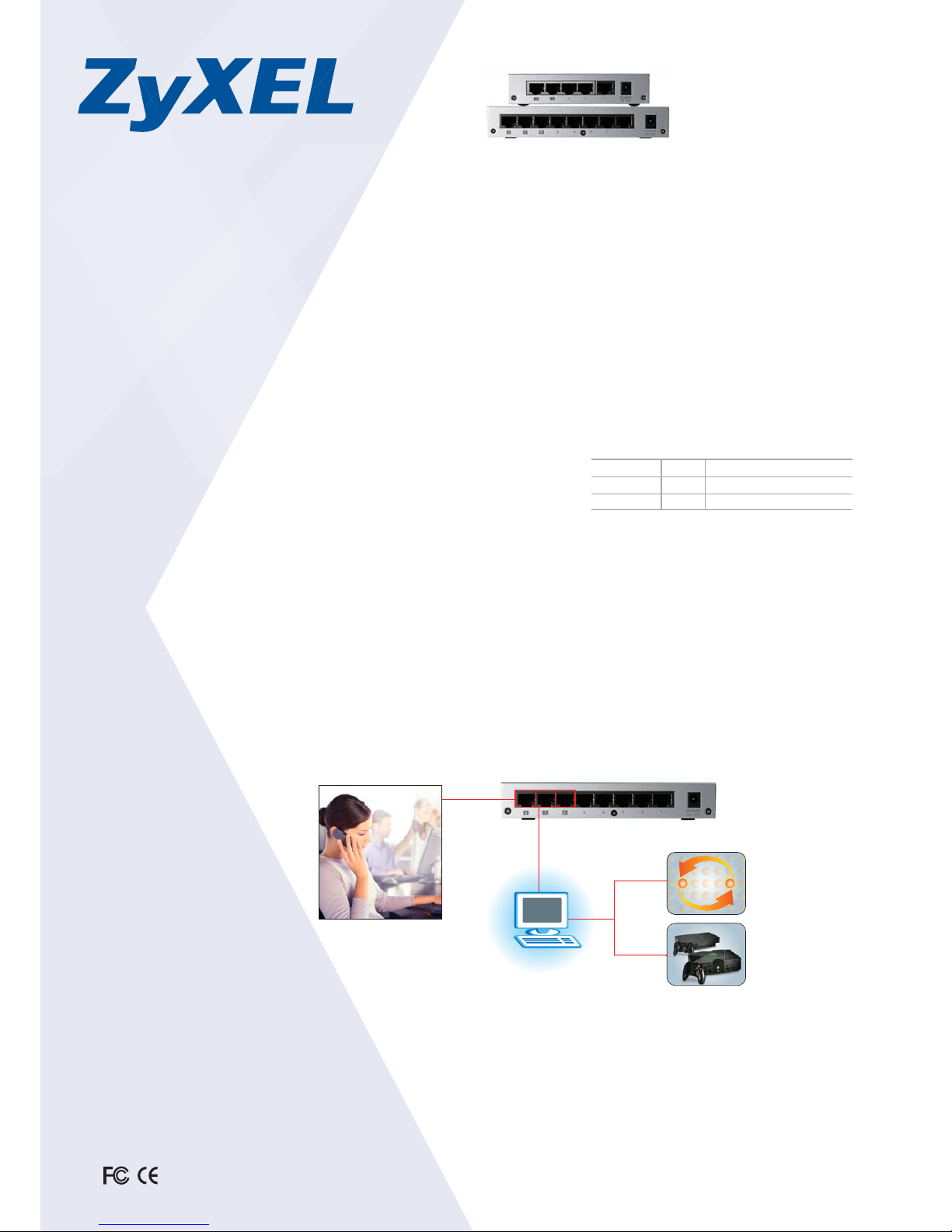

Application Diagram

Priority Ports

Get max. bandwidth for your preferred

applications through 3 priority ports (QoS ports)

P-2-P file sharing

VoIP

On-line gaming

Specifications

System

Standards Compliance

• IEEE802.3 10BASE-T Ethernet

• IEEE802.3u 100BASE-TX Fast Ethernet

• ANSI/IEEE802.3 Auto-negotiation

• IEEE802.3x Flow Control

Data Transfer Rates

• Ethernet 10M/20Mbps (half/full duplex)

• Fast Ethernet 100M/200M (half/full duplex)

Interface

• ES-105A: 5 10/100BASE-T Ethernet ports

• ES-108A: 8 10/100BASE-T Ethernet ports

Network Cables

• 10BASE-T:UTP Cat.3, 4, 5 (100 m) EIA/TIA-586

100-ohm STP (100 m)

• 100BASE-TX: UTP Cat.5 (100 m max.) EIA/TIA-568

100-ohm STP (100 m)

Media Interface Exchange

• MDI-II/MDI-X auto-adjustment for each port

System Requirement

• Network card for each PC

• Network Cables

Status LED

• Per Port Link/Activity

• Per unit:PWR

Performance

Back Plane

• Non-Blocking full wire-speed forwarding rate

- ES-105A: 1.0Gbps

- ES-108A: 1.6Gbps

• Packet Forwarding Rate:

- 14,880PPS for 10BASE-T

- 148,800PPS for 100BASE-TX

Switching Method: Store-and-forward

• Data Buffer:

- ES-105A: 512Kb

- ES-108A: 768Kb

• MAC Address Table: 1K entries

Physical Specifications

Model Name Weight Dimensions

ES-105A 248g 121(L) x 75(W) x 26(H) mm

ES-108A 340g 154.5(L) x 85(W) x 26(H) mm

Environmental Specifications

• Power supply: 5VDC 0.6A

• Power consumption:

- ES-105A: 2.15W (max)

- ES-108A: 2.75W (max)

• Operating temperature:0˚C ~ 50˚C

• Operating humidity: 10% to 90% (Non-condensing)

Certification

• FCC Class B

• CE

• C-Tick
