Bandwidth of 5 to 15 Mbps Per Port in Full Duplex

Allows building owners and service providers to offer a variety of

value-added services ranging from broadband Internet access to

bandwidth-consuming video applications.

Broadband over Existing Telephone Wires

With VDSL, broadband service could be offered using the existing

copper wires. New revenue could be generated with minimum

installation time and expense.

Co-existence with Plain Old Telephone Service (POTS),

Digital Phones and ISDN

VDSL can be implemented quickly, even if building owners have

just one phone line per tenant. The existing POTS or ISDN

services could be kept while adding new broadband services.

New Advances for Broadband Service Offering

The VLAN feature in the VES-1012 offers the benefits of both

security and performance. Multicasting design improves network

bandwidth utilization for bandwidth-consuming application, such

as video on demand. New mechanisms, such as 802.1p, have

also emerged to ensure quality of service. The new advances in

the VES-1012 enable service providers to turn on broadband

service to more customers quickly and at a lower cost than

previously possible.

MTU-oriented Services

When service providers bring fiber closer to the end users, VDSL

becomes the best solution for delivering broadband service to

people working or living insides the buildings, such as business

parks, apartments, dormitories, campus and hospitality.

Scalable Platform for Future Expansion

The flexible design of the VES-1012 allows service providers to

start VDSL service at a minimum cost. As the number of

subscribers and applications grow, the additional VES-1012 can

be added to increase the available customer base.

VDSL, the fastest offering of DSL, provides a

much higher bandwidth than other DSL

technologies. Ethernet over VDSL extends

Ethernet over single-pair copper wiring at

distances of up to 1.5km. This technology

provides a cost-effective, readily available, and

rapidly deployable solution that offers needed

bandwidth to multi-tenant units (MTUs).

VDSL has changed the fundamental economics

of broadband services for the MTU marketplace.

Tenants don’t have to suffer the limited

bandwidth. Even small to medium-sized

corporations can receive the same services as

large companies. With VDSL, MTUs gain a cost-

effective broadband solution that preserves their

existing infrastructure, and in the process,

building owners or service providers receive a

compelling new source for revenue generation.

ZyXEL’s VDSL solution is comprised of a VDSL

Ethernet switch, the VES-1012, and a CPE

modem, the Prestige841. The VES-1012

multiplexes traffic from 8 or 12 VDSL

subscribers into two 100M Ethernet ports that

connect to any Ethernet switch or broadband

router. With the VES-1012, Ethernet over VDSL

can run up to 1.5km at the speed of 5Mbps,

which proves to be a promising technology and

revenue generation tool for building owners and

service providers.

VES-1012

Benefits

VDSL Ethernet Switch

VES-1012

Specifications

System Control

•Alarm/Status Surveillance

Automatic alarm and status report

Alarm/event history

LED indication for alarm and system status

•Performance monitoring

Line rate

•Configuration

VLAN setting

VDSL line rate setting (bandwidth control)

Software upgrade and download from EMS

(through FTP/TFTP)

Default configuration

BOOTP/DHCP client

•Security and Memory Backup

Support login authorization and security levels

Provides non-volatile memory to back-up system database

Keep previous system parameters during re-booting

•Self diagnostics

FLASH memory

DRAM

LAN port

Line interface loop-back test

Remote reset

Ethernet

•Support 802.3/3u/3x

•Back pressure flow control for half duplex

•Flow control for full duplex (802.3x)

VLAN

•Port-based VLAN

•Tag-based VLAN

•No. of VLAN IDs: 4096

Port Trunking

•Static port trunking for bandwidth aggregation

•Support 802.3ad (*)

QoS

•802.1p

•4-priority queues

Spanning Tree

•802.1d

•Support redundant backbone connections and

loop free networks

Dimensions

•440 mm (L) x 300 mm (D) x 44.5 mm (H)

•Rack mountable enclosure

Uplink Interface

•Two 10/100 Ethernet ports

•RJ-45 connector

VDSL Interface

•12-port VDSL

•One Telco 50 connector to CPE

•Ethernet over VDSL

•Transmission rate: 5, 10, 15Mbps for symmetric/asymmetric

•Power back-off algorithm

•Rate Adaptation

POTS / ISDN Interface

•Built-in POTS/ISDN Splitter

•12-port POTS/ISDN

•One Telco 50 connector to PBX or CO

LED and Switch

•Power: Light on & off: Power on or off

•System

Light off: System not ready or failed

Light on: System ready and running ok

Light flashing: System booting

•Alarm: Light on & off: alarm on or off

•VDSL

Light on: Link on

Light flashing: link active

Light off: link is down or no connection

•Ethernet

Green light: 10M Ethernet

Orange light: 100M Ethernet

Light off: Ethernet not ready or failed

Light on: Ethernet link ok; color will indicate if 10 or 100M

LAN is on

Light flashing: Snd/Rcv

•Power switch: for power on or off

Switching

•Switching fabric: 5.2Gbps

•Non-blocking

•Frame size: 1522 bytes

•Forwarding frame: 802.3, 802.1q, Ethernet II, PPPoE

•Prevent the forwarding of corrupted packets

•Pause frame disposal

MIB

•SNMP MIB II (RFC1213)

•RFC1493

•RFC2674 (*)

Temperature

•Operating: 0˚C ~ 50˚C

•Storage: -25˚C ~ 70˚C

Humidity

•5 ~ 90% (non-condensing)

Power

•100 ~ 240VAC, 50 ~ 60Hz

Certification

•Safety

UL1950

CSA C22.2 No. 950

EN60950, EN41003

•EMC

FCC Part 15 Class A

EN55022 Class A

(*) for future release

Multicast

•Support IGMP snooping, GMRP

•Broadcast storm control

Bridging

•12K MAC addresses

•MAC address filtering

•MAC counting

Network Management

•Interface: RS-232C (DB-9) for command line interface

•SNMP manageable

•Status display and event report from web-based management

•RMON: four RMON groups 1, 2, 3, 9 (history, statistics, alarms,

and events) for enhanced traffic management, monitoring,

and analysis (*)

•Support Telnet

•Provide fault, performance, configuration, and security managements

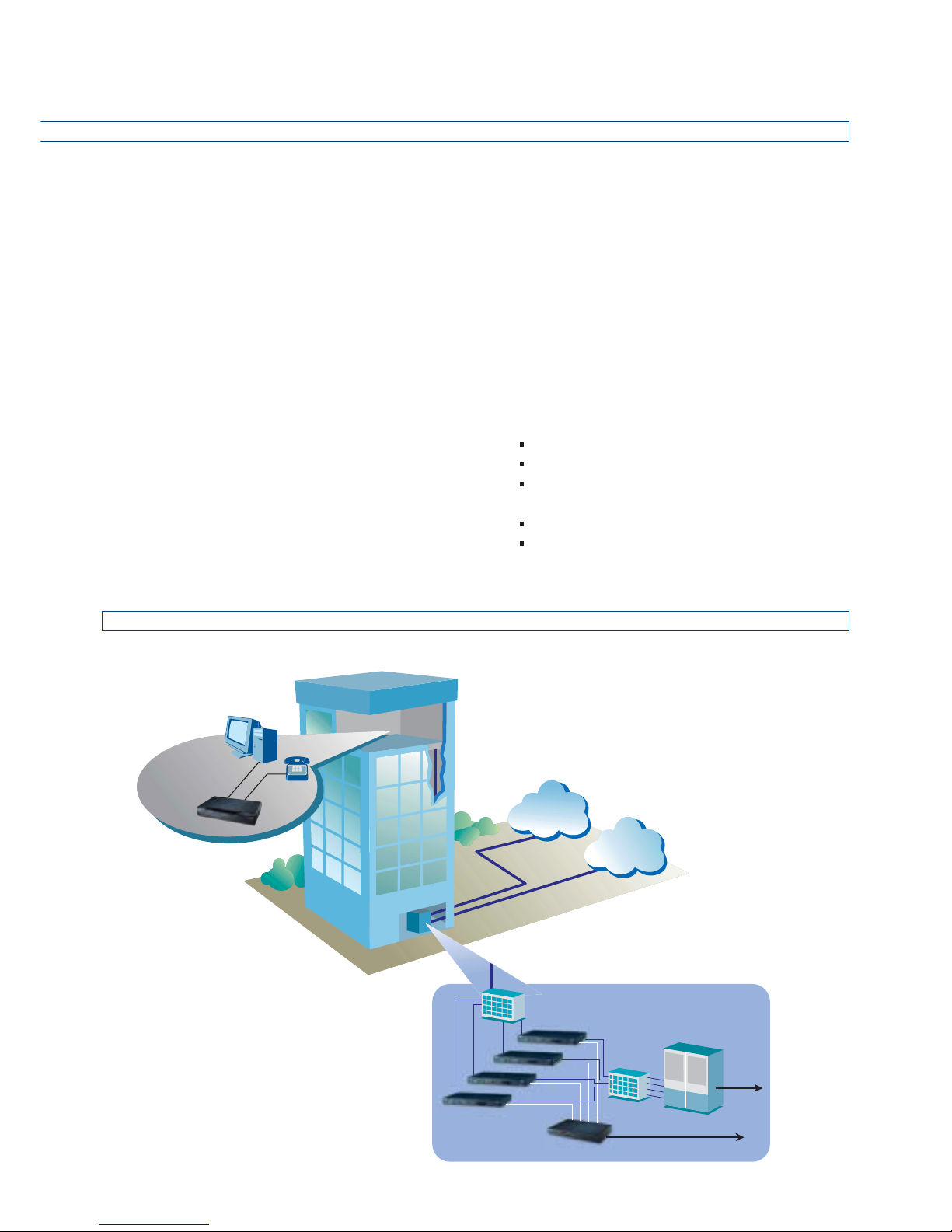

Application Diagram

Internet

PSTN

Gigabit Ethernet over Fiber

Voice

Compatible CPE device:

Prestige 841

Copper wire

L2 Switch

Internet

VES-1012

MDF PBX PSTN

To each subscriber

MDF

65-100-010309

are properties of their respective holders. All specifications are subject to change without notice.

VDSL Ethernet Switch

VES-1012

Corporate Headquarters

ZyXEL Communications Co.

Tel: +886-3-578-3942

Fax: +886-3-578-2439

Email: [email protected]

http://www.zyxel.com

http://www.zyxel.com.tw

North America

ZyXEL Communications Inc.

Tel: +1-714-632-0882

Fax: +1-714-632-0858

Email: [email protected]

http://www.zyxel.com

Germany

ZyXEL Deutschland GmbH.

Tel: +49 2405 6909 0

Fax: +49 2405 6909 99

Email: [email protected]

http://www.zyxel.de

Denmark

ZyXEL Communications A/S

Tel: +45 39 55 07 00

Fax: +45 39 55 07 07

Email: [email protected]

http://www.zyxel.dk

Norway

ZyXEL Communications A/S

Tel: +47 22 80 61 80

Fax: +47 22 80 61 81

Email: [email protected]

http://www.zyxel.no

Sweden

ZyXEL Communications A/S

Tel: +46 (0) 31 744 3810

Fax: +46 (0) 31 744 3811

Email: [email protected]

http://www.zyxel.se

China

ZyXEL Communications

Co., Ltd (Shanghai)

Tel: 86-21-63513760

Fax: 86-21-63513761

Email: [email protected]

Compatible CPE

Specifications

System Control

•Firmware upgrade from VES-1012

•Plug and play

Network Protocols

•IEEE 802.3/3u/3x

•Flow control in full duplex mode

•Back pressure in half duplex mode

•Transparent bridging

Temperature

•Operating: 0˚C ~ 50˚C

•Storage: -25˚C ~ 70˚C

Humidity

•10 ~ 90% (non-condensing)

Power

•110V or 240VAC, 50 ~ 60Hz

Certification

•Safety

UL1950

CSA C22.2 No. 950

EN60950, EN41003

•EMC

FCC Part 15 Class B

EN55022 Class B

Dimensions

•181 mm (L) x 128 mm (D) x 36 mm (H)

•Standalone box

VDSL Interface

•One RJ-11 connector

•Ethernet over VDSL

•Transmission rate: 5, 10, 15Mbps for symmetric /asymmetric

•Power back-off algorithm

POTS Interface

•One RJ-11 connector

•POTS splitter built-in

Ethernet Interface

•One 10/100 Ethernet port

•RJ-45 connector

LED and Switch

•Power: Light on & off: System on or off

•VDSL

Light on: Link on

Light flashing: link active

Light off: link is down or no connection

•Ethernet

Green light: 10M Ethernet

Orange light: 100M Ethernet

Light off: Ethernet not ready or failed

Light on: Ethernet link ok; color will indicate if 10 or

100M LAN is on

Light flashing: Snd/Rcv

•Power switch: for power on or off

Prestige 841

Autres manuels pour VES-1012 -

Ce manuel convient aux modèles suivants

Autres manuels ZyXEL Communications Routeur réseau

ZyXEL Communications

ZyXEL Communications GS1100-8HP Manuel utilisateur

ZyXEL Communications

ZyXEL Communications P-660R-Tx Series Manuel

ZyXEL Communications

ZyXEL Communications Prestige 792H Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Prestige 660W Series Instructions d'installation

ZyXEL Communications

ZyXEL Communications PMG1005-T20B Manuel utilisateur

ZyXEL Communications

ZyXEL Communications P-660R-T3 v3 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications XG3700 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications P-660R-D Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ES 3500-24 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications P-2812HNU-51c Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Prestige 28641 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NBG-419N v2 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications WAH3004 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications P-974H Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Dimension ES-116P Guide de référence

ZyXEL Communications

ZyXEL Communications Prestige 2602HWL-D3A Instructions d'installation

ZyXEL Communications

ZyXEL Communications NBG334W Manuel utilisateur

ZyXEL Communications

ZyXEL Communications P-660R Manuel utilisateur

ZyXEL Communications

ZyXEL Communications LTE7461-M602 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ES-2108 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications PMG5318-B20B Manuel utilisateur

ZyXEL Communications

ZyXEL Communications PRESTIGE 660 HW Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Dimension ES-105A Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Prestige 652 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
