ZyXEL Communications AMG1202-T10A Manuel utilisateur

AMG1202-T10A

AMG1302-T10A

ZyXEL

Router

Quick Start

Thank you for choosing

Home Telecom as your home

broadband solution.

Just follow this simple guide

to get started...

Check your box contents. Unplug your telephone from the master socket

in your wall, then plug in the ADSL Microlter.

Now plug your telephone into the PHONE

socket of your Microlter.

ZyXEL router

Broadband

cable

(grey)

Ethernet cable

(yellow)

Power cable &

adapter

ADSL Microlter

Step 2

Step

If you have no telephone,

simply plug the ADSL

Microlter into the master socket.

It should all be there.

If not call technical support on 0844 880 4648.

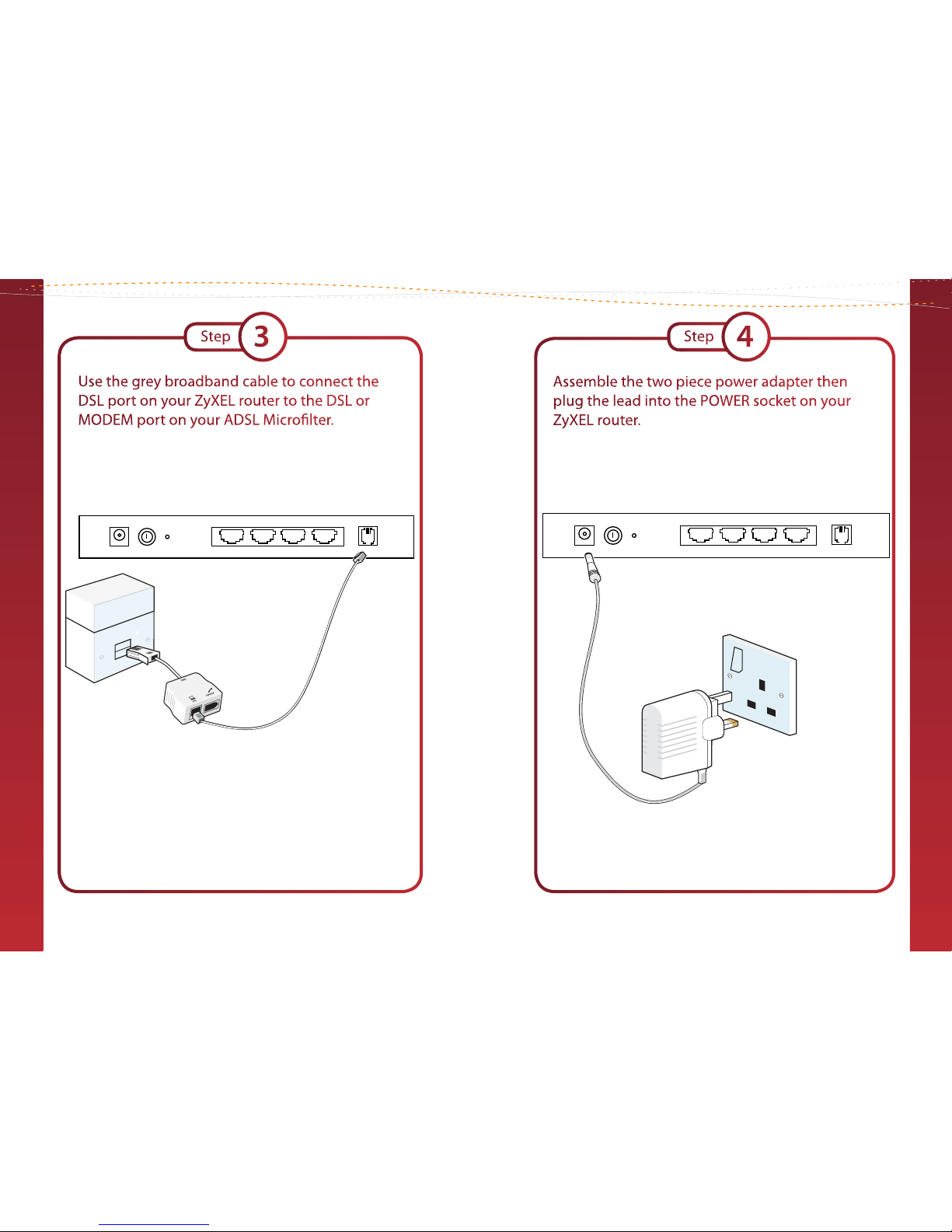

Use the grey broadband cable to connect the

DSL port on your ZyXEL router to the DSL or

MODEM port on your ADSL Microlter.

Assemble the two piece power adapter then

plug the lead into the POWER socket on your

ZyXEL router.

Plug the adapter into a mains socket and switch

on the mains power supply.

POWER ON/OFF RESET ETHERNET

4 3 2 1 DSL

POWER ON/OFF RESET ETHERNET

4 3 2 1 DSL

Step 4

Step

Push the ZyXEL router’s power switch into the

ON position.

You will see the POWER LED blink during start-

up and remain steady when ready (this takes

about 1 to 2 minutes).

Each ETHERNET LED turns on for each

corresponding port in use. (If you have no

devices connected, no lights will show).

The WLAN/WPS LED stays green when the

wireless LAN is ready, and blinks whilst

transmitting.

The DSL LED stays green when connected.

The INTERNET LED is green when internet is

available, and blinks whilst transmitting.

Now to connect your devices.

Choose from the list below what type of device

you want to connect to the Internet, and go to

the corresponding section.

I want to connect my:

A Computer using wireless p8

B Computer using Ethernet cable p10

C Other device using wireless p11

D Other device using Ethernet cable p11

Step 6

Step

Connecting your computer using wireless.

1. Place your computer near to your ZyXEL router

for a good wireless signal.

2. Ensure your computer has a wireless adapter

installed. Most modern computers will have these

built in, however if not, you will need to buy an

external adapter (go to page 4 of the User Guide).

3. Find your router’s preset SSID/Network Name

and Wireless Key. These are printed on the sticker

on the base of your ZyXEL router.

4. Follow the instructions below for your

computer’s operating system:

Windows XP/Vista/7/8:

a. Click ‘Start’ and open ‘Control Panel’.

b. Select ‘Network and Internet’ and click ‘Connect

to a network’.

c. Select your ZyXEL router network (it will match

the SSID printed on base of your router).

d. Enter the Wireless Key printed on the base of

your router.

e. Click‘Connect’ and wait a few moments while

your computer connects to your ZyXEL router.

MAC OS X

a. Click the ‘Airport Status’ icon in the menu bar.

b. Highlight your ZyXEL router network (it will

match the SSID printed on the base of your router).

c. MAC OS X 10.4 and earlier: In the‘Wireless

Security’ box, select ‘WPA Personal’.

d. Enter the Wireless Key printed on the base of

your router in the ‘Password’ box.

e. Click‘OK’ and wait a few moments while your

computer connects to your ZyXEL router.

You should now be connected to the internet. If

you have encountered a problem, please refer to

the User Guide.

1110

Connecting your computer using Ethernet cable.

1. Check that your computer has a spare Ethernet

port. This is small socket on the back of your

computer, usually marked LAN, Ethernet, or <--->.

2. Plug one end of the Ethernet cable into one of

the ZyXEL router’s Ethernet sockets.

3. Plug the other end of the Ethernet cable into

your computer’s Ethernet socket.

Connecting a device using wireless.

1. Find your ZyXEL router’s preset SSID/Network

Name and Wireless Key. These are printed on the

sticker on the base of your ZyXEL router.

2. When prompted by your wireless device, enter

these wireless details.

3. Follow your device’s wireless set-up instructions.

POWER ON/OFF RESET ETHERNET

4 3 2 DSL

You should now be

connected to the internet.

If you have encountered a

problem, please refer to the

User Guide.

Connecting a device using Ethernet cable.

1. Plug one end of the Ethernet cable into one of

the ZyXEL router’s Ethernet sockets.

2. Plug the other end of the Ethernet cable into

your device’s Ethernet socket.

Have a problem?

If you have encountered any problems during your

setup, please refer to the User Guide.

Home Telecom

www.hometelecom.co.uk

Home Telecom Division - Global 4 Communications

Global House

60b Queen Street

Horsham

West Sussex

RH13 5AD
