ZyXEL Communications Dimension ES-108P Manuel utilisateur

switch

Cost-Effective Performance for

Home & Small Office Networks

ł

8/16/24 autosensing 10/100 full duplex ports

ł

Internal power adapter available

ł

Full wire-speed store-and-forward technology support

ł

Auto-MDI/MDI-X functions support

8/16/24-port

Desktop Ethernet Switch

es-108p/

116p/124p

Benefits

Better Performance and Efficiency

The full range of the Desktop Ethernet Switch,with 8/16/24-port and

internal power adapter, is designed to boost your network with better

performance and efficiency.With the N-way auto-negotiation function, the

ES-108P/116P/124P connects the network counterparts with the highest

possible network speed and activates duplex mode automatically.

Transmission Reliability

Unlike shared 10/100 Mbps networks, the ZyXEL Desktop Ethernet Switch

series eliminates congestion by providing dedicated bandwidth. Its duplex

mode doubles the effective bandwidth by enabling two-way

communications. Store-and-forward service brings low latency and error-

free packet delivering.The plug-and-play and multiple network protocol

compatibility of the ES-108P/116P/124P make the installation and

management easier and faster than ever.

Compact Size Fits Your Working Environment

The compact size fits into any working environment due to the included

rack mount brackets. No matter how intensive your network demands,

ZyXEL’s Desktop Ethernet Switch series,with internal power adapters,

supports your needs with an affordable and reliable network solution

designed especially for SOHO and Small Office.

8/16/24-port

Desktop Ethernet Switch

es-108p/

116p/124p

DSL/Cable Modem

Firewall

Mail Server

Database Server

Desktop Ethernet Switch

(

ZyXEL ES-108P/116P/124P

)

with GN680-

stall

/SO

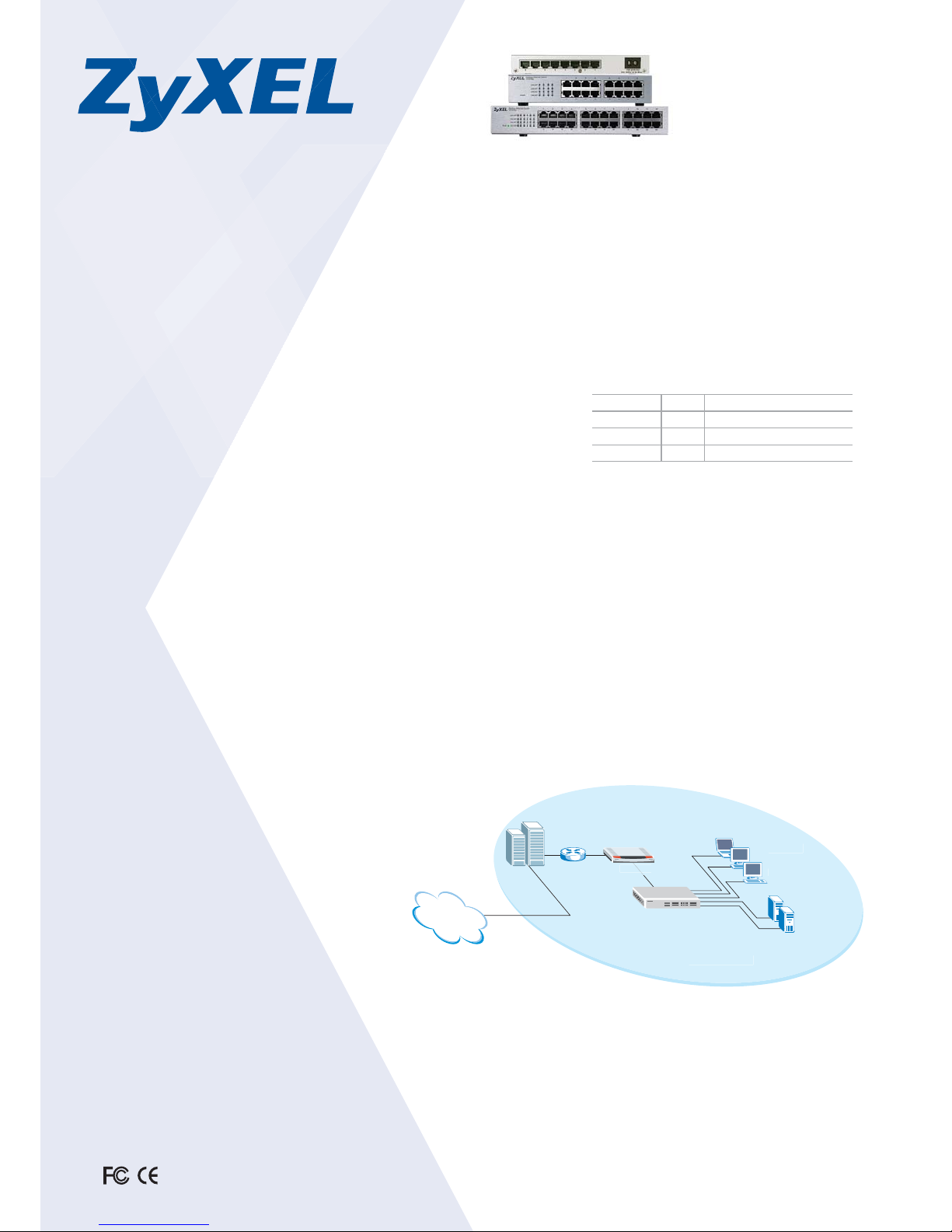

Application

Diagram

Interne

Specifications

System

Standards

• IEEE802.3 10BASE-T Ethernet

• IEEE802.3u 100BASE-TX Fast Ethernet

• ANSI/IEEE802.3 Auto-negotiation

• IEEE802.3x Flow Control

Data Transfer Rates

• Ethernet 10M/20Mbps (half/full duplex)

• Fast Ethernet 100M/200M (half/full duplex)

Interface

• ES-108P: 8 10/100BASE-T Ethernet ports

• ES-116P: 16 10/100BASE-T Ethernet ports

• ES-124P: 24 10/100BASE-T Ethernet ports

Network Cables

• 10BASE-T: UTP Cat.3, 4, 5 (100 m) EIA/TIA-586

100-ohm STP (100 m)

• 100BASE-TX: UTP Cat.5 (100 m) EIA/TIA-568

100-ohm STP (100 m)

Media Interface Exchange

• MDI-II/MDI-X auto-adjustment for each port

System Requirement

• Network card for each PC

• Network Cables

Status LED

• Per Port Link/Activity

• Per unit: PWR

Performance

Back Plane

• Non-Blocking full wire-speed forwarding rate

- ES-108P: 1.6Gbps

- ES-116P: 3.2Gbps

- ES-124P: 4.8Gbps

• Packet Forwarding Rate:

- 14,880PPS for 10BASE-T

- 148,800PPS for 100BASE-TX

Switching Method: Store-and-forward

• Data Buffer:

- ES-108P: 768Kb

- ES-116P/ES-124P: 1.25Mb

• MAC Address Table

- ES-108P: 1K entries

- ES-116P/ES-124P: 8K entries

Physical Specifications

Model Name Weight Dimensions

ES-108P 429g 194(L) x 85(W) x 25(H) mm

ES-116P 867g 215(L) x 133(W) x 42(H) mm

ES-124P 1372g 267(L) x 152.5(W) x 42(H) mm

Environmental Specifications

• Operating temperature: 0˚C ~ 50˚C

• Operating humidity: 10% to 90% (Non-condensing)

• Power supply :

- ES-108P: 3.3VDC, 2A (100-240V/50-60Hz)

- ES-116P/ES-124P: 3.3VDC, 4A (100-240V/50-60Hz)

• Power consumption:

- ES-108P: 3.44W (max)

- ES-116P: 6.44W (max)

- ES-124P: 7.26W (max)

Certification

• FCC Class B

• CE

• C-Tick

65-100-010403G 06/05
