QUICK START GUIDE

NSA-220 Series

Network Storage Appliance

Firmware v1.00

Edition 1, 09/2008

DEFAULT LOGIN DETAILS

Web Address: nsa220

nsa220plus

Username: admin

Password: 1234

CONTENTS

ENGLISH 3

DEUTSCH 35

ESPAÑOL 69

FRANÇAIS 103

ITALIANO 137

日本語 173

SVENSKA 207

繁體中文 241

ENGLISH ENGLISH

Introduction

The NSA lets you share files and back up data on your home network. You

can also play video, music, and show photo files stored on the NSA using a

media client such as the DMA-1000.

How It Works

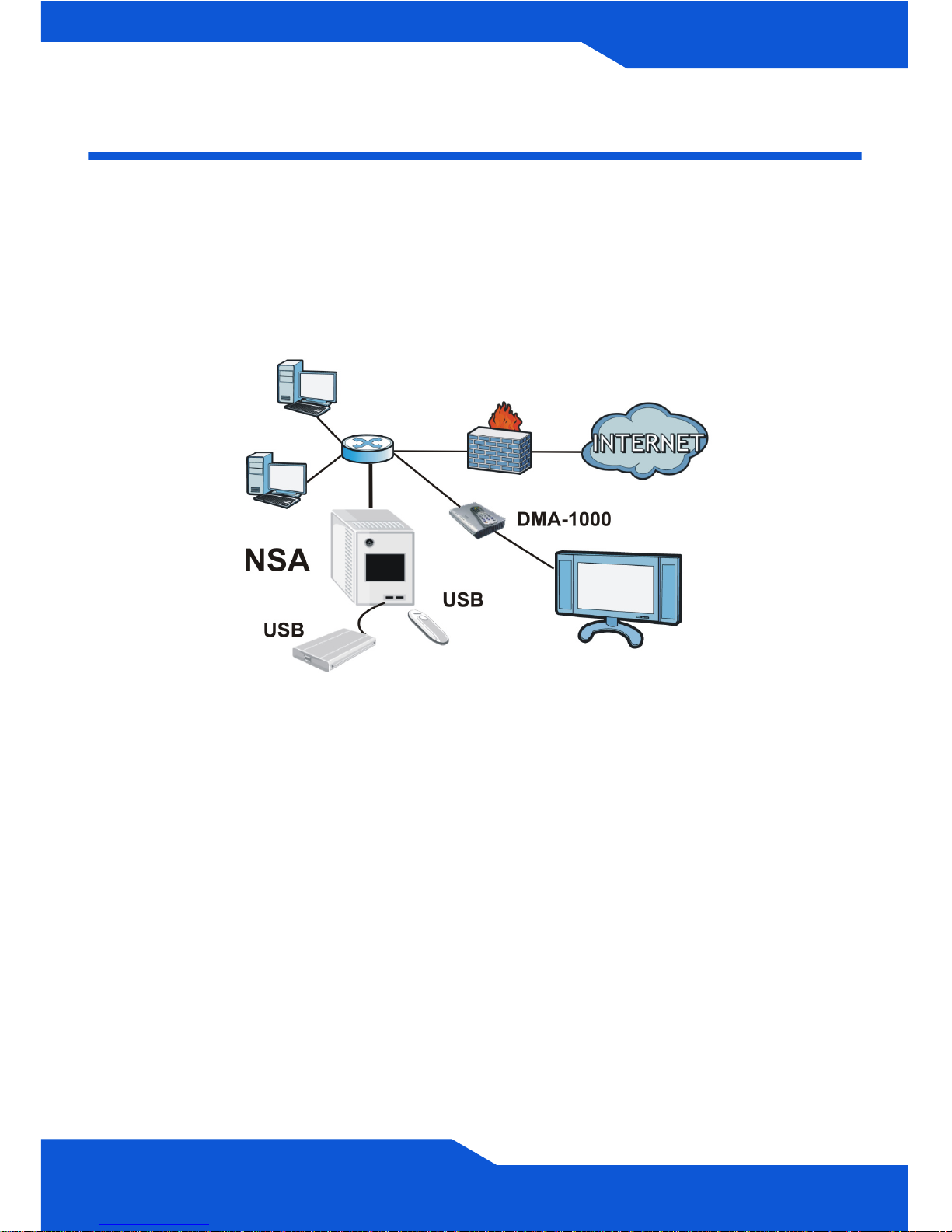

Above is the NSA in a home network. Users back up and share data on the

NSA. The DMA-1000 plays the NSA’s media files on the TV. A USB hard

drive provides extra storage space and files are copied directly from the USB

memory stick to the NSA.

Place the NSA behind a firewall and/or IDP (Intrusion Detection and

Prevention) device to protect it from attacks from the Internet.

Getting Started

• Install Hard Drives, 6

• Connect the NSA, 10

• Access the NSA, 12

• NSA Login, 15

• Create a Volume, 17

ENGLISH

• Map the NSA to Your Computer Network Drive, 21

• Using the NSA as a Multi-media Server, 23

• Backing up Files Using Memeo Autobackup, 29

See the User’s Guide on the included CD for details on configuring all of the

NSA’s features.

All graphics used in this guide are taken from NSA-220.

The DigiOn media client software is not included in NSA-220 Plus.

ENGLISH ENGLISH

Before You Begin

You need the following before you start:

• NSA

• Included CD containing the NSA Discovery Utility, Memeo Autobackup

program, Media Client software, and User’s Guide

• Power cord and power supply (external)

• Included Ethernet cable

• One or two SATA I or SATA 3.0 Gbit/s (Serial Advanced Technology

Attachment) compatible hard disk(s) with 15-pin SATA power connectors

• Philips screwdriver to install hard disks in the disk trays

• USB cable (optional: you only need this if you want to expand storage

capacity by connecting compatible USB (version 2) drives). It is

recommended that the USB device use it’s own external power adaptor

if it has one.

• Computer with Network Interface Card (NIC) and TCP/IP installed

• Network device such as a switch, router, or hub

ENGLISH

Install Hard Drives

Once you intall a hard drive on the NSA and create a volume, all existing data

on the disk will be erased. If you want to install two hard drives and configure

them as RAID volumes (see page 17), it is recommended to use the same

disk size and model for best performance.

 Hard drives are NOT hot swappable. The NSA must be

turned off before you remove or install hard drive(s).

 Creating a volume formats the hard drives. All data will

be lost. Back up any files on the disk to another

location before you install the disk in the NSA.

1. Make sure the power and Ethernet cords are disconnected from the NSA.

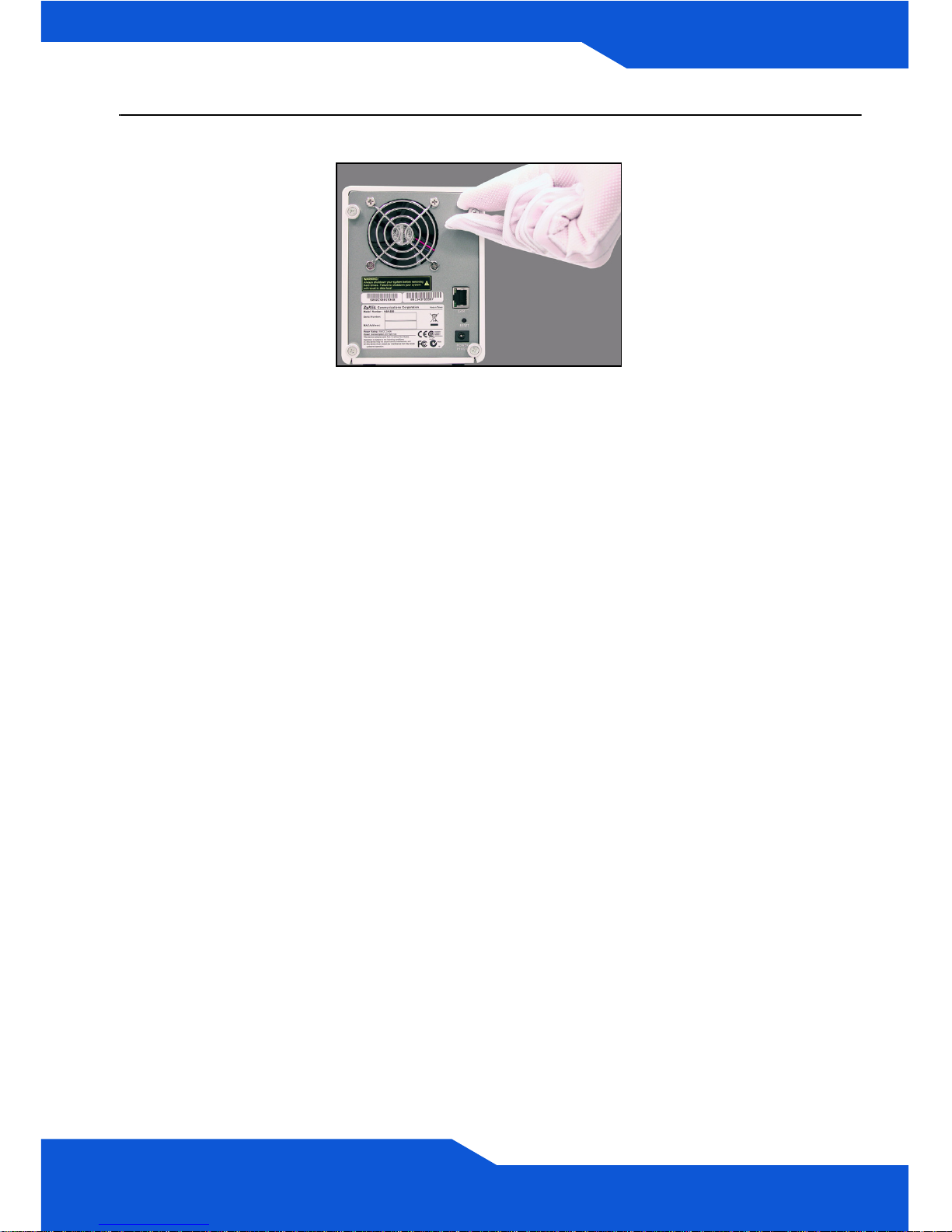

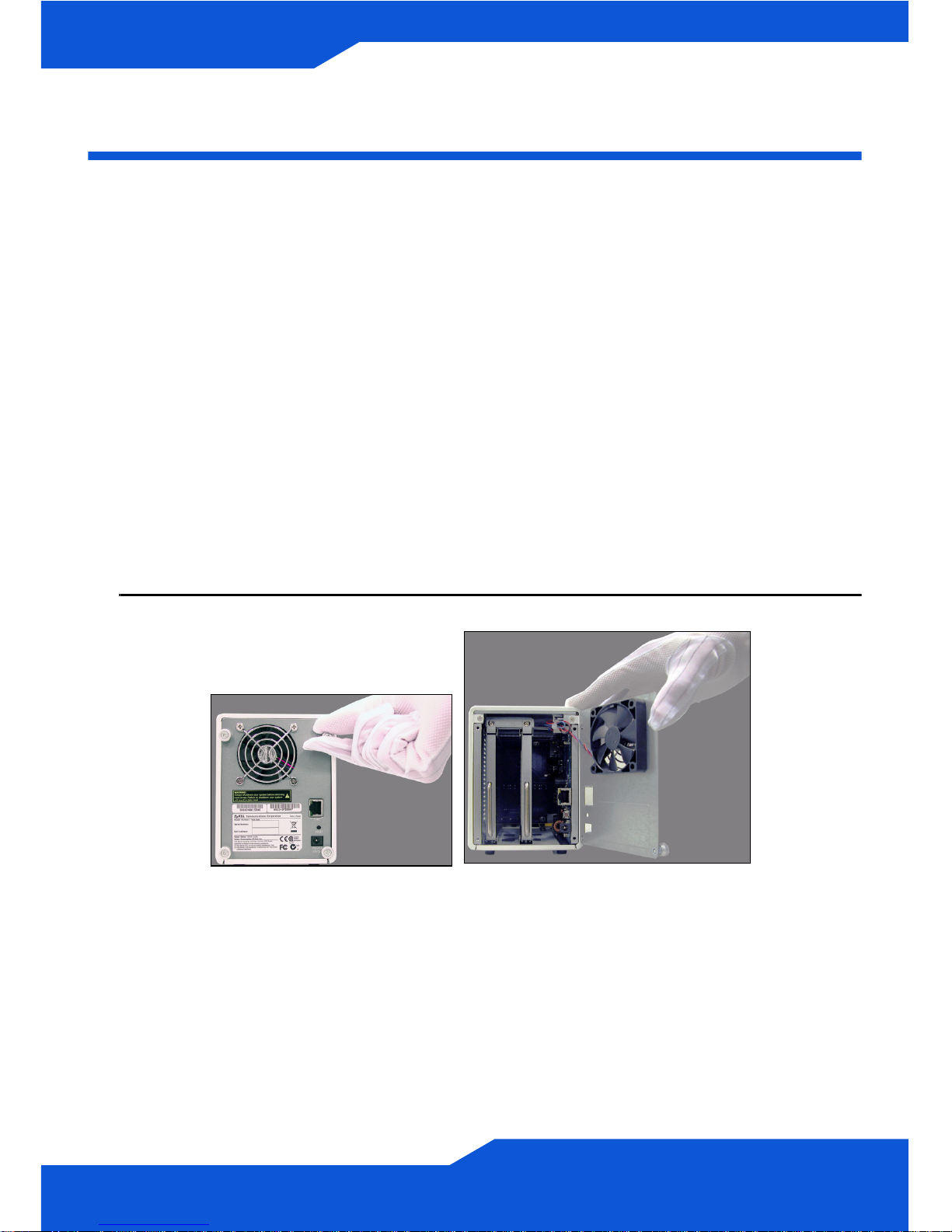

2. Loosen the thumbscrews on the rear panel and open it.

ENGLISH ENGLISH

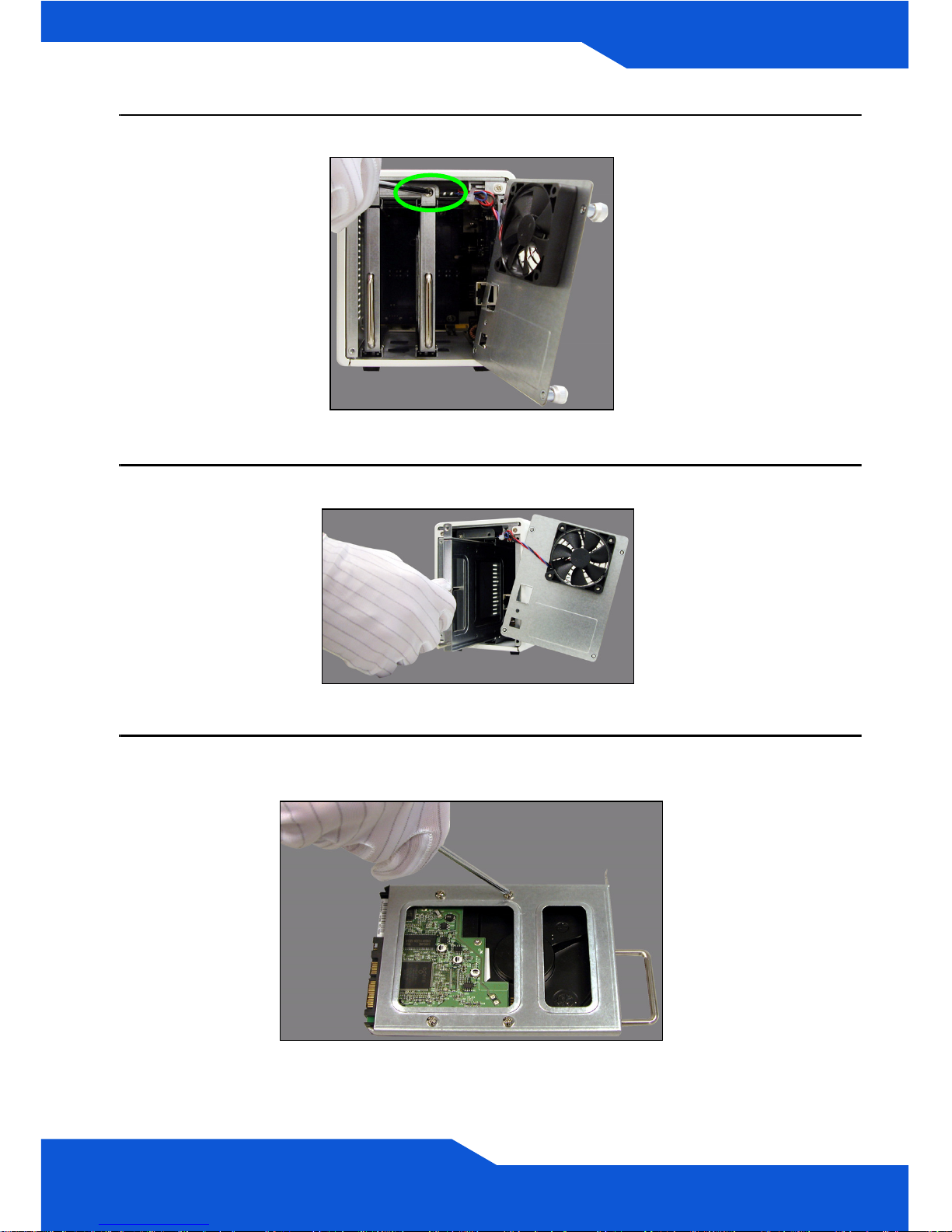

3. Use a screwdriver to remove the retaining screw from a disk tray.

4. Slide the disk tray out.

5. Place the disk on a flat surface with the screw holes facing up. Place the

disk tray on top of it and secure it with the screws as shown.

ENGLISH

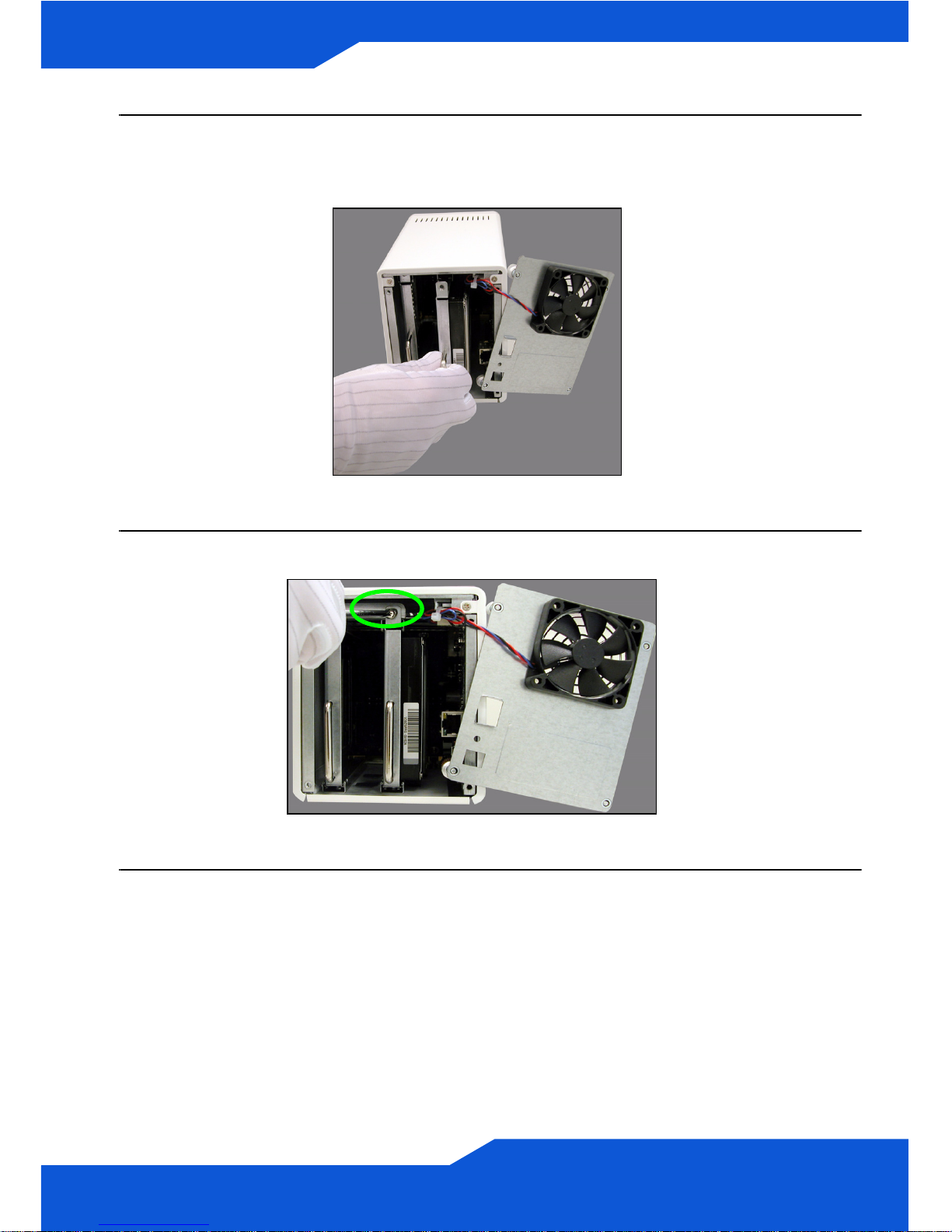

6. Slide the tray back into the disk bay. Make sure the screw hole is at the

top. Push the tray in all the way so the screw hole at the top is flush with

the internal frame.

7. Put the disk tray retaining screw back in.

8. Repeat steps 3to 7for a second hard drive if you have one.

ENGLISH ENGLISH

9. Put the rear panel back on and tighten the thumbscrews.

ENGLISH

Connect the NSA

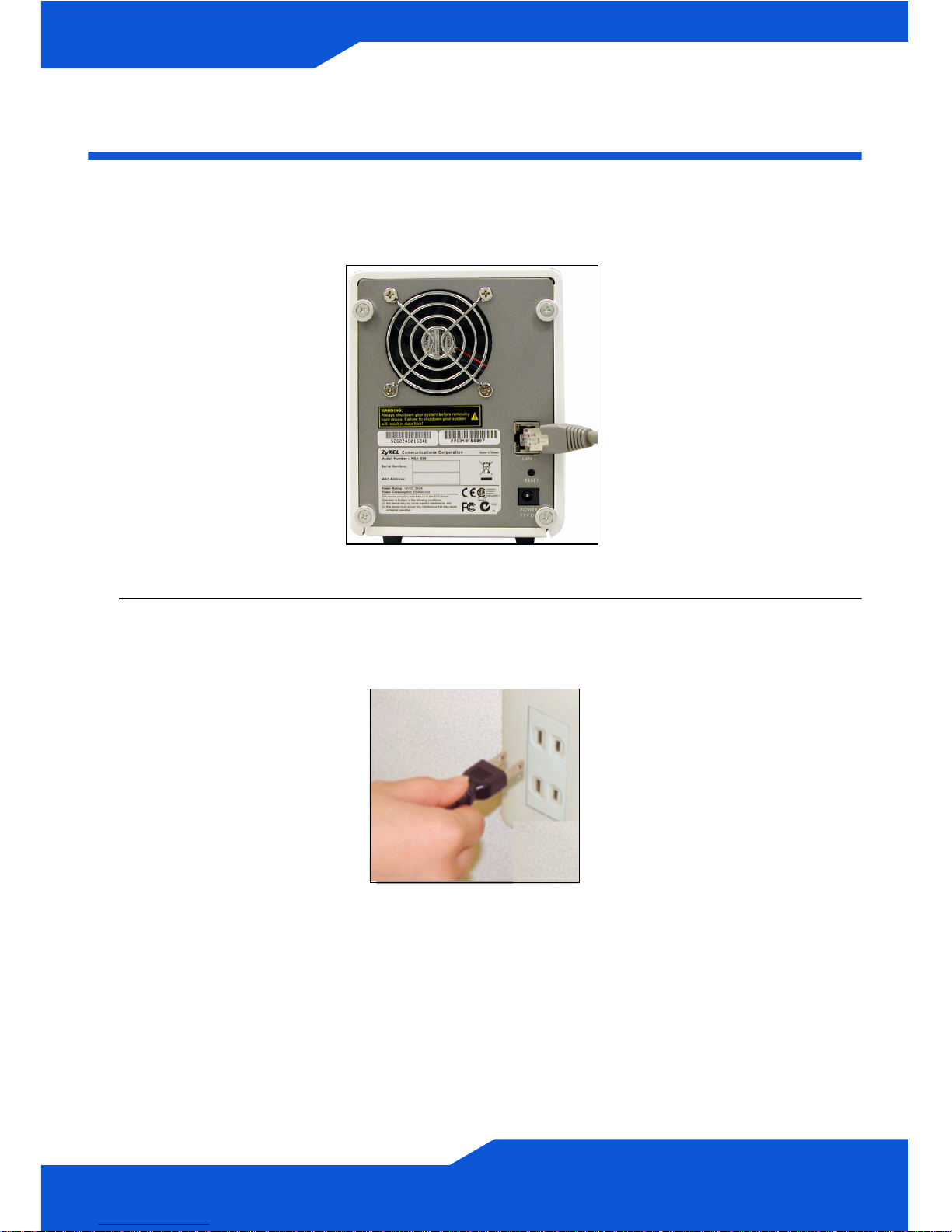

1. Use the included Ethernet cable to connect the LAN port on the rear of the

NSA to a computer, switch, or router on your network.

2. Connect one end of the power cord to the POWER socket on the rear of

the NSA and the other end to the external power supply. Connect the

external power supply to a power outlet.

 Use ONLY the included power supply.
