ZyXEL Communications ZyWALL 70 Manuel utilisateur

ZyWALL 70

Internet Security Appliance

Quick Start Guide

Version 3.62

December 2003

ZyWALL 70 Internet Security Appliance

Introducing the ZyWALL

The ZyWALL 70 is the ideal secure gateway for all data passing between the Internet and the LAN. By

integrating NAT, firewall, VPN capability and wireless LAN, ZyXEL’s ZyWALL 70 is a complete security

solution that protects your Intranet and efficiently manages data traffic on your network. The embedded web

configurator is easy to operate and totally independent of the operating system platform you use.

You should have an Internet account already set up and have been given most of the following information.

Internet Account Information

Your device’s WAN IP Address (if given): __________________

Your device’s WAN Default Gateway (if given): __________________

Your device’s WAN Net Mask (if given): __________________

DNS Server IP Address (if given): Primary _______________, Secondary _______________, Third _______________

Encapsulation: (choose one below)

 Ethernet Service Type: _______________________

User Name: ____________ Password: ____________

 PPTP User Name: ____________ Password: ____________

Your WAN IP Address: ____________ PPTP Server IP Address: ___________

Connection ID (if required): ____________

 PPPoE (PPPoE) Service Name: ____________

User Name: ____________ Password: ____________

Procedure to View a Product’s Certification(s)

1. Go to www.zyxel.com.

2. Select your product from the drop-down list box on the ZyXEL home page to go to that product's page.

3. Select the certification you wish to view from this page.

ZyWALL 70 Internet Security Appliance

1 Hardware Connections

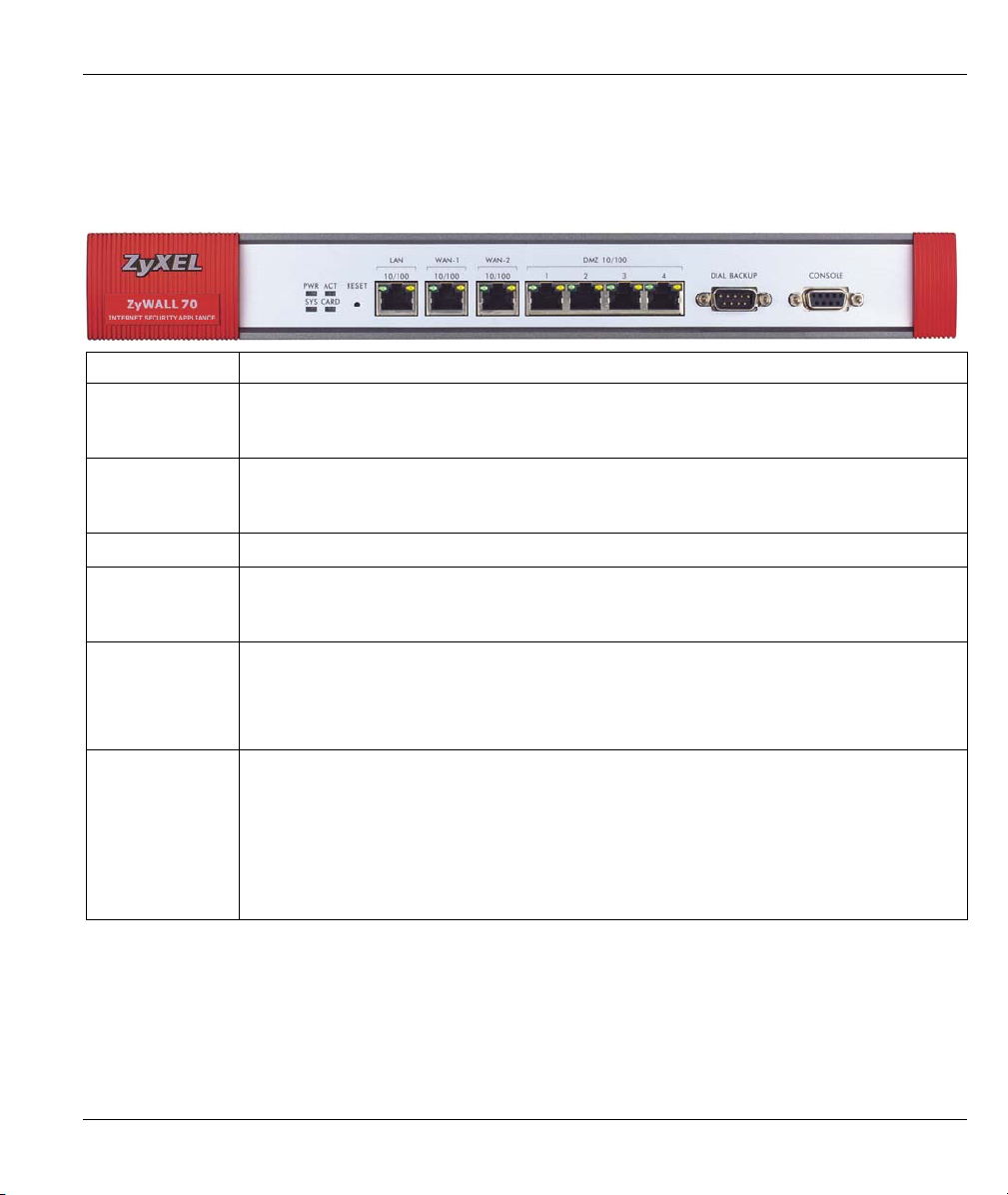

1.1 Front Panel and Connections

LABEL DESCRIPTION

RESET You only need to use this button if you’ve forgotten the ZyWALL’s password. It returns

the ZyWALL to the factory defaults (password is 1234, LAN IP address 192.168.1.1,

terminal emulation settings as described below etc.; see your User’s Guide for details).

LAN Connect a computer to this port with an Ethernet cable. This port is auto-negotiating (can

connect at 10 or 100Mbps) and auto-crossover (automatically adjust to the type of

Ethernet cable you use (straight-through or crossover)).

WAN-1/2 Connect your cable/DSL modem to this port with the cable that came with your modem.

DMZ 10/100M Connect publicly accessible servers (Web, FTP, etc.) to these ports to make them visible

to the outside world. Use Ethernet cables to connect these ports to computers or

switches.

DIAL BACKUP

Only connect this port if you want to set up a backup WAN connection; see your User’s

Guide for details.

Connect the 9-pin female end of your modem or TA cable to this port and the other end

to your modem or TA.

CONSOLE Only connect this port if you want to configure the ZyWALL using the SMT via console

port; see your User’s Guide for details.

Connect the 9-pin male end of the console cable to the console port of the ZyWALL and

the other end to a serial port (COM1, COM2 or other COM port) on your computer. Your

computer should have a terminal emulation communications program (such as

HyperTerminal) set to VT100 terminal emulation, no parity, 8 data bits, 1 stop bit, no flow

control and 9600 bps port speed.

ZyWALL 70 Internet Security Appliance

1.2 Rear Panel and Connections

LABEL DESCRIPTION

Extension Card

Slot Do not insert or remove a card with the ZyWALL turned on.

Turn off the ZyWALL before inserting or removing an 11 Mbps 802.11b-compliant

wireless LAN PCMCIA card (to avoid damage).

Slide the 64-pin connector end of the PCMCIA wireless LAN card into the slot as

shown next.

Do not force, bend or twist the wireless LAN card.

POWER 100-

240VAC

Connect the included power cord (use only this cord) to this power socket.

After you’ve made the connections, connect the power cord to a power supply and push the power switch to

the on position. Look at the front panel LEDs.

ZyWALL 70 Internet Security Appliance

1.3 The Front Panel LEDs

The PWR LED turns on when you connect the power. The SYS LED blinks while performing system testing

and then stays on if the testing is successful. The ACT, CARD, LAN, WAN and DMZ LEDs turn on if the

corresponding connections are properly made. Refer to the following table for more detailed LED

descriptions.

LED COLOR STATUS DESCRIPTION

Off The ZyWALL is turned off.

Green On The ZyWALL is turned on.

PWR

Red On The power to the ZyWALL is too low.

Off The ZyWALL is not ready or has failed.

On The ZyWALL is ready and running.

SYS Green

Flashing The ZyWALL is rebooting.

Off The backup port is not connected.ACT Green

Flashing The backup port is sending or receiving packets.

Off The wireless LAN is not ready, or has failed.

On The wireless LAN is ready.

CARD Green

Flashing The wireless LAN is sending or receiving packets.

Off The LAN is not connected.

On The ZyWALL has a successful 10Mbps Ethernet connection.Green

Flashing The 10M LAN is sending or receiving packets.

On The ZyWALL has a successful 100Mbps Ethernet connection.

LAN

10/100

Orange

Flashing The 100M LAN is sending or receiving packets.

Off The WAN connection is not ready, or has failed.

On The ZyWALL has a successful 10Mbps WAN connection.

WAN-1/2

10/100 Green

Flashing The 10M WAN is sending or receiving packets.

ZyWALL 70 Internet Security Appliance

LED COLOR STATUS DESCRIPTION

On The ZyWALL has a successful 100Mbps WAN connection.Orange

Flashing The 100M WAN is sending or receiving packets.

Off The DMZ connection is not ready, or has failed.

On The ZyWALL is connected to a 100Mbps DMZ.Green

Flashing The 10M DMZ is sending or receiving packets.

On The ZyWALL is connected to a 100Mbps DMZ.

DMZ

10/100

Orange

Flashing The 100M DMZ is sending or receiving packets.

2 Setting Up Your Computer’s IP Address

Skip this section if your computer is already set up to accept a dynamic IP

address. This is the default for most new computers.

The ZyWALL is already set up to assign your computer an IP address. Use this section to set up your

computer to receive an IP address or assign it a static IP address in the 192.168.1.2 to 192.168.1.254 range

with a subnet mask of 255.255.255.0. This is necessary to ensure that your computer can communicate with

your ZyWALL.

Your computer must have an Ethernet card and TCP/IP installed. TCP/IP should already be installed on

computers using Windows NT/2000/XP, Macintosh OS 7 and later operating systems.

Windows 2000/NT/XP

1. In Windows XP, click Start, Control Panel. In Windows 2000/NT, click Start, Settings, Control Panel.

2. In Windows XP, click Network Connections.

In Windows 2000/NT, click Network and Dial-up Connections.

3. Right-click Local Area Connection and then click Properties.

4. Select Internet Protocol (TCP/IP) (under the General tab in Windows XP) and click Properties.

ZyWALL 70 Internet Security Appliance

5. The Internet Protocol TCP/IP Properties screen opens (the

General tab in Windows XP).

- To have your computer assigned a dynamic IP address, click

Obtain an IP address automatically.

-To configure a static IP address, click Use the following IP

Address and fill in the IP address (choose one

from192.168.1.2 to 192.168.1.254), Subnet mask

(255.255.255.0), and Default gateway (192.168.1.1) fields.

6. Click Advanced. Remove any previously installed gateways in

the IP Settings tab and click OK to go back to the Internet

Protocol TCP/IP Properties screen.

7. Click Obtain DNS server address automatically if you do

not know your DNS server IP address(es).

If you know your DNS server IP address(es), click Use the

following DNS server addresses, and type them in the

Preferred DNS server and Alternate DNS server fields.

If you have more than two DNS servers, click Advanced, the

DNS tab and then configure them using Add.

8. Click OK to close the Internet Protocol (TCP/IP) Properties

window.

9. Click OK to close the Local Area Connection Properties

window.

Checking Your Computer’s IP Address

1. In the computer, click Start, (All) Programs, Accessories and then Command Prompt.

2. In the Command Prompt window, type "ipconfig" and then press ENTER. Your computer’s IP address must be in

the correct range (192.168.1.2 to 192.168.1.254) with subnet mask 255.255.255.0 in order to communicate with

the ZyWALL.

ZyWALL 70 Internet Security Appliance

Refer to your User’s Guide for detailed IP address configuration for other Windows and Macintosh computer

operating systems.

3 Configuring Your ZyWALL

Choose one of these methods to access and configure the ZyWALL. This Quick

Start Guide shows you how to use the web configurator wizards only. See your

User’s Guide for background information on all ZyWALL features and SMT

configuration. Click the web configurator online help for screen-specific web help.

 Web Configurator

 SMT (System Management Terminal). Access the SMT via:

o Console port using terminal emulation software

o LAN, WLAN, DMZ or WAN using Telnet

3.1 Accessing Your ZyWALL Via Web Configurator

Step 1. Launch your web browser. Enter “192.168.1.1” as the web site address.

Step 2. The default password (“1234”) is already in the password field (in non-readable format). Click

default password in the password field.

Web site address.

Default password.

ZyWALL 70 Internet Security Appliance

Step 3. It is highly recommended you change the default password! Enter a new password, retype it to

confirm and click Apply; alternatively click Ignore if you do not want to change the password

now.

Step 1. Click Apply in the Replace Certificate screen to create a certificate using your ZyWALL’s

MAC address that will be specific to this device.

Step 4. You should now see the web configurator HOME screen.

 Click Internet Access and VPN Wizard to begin setup wizards screens to help you configure your

ZyWALL for the first time.

 Click a link in the navigation panel to configure that ZyWALL feature.

 Click MAINTENANCE in the navigation panel to upload firmware and back up, restore or upload

a configuration file.

 Click Renew to renew the WAN IP address.

 Click Show Statistics to see ZyWALL performance statistics.

 Click Show DHCP Table to show current DHCP client information.

Change default password.

ZyWALL 70 Internet Security Appliance

 Click VPN Status to display the active VPN connections.

 Click LOGOUT when you have finished a ZyWALL management session. The ZyWALL

automatically logs you out if it is left idle for five minutes; press Refresh to display the Login

screen again and then log back in. This idle timeout timer is one of the many ZyWALL features that

you may edit using the web configurator.

LOGOUT

Navigation panel

Wizards

Autres manuels pour ZyWALL 70

Table des matières

Autres manuels ZyXEL Communications Porte

ZyXEL Communications

ZyXEL Communications AMG1202-T series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications P-660HNU-Tx Manuel

ZyXEL Communications

ZyXEL Communications Prestige 316 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications LTE6101 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZyWALL USG 100 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Unified Security Gateway ZyWALL 300 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications P-660HNT1 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications P-660HW-Tx v3 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZyWALL 10 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZyXEL ZyWALL 5 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Prestige 662HW Series Instructions d'installation

ZyXEL Communications

ZyXEL Communications 35 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ADSL2+ 4-port Gateway P-660H-D Series Manuel

ZyXEL Communications

ZyXEL Communications Prestige 2302R Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZyWALL 10 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications USG310 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications P-870HN-51D Manuel utilisateur

ZyXEL Communications

ZyXEL Communications P-660HN-51 - Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Prestige 660H Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications UAG4100 Guide de référence rapide

ZyXEL Communications

ZyXEL Communications P-2302HW-P1 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications P-2304R-P1 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NSG50 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications P-794H Manuel utilisateur

Manuels Porte populaires d'autres marques

LST

LST M500RFE-AS Manuel utilisateur

Kinnex

Kinnex Media Gateway Manuel utilisateur

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur

Telsey

Telsey CPVA 500 - SIP Manuel utilisateur

RTA

RTA 460A-NNA4 Fiche technique

Shaw

Shaw Gateway HDPVR Manuel utilisateur

ABB

ABB VSN900 Guide de démarrage rapide

Commander

Commander Pulse Manuel utilisateur

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuel utilisateur

NETGEAR

NETGEAR C6300BD Manuel utilisateur

Amit

Amit CDW531AM Manuel utilisateur

HMS

HMS Netbiter EasyConnect EC150 Manuel utilisateur

Huawei

Huawei EchoLife HG620 Manuel utilisateur

AT&T

AT&T U-verse 3801 Manuel d'utilisation et d'entretien

Logic IO

Logic IO RTCU MX2 turbo Manuel utilisateur

Suttle

Suttle MediaMAX MXM-521 Manuel utilisateur

RTA

RTA 460MCBC-N2E Fiche technique
