ZyXEL Communications VDSL2 Manuel utilisateur

VMG1312-B10A

Wireless N VDSL2

4-ports Gateway

with USB

VMG1312-B10A

Wireless N VDSL2

4-ports Gateway

with USB

Benefits

VDSL2 High-speed Internet access

The VMG1312-B10A provides VDSL2 of up to profile 17a with data rates of up to 100 Mbps in

downstream direction and 45 Mbps upstream.The VDSL2 technology supports the widespread

deployment base of triple-play services such as voice,video, data,high-definition television (HDTV)

and interactive gaming; it also enables operators and carriers to gradually, flexibly and cost

efficiently upgrade the existing xDSL-infrastructure.

802.11n Wireless access

With the 802.11n technology built-in, the VMG1312-B10A provides the ultimate solution for speed

and coverage.With data rates of up to 300 Mbps, it provides stable, reliable wireless connections

for high-speed data and multimedia delivery. It eliminates dead zones and extends coverage by

employing the latest IEEE 802.11n technology,and it is backward compatible with any IEEE 802.11

b/g/n-certified device.

TR-069 remote management support

With compliance to the TR-069 standard management specifications,service providers are able to

manage and configure client devices remotely without manual intervention from end-users.This

unique feature not only offers users with true“plug-and-play”experience, but also reduces the

complexity of deployment and therefore saves operating and maintenance costs for service

providers.

3G backup support

With the built-in USB interface for a 3G dongle, the VMG1312-B10A can offer home users the

flexibility to share either a 3G WAN or a xDSL connection with all users in their network when

either connection is available without any configuration required.

Very High-speed 802.11n VDSL2

Wireless Gateway with USB

■

VDSL2 High-speed

Internet access

■

802.11n Wireless access

■

TR-069 remote

management support

■

3G backup support

5-100-01311041 03/12

For more product information, visit us on the web at www.ZyXEL.com

ZyXEL Communications Corp. All other brands, product names, or trademarks mentioned are the property of their

respective owners. All specifications are subject to change without notice.

Power switch

Power

Reset button

EthernetDSL USB

WLAN/WPS

Phone

LAN PC

802.11 b/g/n

IPTVSTB

Home/Residential

VMG1312-B10A

Wireless N VDSL2

4-ports Gateway

with USB

ATA

POTS

Splitter

Wall Jack

ADSL2+/VDSL2 WAN

Internet

P-600series

LANDSLINTERNET

1234

Printer3G Dongle

VDSL/ADSL

WAN Access

3G WAN Access

IP DSLAM

3G Statio n

VMG1312-B10A

Wireless N VDSL2 4-ports

Gateway with USB

VMG1312-B10A

Wireless N VDSL2 4-ports

Gateway with USB

System Specifications

VDSL Compliance

• ITU-T G.993.1 VDSL1 Annex A

• ITU-T G.993.2 VDSL2 Annex A, band plan 997,

998

• Support VDSL profile: 8a/b/c/d, 12a/b, and 17a

• Rate adaption

• Seamless Rate Adaption (SRA)

• INP: up to 16 symbols

• PTM mode

• G.INP

• PhyR configurable

ADSL Compliance

• ITU-T G.992.1 (G.dmt) Annex A compliant

• ITU-T G.992.2 (G.lite) Annex A compliant

• ITU-T G.992.3 (ADSL2) Annex A compliant

• ITU-T G.992.5 (ADSL2+) Annex A compliant

• Reach-Extended ADSL (RE ADSL)

• SRA

• Support VC-based and LLC-based multiplexing

WLAN

• IEEE 802.11 b/g/n compliance

• Frequency: 2.4 GHz

• Data rate: 300 Mbps

• WPA/WPA-PSK,WPA2/WPA2-PSK

• WEP data encryption 64/128 bit

• Wireless Protected Setup (WPS)

• Multi SSID (up to 4) and hidden SSID support

USB

• Printer server

• File sharing

• 3G backup support

Bridge/Router

• PPPoE (RFC2516)

• PPPoA (RFC2364)

• DHCP client/server/relay

• DNS proxy

• Dynamic DNS

• RIP I/RIP II supported

• UPnP

• Static/policy route

• QoS classification route

Firewall/Security

• PAP and CHAP support

• MS-CHAPv1 and v2 support

• Stateful Packet Inspection (SPI)

• DoS Attack Prevention

• Parental Control

QoS

• Queuing and scheduling

• Queue management

Management

• Web

• Command Line Interpreter (CLI) via SSH or Telnet

• Firmware upgrade via Web/FTP/TFTP

• DSL forum TR-069, 098

• DSL forum TR-064,TR-111

• Configurable access control for remote

management

Hardware Specifications

• WAN: One RJ-11 port for VDSL2/ADSL2+ over

POTS

• LAN: Four Fast Ethernet ports

• WLAN:Two internal 2 dBi antennas

• USB: One for USB2.0 host interface

• WLAN/WPS button:One real button for WLAN

on/off and WPS configuration

• Reset/Restore button: One real button for

restore factory default settings

• Status LED indicator: Power, Ethernet, DSL,

Internet, WLAN/WPS, USB

Physical Specifications

• Item dimensions (WxDxH):

186 x 121 x 39 mm (7.32”x 4.76”x 1.54”)

• Item weight: 245 g (0.54 lb.)

• Packing dimensions (WxDxH):

300 x 195 x 50 mm (11.81”x 7.68”x 1.97”)

• Packing weight: 540 g (1.19 lb.)

Environmental Specifications

Operating Environment

• Temperature: 0°C to 40°C (32°F to 104°F)

• Humidity: 20% to 95% RH (Non-condensing)

Storage Environment

• Temperature: -30°C to 60°C (-22°F to 140°F)

• Humidity: 20% to 95% RH (Non-condensing)

Certification

EMC

• EN55022 Class B

• EN61000-3-2, EN61000-3-3

Safety

• EN60950-1

• IEC60950-1

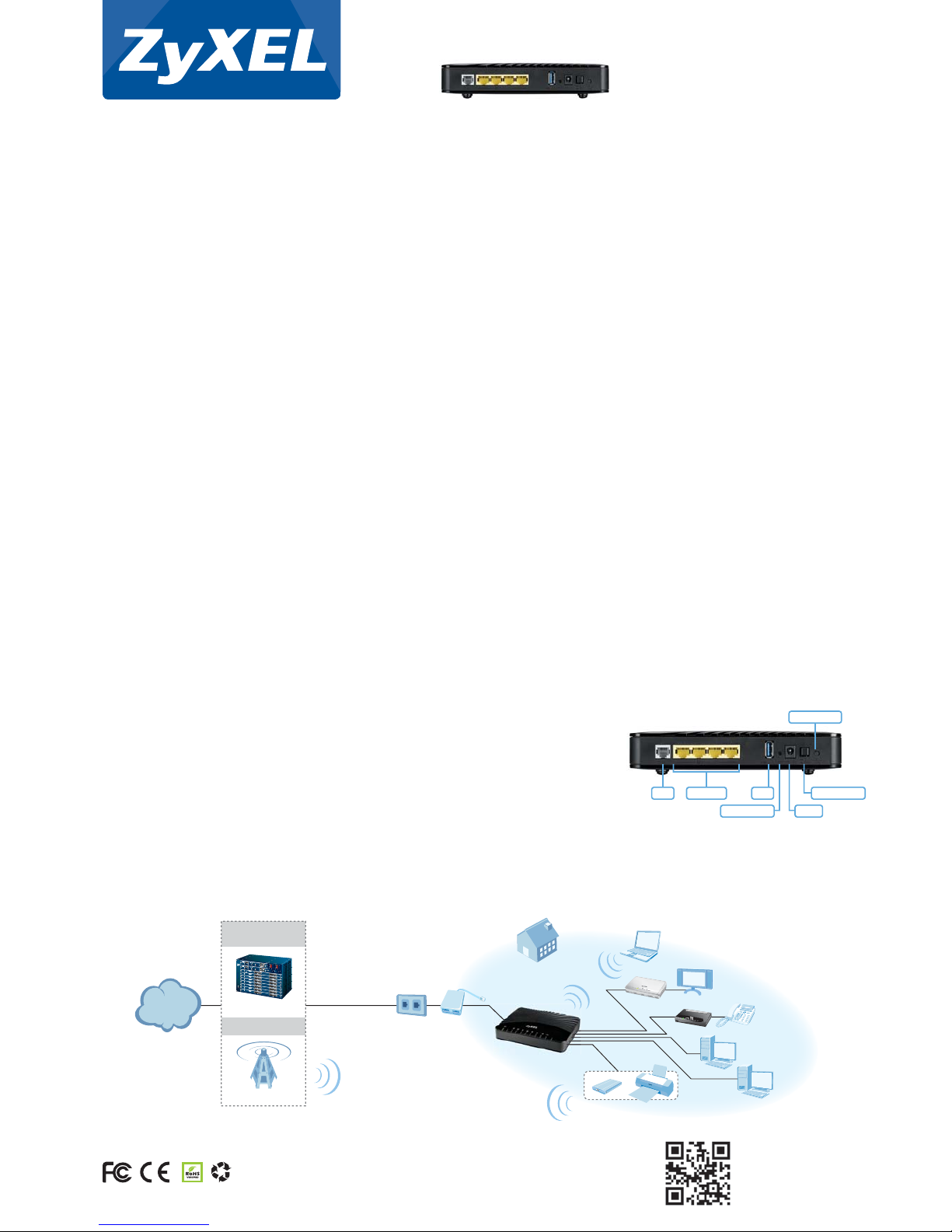

Rear Panel

Specifications

Application Diagram
