ZyXEL Communications SBG3500-N Series Manuel utilisateur

SBG3500-N Series

Wireless N Fiber WAN Small Business

Gateway

Version 1.00

Edition 1, 9/2014

Default Login Details

LAN IP Address http://192.168.1.1

User Name admin

Password 1234

Quick Start Guide

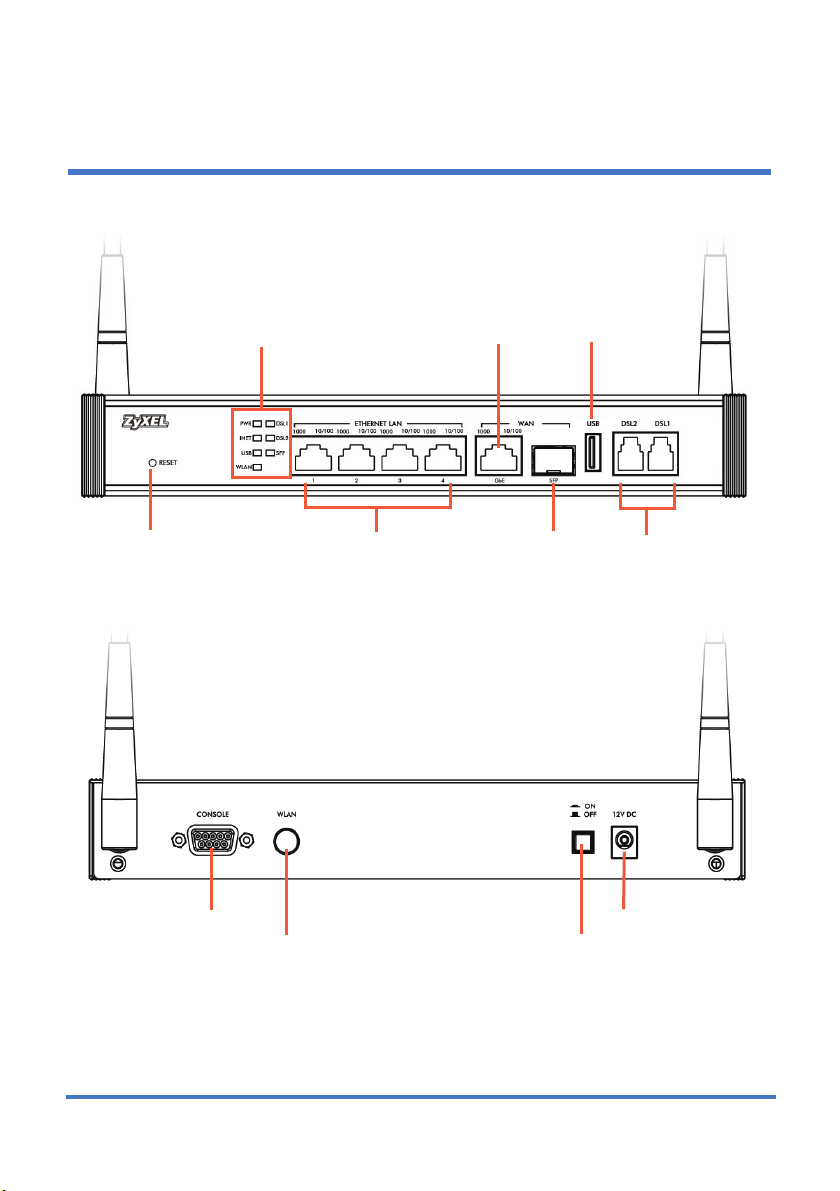

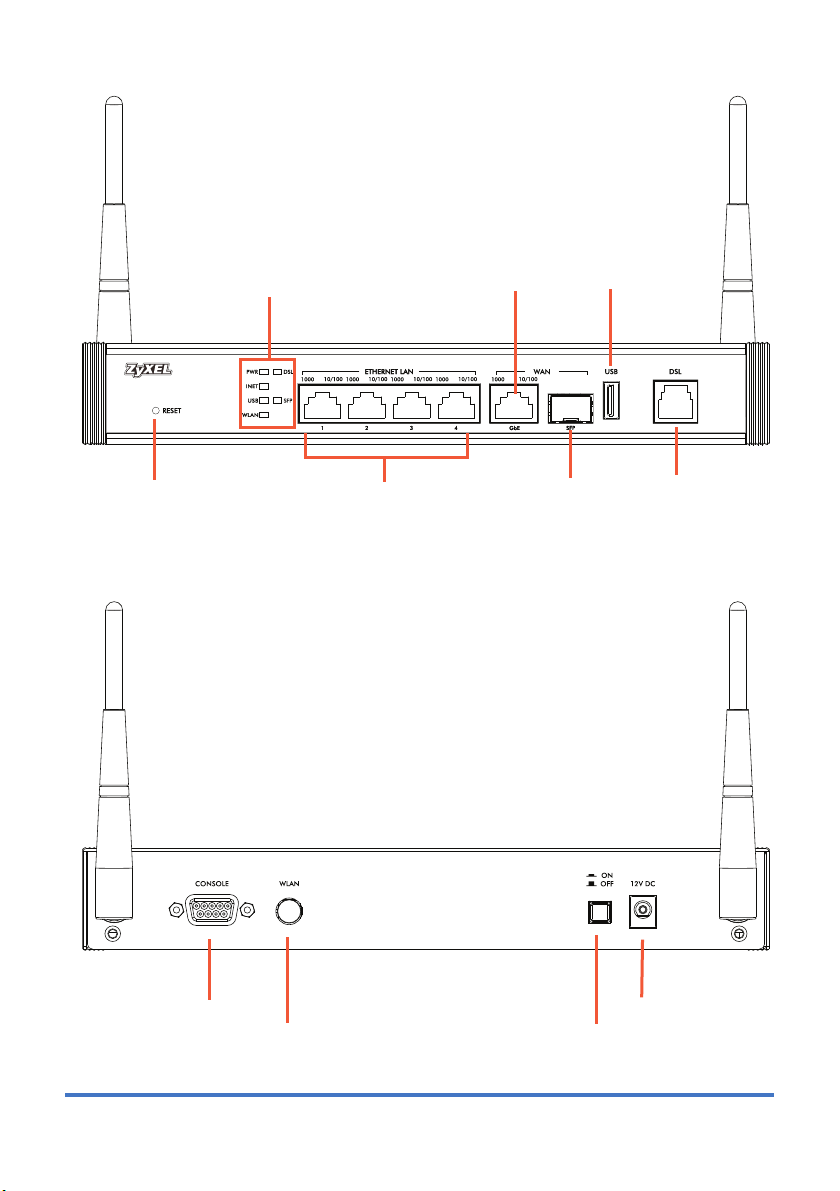

Device Panels

RESET DSL

GBE USB

SFP

LEDS

LAN 1-4

ON/OFF

POWER

WLAN

CONSOLE

SBG3500-N

RESET DSL

GBE USB

SFP

LEDS

LAN 1-4

ON/OFF

POWER

WLAN

CONSOLE

SBG3500-NB

Requirements

Make sure you have the following before you start:

• INTERNET ACCESS: You need an Internet account with an ISP (Internet

Service Provider) and information such as your user name, password, and

so on.

• WEB BROWSER: Internet Explorer 8.0 and later versions, with JavaScript

enabled, or Mozilla Firefox 3 and later versions, Chrome, or Safari 2.0 and

later versions. The browser will be used to access the Internet and/or

access the Web Configurator.

Hardware Setup

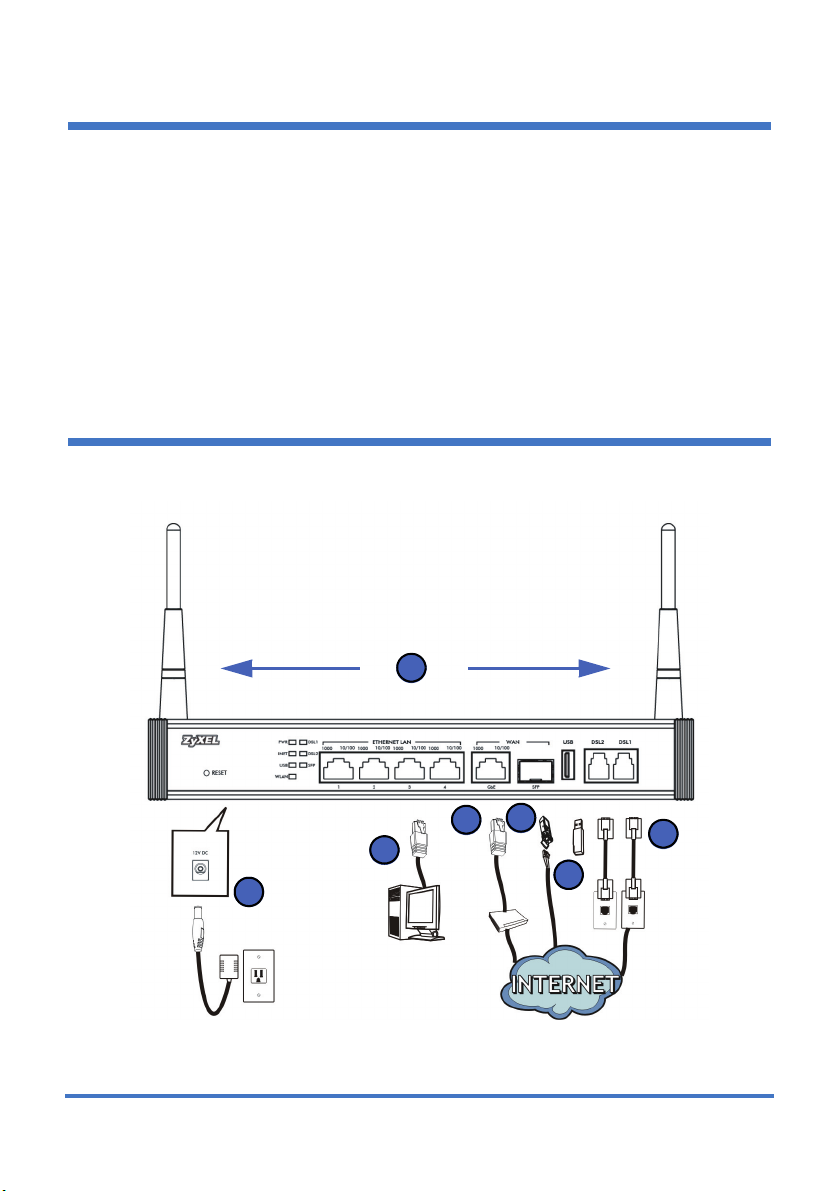

To connect the SBG3500-N:

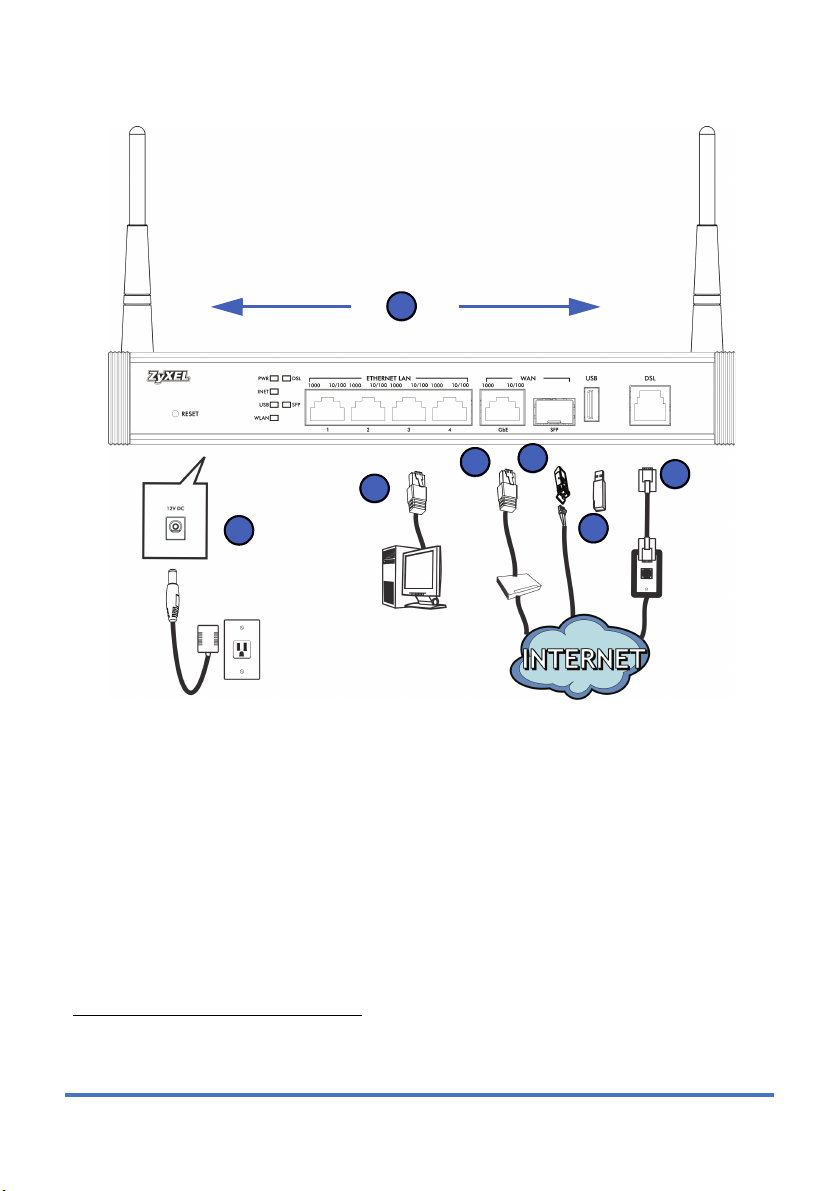

To connect the SBG3500-NB:

1. Attach the antennas and point them up.

2. Do one of the following to connect to the Internet.

a. DSL: Use a telephone cable to connect your Device’s DSL port to a

telephone jack (or the DSL or modem jack on a splitter if you have one).

If your ISP supports DSL bonding, you can connect DSL1 and DSL2 to two

separate telephone jacks and enable the bonding feature for increased

throughput at longer distances. See the User’s Guide for how to enable

bonding in the Web Configurator. 1

1. Applies to the SBG3500-N000.

b. SFP: If fiber access is available, insert a fiber optic SFP module and

connect the fiber optic cable for Internet access. (See Transceiver

Installation and Removal on page 8for more information on SFP module.)

c. GbE: If you already have a broadband router or modem, use an Ethernet

cable to connect the GbE port to it for Internet access.

You can also have DSL with a fiber (SFP) connection or DSL with a

broadband (GbE) connection, depending on the service your ISP supports.

Fiber (SFP) and broadband (GbE) connections cannot be used at the

same time.

3. ETHERNET LAN: Use an Ethernet cable to connect a computer to an

Ethernet port for initial configuration and/or Internet access.

4. USB: Do one of the following USB connections:

a. Connect a USB (version 2.0 or lower) memory stick or a USB hard drive

for file sharing. The Device automatically detects the USB device.

b. Insert a 3G adapter to access the Internet wirelessly via a 3G network.

5. 12V DC: Use the provided power adaptor to connect the 12V DC socket at

the Device’s rear panel to an appropriate power source. Make sure the

power at the outlet is on. After connecting the power adaptor, look at the

lights on the front panel.

• The PWR light blinks while your Device starts up and then stays on once it

is ready.

• The DSL light is green when your Device has an ADSL connection. It is

orange when you have a VDSL connection. The DSL2 light comes on

when using DSL bonding1.

• The INET light turns on when the gateway is able to access the Internet.

• The USB light turns on when your Device detects a connected USB device

and blinks when there is traffic.

1. Applies to the SBG3500-N000.

• The SFP light turns on after your Device has a fiber connection and blinks

when there is traffic.

• The WLAN light flashes green when WLAN is activated. It stays on green

when the wireless LAN is ready and blinks when there is traffic.

• The green light of an ETHERNET LAN port is on if the there is a 1G LAN

connection. The yellow light is on if there is a 10/100M LAN connection.

The light blinks when there is LAN traffic.

• The green light of the GbE port is on if the there is a 1G WAN connection.

The yellow light is on if there is a 10/100M WAN connection. The light

blinks when there is WAN traffic.

If the lights do not come on, check your connections and inspect your cables for

damage. If the lights are still off, contact technical support.

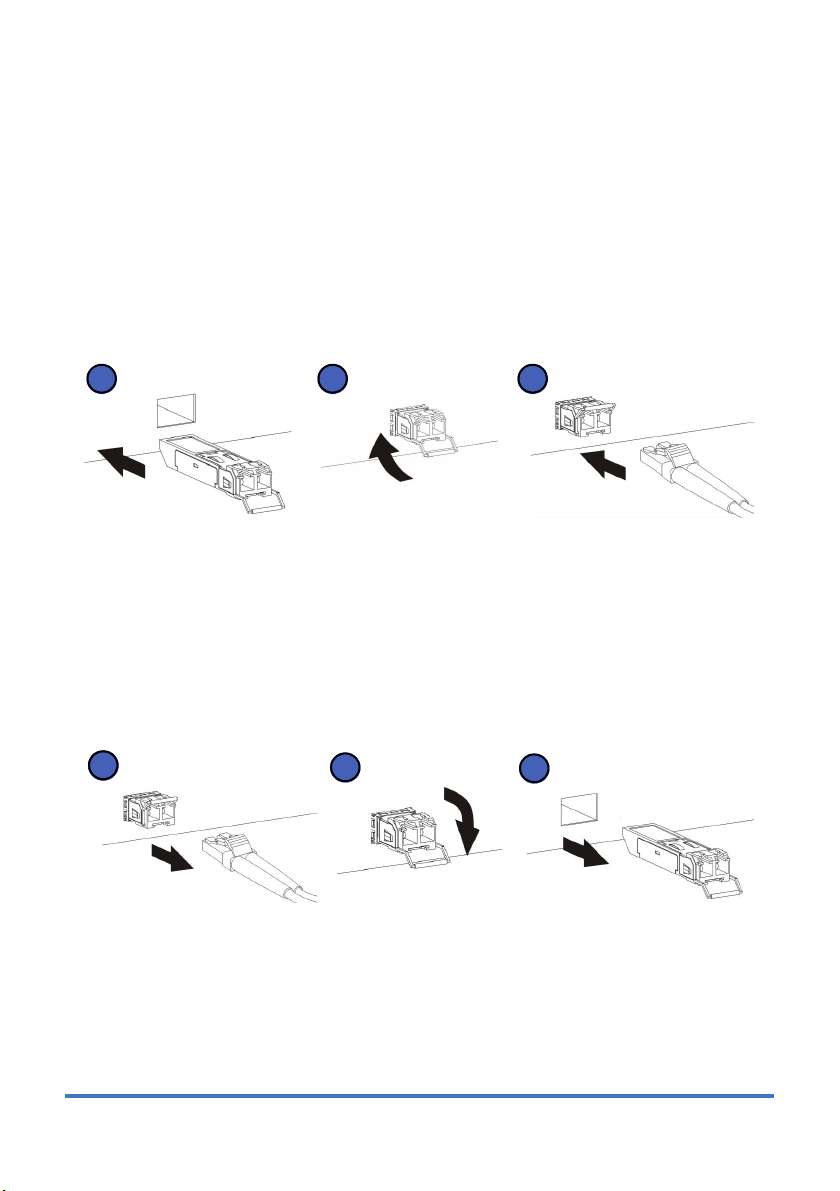

Transceiver Installation and Removal

Use the following steps to install a mini-GBIC transceiver (SFP module).

1. Insert the transceiver into the SFP slot.

2. Press the transceiver firmly until it clicks into place and close the

transceiver’s latch.

3. Connect the fiber optic cables to the transceiver.

Use the following steps to remove a mini-GBIC transceiver (SFP module).

1. Remove the fiber optic cables from the transceiver.

2. Open the transceiver’s latch.

3. Pull the transceiver out of the SFP slot.

2 31

11 23

Set Up a Wireless Network

You can set up a wireless network manually:

The wireless LAN on your SBG3500-N Series is enabled by default. To add a

wireless client to the network, use the settings found on the bottom panel of

your SBG3500-N Series, which will look similar to the following example:

Configure wireless devices that you want to connect to the wireless network to

use the same wireless settings as the SBG3500-N Series.

The default wireless settings vary for each SBG3500-N Series. Refer to the

bottom panel of your device and use the provided information.

The Web Configurator

The Web Configurator is a web browser tool that allows you to configure the

Device. Your computer and the Device need to be in the same IP address range

to use this tool.

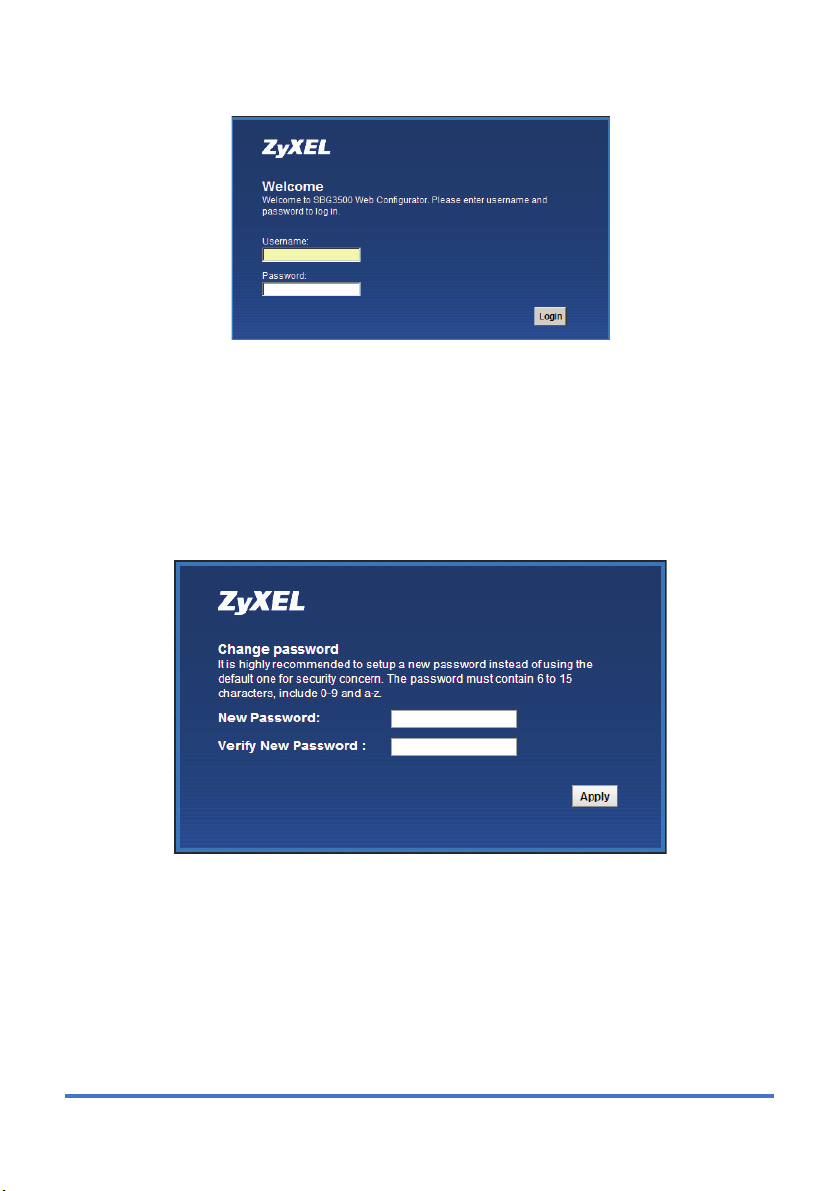

1. Open your browser and enter http://192.168.1.1 (the Device’s default IP

address) as the address.

SSID: ZyXEL0A561

WPA2-PSK: FB373BD35636BC45

2. Enter the default user name admin and password 1234. Click Login.

If the login screen does not open, make sure you allow web browser pop-up windows,

JavaScript and Java permissions. Your computer should be also set to get an IP

address automatically from a DHCP server. See the appendices in your User’s Guide

for more information.

3. Enter your new login password in the New Password field. Re-type your

new password in the second field and then click Apply. The login screen

displays for you to re-login with your new login password.
