ZyXEL Communications MAX-506 - V1.00 Manuel utilisateur

www.zyxel.com

MAX-506

WiMAX MIMO USB Dongle

(2.5GHz)

Version 1.00

Edition 1, 12/2009

2009 ZyXEL Communications Corporation

ENGLISH

Device

POWER / LINK

USB CONNECTOR

ENGLISH

About the MAX-506

Your MAX-506 is an IEEE 802.16e compliant WiMAX

MIMO 2.5 GHz USB Dongle for your computer. It uses

Multiple-Input, Multiple-Output (MIMO) antenna

technology to deliver high speed wireless Internet.

How It Works

The MAX-506 connects to a computer (A). This allows

the computer to connect wirelessly to a WiMAX base

station (B), which provides very high speed access to

the Internet and all the content it offers.

Before You Begin

Ensure that you have all the items listed below and that

your computer meets the minimum system

requirements.

What You Need

• The MAX-506 USB Dongle

• Quick Start Guide

Minimum System Requirements

• A computer with a free USB slot

• Windows 7, Vista or XP (Service Pack 2 or later)

• 50 MB available hard disk space

ENGLISH

Installation

The installation procedure is similar for all supported

Windows versions.

1. Locate an available USB port on the computer.

2. Remove the protective cap to expose the MAX-506’s

USB connector. Insert it into an available USB port

on the computer.

3. Once Windows recognizes the device, a disc icon

appears in your Windows Explorer. This virtual CD

contains the installation program for the device

drivers and the MAX-506 Utility.

4. Double-click the MAX506.exe setup program.

5. When the Wizard opens, follow the on-screen

instructions. This installs both the MAX-506 device

drivers and the MAX-506 Utility.

ENGLISH

6. Remove the MAX-506 from the USB slot, then

reconnect it to engage the installed device drivers.

On some versions of Windows, the New Hardware

Wizard may open. If it does:

1. Select No, not this time and then click Next.

2. Select Install from a list or specific location

(Advanced) then click Next.

3. Select Include this location in the search then

browse to the folder where the MAX-506 Utility is

installed on your computer (usually C:\Program

Files\ZyXEL\MAX-506). Click Next.

ENGLISH

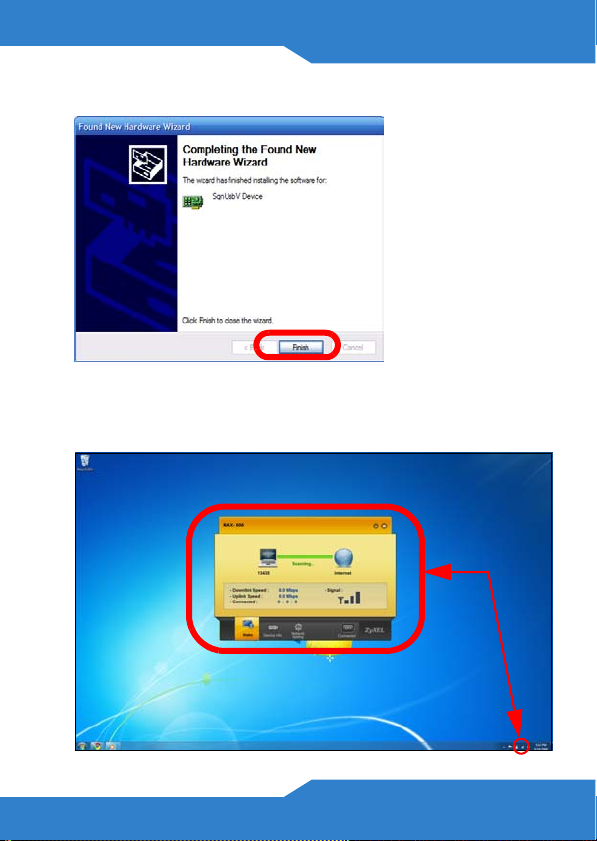

4. On the setup complete screen, click Finish.

5. The MAX-506 Utility opens and a connection status

icon appears in the system tray.

Connect to a WiMAX Network

You need information provided by your service provider

for this section. If you do not have this information,

check with your service provider.

1. First, open the MAX-506 Utility. You can either Click

Start > Programs > ZyXEL > MAX-506 > ZyXEL

MAX-506 Utility, or double-click the connection

status icon in your Windows system tray to open it.

2. When the MAX-506 Utility opens, you are not initially

connected to anything yet.
